Moon 820S External Power Supply


Moon 820S External Power Supply

In order to constantly push the limits of sound purity, the power supply MOON 820S was created through painstaking R&D and a passion for perfection.
Product Colour
- Optional
- Optional
- Optional

impressive performance upgrades

“Even if you only pair the 820S with one component, the upgrade is substantial enough to invest.”
– Jeff Dorgay, TONEAudio

can power up to two units

engineered for both digital and analog products

product features

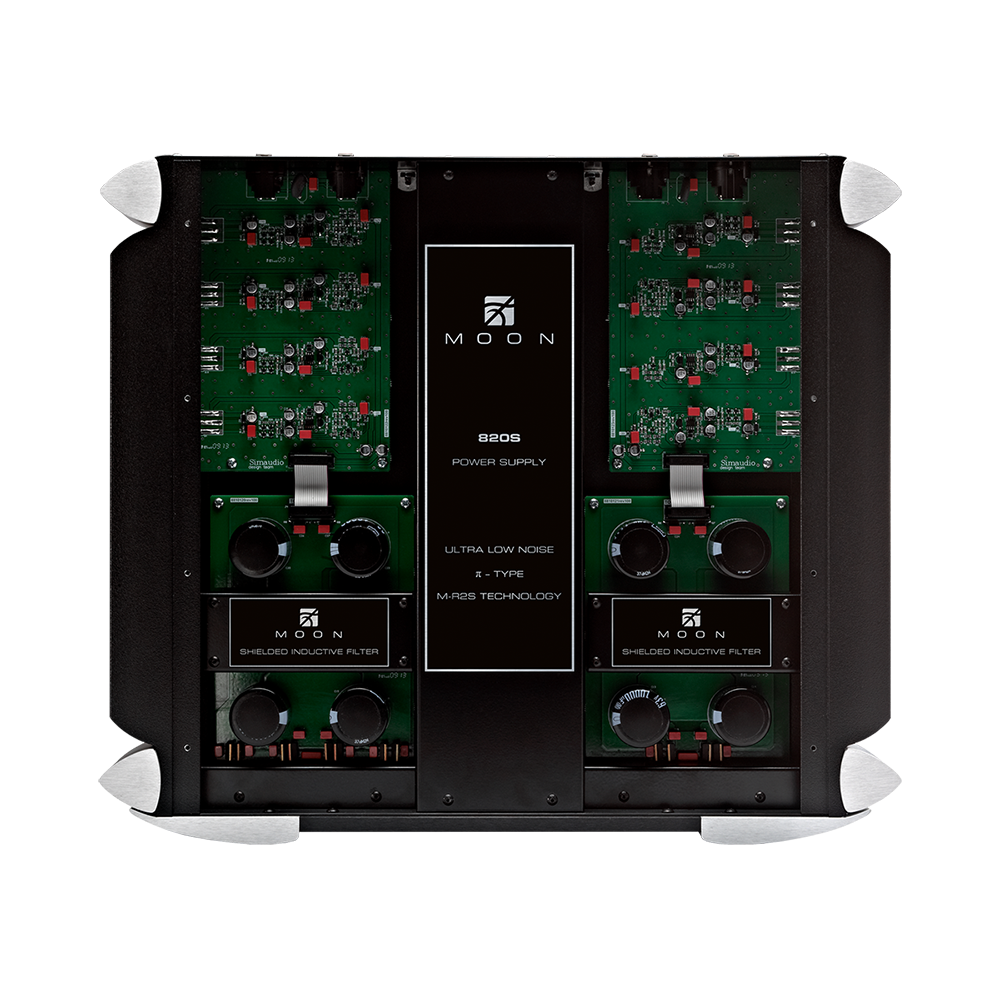

  • Two custom proprietary toroidal transformers with lower magnetic, electrical and thermal loss, for an improved power transfer and a lower regulation factor. The result is increased current speed and better dynamics; one each for analog and digital power supplies.
  • The analog and digital power supplies each have 2 special “pi-type” filters after the inital voltage rectification stage that reduce AC transmission noise, using 40,000uF of capacitance (4 x 10,000 uF) and dual choke inductance (2x 20mH).
  • The analog and digital supplies each have 4 stages of our proprietary M-R2S circuit; A fully discrete voltage regulation circuit using a “precision reference” feeding an amplifier made up of numerous IC’s and transistors as opposed to a single voltage regulation chip. M-R2S outputs pure DC power that is exceptionally fast, very precise, has a virtually unmeasureable noise level, as well as absolute stable voltage.
  • 4-Layer printed circuit boards with pure copper tracings and extremely low impedance characteristics yielding much shorter signal paths and drastically reduced noise levels.

in the box

  • power supply
  • 9 AC power cable

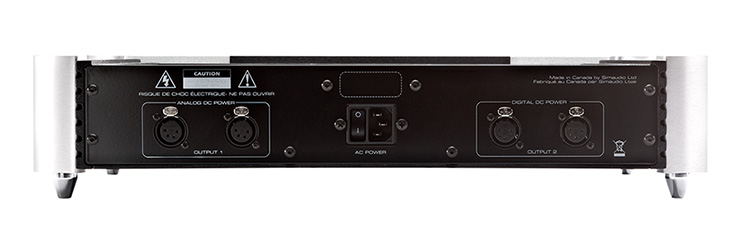

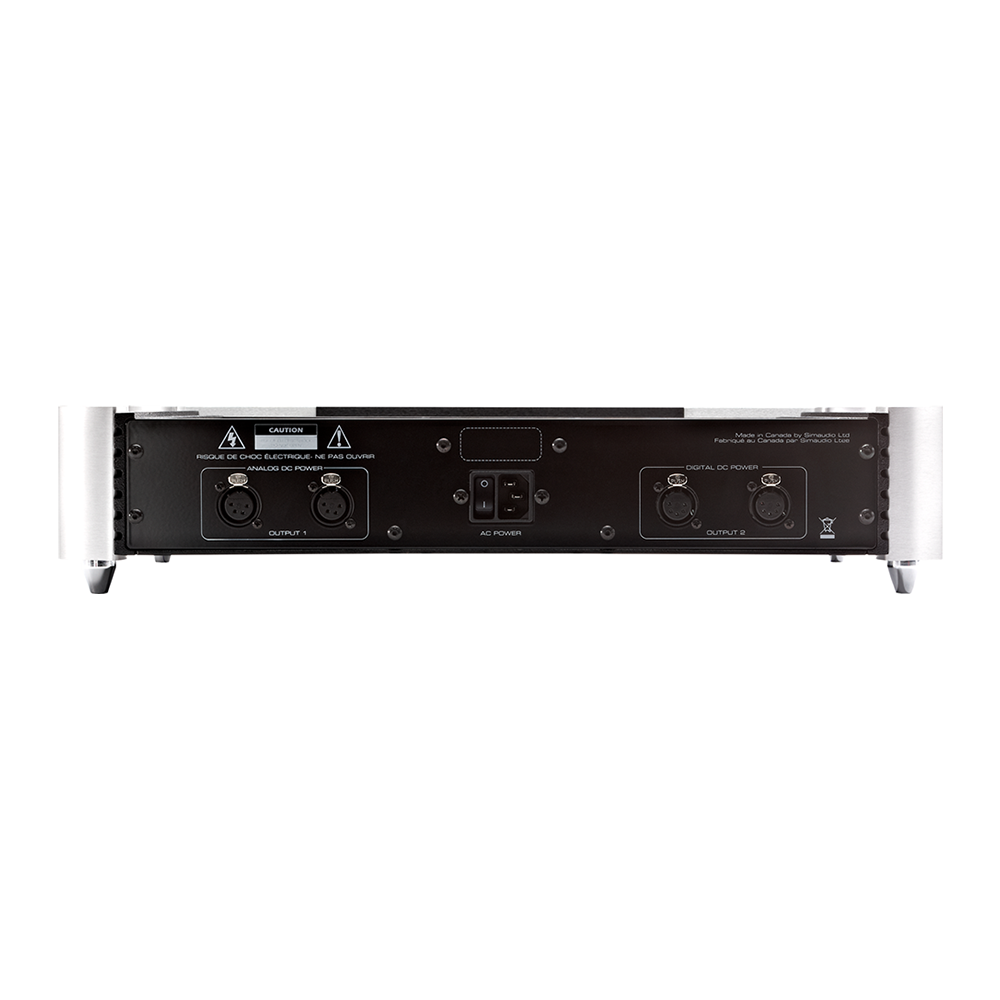

  • Two (2) 4-Pin XLR cables for analog section DC power
  • Two (2) 5-Pin XLR cables for digital section DC power
  • Owner’s manual


  • Ultra rigid chassis construction to minimize the effects of external vibrations.
  • Accurate matching of the very finest quality electronic components in a symmetrical circuit design.
  • Designed to be powered up at all times for optimal performance.
