MOON 740P Single Chassis Reference Balanced Preamplifier

MOON

MOON 740P Single Chassis Reference Balanced Preamplifier

Price
£9,600.00
The MOON 740P Preamplifier is a dual-mono fully balanced differential design, following in the footsteps of the reference 850P preamplifer.
Product Colour
- Optional
- Optional
- Optional

feature rich: input labelling, gain offset

“The 740P is a well-built preamplifier that’s rich in features and easy to use – it performs all switching flawlessly, and handles volume control better than any other I’ve used.”
– Doug Schneider, SoundStage!

Transparent, open and detailed sonics

“The stereo image has substantial width, exceptional dynamics and incredible depth.”
– Hxos (Greece)

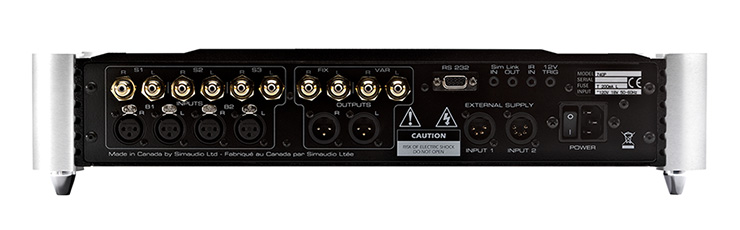

MOON 740P rear view

product features

  • Power supply voltage regulation includes i 2 DCf (Independent Inductive DC Filtering); 1 inductor for each and every IC in the audio circuit’s signal path – 24 stages in all.
  • 4 stages of our M-LoVo (MOON Low Voltage DC regulation); a highly sophisticated circuit virtually free of noise, yielding exceptionally fast, precise, and very stable DC voltage.
  • Gain offset adjustment of ±10dB for each line input.
  • Fully compatible with 820S external power supply.
  • Each line input is fully configurable to be “home theater ready”, whereby the 740P’s volume control is bypassed.

in the box

  • preamplifier
  • AC power cable 9 FRM-3 remote control with three ‘AAA’ batteries
  • SimLink™ cable with 1/8” mini plug terminations on each end
  • Owner’s manual
Specifications
  • Number of inputs - XLR / RCA: 2 pairs / 3 pairs
  • Input Sensitivity: 200mV - 4.0V RMS
  • Input Impedance: 22,000Ω
  • Gain: 9dB
  • Number of Output - XLR / RCA: 1 pair / 2 pairs (fixed + variable)
  • Signal-to-noise Ratio (20Hz-20kHz): 120dB @ full output
  • Frequency response (full range): 5Hz - 100kHz ±0.1dB
  • Crosstalk @ 1kHz: 116dB
  • Output impedance: 50Ω
  • THD (20Hz - 20kHz): 0.001%
  • Intermodulation distortion: 0.0003%
  • Shipping weight: 35 lb / 16 kg
  • Dimensions in inches: Width 18.75", Height 4.0", Depth 16.5"
  • Dimensions in cm: Width 47.6cm, Height 10.2cm, Depth 41.9cm
