Moon 650D DAC and CD Transport

Moon

Moon 650D DAC and CD Transport

Price
£7,900.00
Like two products in one: CD Player + 32-bit DAC
Product Colour
- Optional
- Optional
- Optional

like two products in one: CD Player + 32-bit DAC

Proprietary CD drive system mounted on Moon's MQuattro gel-based 4-point floating suspension for vibration damping.
True 32-bit asynchronous Digital-to-Analog converter.

MQA pass-through

The MOON 650D features “MQA pass-through” capability. The MQA encoded data on the disc will be sent through the digital output such that an MQA certified DAC will decode it and give you the full performance that MQA offers.

analog-like rich sound giving listening pleasure

“The 650D's soul is as analog as it is digital.” – Doug Schneider, SoundStage!

amazing detail retrieval giving outstanding sound clarity

“I was struck by the 650D DAC's consistent overall sound: unusually transparent, delicately drawn, and ethereal, with an almost complete absence of digital glare and hardness.”
– Michael Fremer, Stereophile

design features

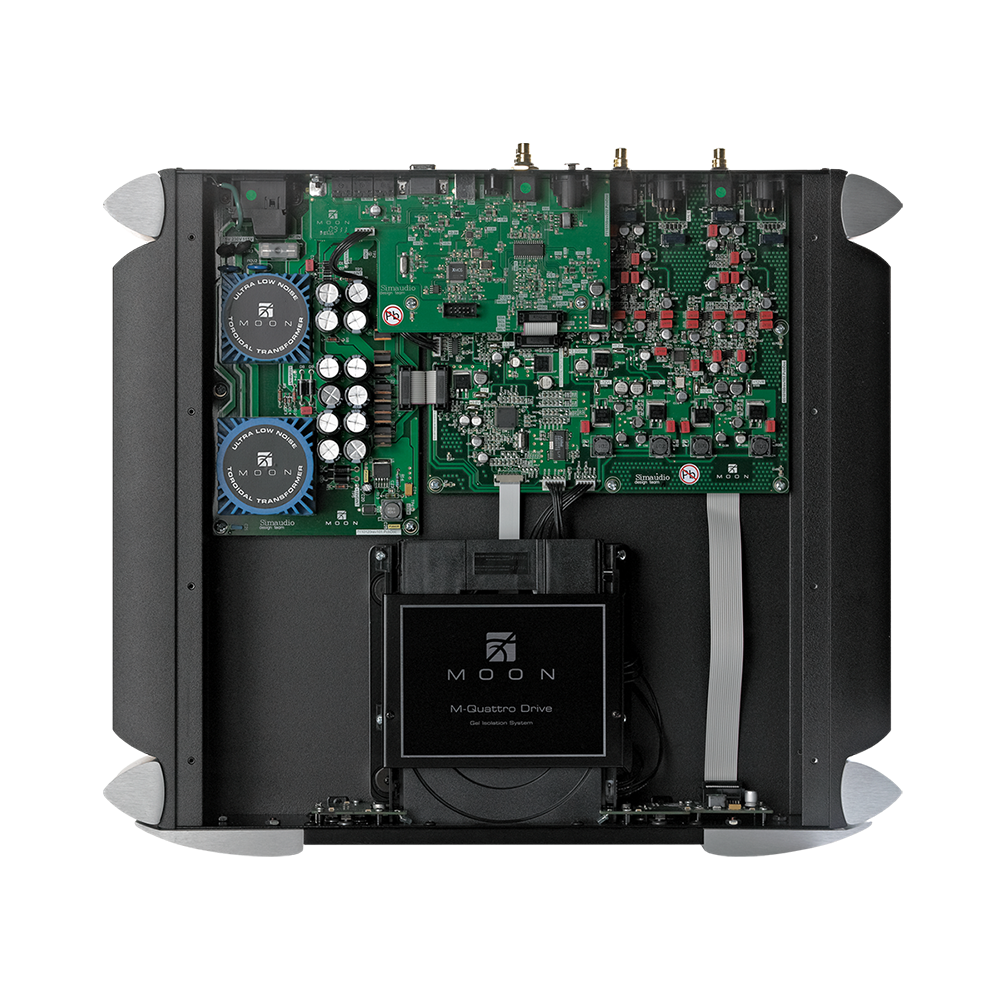

  • proprietary CD drive system mounted on Moon's M-Quattro gel-based 4-point floating suspension.
  • separate digital and analog power supplies, each with their own toroidal transformer.
  • power supply voltage regulation includes i2 DCf (Independent Inductive DC Filtering); 1 inductor for each and every IC in the audio circuit’s signal path – 18 stages in all.

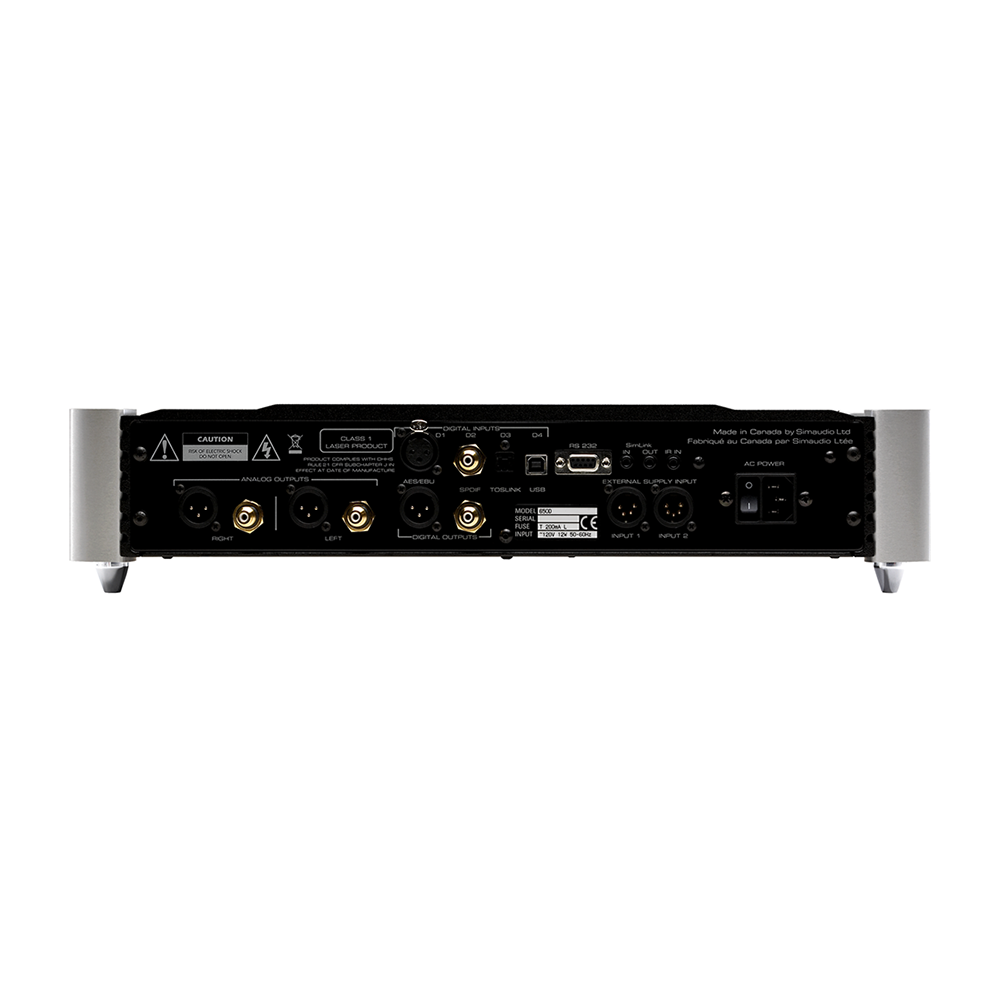

  • four (4) digital inputs (AES/EBU, S/PDIF, TosLink and USB) allowing for a connection to virtually any digital source.
  • two (2) digital outputs – AES/EBU and S/PDIF.
  • fully compatible with 820S external power supply.

in the box

  • DAC/CD Transport
  • AC power cable
  • FRM-3’ remote control with three ‘AAA’ batteries
  • SimLink™ cable with 1/8” mini plug terminations on each end
  • Owner’s manual
Specifications
  • Frequency response (full range): 2Hz - 100kHz +0/-3dB
  • THD @ 1kHz, 0dBFS (A-weighted): 0.0001%
  • Intermodulation distortion: 0.0001%
  • Dynamic Range: 120dB
  • Signal-to-noise Ratio: 120dB @ full output
  • Channel Separation: 116dB
  • Intrinsic Jitter: 1 picosecond RMS
