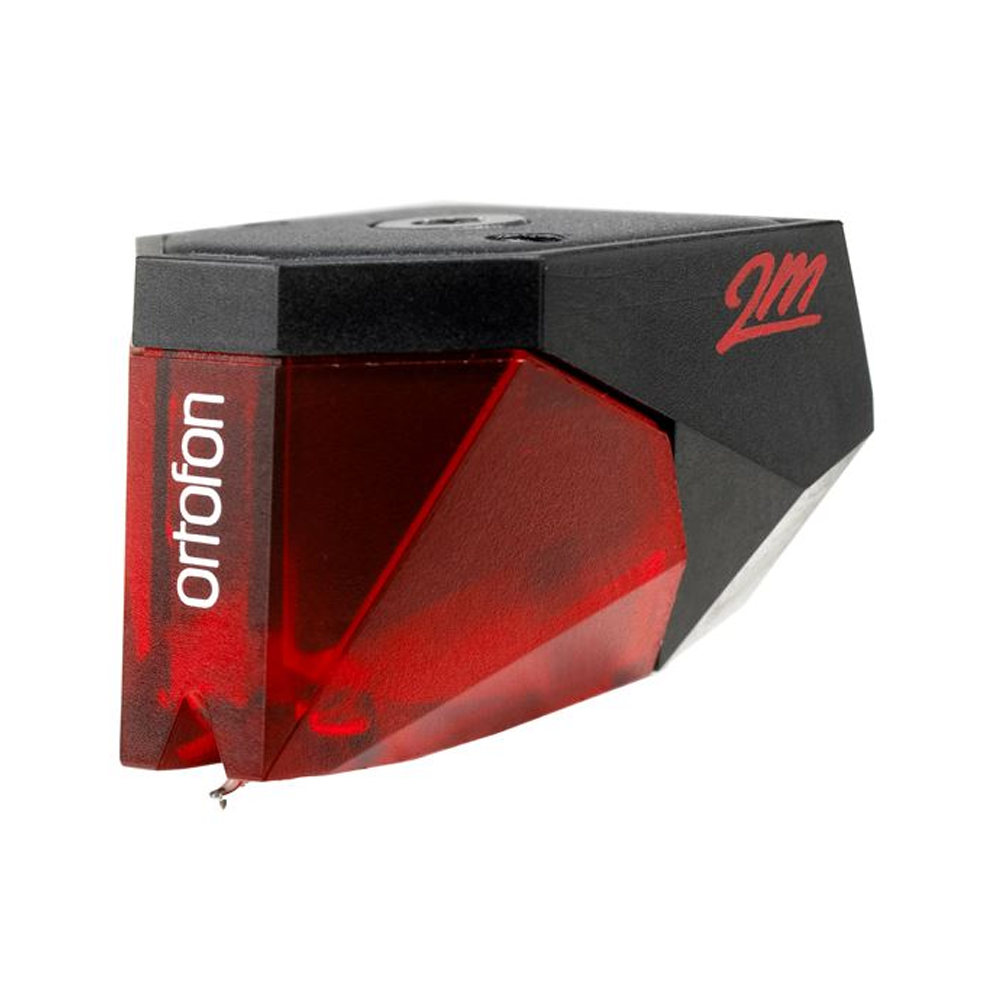

Ortofon 2M Red Cartridge

Ortofon

Ortofon 2M Red Cartridge

Price
£95.00
Product Condition
New
Ortofon 2M Red Cartridge
*
Product Colour
- Optional

Features

  • an improved engine, which provides an increased output of 5.5 mV and an optimised sound reproduction and a high level of sonic accuracy.
  • a tipped Elliptical diamond and split pole pins with a copper wire.
  • the cartridge body is manufactured from Hopelex, an environment-friendly material which ensures high rigidity while eliminating unwanted resonances.

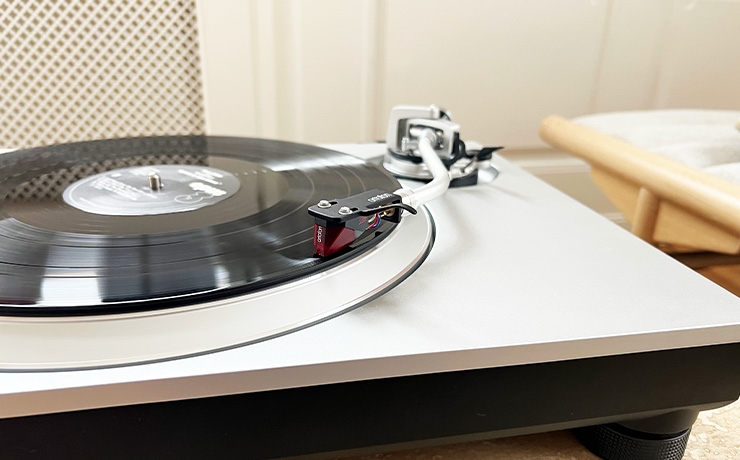

Ortofon 2M red playing a record

Ortofon optimised the design for ease of mounting the cartridge, and the weight and size to fit the most common turntables on the market today. The 2M Series provides excellent compatibility when used in an assortment of playback systems and with a wide variety of phono preamps.

2M Red is an all-purpose cartridge that delivers open, dynamic sound with a slight touch of warmth.

The 2M Series is designed for precise and accurate retrieval of the information in the record groove

The 2M Series is developed in conjunction with the Danish Industrial designer Møller Jensen Design – the same designer who designed the award winning MC Jubilee and Kontrapunkt series. Inspired by the facets of a diamond, whose contours gracefully trace the grooves on a record’s surface, the 2M’s handsome elegance establishes a great combination of form and functionality.

The name 2M was selected from among several ideas. Ortofon wanted a modern name that would be easy to pronounce and remember, and therefore an alphanumerical name was chosen. 2M means MM, which is the abbreviation for moving magnet.

Of course the 2M isn’t just another pretty face. It has been engineered to the highest standards and is congruent with Ortofon’s unrelenting commitment to providing the most precise and accurate reproduction possible without coloration.

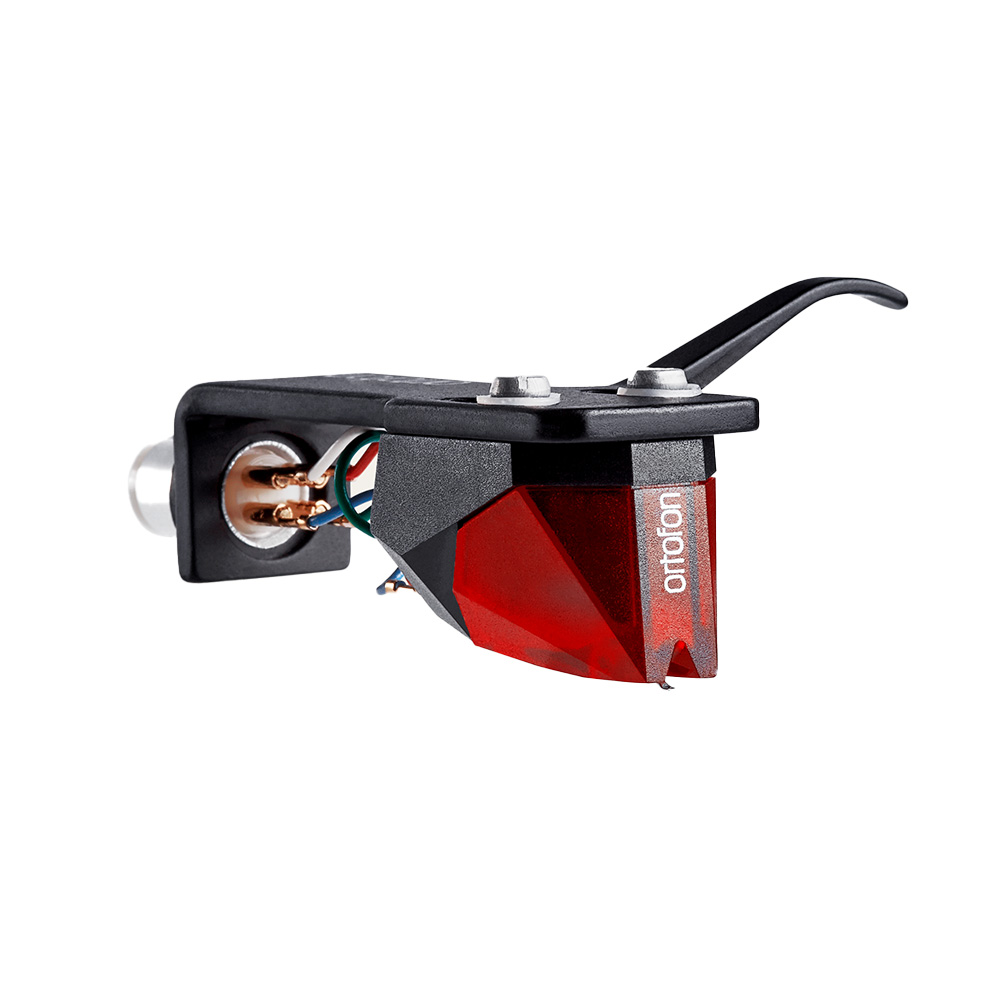

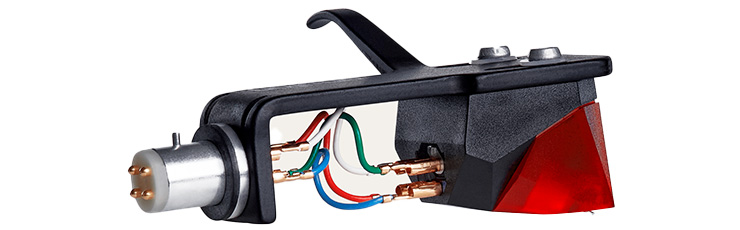

Ortofon Red Premounted

The 2M series of cartridges features Ortofon’s trademark split pole pins, an invention that enables moving magnet cartridges to have a flat frequency response, as with a moving coil cartridge. Split pole pins were invented by Ortofon, and were originally presented in the 500 series and OM Super series.

Ortofon optimised the design for ease of mounting the cartridge, and the weight and size to fit the most common turntables on the market today. The 2M Series provides excellent compatibility when used in an assortment of playback systems and with a wide variety of phono preamps.

in the box

  • 2M red
  • 1 x Stylus brush
  • 1 x Screwdriver
  • 2 x Screw M2,5 x 5
  • 2 x Screw M2,5 x 7
Specifications
  • output voltage (@ 1000HZ, 5CM/SEC.): 5.5 mV
  • channel balance (@ 1000HZ): 1.5 dB
  • channel separation (@ 1000HZ): 22 dB
  • channel separation (@ 15000HZ): 15 dB
  • frequency range (@ -3DB): 20 - 22000 Hz
  • frequency response +3 / -1DB: 20 - 20000 Hz
  • tracking ability (@ 315HZ AT RECOMMENDED TRACKING FORCE): 70 μm
  • compliance, dynamic, lateral: 20 μm
  • stylus type: Tipped Elliptical
  • tracking force range: 1.6 - 2.0 g
  • recommended tracking force: 1.8 g
  • tracking angle: 20 °
  • internal impedance: 1300 Ω
  • internal inductance: 700 mH
  • cantilever material: Aluminium Tube
  • recommended load impedance: 47000 Ω
  • recommended load capacitance: 150 - 300 pF
  • cartridge weight: 7.2 g
