Ortofon 2M Black Cartridge

Ortofon

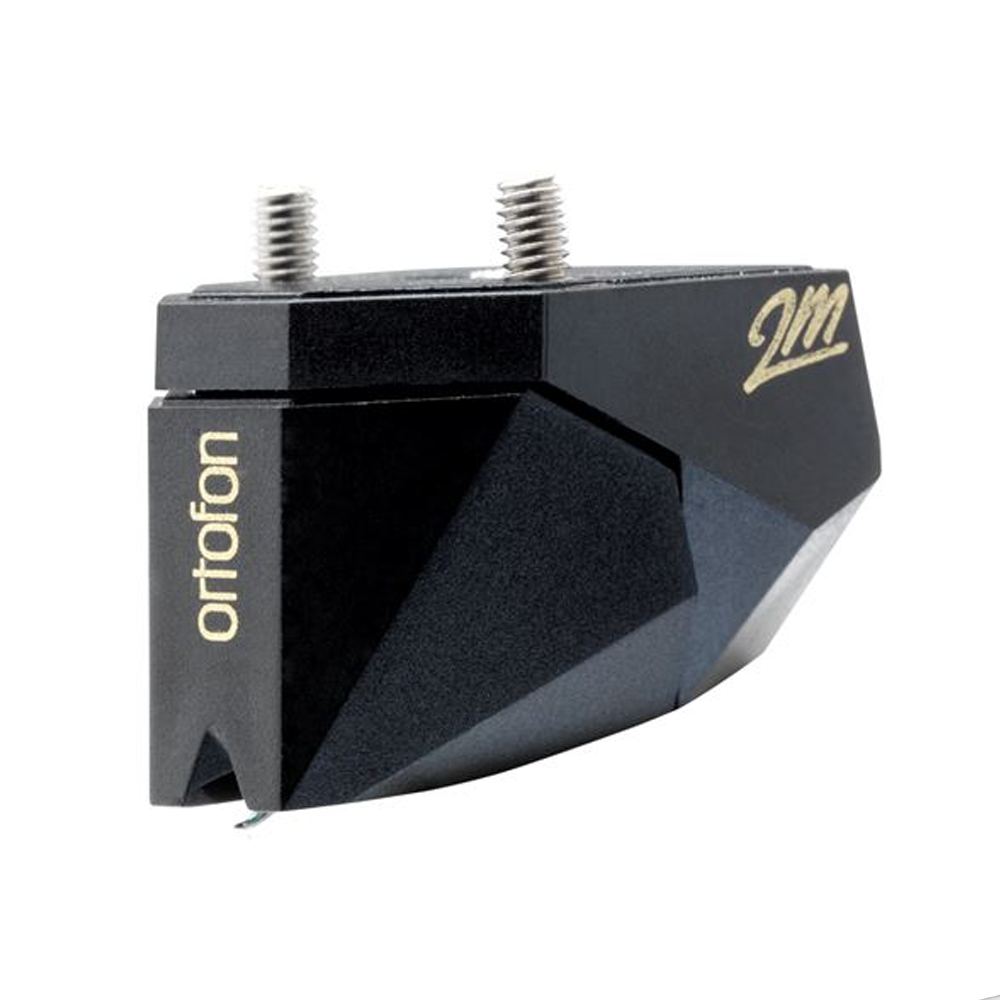

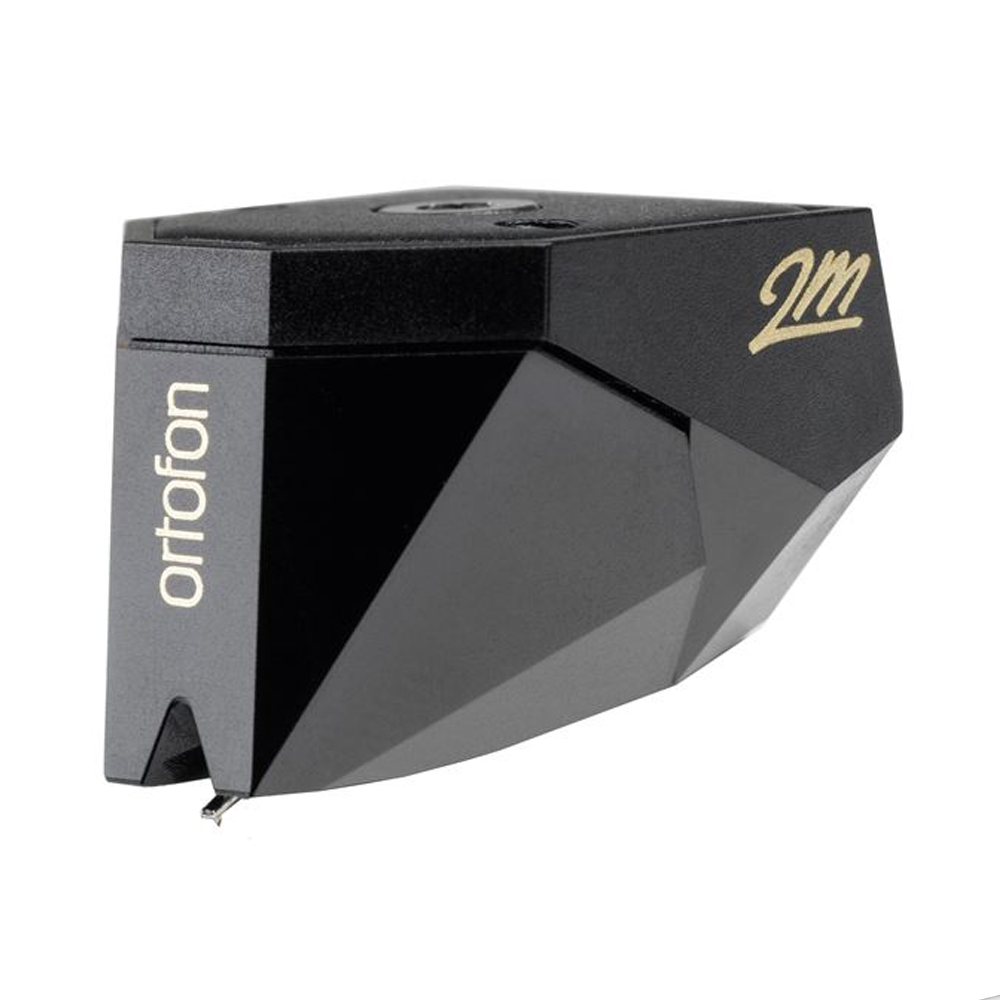

Ortofon 2M Black Cartridge

Price
£495.00
the best of everything, true to the groove
  • The 2M Black is graced with a Shibata diamond which slim, highly polished profile allows an exceedingly wide contact area to the groove walls and ensures notably detailed reproduction throughout the spectrum, including even the most high frequency groove information.
  • The cartridge body is manufactured from Hopelex, an environment-friendly material which ensures high rigidity while eliminating unwanted resonances.
  • The 2M Black uses a special upgraded engine, featuring split pole pins with a silver plated copper wire.

Ortofon have optimised the design for ease of mounting the cartridge, and the weight and size to fit the most common turntables on the market today. The 2M Series provides excellent compatibility when used in an assortment of playback systems and with a wide variety of phono preamps.

The 2M Series is designed for precise and accurate retrieval of the information in the record groove

The 2M Series is developed in conjunction with the Danish Industrial designer Møller Jensen Design – the same designer who designed the award winning MC Jubilee and Kontrapunkt series. Inspired by the facets of a diamond, whose contours gracefully trace the grooves on a record’s surface, the 2M’s handsome elegance establishes a great combination of form and functionality.

The name 2M was selected from among several ideas. We wanted a modern name that would be easy to pronounce and remember, and therefore an alphanumerical name was chosen. 2M means MM, which is the abbreviation for moving magnet.

Of course the 2M isn’t just another pretty face. It has been engineered to the highest standards and is congruent with Ortofon’s unrelenting commitment to providing the most precise and accurate reproduction possible without coloration.

The 2M series of cartridges features Ortofon’s trademark split pole pins, an invention that enables moving magnet cartridges to have a flat frequency response, as with a moving coil cartridge. Split pole pins were invented by Ortofon, and were originally presented in the 500 series and OM Super series.

Ortofon have optimised the design for ease of mounting the cartridge, and the weight and size to fit the most common turntables on the market today. The 2M Series provides excellent compatibility when used in an assortment of playback systems and with a wide variety of phono preamps.

in the box

  • 2M black
  • stylus brush, carbon fibre
  • 1 x Screwdriver
  • 2 x Screw M2,5 x 5
  • 2 x Screw M2,5 x 7
  • 1 x Stylus pressure gauge
Specifications
Output Voltage (at 1kHz, 5cm/sec): 5mV
Channel Balance at 1kHz: 1dB
Channel Separation at 1kHz: 26dB
Channel Separation at 15kHz: 1-5dB
Frequency Range (at -3dB): 20Hz - 31kHz
Frequency Response 20Hz - 20kHz: +2 / -0dB
Tracking Ability at 315Hz: Typically 80μm
Compliance, Dynamic, Lateral: 22μm / mN
Stylus Type: Nude Shibata
Stylus Tip Radius r / R: 6 / 50μm
Tracking Force Range: 1.4 - 1.7g (14 - 17mN)
Recommended Tracking Force: 1.5g (15mN)
Tracking Angle: 20º
Internal Impedance / DC Resistance: 1.2kΩ
Internal Inductance: 630mH
Recommended Load Resistance: 47kΩ
Recommended Load Capacitance: 150 - 300pF
Cartridge Colour Body / Stylus: Black / Black
Cartridge Weight: 7.2g

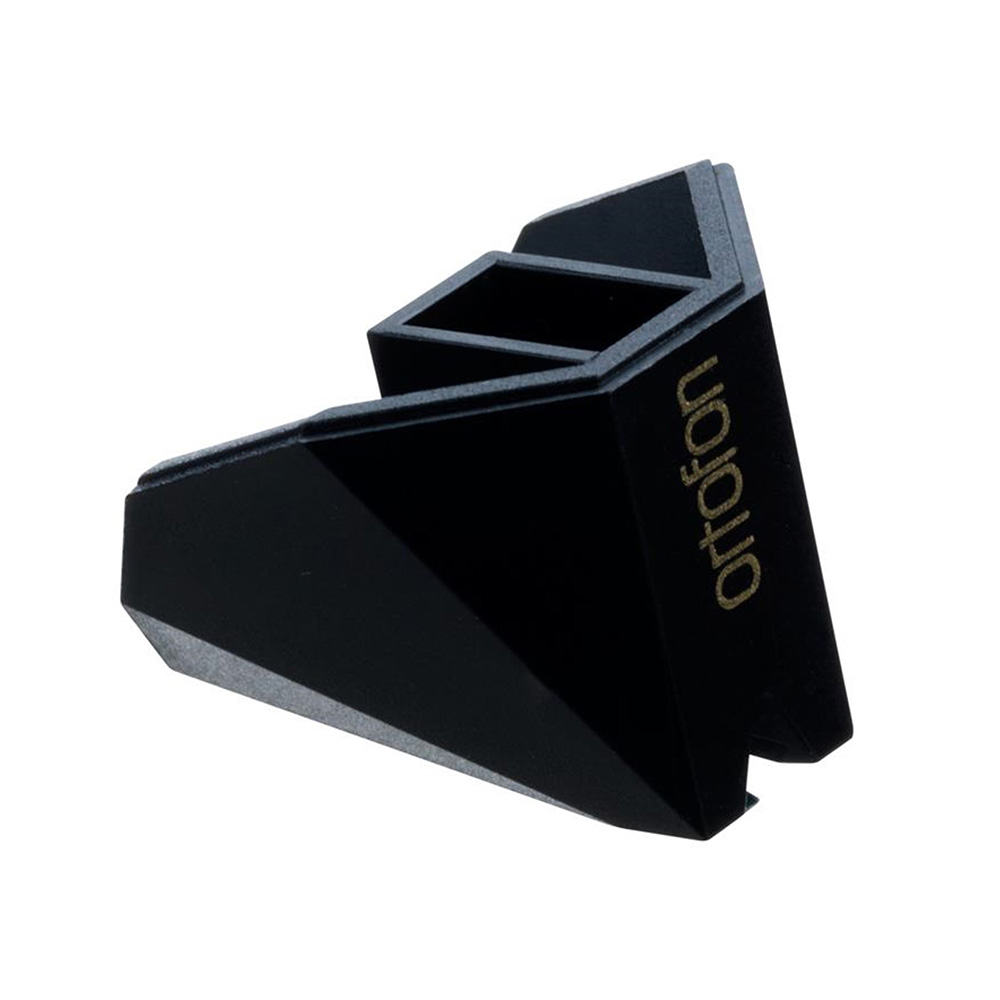

Replacement Stylus Unit: Stylus 2M Black
Accessories: 1 x Stylus Brush (Carbon Fibre)
1 x Screwdriver
2 x Screw M2.5 x 5
2 x Screw M2.5 x 7
1 x Stylus Pressure Gauge
