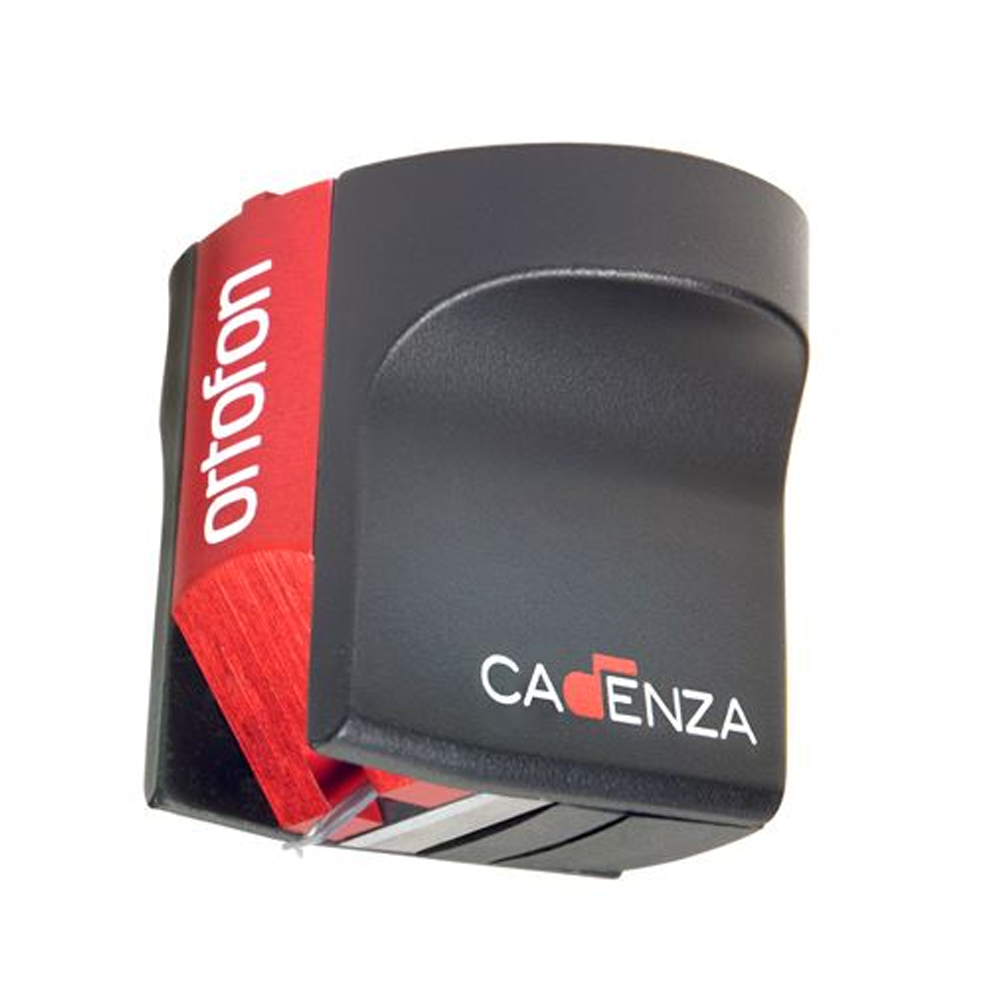

The sound picture of Cadenza Red is relaxed, homogeneous and moderately dynamic and have great space and depth in the stereo image
- The Cadenza Red model is using a Nude Fine Line stylus with a cylindrical aluminium cantilever. The stylus tip radius is r/R 8/40 µm.
- The coils are made from 6NX (99.9999 %) pure silver wire.
- An improved winding process on the armature allows a better channel balance.
The Cadenza series
Ortofon constantly look for new technology to be used in their products and push the performance of existing technology. Thus they assure the highest level of performance and quality. The Kontrapunkt models and MC Jubilee became market standards and are among our most popular cartridges. Nevertheless Ortofon decided to develop a new cartridge series that is even more ambitious.
By carefully implementing cobalt-iron pole pieces, new improved winding process on the armature, using extruded aluminium housing in the models as well as other changes, Ortofon have been able to reveal new possibilities in performing the analogue information. It was also decided to make a more complete range of cartridges, which meant an introduction of a moving coil Cadenza Mono model to support customers, who have an extended interest in micro groove mono records.
The story about Cadenza
Cadenza (from Italian: meaning cadence) refers to a portion of a concert in which the orchestra stops playing, leaving the soloist to play alone in free time, without a strict, regular pulse. A cadenza can be written or improvised. It’s usually the most elaborate and virtuosic part the solo instrument plays during the whole piece. At the end of the cadenza, the orchestra re-enters, and generally finishes off the movement.
During the 19th century, composers began to write cadenzas out in full. Others wrote cadenzas for works, where the composer had intended for the solo to be improvised, in order for the soloist to have a well formed solo that they could practice in advance. Some of these have become so widely played and sung that they are effectively a part of the standard repertoire.
in the box
- 1 x Stylus brush, fibre
- 1 x Screwdriver
- Leadwires, pair LW-6N
- Screws, pair M2,5 x 3
- Screws, pair M2,5 x 5
- Screws, pair M2,5 x 6
|Output Voltage (at 1kHz, 5cm/sec):||450 μV|
|Channel Balance at 1kHz:||< 1.2dB|
|Channel Separation at 1kHz:||> 23dB|
|Channel Separation at 15kHz:||> 15dB|
|Frequency Range (at -3dB):||20Hz - 50kHz|
|Frequency Response 20Hz - 20kHz:||+3 / -1|
|Tracking Ability at 315Hz:||Typically 80μm|
|Compliance, Dynamic, Lateral:||12μm / mN|
|Stylus Type:||Nude Fine Line|
|Stylus Tip Radius r / R:||8 / 40|
|Tracking Force Range:||2.2 - 2.7g (22 - 27mN)|
|Recommended Tracking Force:||2.5g (25mN)|
|Internal Impedance / DC Resistance:||50Ω|
|Recommended Load Impedance:||50 - 500Ω|
|Cartridge Body Material:||Stainless Steel Aluminium|
|Cartridge Colour:||Red / Black|
