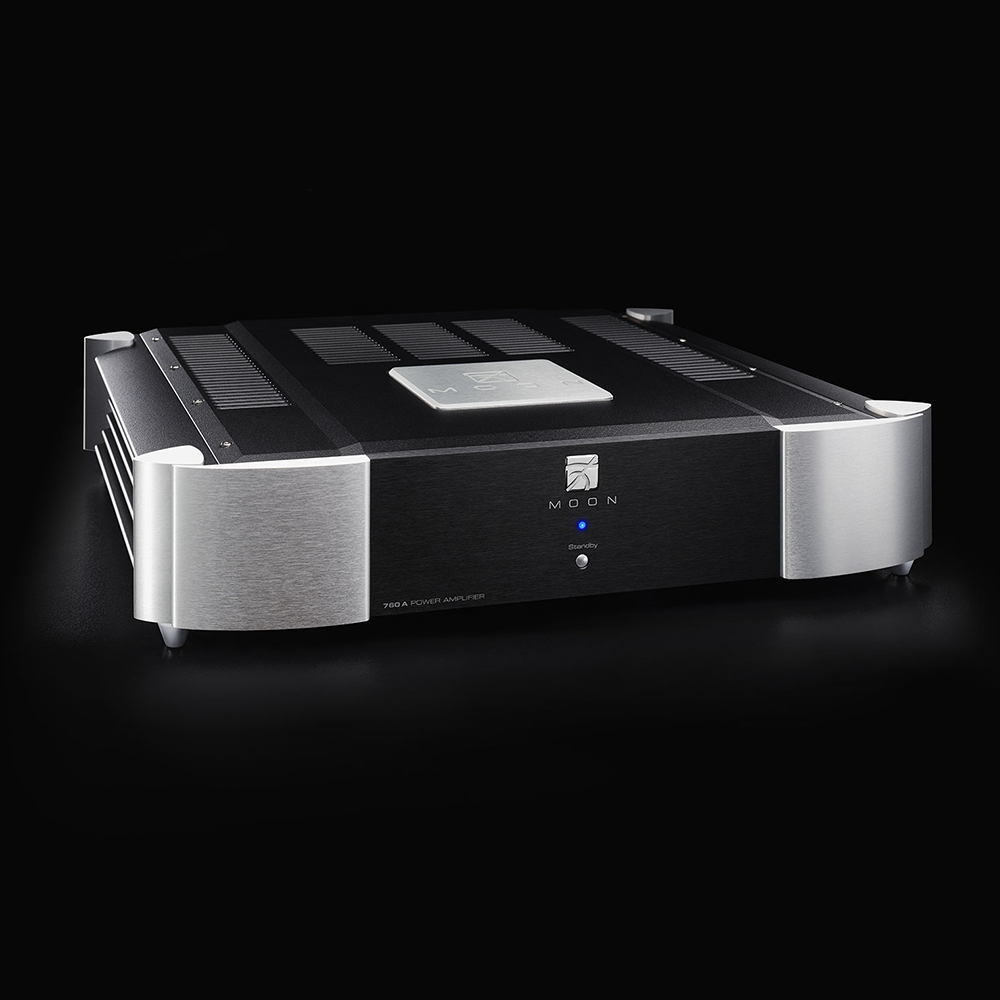

MOON 760A Dual Mono Power Amplifier


MOON 760A Dual Mono Power Amplifier

In a nutshell, the MOON 760A will amplify music with all the harmonic accuracy, richness and dimensionality of a live musical performance.
Product Colour
- Optional
- Optional
- Optional

seductive warm sound

“It delivers quite a sound – if you want to migrate from something ordinary to a something without limits.” – HXOS (Greece)

very compact for easy placement

ideal for multi-amplification configuration

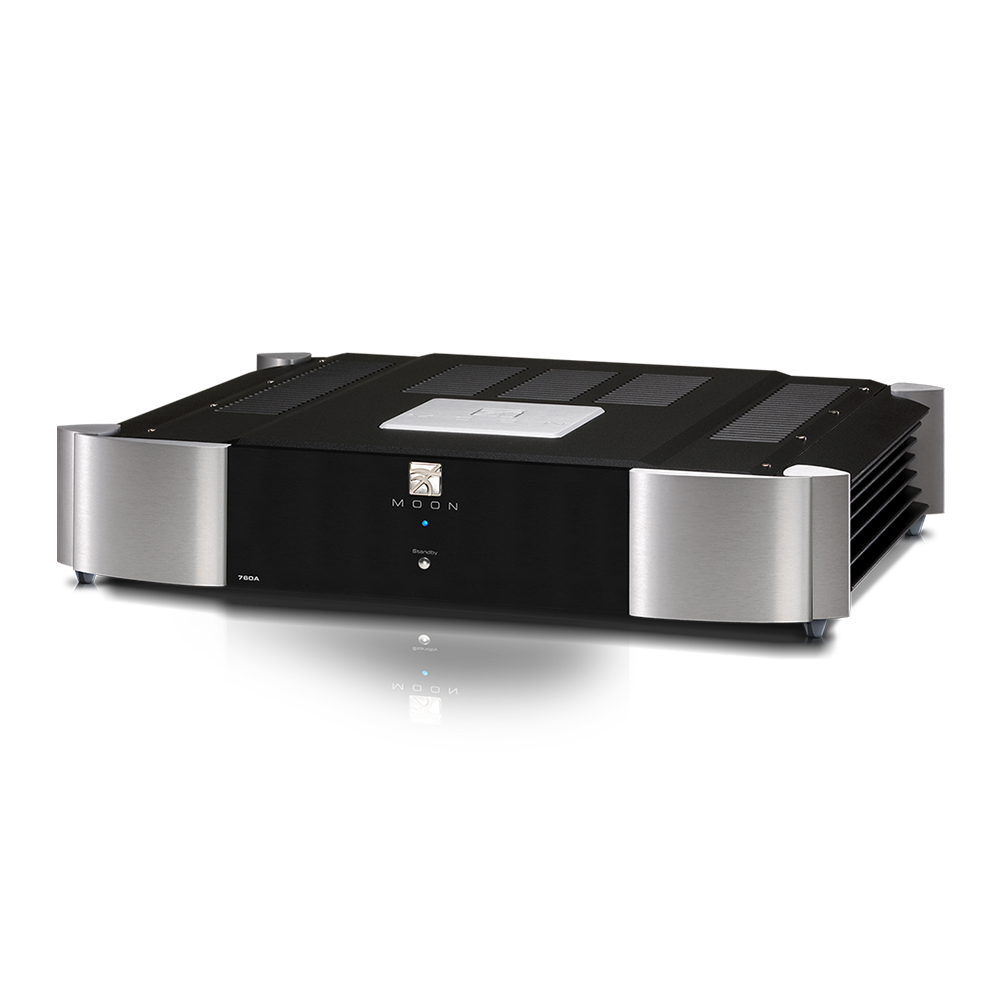

MOON 760A two tone

product features

  • Moon's “no overall feedback” amplifier circuit design which results in the following: real-time amplification; more accurate musical reproduction with respect to tonality; non-existent transient intermodulation distortion; the elimination of common phase errors resulting from feedback.

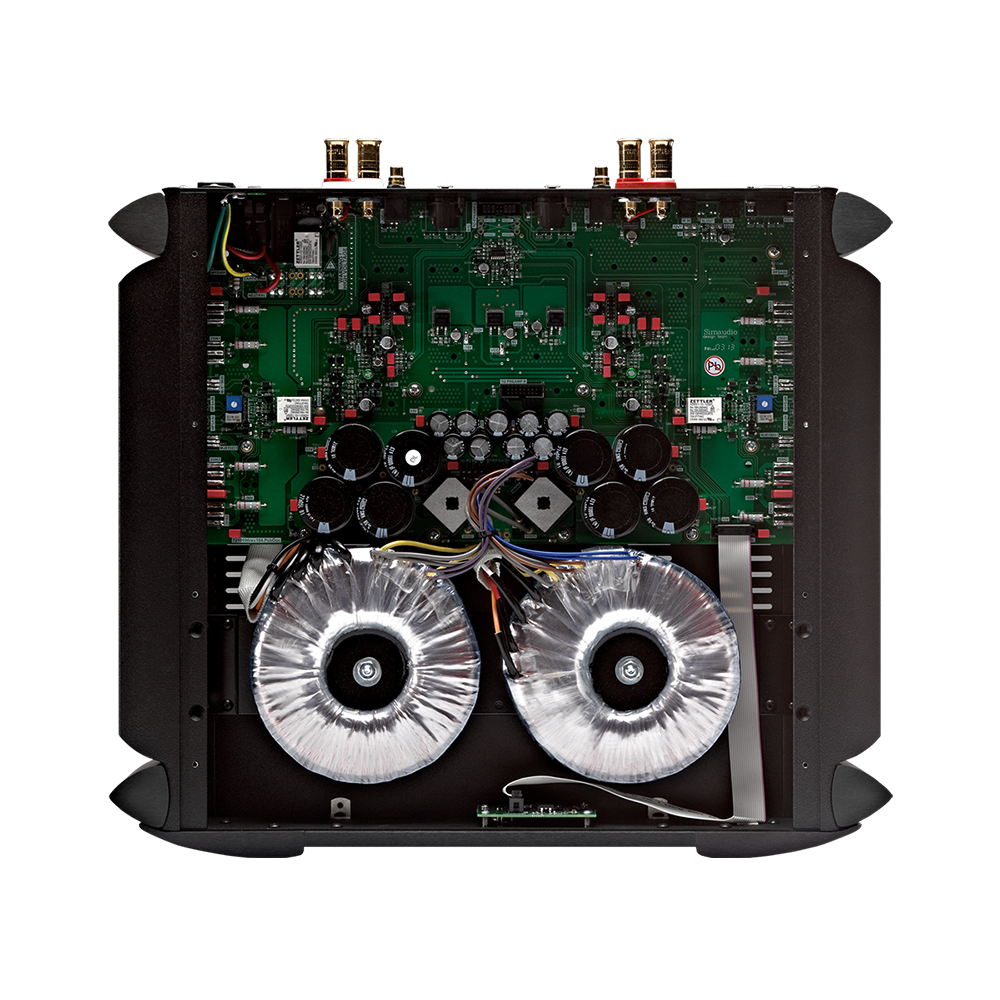

  • An oversized dual-mono power supply using a custom proprietary toroidal transformer design.
  • “Class A” power output to 5 watts for greater efficiency.

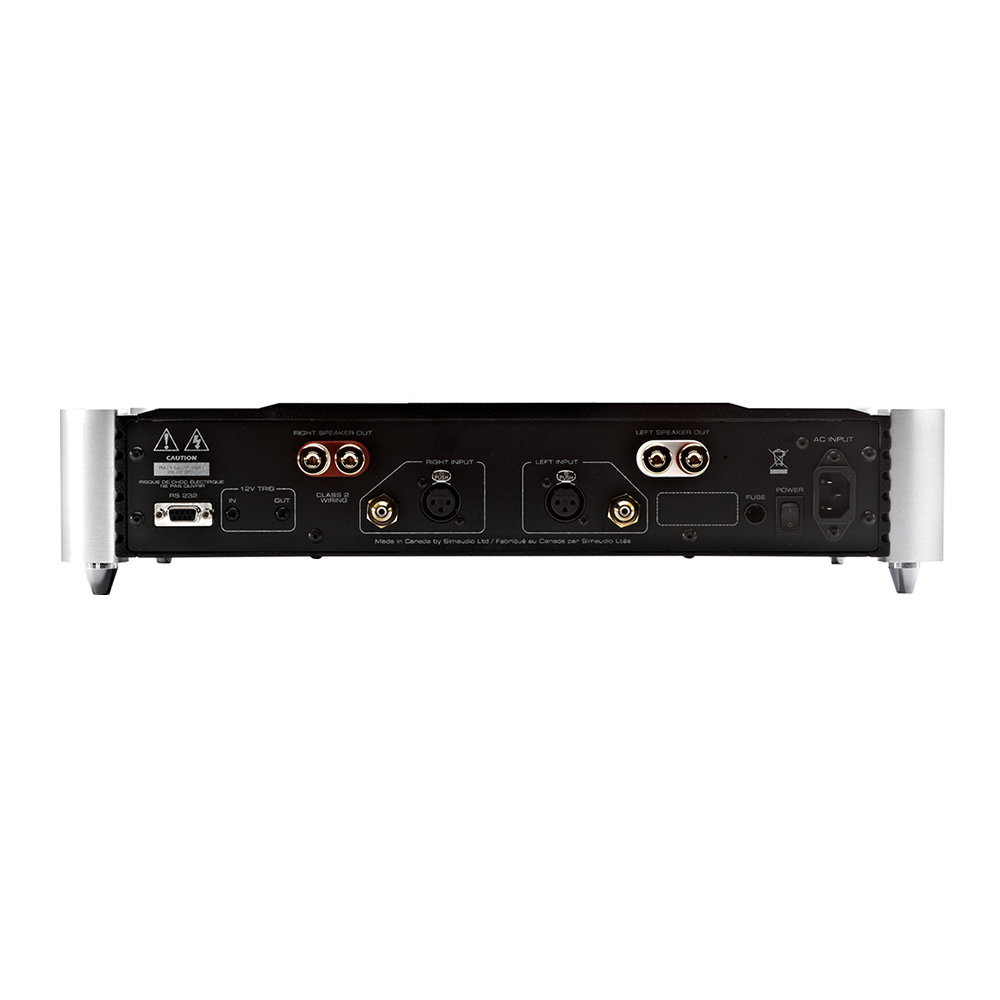

  • Full unsolicited RS-232 bidirectional feedback and 12 Volt trigger input/output for remote operation.
  • Self-diagnostic system that detects both over-heating and the presence of DC in the input signal.

in the box

  • power amplifier
  • AC power cable
  • Owner’s manual
  • Output Power at 8Ω: 130 W per channel
  • Output Power at 4Ω: 260 W per channel
  • Output Power - Bridged Mono at 8Ω: 500 W
  • Input Sensitivity: 900mV RMS
  • Input Impedance: 47,500Ω
  • Gain: 31dB
  • Signal-to-noise Ratio: 104dB @ full power
  • Frequency response (full range): 10Hz - 200kHz +0/-3.0dB
  • Crosstalk @ 1kHz: 102dB
  • THD (20Hz - 20kHz @ 1 W): 0.015%
  • THD (20Hz - 20kHz @ 130 W): 0.04%
  • Intermodulation distortion: 0.01%
  • Shipping weight: 45 lb / 20 kg
  • Dimensions in inches: Width 18.75", Height 4.0", Depth 18.1"
  • Dimensions in cm: Width 47.6cm, Height 10.2cm, Depth 46.0cm
