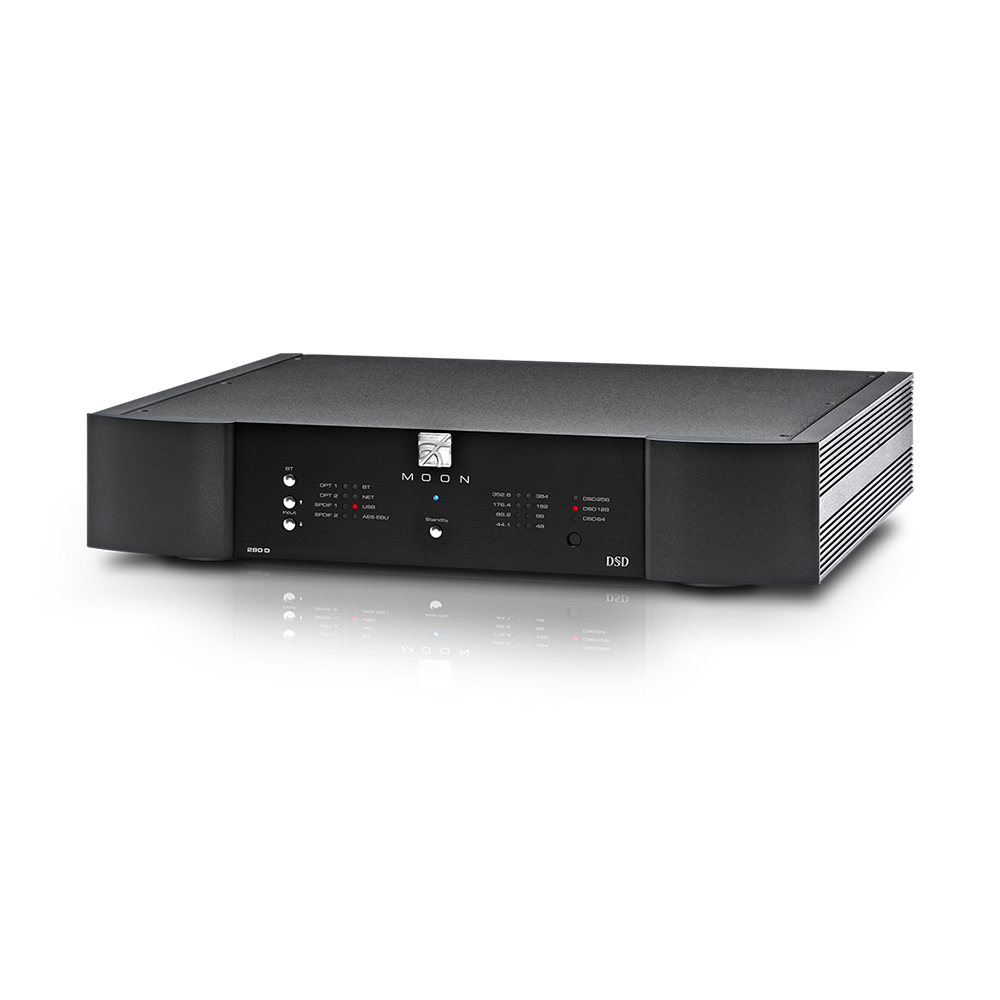

MOON 280D MiND 2 Streaming DAC

MOON

MOON 280D MiND 2 Streaming DAC

Price
£3,800.00
The MOON 280D is a high performance fully asynchronous DSD 256 / 32-bit DAC with versatility, including Bluetooth and the MiND 2 module.
Product Colour
- Optional
- Optional
- Optional

MiND 2 Streaming module

MiND 2 (MOON intelligent Network Device) is a fabulous way of streaming and listening to your music.

MiND 2 is Roon Ready and allows the playback of all the most common file formats, including DSD, and MQA file formats (via local files and TIDAL Master files).

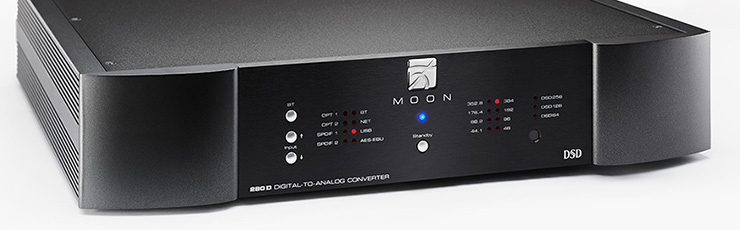

MOON 280D in black

World of Music

Imagine a world of music right at your fingertips. The MOON 280D makes this a reality. Simply launch your favorite music services app on your smart device and pair it to the MOON 280D using Bluetooth technology. Then sit back and enjoy the music.

Lifelike Transparency

The extraordinary digital engine within the MOON 280D decodes native DSD up to DSD256, as well as PCM up to 32-bit/384kHz, including DXD. The fully balanced analog stage features an exceptional 3rd order filter for lifelike transparency. The result is a level of fidelity that creates an emotional connection to your music.

Effortlessly for musical pleasure

Which ever way you use the MOON 280D, we are convinced that it will become the center of your musical pleasure. Of course, key features you’d expect in a MOON product are present such as SimLink™, RS-232 and IR ports for custom-install environments.

Design features

  • Fully asynchronous DAC.
  • Supports native DSD64, DSD128 and DSD256 (USB only).
  • Supports PCM up to 384kHz (32-bit on USB only).

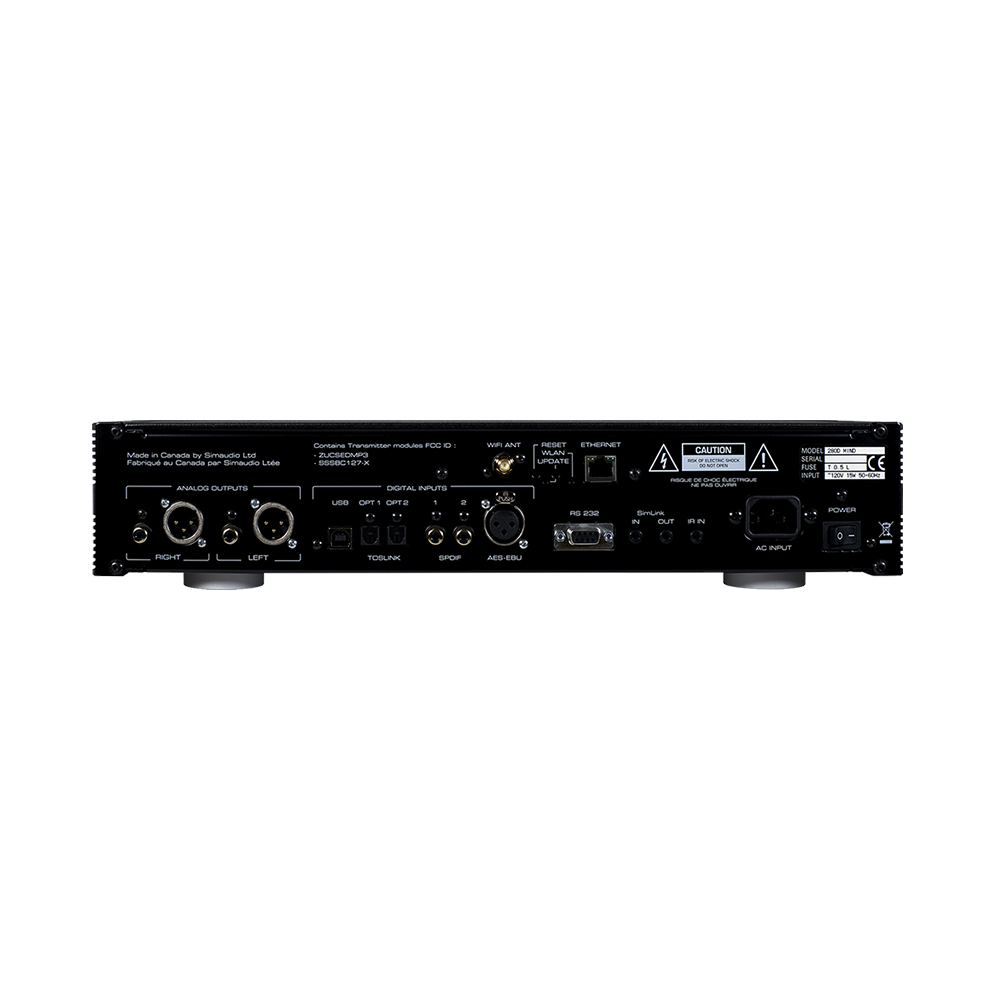

  • 7 digital inputs (AES/EBU x 1, S/PDIF x 2, TosLink x 2, USB x 1 and Qualcomm® aptXTM audio for Bluetooth® x 1) for use with virtually any digital source.
  • Front panel LED indicators for active input and input signal PCM sampling & DSD rates.
  • With 8th digital input through our MiND 2 streaming module (via WiFi or Ethernet).
  • Analog stage: fully balanced differential circuit for increased dynamic range and headroom, higher resolution, as well as improved signal-to-noise ratio.
  • ROON Ready device
  • Tidal Masters, Deezer Hi-Fi and Qobuz Sublime+ Music Services
  • MQA decoding
  • Multi-room synchronised playback

In the box

  • AC power cable
  • ‘CRM-3’ remote control with two ‘CR-2032’ batteries
  • ‘SimLink™’ cable with 1/8” mini plug terminations on each end
  • Wi-Fi antenna for “MiND 2” Music Streamer equipped version of the MOON 280D
  • Owner’s manual
Specifications
  • Frequency response (full range): 2Hz - 100kHz +0/-3dB
  • THD @ 1kHz, 0dBFS (A-weighted): 0.001%
  • Intermodulation distortion: 0.002%
  • Dynamic Range: 120dB
  • Signal-to-noise Ratio: 118dB @ full output
  • Channel Separation: 116dB
  • Intrinsic Jitter: 1 picosecond RMS
  • Analog Output @ 0dBFS: 2.0V
  • Analog output impedance: 100Ω
  • PCM Bit-depth range: 16-32 bits
  • PCM sampling frequency rates: 44.1 - 384 kHz
  • DSD sample rates: DSD64, DSD128 & DSD256
  • Shipping weight 16lb/7.5kg
  • Dimensions in inches: Width 16.9", Height 3.4", Depth 13.1"
  • Dimensions in cm: Width 42.9cm, 8.6cm, 33.3cm
