MOON 340i X Stereo Integrated Amplifier


MOON 340i X Stereo Integrated Amplifier

Combining sonic finesse and superb versatility, the award-winning MOON 340i X Integrated Amplifier is offered with optional DAC and phono stage.
Product Colour
- Optional
- Optional
- Optional

endless possibilities

The 340i X Integrated Amplifier integrated  allows you to integrate your music system in distinctively new ways.

musical authority

Combining high power, sonic finesse and superb flexibility, the 340i X will seduce you with its musical authority, as well as its rich, engaging and lifelike sound quality.

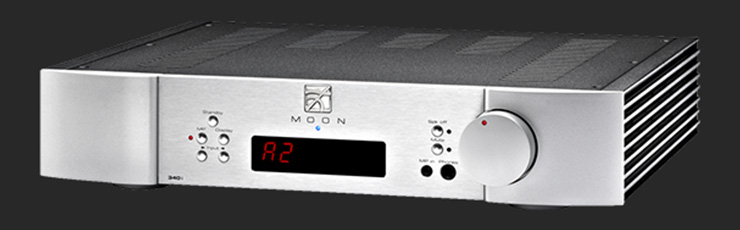

MOON 340i in silver


Winner of 12 awards, the 340i X can easily be the centerpiece of your music and entertainment system. Needless to say, the 340i X integrated amplifier is constructed to the highest standards that has made MOON products famous around the world.

key features

Of course, key features you’d expect in a MOON Neo Series product are present such as SimLink™, 12V trigger, RS-232 and IR ports for custom-install environments.

product features

  • 6 (six) line-level inputs including a front-mounted 1/8” mini-jack for personal media players.
  • 1 (one) pair of balanced input (XLR).
  • Headphone output on 1/4” jack located on the front panel.
  • A massive oversized power supply using a custom toroidal transformer design.
  • “Class A” output to 5 watts for greater efficiency.
  • One audio input which functions as a “pass-through”, bypassing the gain stage to accommodate components like a home-theater processor, whose own volume control is used instead.
  • Precision matched proprietary MOON Bipolar output transistors for improved bass response and accurate sonic reproduction.

in the box

  • integrated amplifier
  • AC power cable 9 ‘‘CRM-3’ remote control with two ‘CR-2032’ batteries
  • ‘SimLink™’ cable with 1/8” mini plug terminations on each end
  • Owner’s manual
  • Output Power at 8Ω - 100 W per channel
  • Output Power at 4Ω - 200 W per channel
  • Input Sensitivity - 370mV - 3.0V RMS
  • Input Impedance - 11,000Ω
  • Gain - 37dB
  • Signal-to-noise Ratio - 110dB @ full power
  • Frequency response (full range) - 2Hz - 90kHz +0/-3dB
  • Crosstalk - 88dB
  • THD (20Hz - 20kHz @ 1 W) - 0.015%
  • THD (20Hz - 20kHz @ 100 W) - 0.05%
  • Intermodulation distortion - 0.03%
  • Optional Digital Inputs - S/PDIF, USB, Optical
  • Maximum PCM Resolution - 32-bit / 384kHz
  • DSD sample rates - DSD64, DSD128 & DSD256
  • Shipping weight - 28 lb / 13 kg
  • Dimensions in inches: Width 16.9", Height 3.5", Depth 14.8"
  • Dimensions in cm: Width 42.9cm, Height 8.9cm, Depth 37.6cm
