Linn Kustom DSM

Price
£2,825.00
Multi-zone network music player, designed for installation.
*
Product Colour
- Optional

Now you can enjoy Linn quality sound in every room of your home. Incorporating Linn’s proven, best-in-class DSM streaming technology, Kustom DSM provides four or eight zones of audio from one compact, rack-mountable product.

A highly scaleable solution, connect as many Kustom DSM products together as you need to enjoy music throughout your entire home. Kustom DSM can also be combined with any Linn system within the same multi-room system, enabling you to select different levels of Linn performance depending on how you use the space and enjoy an even more immersive and enriching listening experience.

Kustom DSM can be integrated with Crestron and Control4 systems, so you can enjoy Linn as part of a wider smart home automation system. It also works with Kazoo, Linn’s control app, available on your smart phone, tablet or laptop, so you always have a way to access your music to hand.

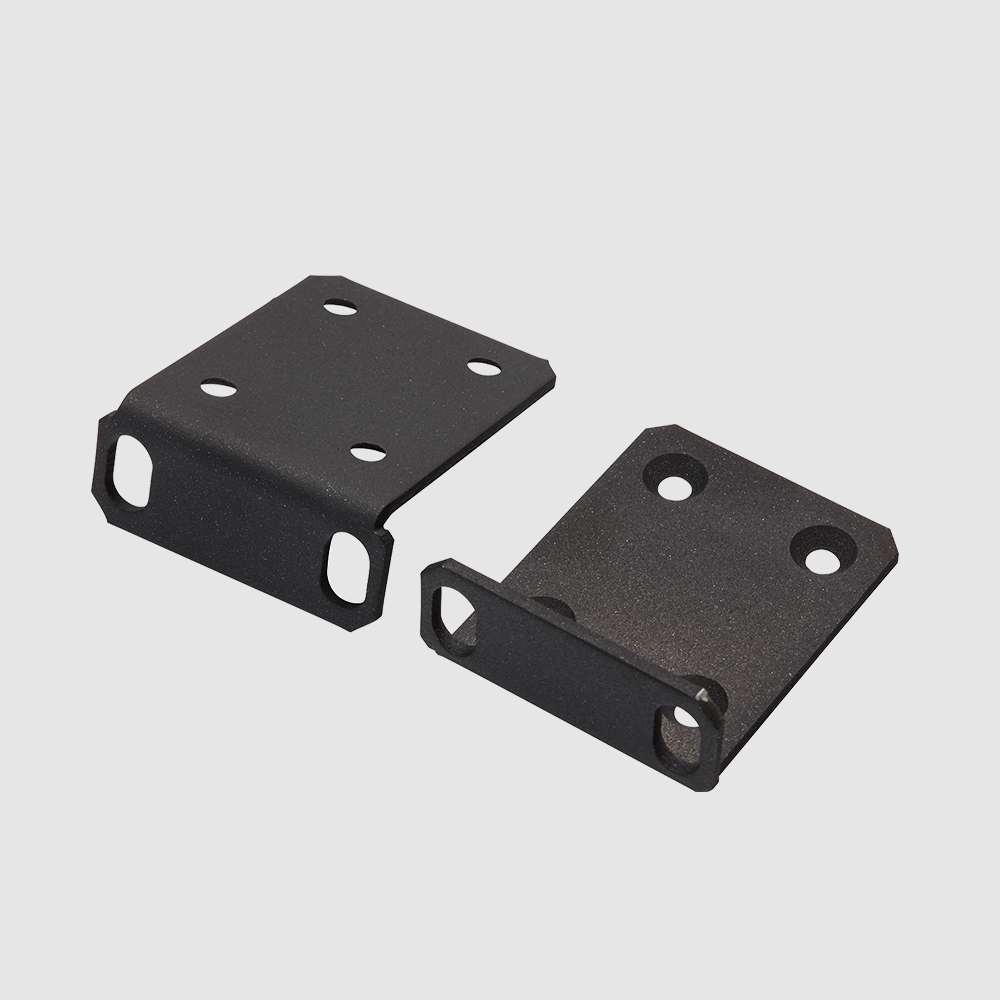

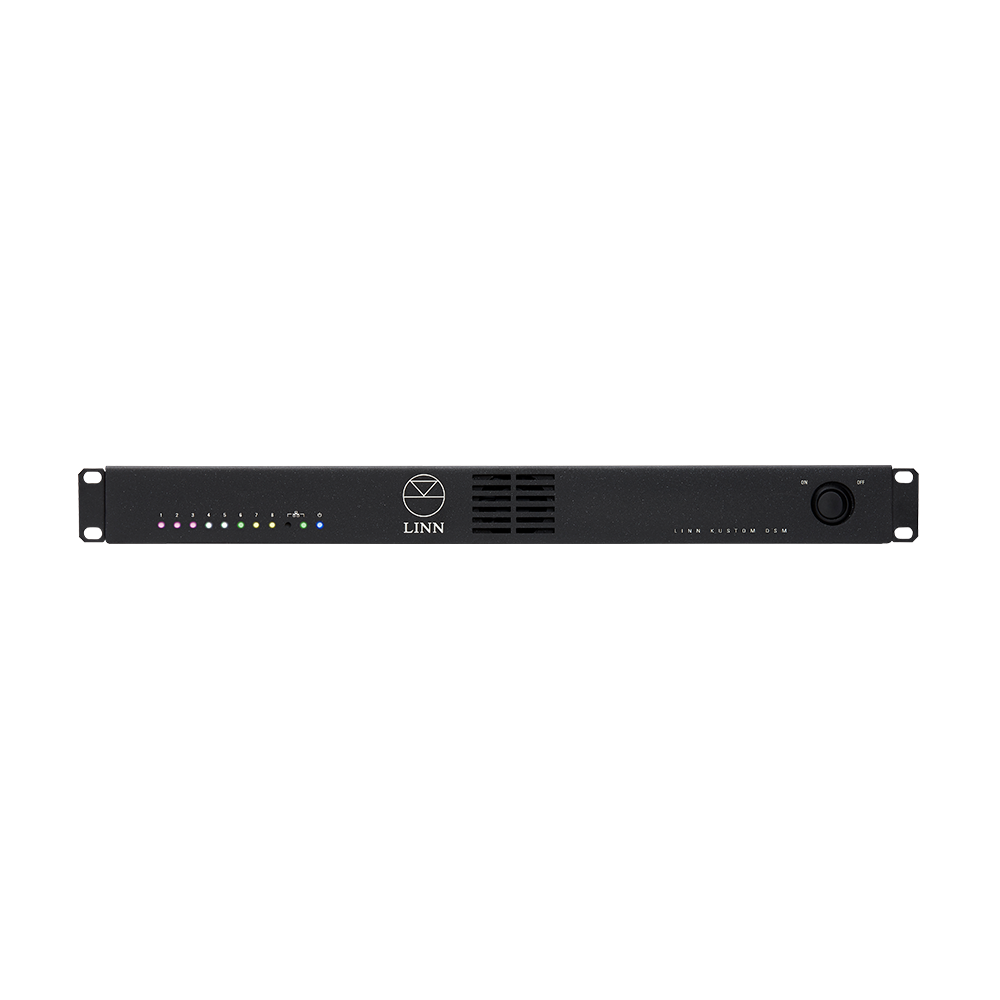

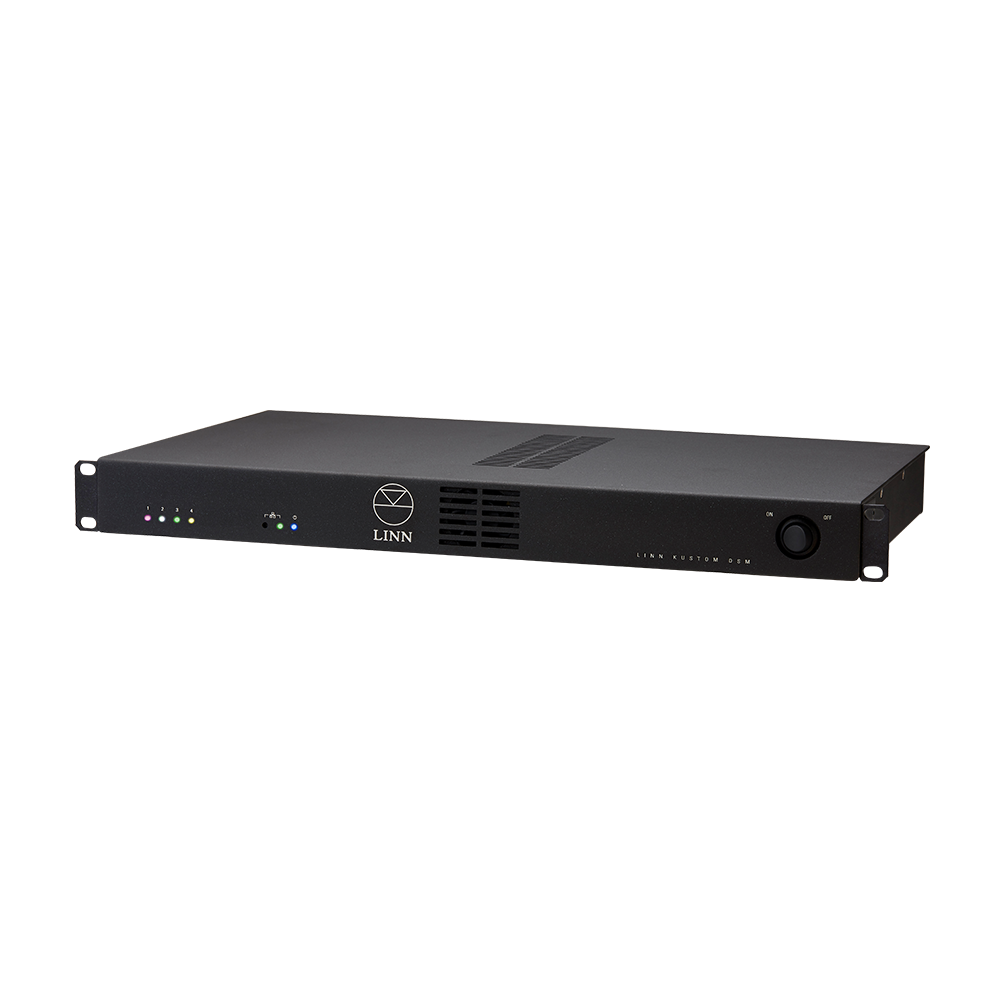

Kustom DSM is housed in a 1U chassis, designed to fit into a standard 19” rack (mounting brackets provided) or be placed on a shelf or in a cupboard using the feet provided. LED indicators on the front panel show the status and mapping of each zone at a glance.

Contact a Linn Custom Installer to find out how you can integrate this into your home and enjoy Linn quality sound throughout.

  • Up to 8 zones can be assigned to up to 4 streams depending on product variant selected (configurable in any combination)
  • Scaleable product – connect as many together as you need
  • Rack-mountable chassis (1U to fit standard 19” rack) – feet also provided for shelf placement
  • Digital & analogue inputs: each stream has HDMI ARC, TOSLINK, SPDIF & RCA Phono pair
  • Supports virtually any digital format up to 24-bit 192 kHz
  • Analogue outputs for connection to amps or other downstream components
  • Certified drivers available for Crestron and Control4 smart home automation systems
Specifications
  • rack height: 1U (fits standard 19" rack)
  • Dimensions: width 450mm, height 44mm, depth 280mm
  • Dimensions: width 482mm inc. brackets, height 51.5mm inc. feet
  • Formats: FLAC, ALAC,WAV, MP3, WMA (except lossless), AIFF, AAC, OGG
  • Resolution: Up to 24-bit 192 kHz

analogue line inputs

  • Max Input Voltage: 2.5V RMS, 3.5V peak
  • Input Impedance: 10kΩ

SPDIF Digital input

  • Input Voltage: 500mV+/-100m
  • Input Impedance: 75Ω

Analogue line outputs

  • Max Output Voltage: 3V RMS, 4.3V peak
  • Output Impedance: 300Ω

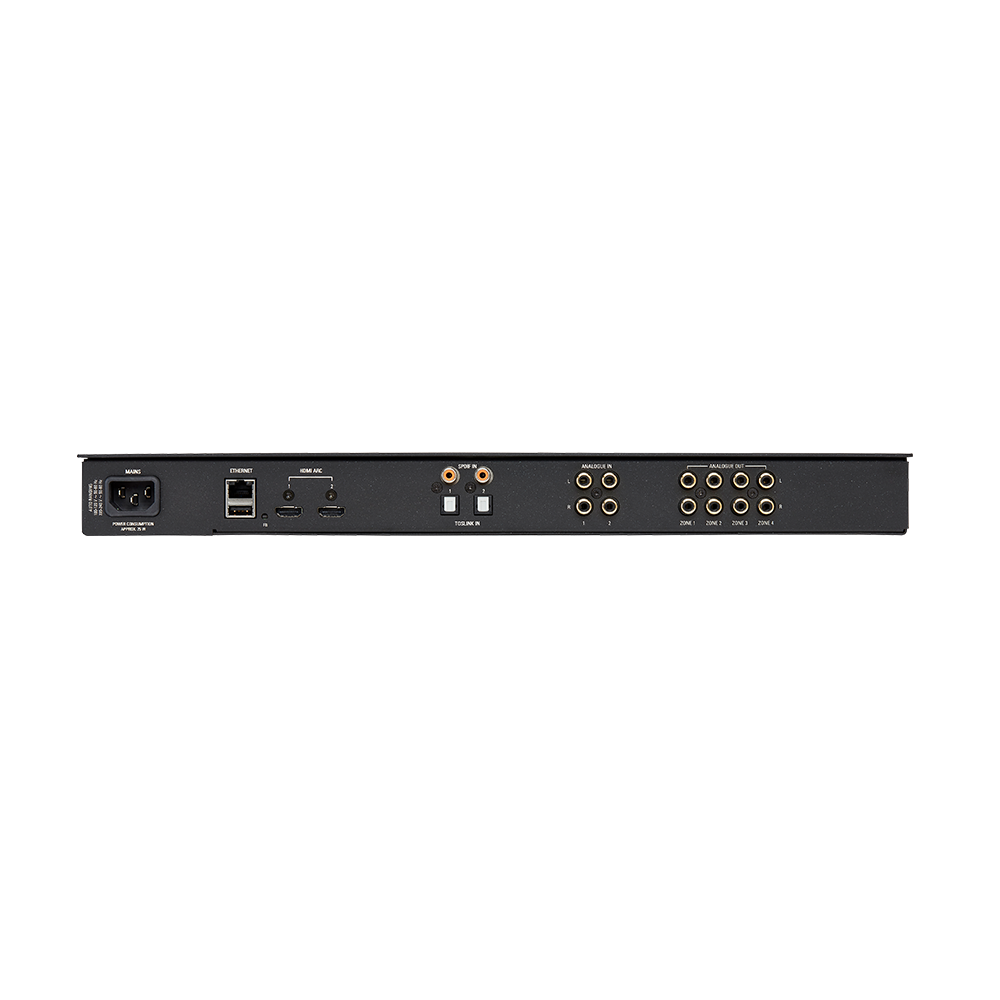

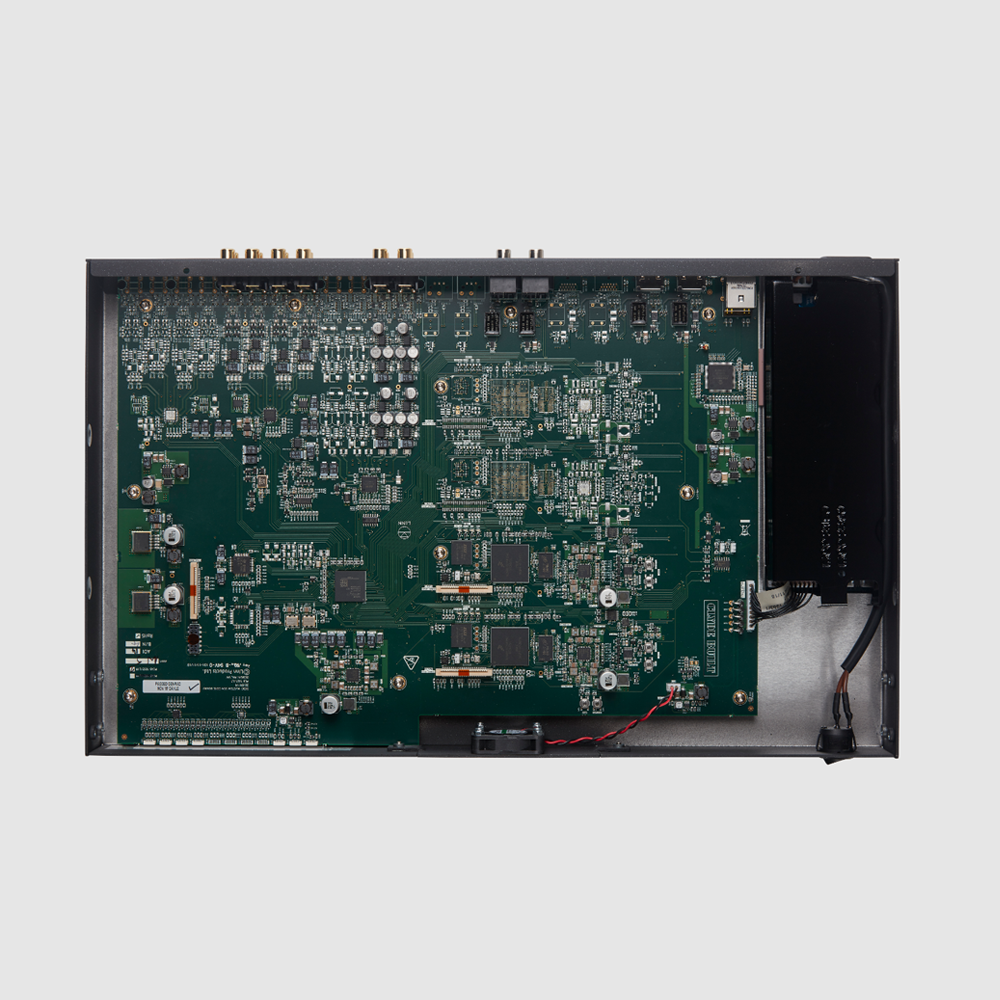

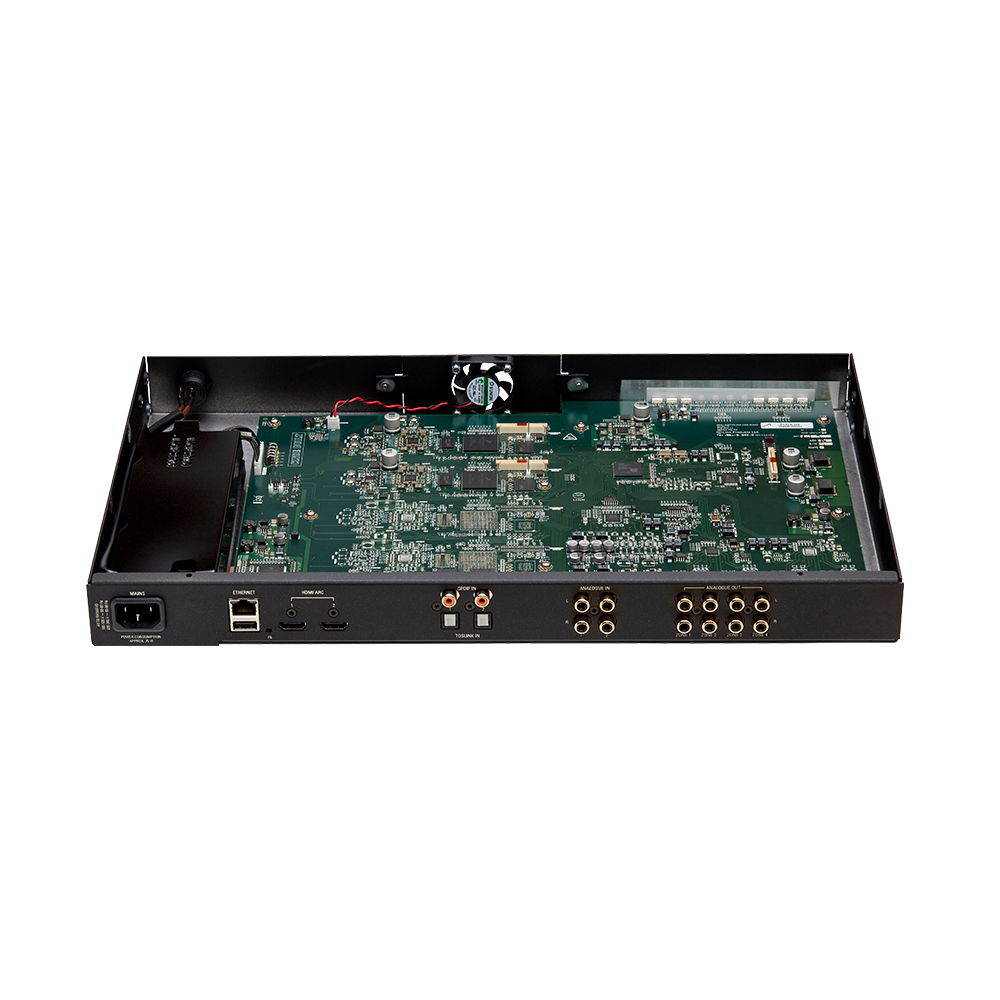

2 Stream/4 Zone

  • Weight 2.36kg

Inputs

  • Ethernet x1 (1000BASE-T RJ45)
  • HDMI ARC x 2
  • Toslink x 2
  • SPDIF x 2
  • Supported Input Sample Rates (kHz) (HDMI, ARC, SPDIF & TOSLINK): 32, 44.1, 48, 88.2, 96, 176.4, 192
  • RCA Phono x 2 pairs

outputs

  • RCA Phono x 4 pairs

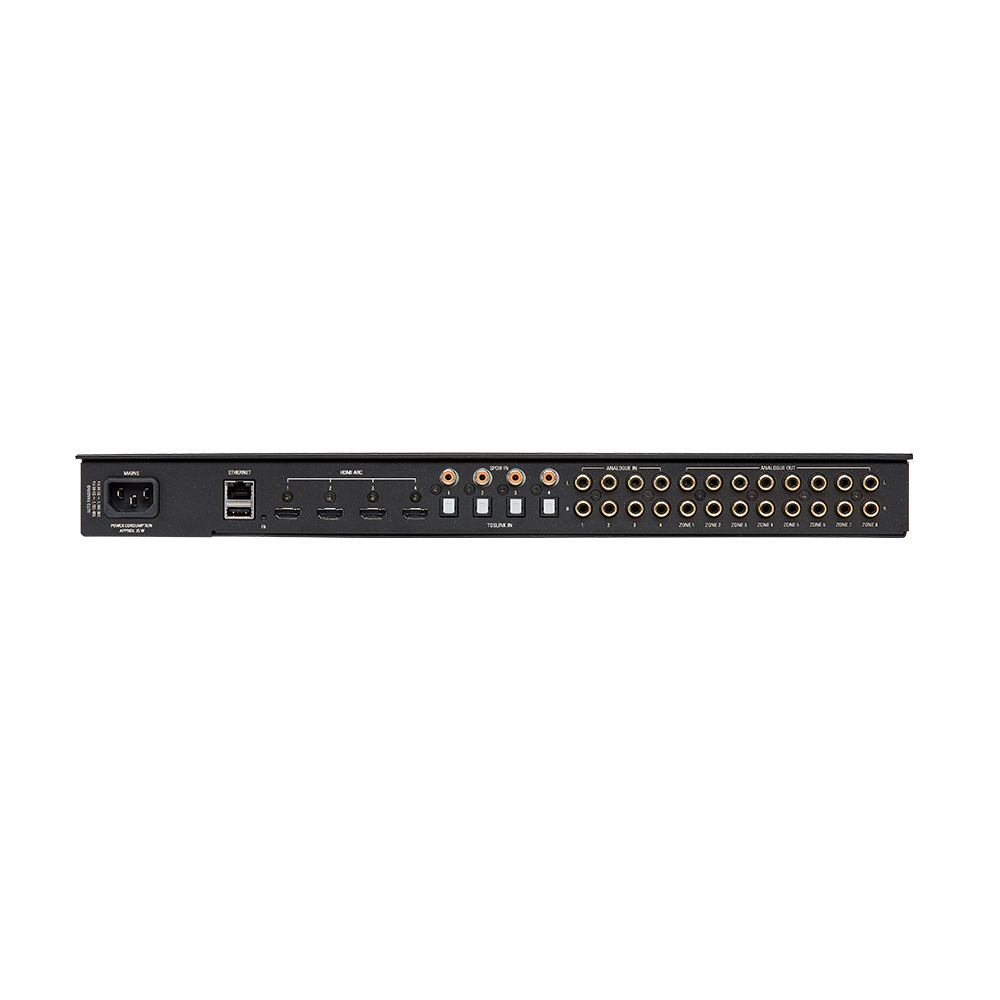

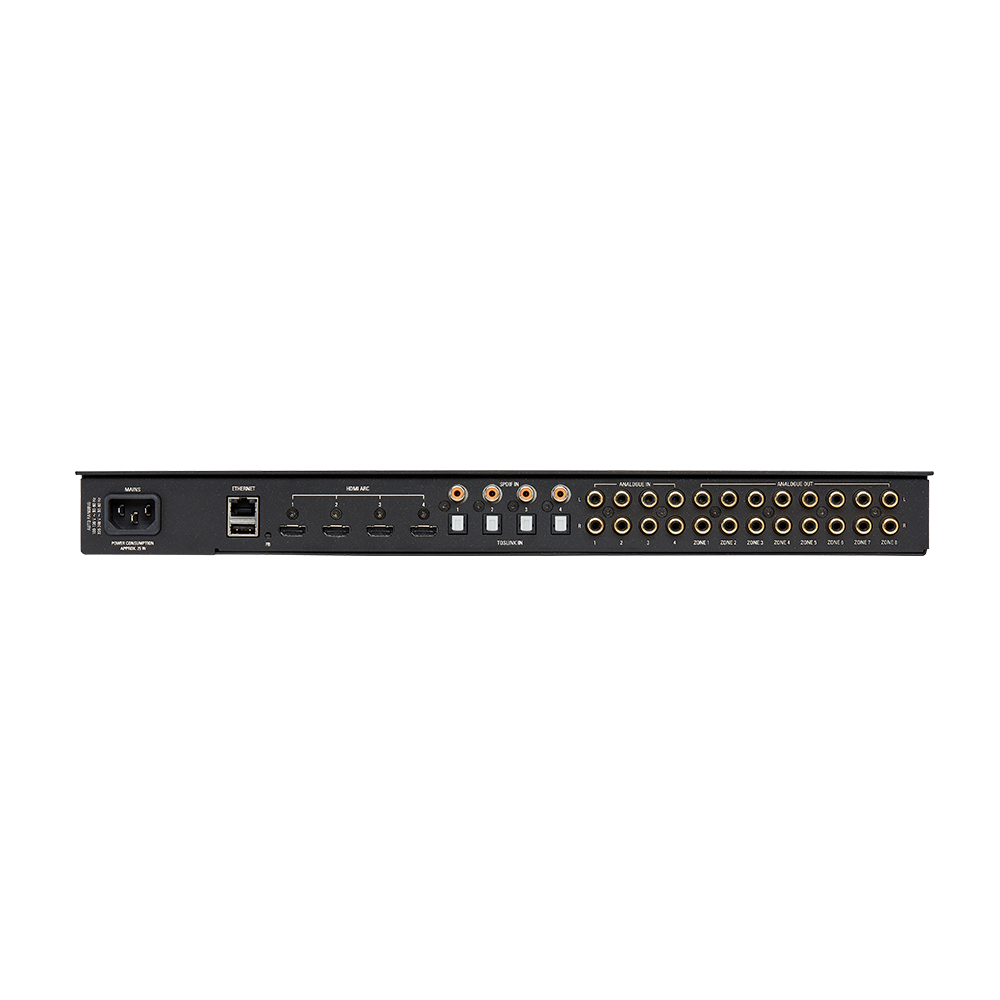

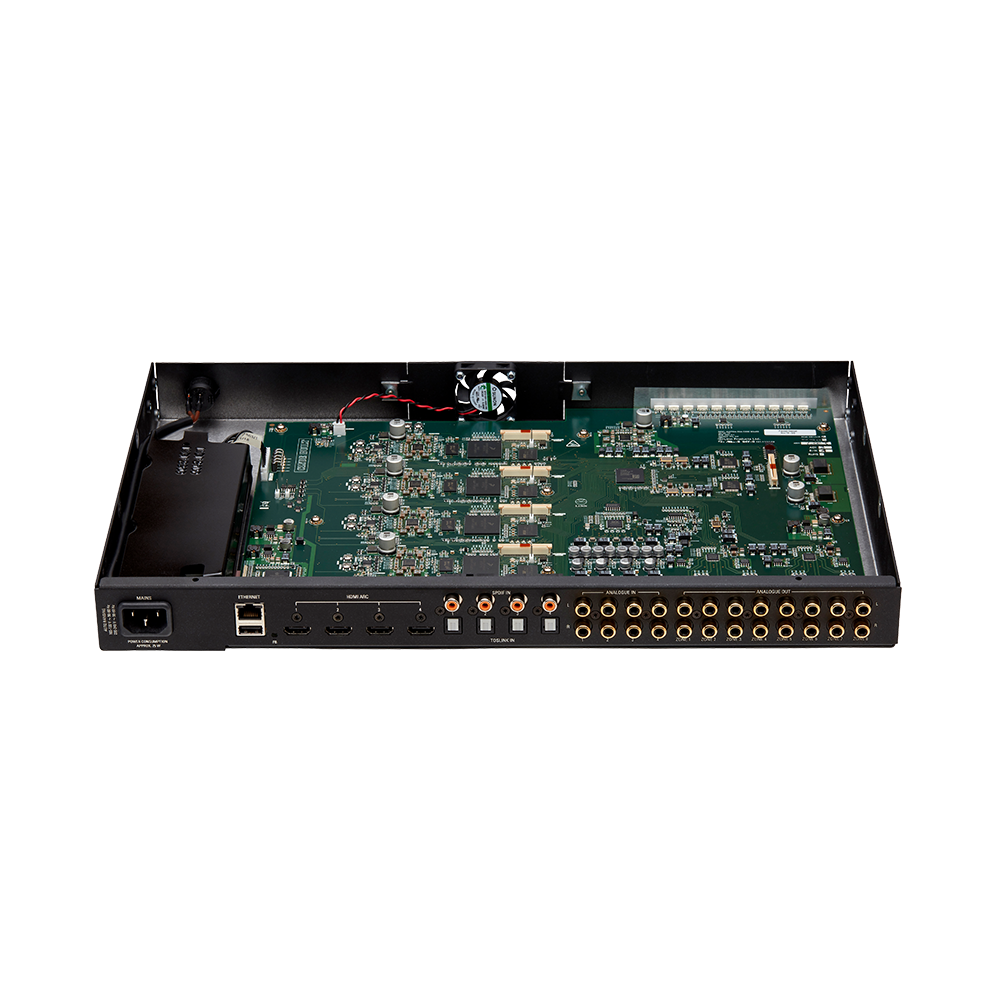

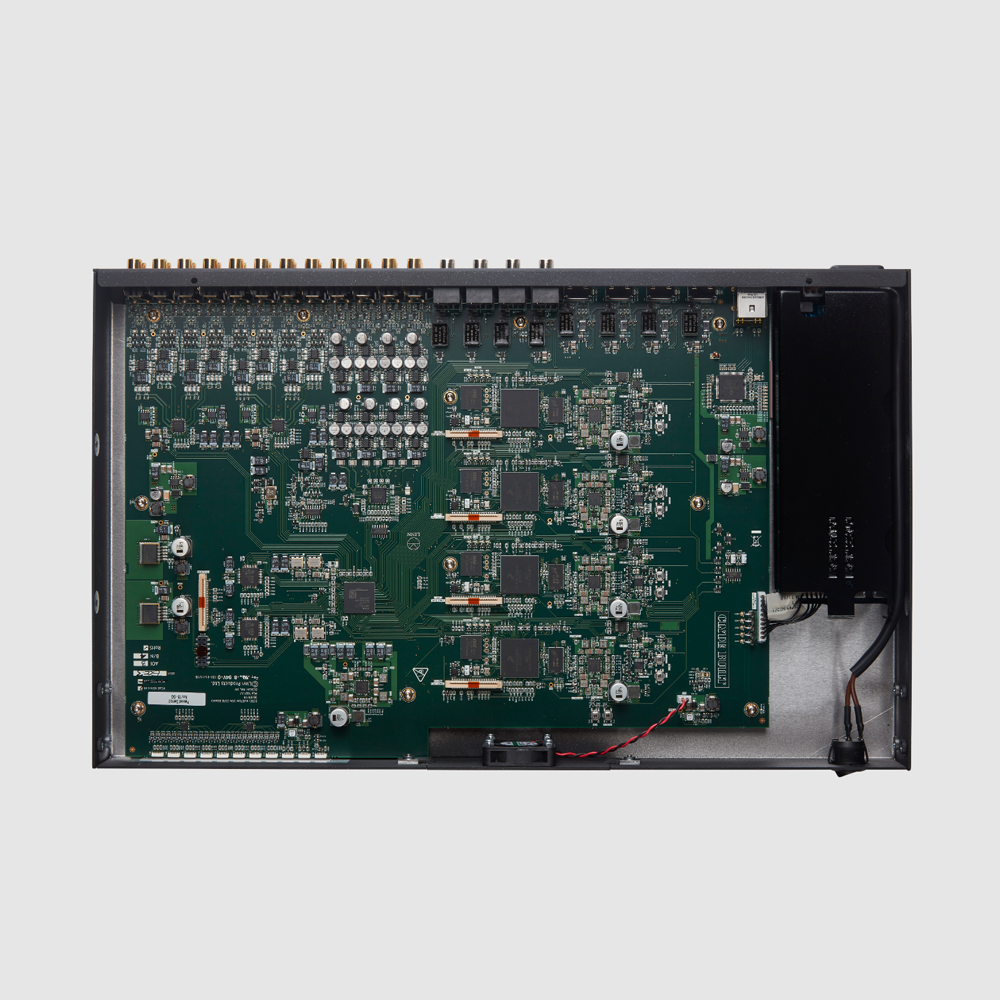

4 Stream/8 Zone

  • Weight 2.45kg

Inputs

  • Ethernet x1 (1000BASE-T RJ45)
  • HDMI ARC x 4
  • Toslink x 4
  • SPDIF x 4
  • Supported Input Sample Rates (kHz) (HDMI, ARC, SPDIF & TOSLINK): 32, 44.1, 48, 88.2, 96, 176.4, 192
  • RCA Phono x 4 pairs

outputs

  • RCA Phono x 8 pairs
