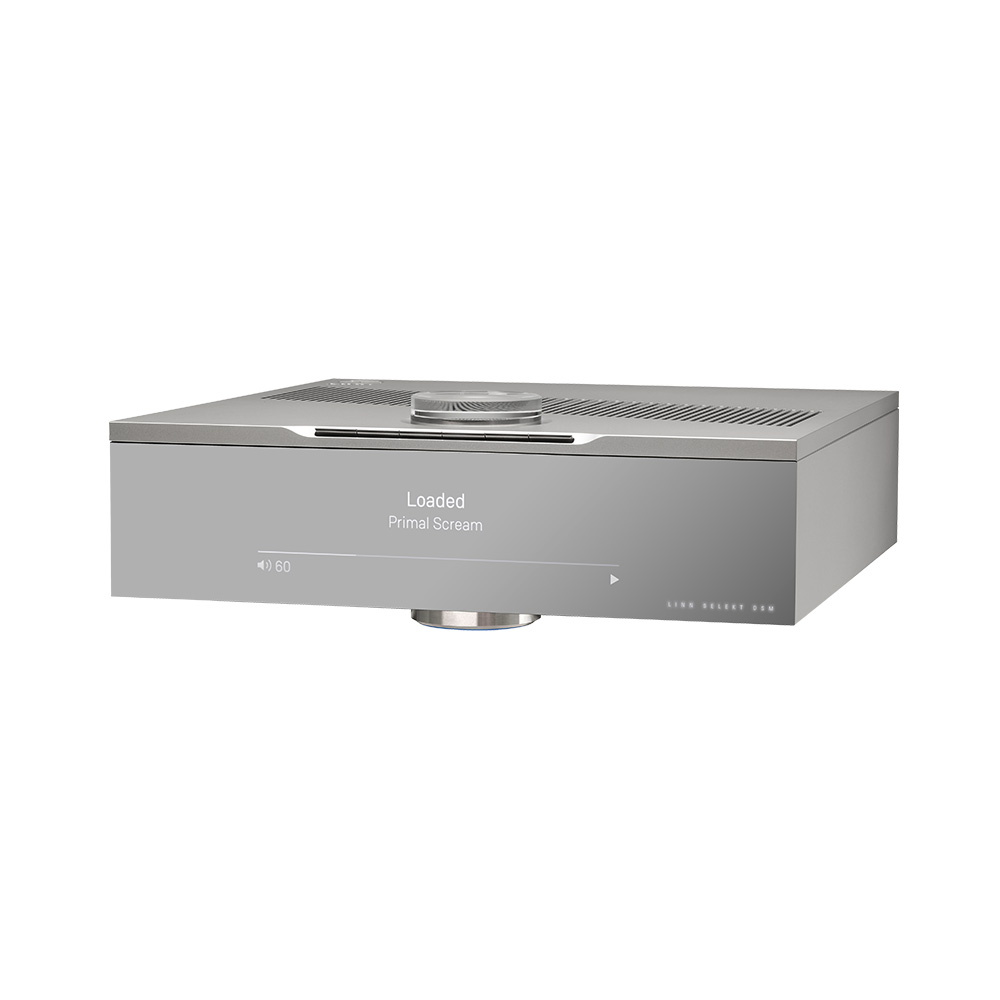

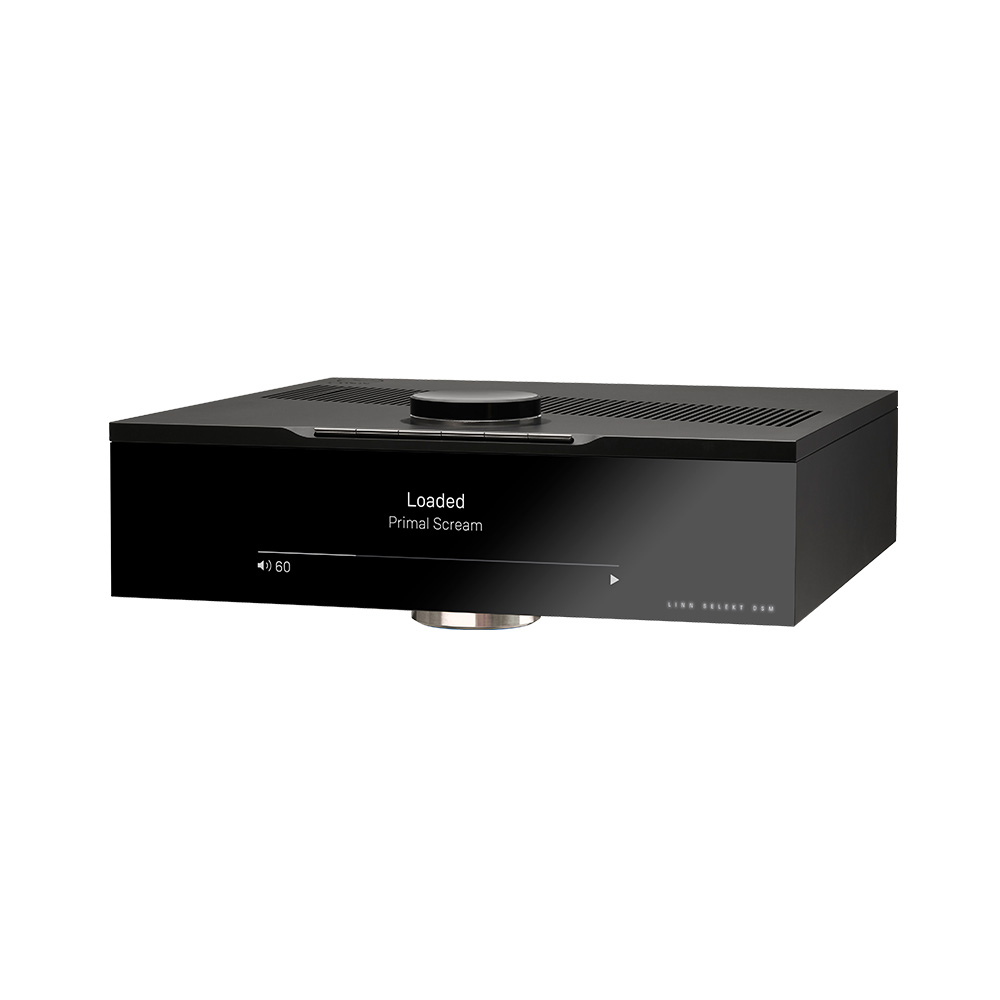

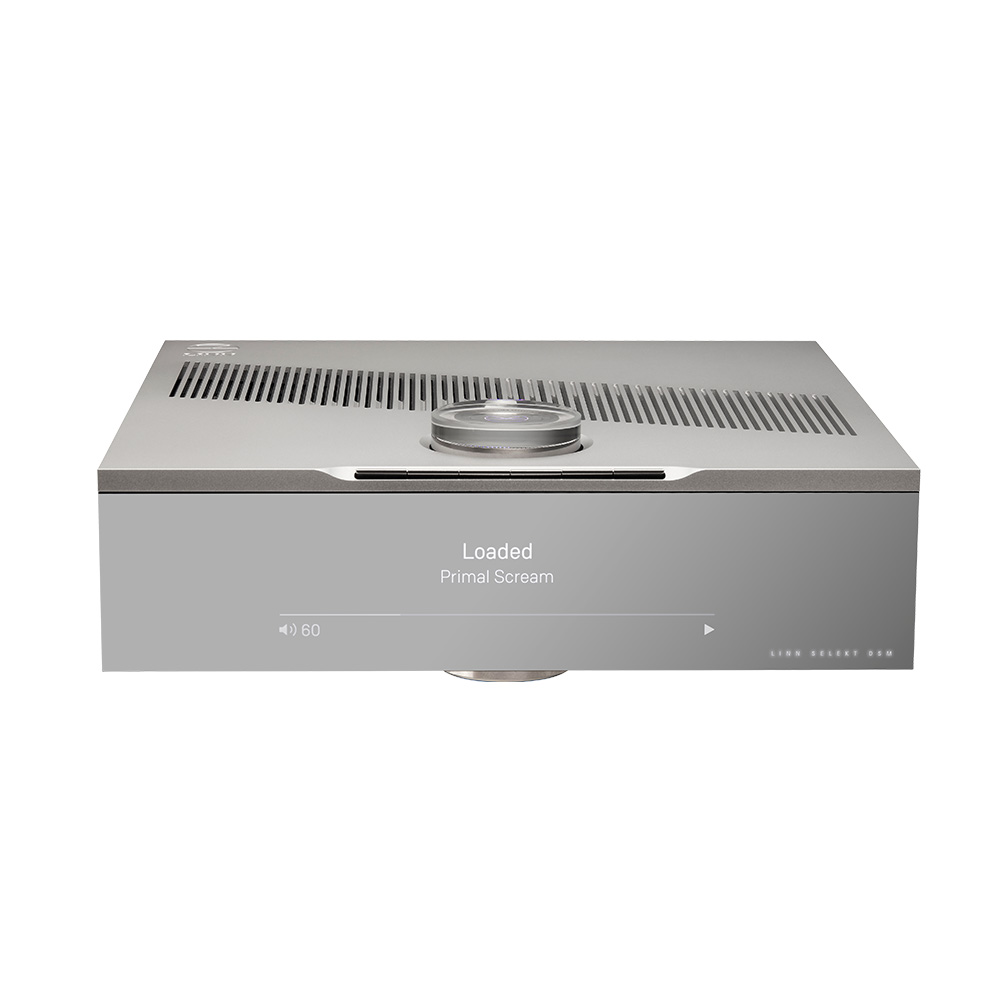

Linn Selekt DSM Edition System Hub


Linn Selekt DSM Edition System Hub

A superior-quality, all-machined design
Product Colour
- Optional
- Optional

Edition Hub is a superior-quality enclosure, featuring an all-machined construction for improved rigidity, interior isolation, and elevated aesthetic appeal – with sleek sight lines, concealed joins and understated luxury at the fore.

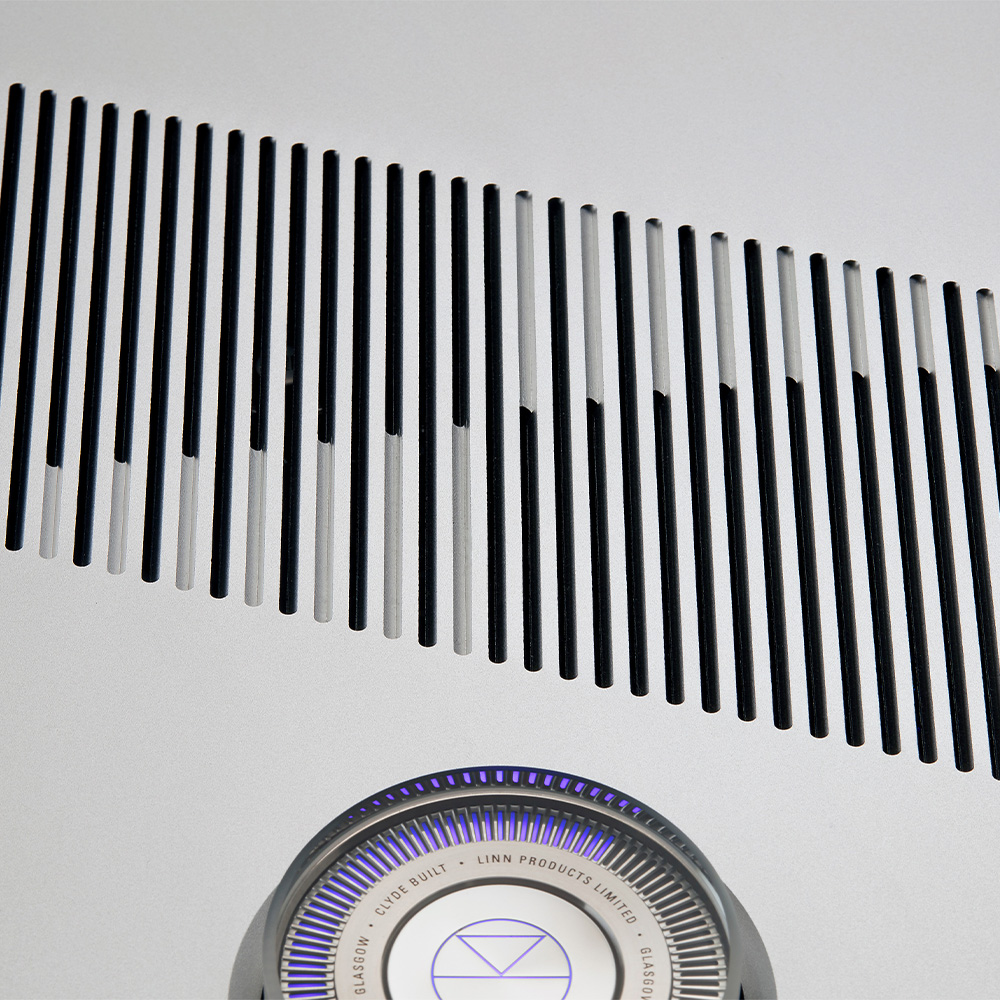

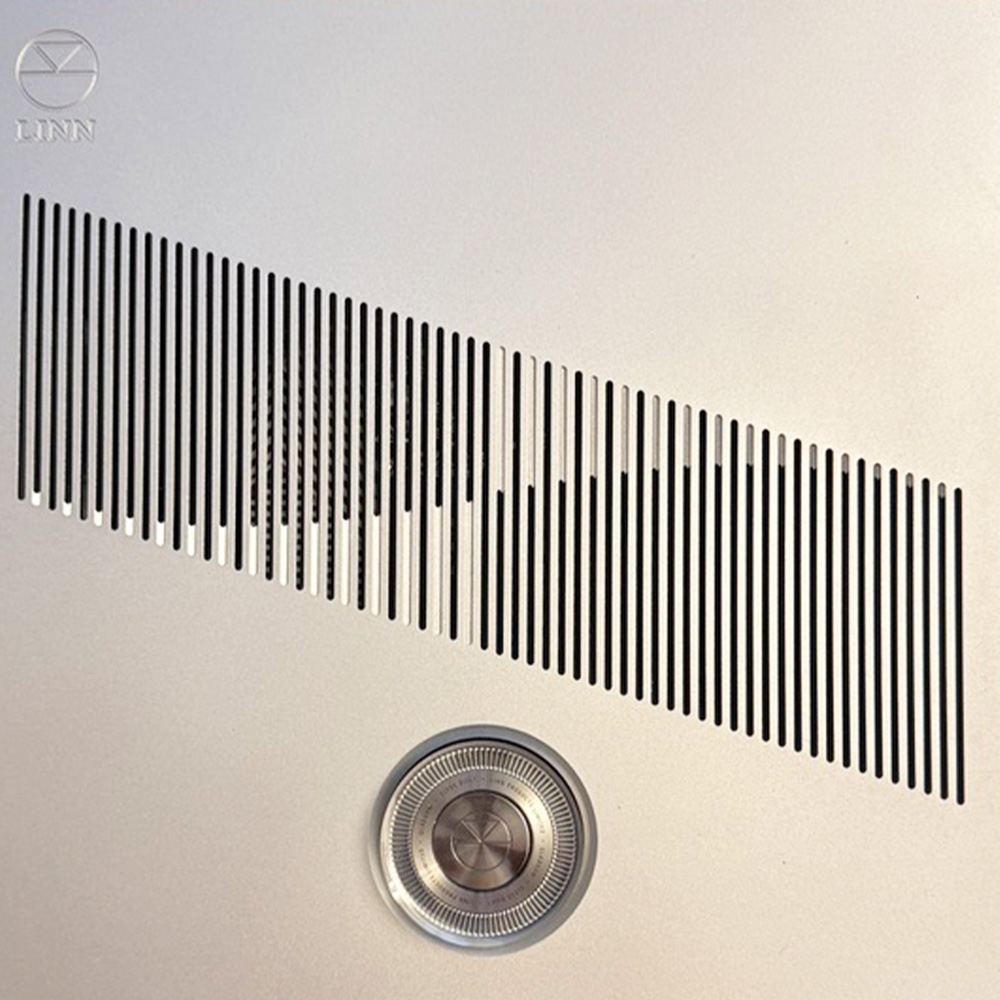

Providing both requisite heat management and high design appeal, the primary vent of Edition Hub is precision-cut into its aluminium plate lid. The vent itself is evocative of a wave, with each aperture cut at an angle, and only every second one machined all the way through. When viewed from different angles, this wave motif morphs and ripples – with myriad reflections projected from its various finishes and surfaces.

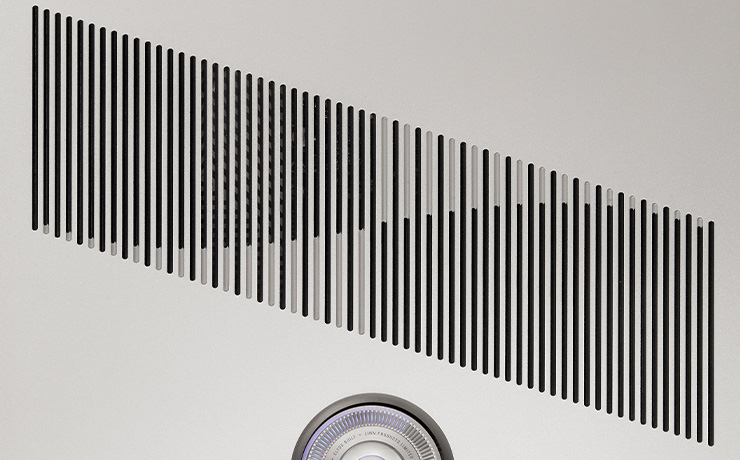

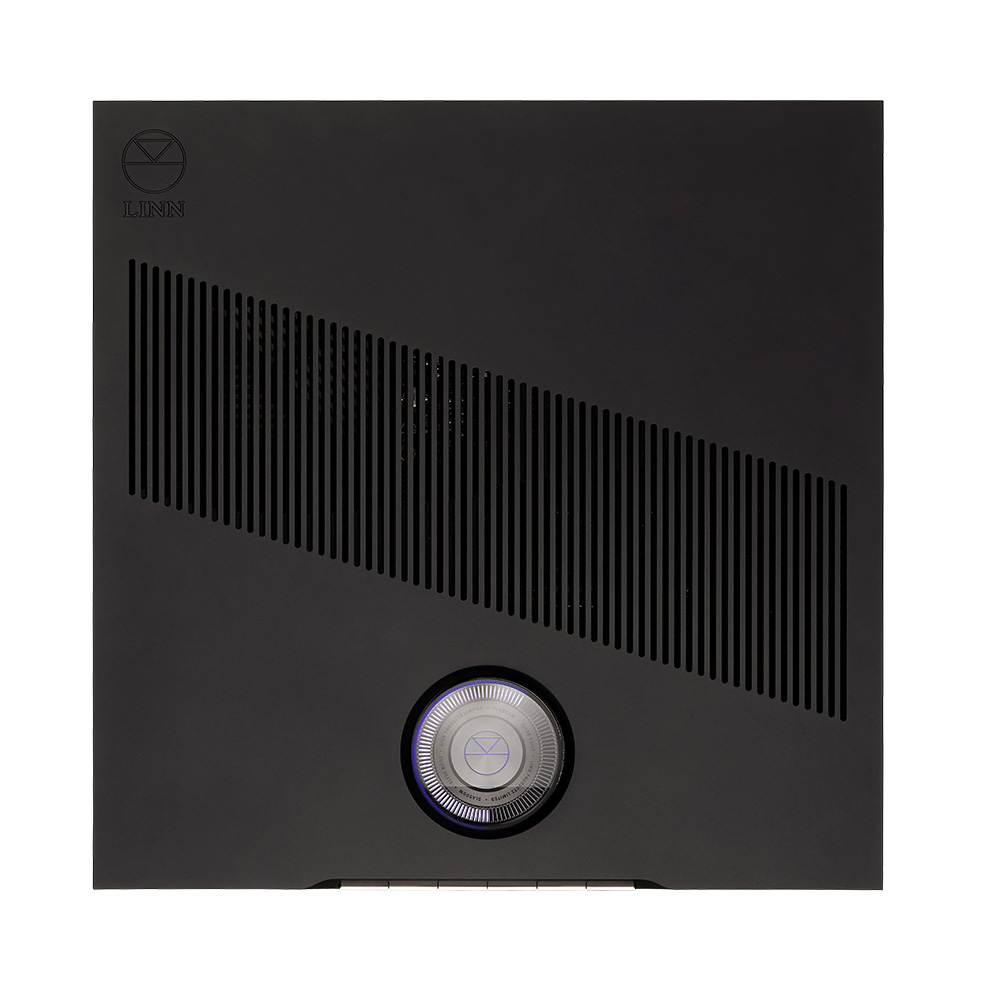

the top of the Selekt Edition DSM Hub showing the "wave"

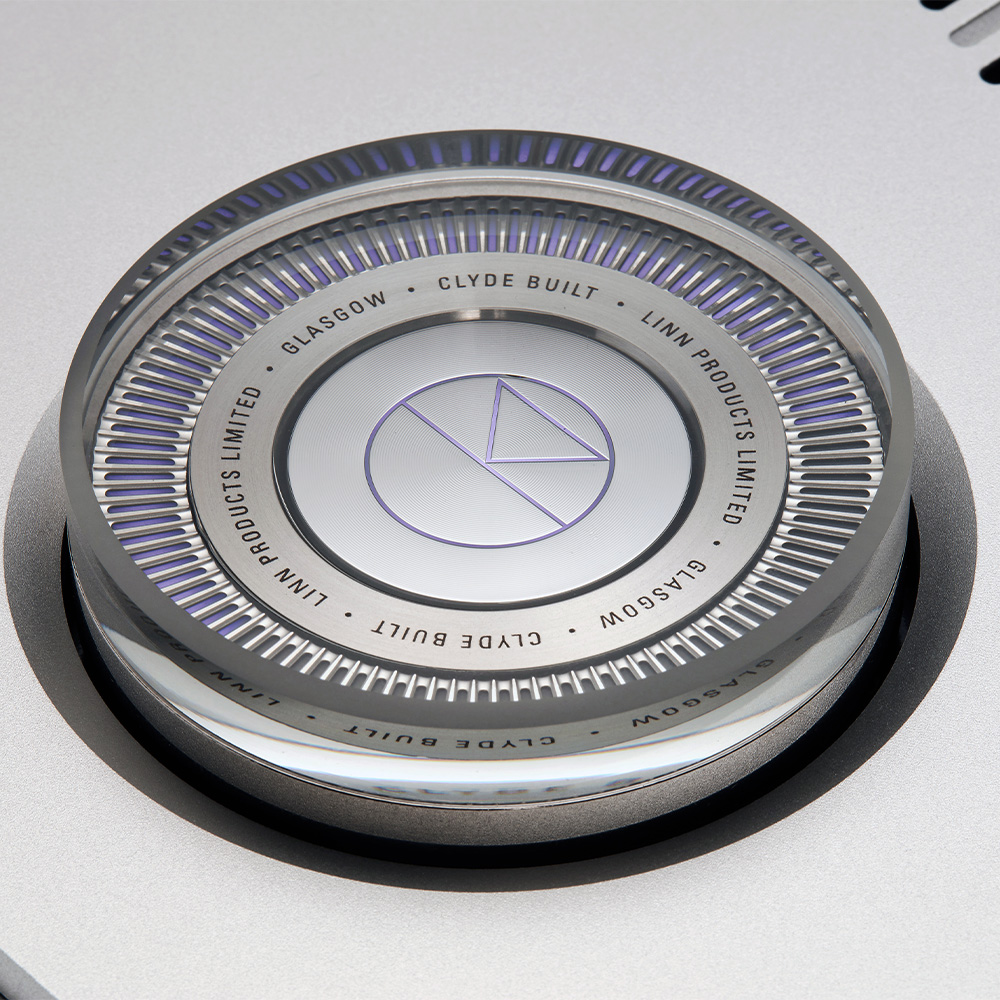

Edition Hub features a much-improved, eye-catching control dial. Its precision, turned-stainless-steel bearing ensures silky, tactile rotation when adjusting volume; and the photo-etched steel halo around its edge allows cool, sharp light to emanate from the one hundred individual LEDs beneath.

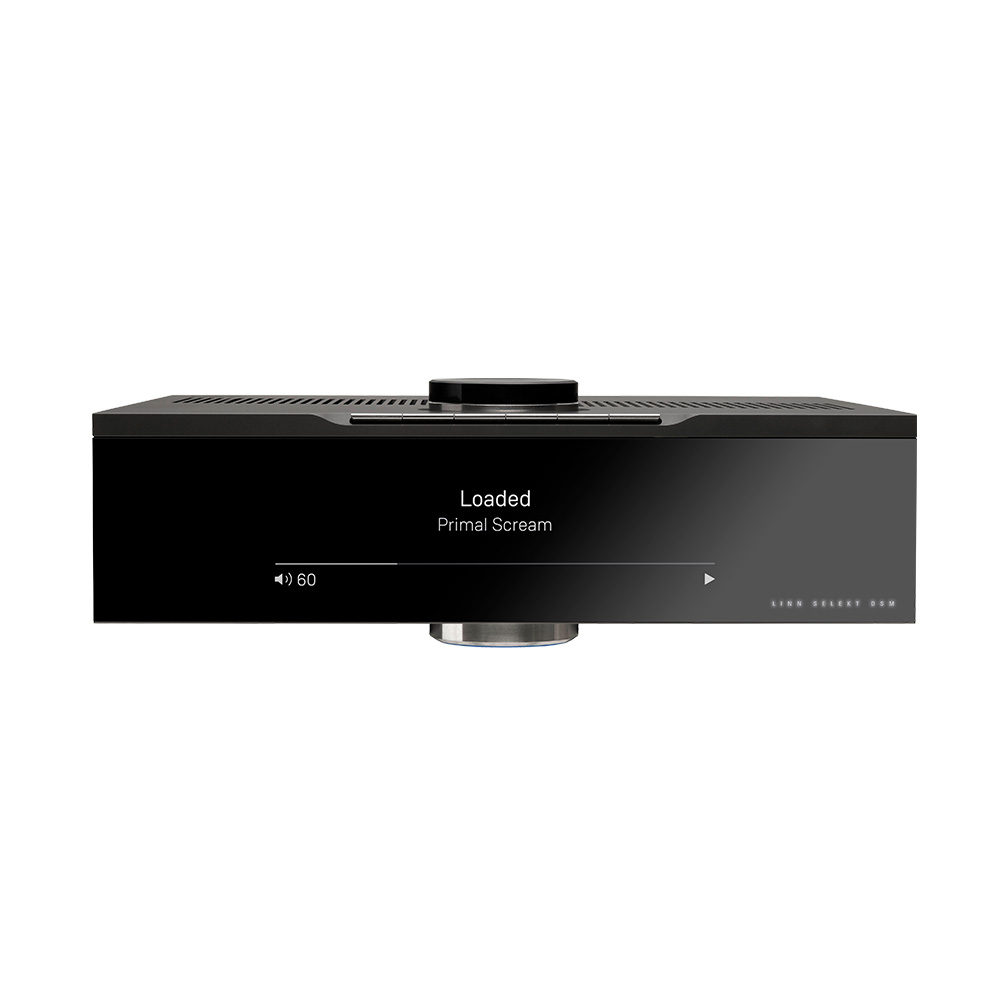

The all-glass fascia of Edition Hub is composed of mirrored spy glass; with the large-format display concealed behind it displaying crisp, clear information when necessary, and fading to total invisibility when not.

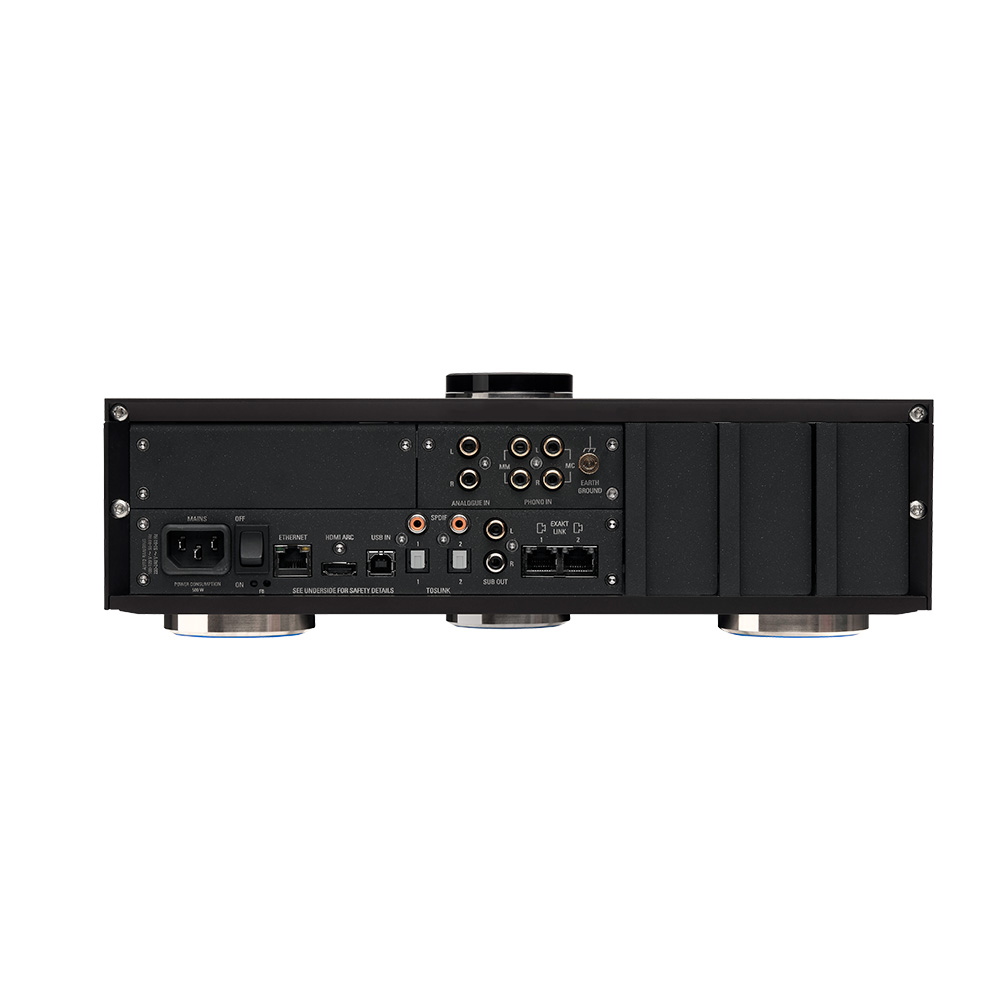

A broad range of connections on Edition Hub’s back panel ensures that it can receive, process and expertly deliver audio from any source imaginable.

Edition Hub features, as standard, Linn’s all-new, exceptionally efficient, highly responsive, and precision-regulated power supply design – Utopik.

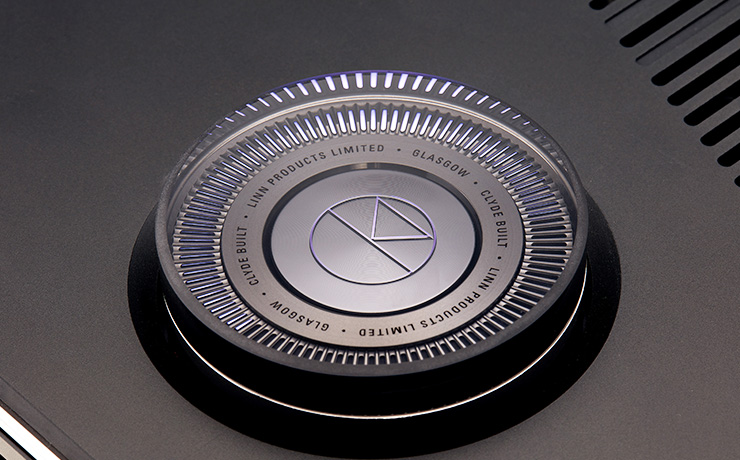

The Linn dial showing the logo in the centre


  • Exceptionally rigid structure with precision fit and finish
  • Improved control dial for silky smooth operation
  • Six programmable extruded-aluminium ‘smart’ buttons
  • All-glass fascia with crisp, large-format display
  • Wide range of inputs accepts virtually any source
  • High-performance MM/MC/Line In Analog Phono Stage
  • Integrated 1/4” headphone output
  • Stereo RCA Sub output for bass reinforcement/bass redirect
  • Powered by Utopik – Linn’s best power supply design ever

Organik DAC for Selekt DSM

  • Dual-mono or stereo configurations available
  • Optimised mono line out cartridge (sold in pairs) houses 1x mono Organik module each for top-performing dual-mono output
  • Selekt DSM: Edition Hub with stereo Organik DAC comprehensively outperforms 2nd-gen Klimax DSM Katalyst; the dual-mono Organik DAC configuration raises that bar higher still

Call 01183218292 to arrange a demonstration or configuration options.

Further information on Linn Selekt DSM options here

  • modular, versatile and upgradeable network music player with superior construction and higher performance
  • high-performance built-in phono stage
  • digital inputs and outputs
  • varied analogue output options
  • Space Optimisation
  • audio formats: FLAC, ALAC, WAV, DSD (64/128/256), MP3, WMA (except lossless), AIFF, AAC, OGG
  • resolution: up to 24-bit 384 kHz
  • integrated services: Tidal, Qobuz, Deezer, Spotify Connect, Airplay 2, Roon tested, TuneIn, airable, Calm Radio
  • ethernet: x1 (100BASE-T RJ45)
  • exakt link x2
  • WiFi: 802.11ac
  • Bluetooth: 4.2
  • screen type: 1600 x 480 TFT display
  • construction: all-machined cast aluminium plate
  • finish: Silver Anodised, Black Anodised
  • dimensions: 355mm (W) x 119mm (H) x 355mm (D)
  • weight: 9.5kg


  • Toslink x2
  • SPDIF x2 (one configurable as an output)
  • RCA x3 pairs (MM, MC, Line Out)
  • USB type B x1
  • HDMI ARC x1
  • with HDMI Upgrade:
    • x4 HDMI in
    • x1 HDMI out (doubles as eARC)


  • RCA Sub Out x1 (Bass Reinforcement or Redirect)
  • SPDIF x1 (configurable as in/out)
  • Analogue outputs: Choice of interchangeable cartridges (max 3):
    • Stereo Line Out
    • Mono Line Out (2x Mono Organik DAC modules mandatory)
    • Stereo Power Amps
    • Hybrid Centre/Sub available
