Astell & Kern Zero2 Earphones

Astell & Kern

Astell & Kern Zero2 Earphones

Astell & Kern Zero2 Earphones
Product Colour
- Optional

Advanced Quad-brid IEM

Astell&Kern's philosophy of striving to deliver ultra-precise original sounds has been praised by many audiophiles from the result of our first IEM, the AK ZERO1.

The AK ZERO2 is a professional IEM made using advanced technologies based on A&K's experience gained from the development of the AK ZERO1.
The ultra-refined cross-over network design and acoustic chamber perfectly harmonise the four different drivers that power the AK ZERO2, designed to play the true sounds of Astell&Kern.

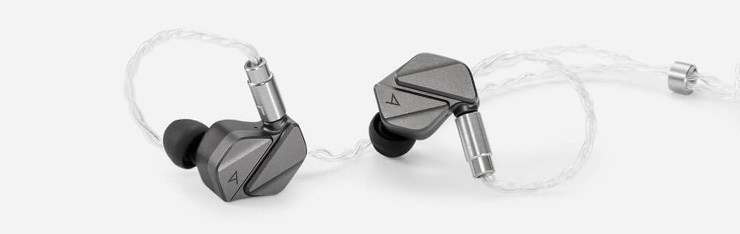

The Astell & Kern Zero 2 earphones laying on a surface.


  • Astell & Kern's different types of drivers
  • Perfectly harmonised driver structure
  • Highest Cross-Over Network Management
  • Acoustic Chamber by 3D Print Technology
  • Precise CNC Metal Housing
  • HiFi Grade Pure Silver-Coated OFC Cable
  • Made in Japan

Advanced Quad-brid Design and Ultra-refined Cross-over Network

The AK ZERO2 is an IEM that features a “Quad-brid” design centered around an advanced driver array and Super Low Noise Cross-Over Network perfectly tuned. Four different types of driver, including Custom BA Drivers, a Planar Dynamic Driver, a 10-mm Dynamic Driver, and a Piezoelectric Transducer create the perfect synergy, coming together to form the Quad-brid AK ZERO2 capable of reproducing the pure sounds that Astell&Kern strives to deliver.

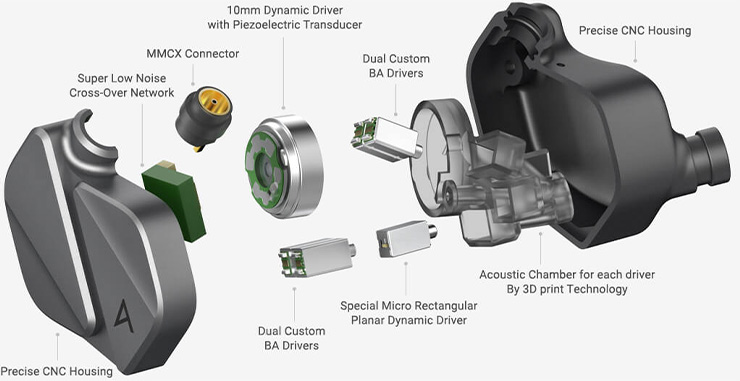

The components of the Astell & Kern Zero 2 earbud

Advanced Quad-brid Design

Special Micro Rectangular Planar Dynamic Driver

- [High] Crisp and Dynamic Treble Sound

The Micro Rectangular Planar Dynamic Driver is a driver specifically developed to deliver high frequencies, featuring advanced technology that allows a planar driver to be used in IEMs, despite the extreme difficulty in making it small enough to fit in such a small cavity.

A&K selected a light yet sturdy planar membrane to minimise frequency loss and applied a trembler with a thin metal membrane and polymer film to create lifelike vivid high frequencies. This provides a clear and dynamic high frequency response.

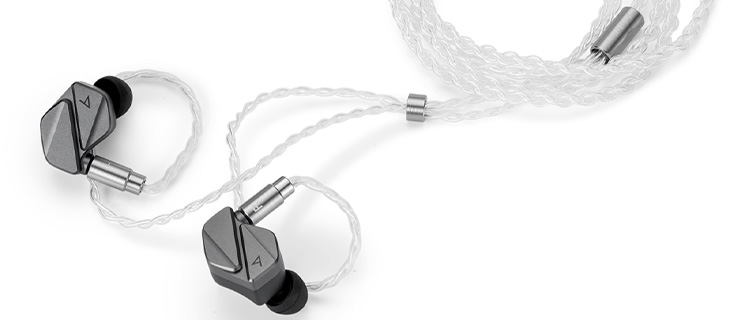

Astell & Kern Zero 2 earphones on a white background

Dual Custom Balanced Armature Drivers

- [Mid-Low] Transparent Vocal sound
- [Full Range] Perfectly Balanced and Rich Sound

The Coil Parameter Dual Custom BA Driver is a custom-made driver designed to reproduce both full-range and mid- to low-range frequencies.

It comes with a total of four drivers: two BA drivers that offer ultra-low distortion to create clear low- to mid-ranged vocal sounds and two BA drivers that offer perfectly balanced rich sounds, uniquely tuned to harmonise each frequency range, playing perfect sounds.

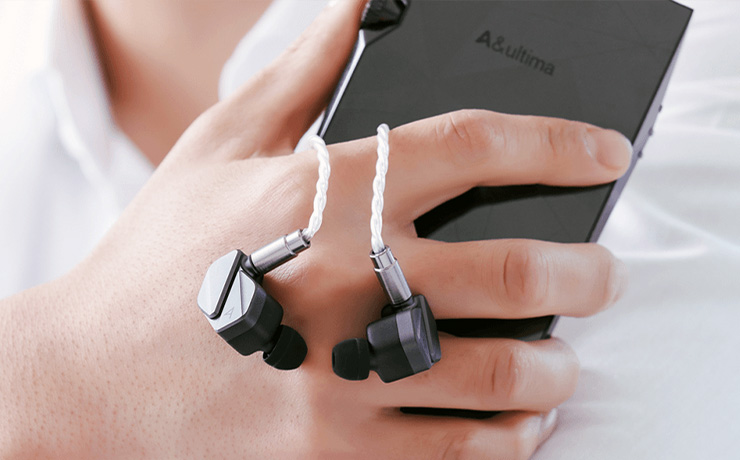

Astell & Kern Zero 2 earphones hanging over the hand that's holding the Astell & Kern music player

Single 10-mm Dynamic Driver with Piezoelectric Transducer

- [Low & Super High] The Deepest Bass and Clear Treble Sound

Various types of carefully designed drivers create rich, HiFi sounds. The 10-mm dynamic driver used in the AK ZERO2 is meticulously manufactured using a fully automated process. This allows the driver to recreate rich and deep low frequencies.

An additional piezoelectric transducer works in tandem with the dynamic driver, serving as a super tweeter that asserts its presence in the super-high frequency range that many IEMs struggle to recreate.

Ultra-refined Architecture Design

Super-Low-Noise Cross-Over Network

The ultra-refined cross-over network enables a perfect balance between six drivers with distinctive sound characteristics, maximising each of their acoustic traits while creating a balanced harmonised sound.

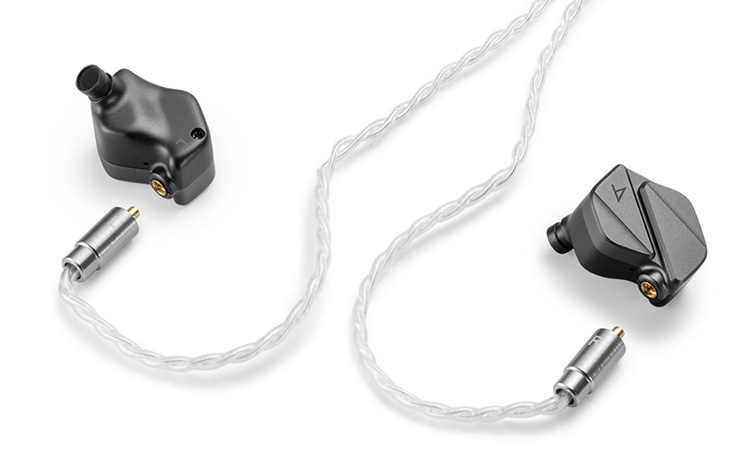

Astell & Kern Zero 2 earphones laying on a white surface.  The chord is disconnected from the earbuds

Each Driver Has an Acoustic Chamber Made Using 3D Printing Technology

Each driver is placed optimally in an acoustic chamber that is created through refined 3D printing technology. This design eliminates any unnecessary movement and resonance of the drivers for permanently stable performance.

Precise CNC Housing

The housing, which is made using Astell&Kern's advanced aluminium processing technology, limits resonance to create stable high-quality sound.

Hi-Fi Grade Pure Silver-Coated OFC Cable 4 Core

The pure silver-coated OFC cable, designed to maximise the performance of the AK ZERO2, is created with high-purity silver plating and copper, and adds a touch of style with plugs crafted from aluminium.

The MMCX connectors offers a robust connection and a long-lasting and stable life cycle.

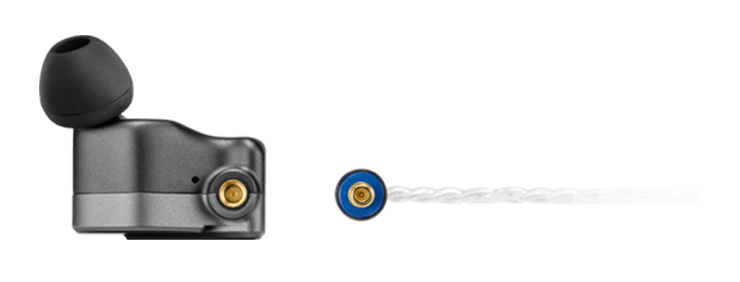

Astell & Kern Zero 2 earbud viewed from the side and the chord

Made in Japan

Each AK ZERO2 is meticulously assembled by professional technicians with extensive experience and is produced at our state of the art facilities
in Japan to offer you the highest quality through strictly managed processes.

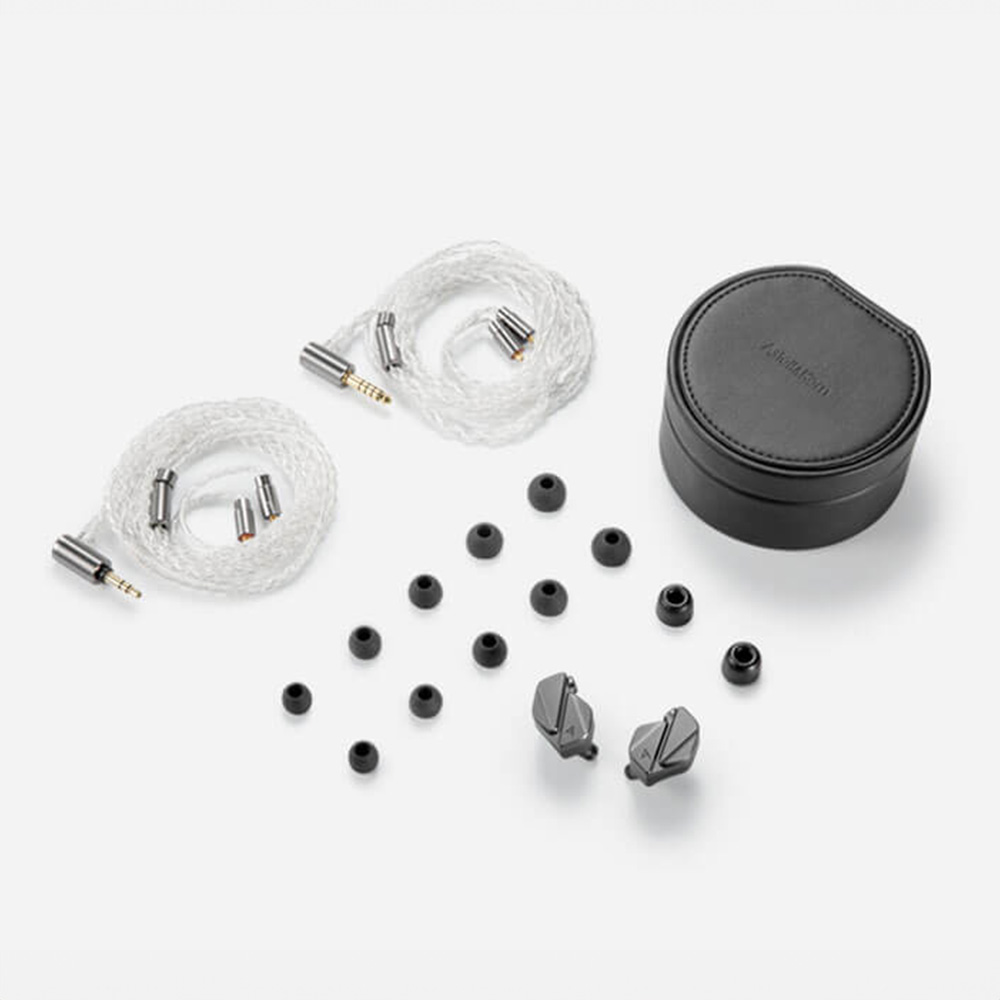

  • AK ZERO2 Earbud L/R
  • 3.5mm cable x1
  • 4.4mm cable x1
  • 5 pairs of silicone ear tips
  • 1pairs of foam tips
  • Carrying Case x1

The Astell & Kern Zero 2 earphones in the ears of a young man


The AK ZERO2 is the second in-ear monitor (IEM) created with the unmatched technology of Astell&Kern.

The AK ZERO2 is a bold stride forward from the AK ZERO1 into new territory, setting a new bar for clear audio.  This outlines the design identity and new standards of the AK ZERO2.  The diagonally cut hexagonal shape leaves a powerful impression, creating a new sound experience that sets a clear standard. The shape of the AK ZERO2 is designed to fit naturally in your ears to allow music to be enjoyed comfortably. The colorful shapes change with the lighting to offer a whole new experience alongside the unmatched sound.

  • Model: AK ZERO2
  • Driver:
    • Quad-brid Drivers
    • Special Micro Rectangular Planar Dynamic Driver x1
    • Custom Balanced Armature Drivers x4
    • 10mm Micro Dynamic Driver x1 with Piezoelectric Transducer
  • Cable:
    • MMCX
    • Hi-Fi Grade Pure Silver-Coated OFC Cable 4 Core (4.4mm, 3.5mm)
  • Material: Aluminium
  • Frequency response: 20Hz–30KHz
  • SPL: 105dB@1KHz(1mW)
  • Impedance: 5Ω@1KHz
  • Total Harmonic Distortion: 0.7%@1kHz
