MOON 810LP Phono Preamplifier

MOON

MOON 810LP Phono Preamplifier

Price
£13,350.00
A true purist design that is destined to become the new reference for analog playback. Astonishing analog reproduction combined with unsurpassed flexibility!
Product Colour
- Optional
- Optional
- Optional

The ultimate phono preamplifier

“Over time the soundstage got even deeper and incredibly wide, with the unerring ability to clearly place and delineate individual musicians within a fully fleshed-out acoustic.” – Graham Abbott, SoundStage! Ultra

Suspension which eliminate microphonics for absolute best analog sound

“In terms of black backgrounds, top-to-bottom transient response, image definition, dynamic contrasts at both ends of the scale, and rhythm’n’pacing, the MOON 810LP was worth its considerable price. It was a model of rhythmic and spatial organization.” – Michael Fremer, Stereophile

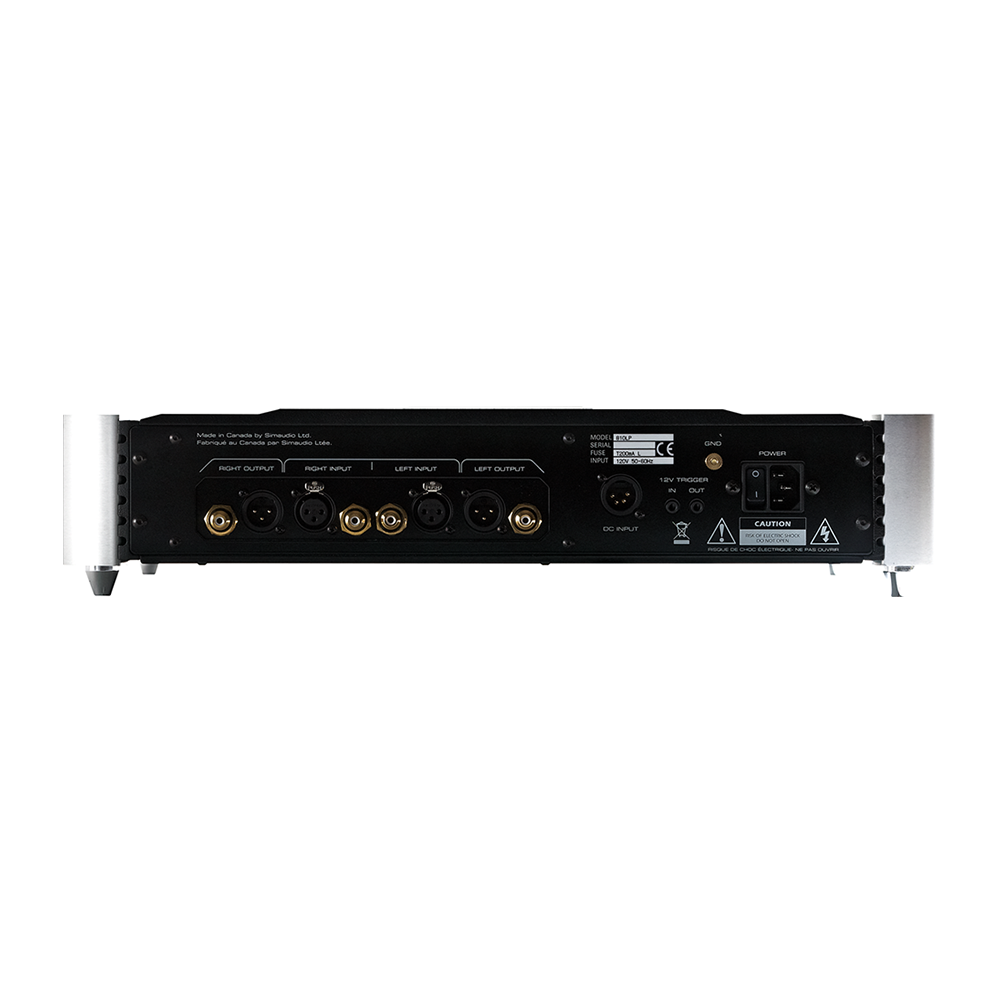

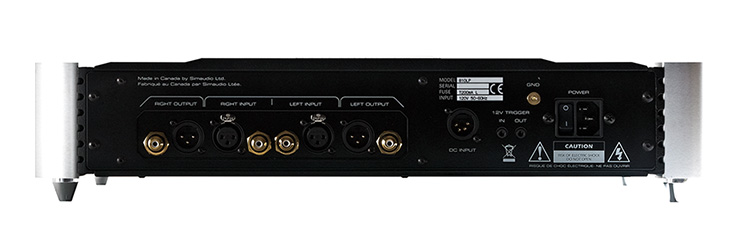

810LP rear view

Incredible level of input optimisation for any cartridge

Product features

  • Power supply voltage regulation includes i 2 DCf (Independent Inductive DC Filtering); 1 inductor for each and every IC in the audio circuit’s signal path – 24 stages in all.

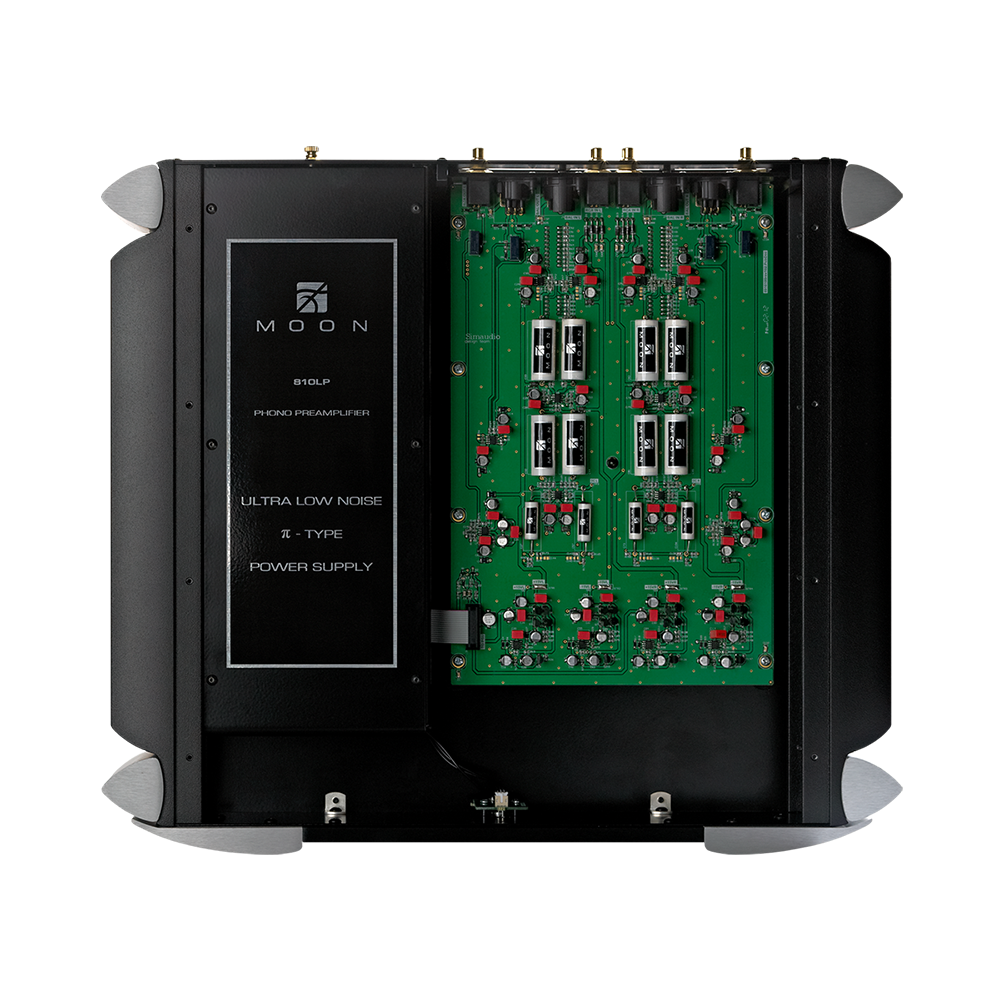

  • The dedicated audio circuit board is mounted on a 5-point gel-based floating suspension, derived from our M-Octave technology, originally developed for our reference 850P Preamplifier.
  • Fully compatible with 820S external power supply.
  • Customised parts include metallised polypropylene film capacitors with very tight tolerances of 1%.
  • Four-layer PCB tracings with dedicated ground and power planes using pure copper for low impedance characteristics.

in the box

  • phono preamplifier
  • AC power cable
  • One (1) pen shaped plastic hand tool for making DIP-switch adjustments
  • Owner’s manual
Specifications
  • Inputs (XLR / RCA): 1 pair / 1 pair
  • S/N Ratio (full scale @40dB gain): 115dBr
  • S/N Ratio (full scale @70dB gain): 95dBr
  • IEC Curve Effect: -7dB @ 10Hz
  • Frequency response: 20Hz - 20kHz ±0.1dB
  • Crosstalk @ 1kHz: 106dB
  • Output impedance: 50Ω
  • THD (20Hz - 20kHz): 0.0008%
  • Intermodulation distortion: 0.001%
  • Input overload @40dB gain (XLR / RCA): 200mV RMS / 100mV RMS
  • Input overload @70dB gain (XLR / RCA): 5mV RMS / 2.5mV RMS
  • Shipping weight: 40 lb / 18 kg
  • Dimensions in inches: Width 18.75", Height 4.0", Depth 16.8"
  • Dimensions in cm: Width 47.6cm, Height 10.2cm, Depth 42.7cm
