Linn Aktiv Cards
Upgrading your Linn speakers to Aktiv is a great way to improve performance and also provides a significant step on the way to the ultimate upgrade of Exakt.
Aktiv crossover cards fit inside Linn power amplifiers and split the signal before it's amplified, feeding a dedicated channel of amplification for each drive unit and bypassing the passive crossover inside your speakers.
This significantly reduces the noise and distortion associated with passive crossovers and also unlocks further upgrade possibilities - with your speakers Aktiv, you have all the amps needed to go to the next level using an Exaktbox.
** When you buy any current Akurate or Majik amp for upgrading to Aktiv, we'll include the Aktiv Cards you need for your particular speakers, at no extra charge. Please contact us for more details.
Majik and Akurate Power Amplifiers
Aktiv crossover cards fit inside Linn Akurate and Majik power amplifiers and split the signal before it's amplified, feeding a dedicated channel of amplification for each drive unit and bypassing the passive crossover inside your speakers.
See our video fitting Aktiv cards to current Chakra Akuarte and Majik power amps here:
Linn Mono Aktiv Cards
Linn Mono Aktiv cards are fitted to LK100 and Klout amplifiers.

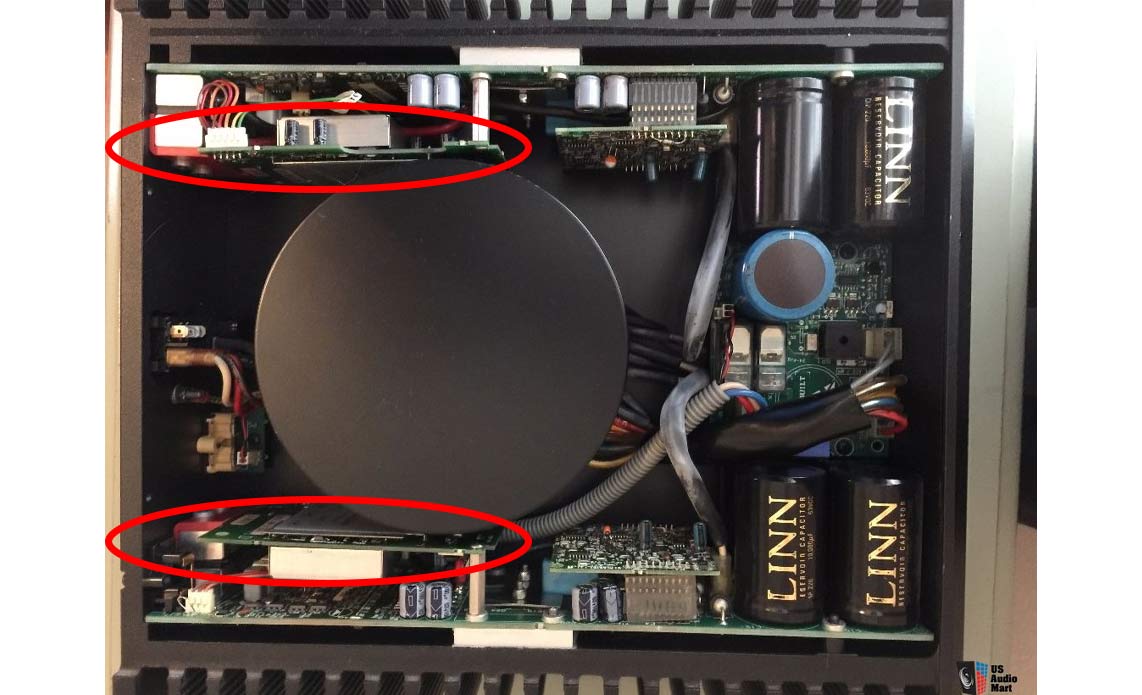

The image below shows the 2 mono Aktiv cards fitted in a Klout amplifier:

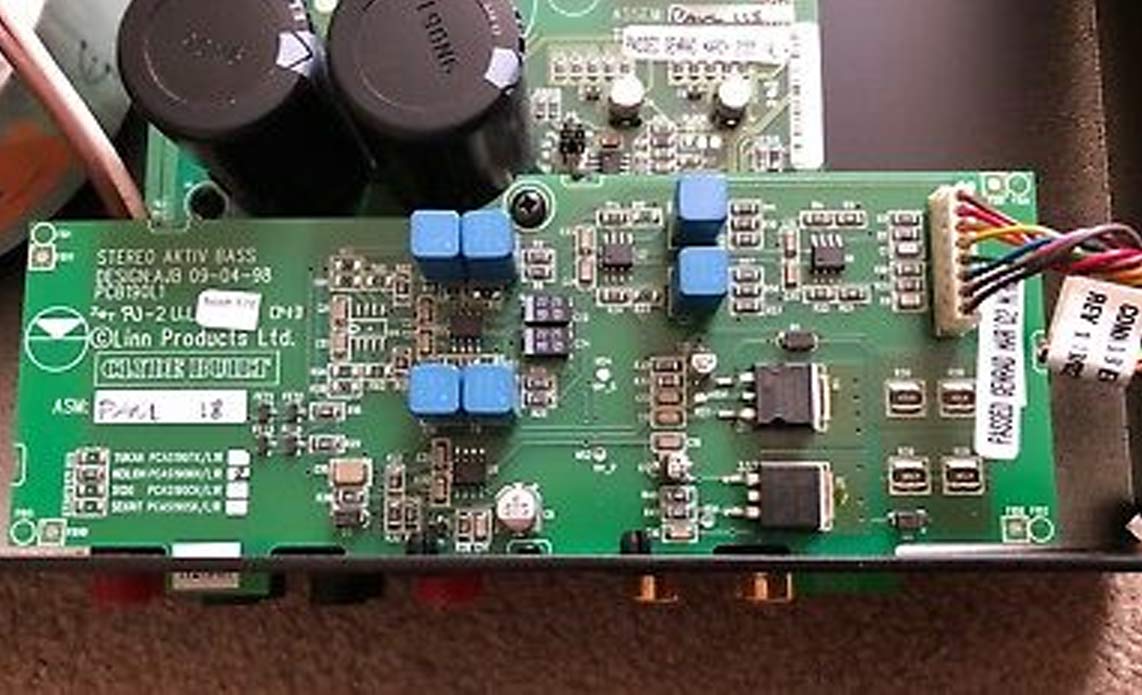

Linn Stereo Aktiv Cards
Linn Stereo Aktiv Cards are fitted to LK85 and LK140 amplifiers.

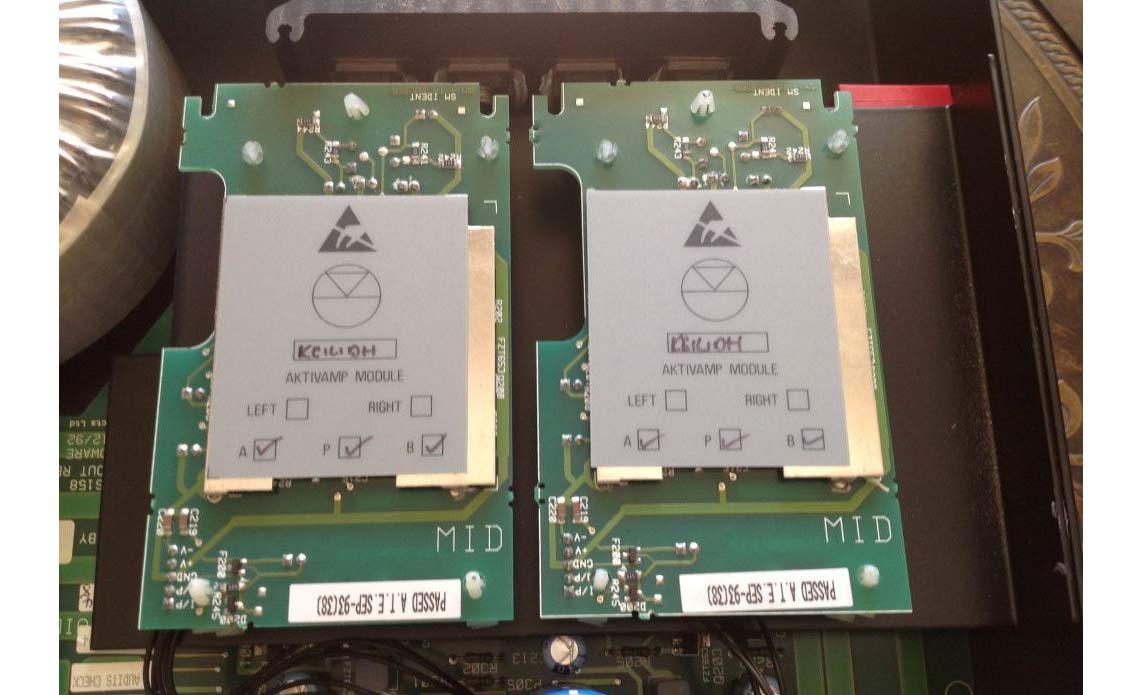

Linn LK100 Aktiv cards

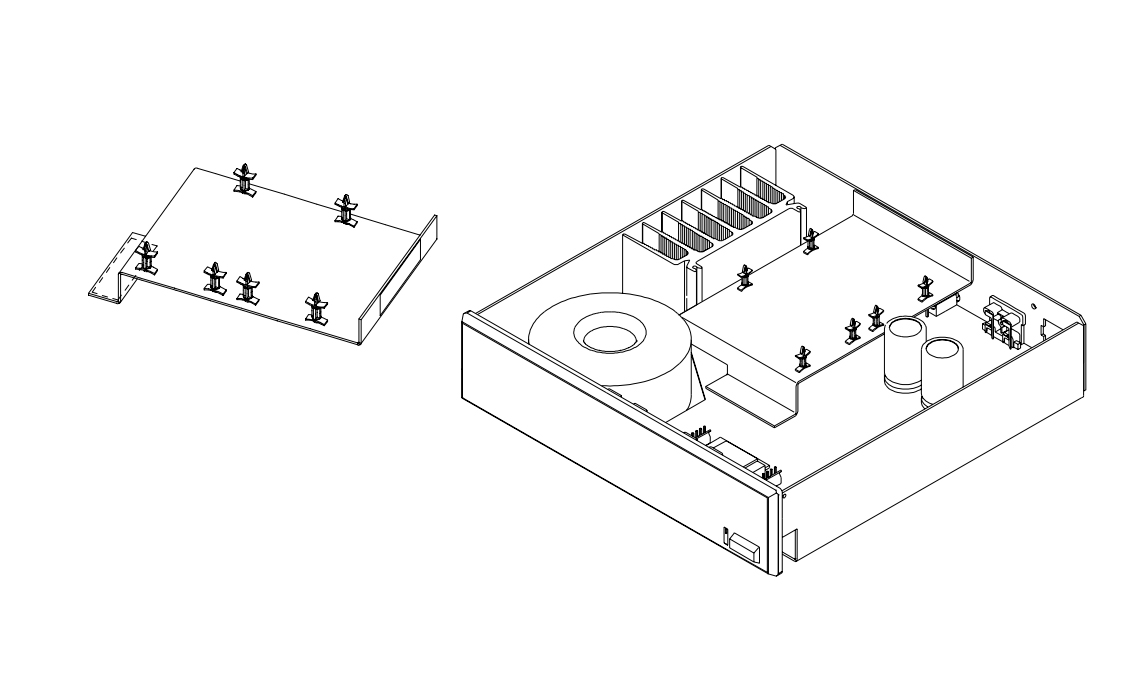

The LK100 accepts two mono Aktiv cards. The Aktiv cards in an LK100 amplifiers are mounted on a bracket fitted internally within the amplifier

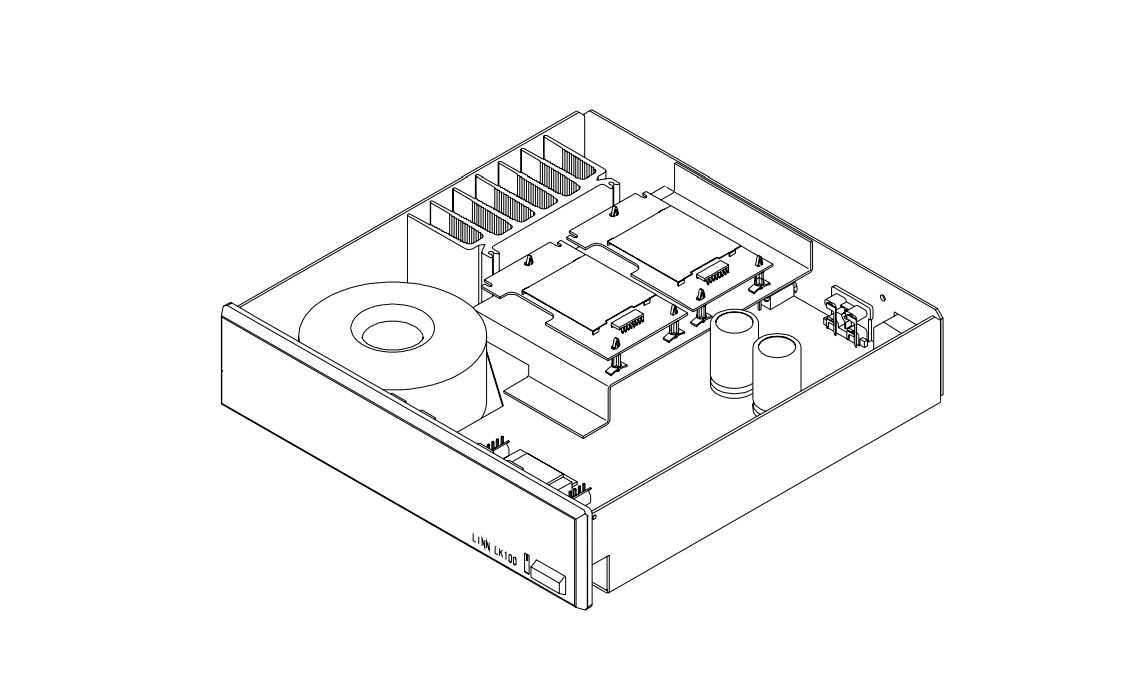

LK100 shown with cards fitted:
Mono Aktiv Adaptor
Linn provide an adapter card that allows current Aktiv cards to be fitted to older Linn amplifiers (Klout, .LK etc)
Part CHAKT 50 and CHAKT 52
Linn AV5125 - 5 channel Amplifier Aktiv cards
The AV5125 can be fitted with one Mono-Aktiv & two Stereo-Aktiv modules (= 5 channels),
configured as follows:
Channel 1 => Mono Module
Channel 2 & 3 => Stereo Module
Channel 4 & 5 => Stereo Module
