Sub 4 unlocks the full power of Sonos sound, delivering powerful bass to immerse you even deeper in every scene and song.
Pulse-pounding bass
Dual Sonos-engineered drivers generate deep, dynamic low frequencies. The ported enclosure enhances the bass response so you feel every beat, roar, and rumble in your chest.

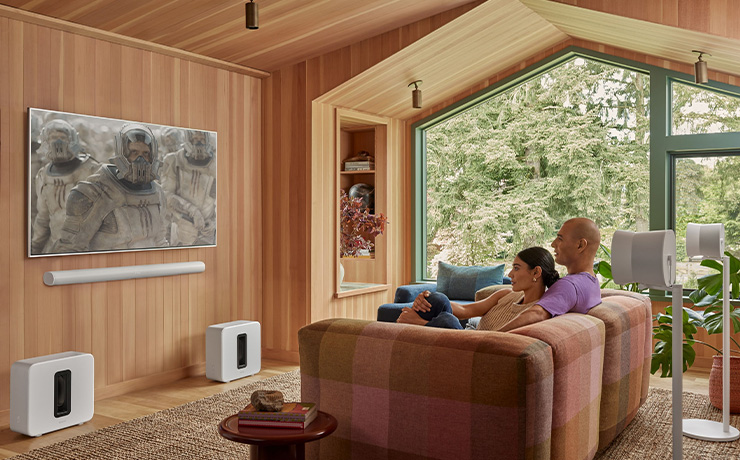

Transform your home theatre experience
Pair Sub 4 with Sonos Arc, or Beam for dramatically deeper bass and clearer highs that draw you deeper into movies, shows, and games.
Bring your music to life
Hear the nuance in every note and enjoy a greater sense of spaciousness when you pair Sub 4 with Sonos Five, Era 300, or Era 100.

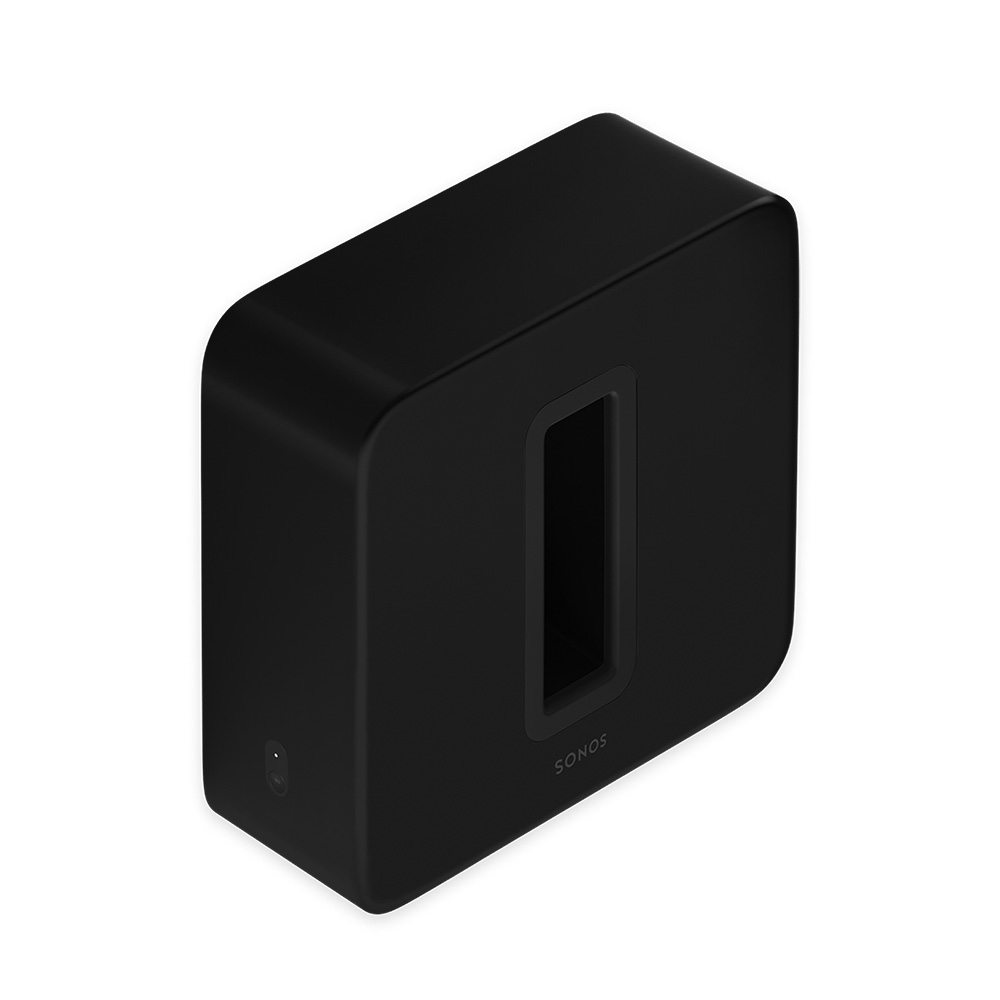

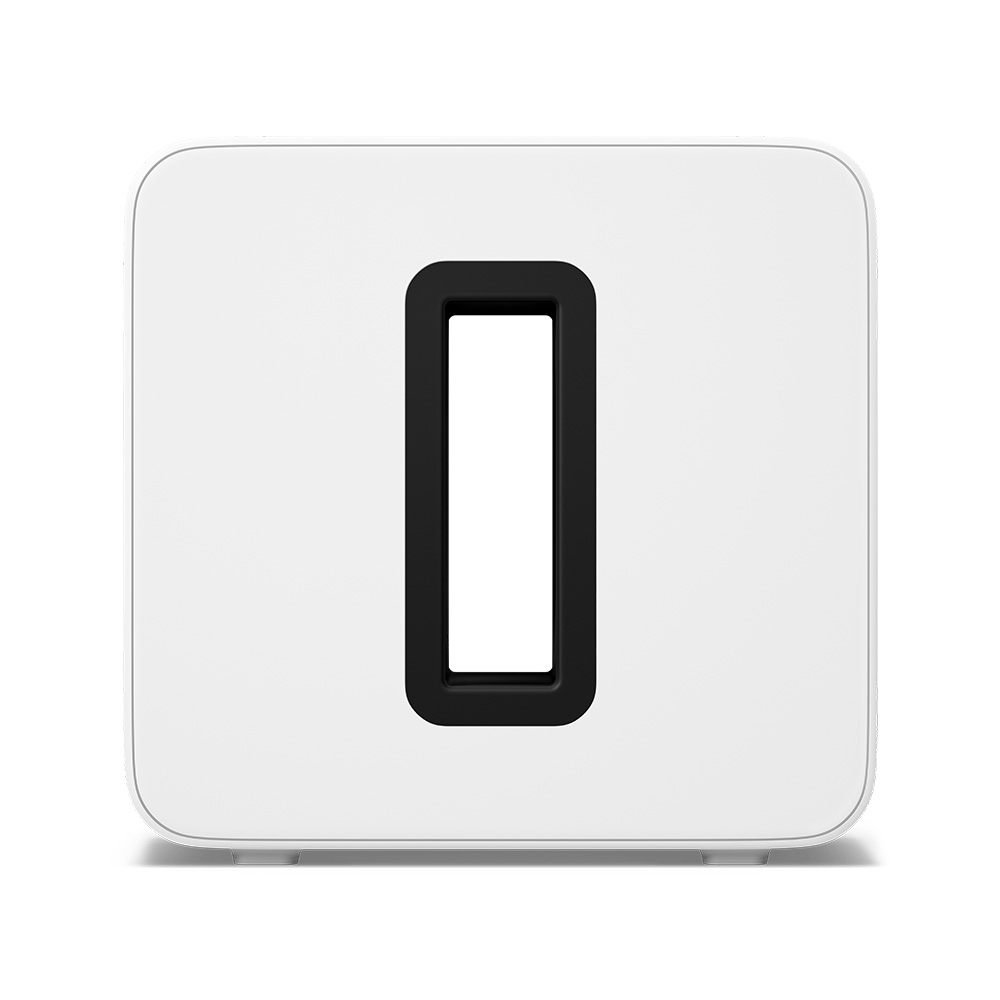

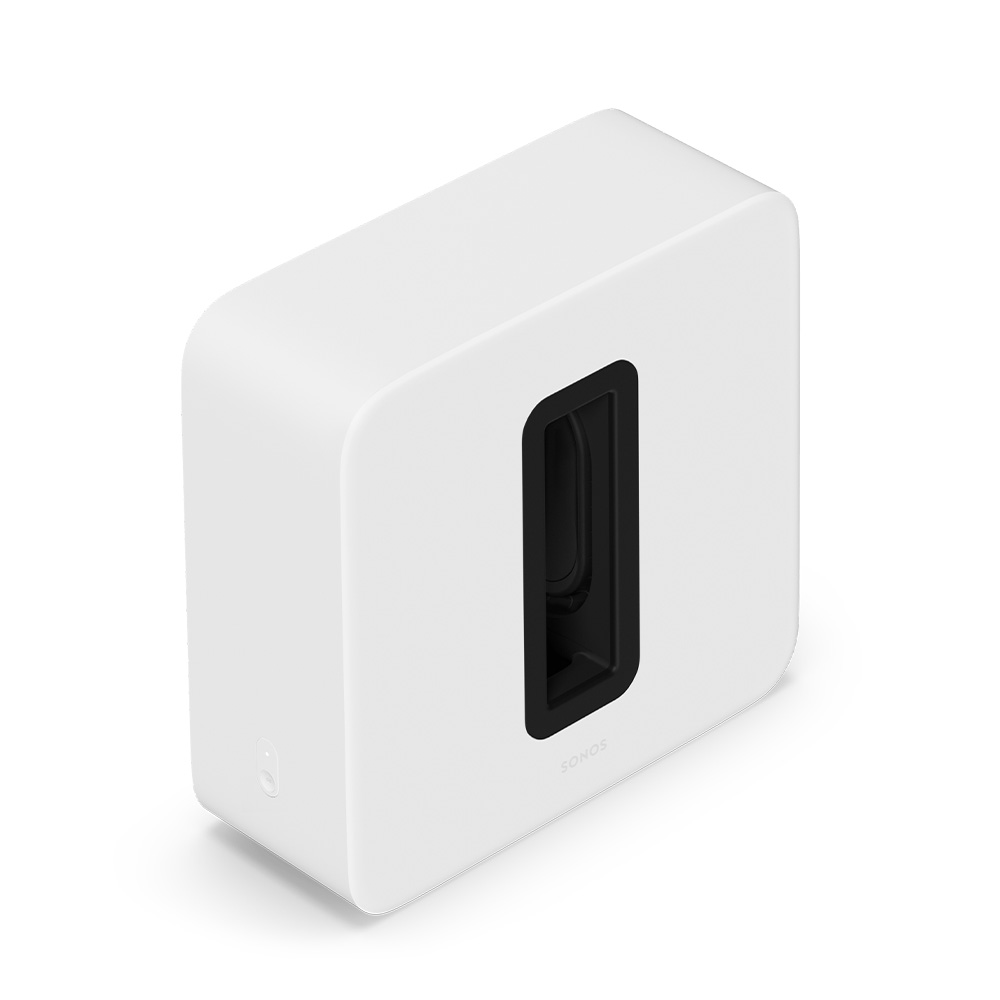

Iconic design
With its elegant sculptural shape and updated matte finish, Sub 4 is designed to look great in your home and to match your Sonos speakers.
Place it where and how you want
Sub 4 reliably connects to your Sonos soundbar or speaker over WiFi so you can place it anywhere in the room - even on its side and under your sofa. It is designed to provide optimal sound wherever you place it.
Controls and buttons
Acoustic slot
You can use the acoustic slot as a handle to lift Sub 4.

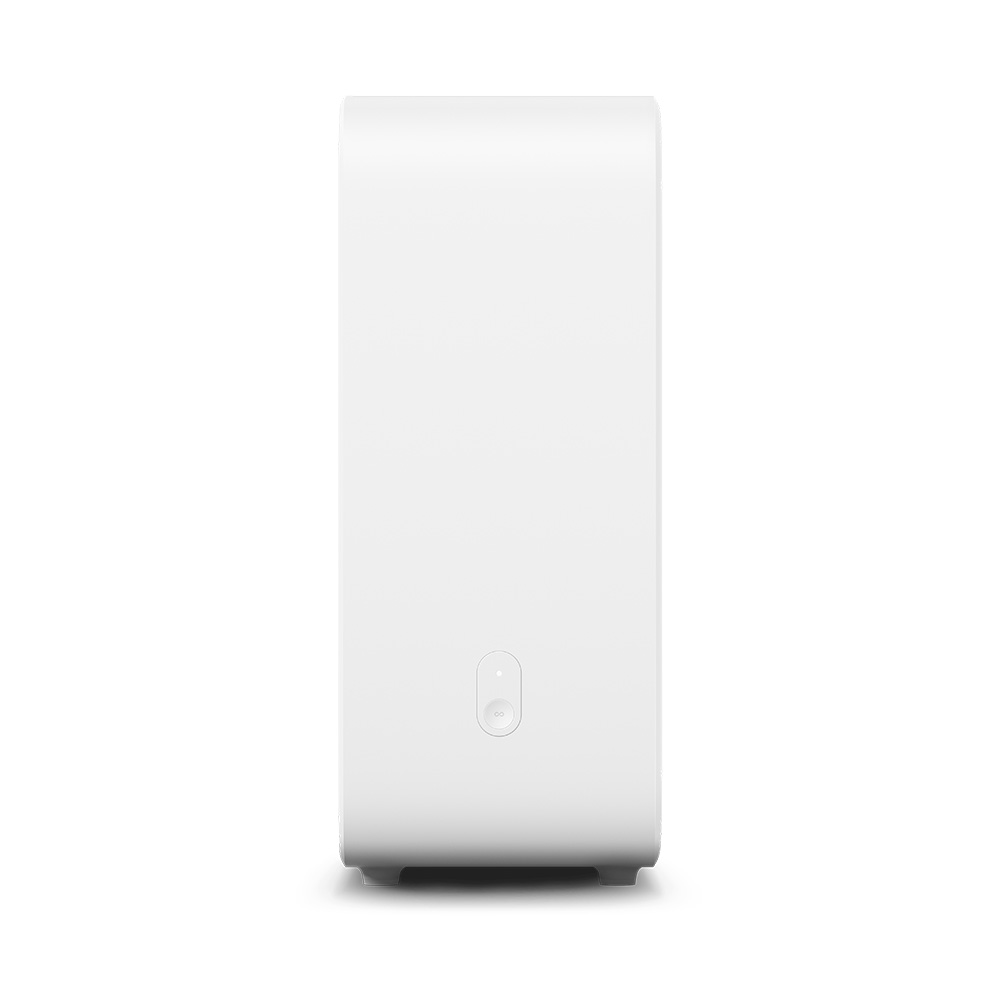

Status light
Displays the product's connection to WiFi, indicates when the volume is muted, and signals errors.
Join button
Press to connect during setup.
Ethernet port
Use an Ethernet cable if you want to connect to a router (optional).
AC power (mains) input
Use only the supplied power cable to connect to a power outlet (using a third party power cable will void your warranty). Be sure to use the proper power adapter for your country. Push the power cord firmly into Sub 4 until it is flush with the surface.

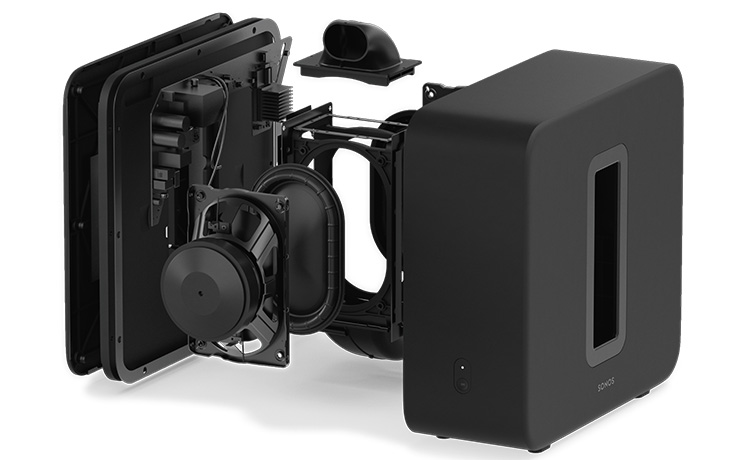

- amplifiers: Dual Class-D digital amplifiers perfectly tuned to the subwoofer's unique acoustic architecture.
- woofers: Dual 5" x 8" elliptical woofers face inward for a force-canceling effect that virtually eliminates distortion.
- Architecture: Ported cabinet enhances bass response.
- Frequency response: as low as 25 Hz
- EQ: Audio settings automatically equalise to balance Sub 4 and the paired Sonos speaker(s). Use the Sonos app to adjust bass, treble, and loudness.
- TrueplayTM: This software measure the acoustics of the room then fine-tunes your Sonos system
- Dimensions: Height: 15.31 in (389 mm), Width: 15.83 in (402 mm), Depth: 6.22 in (158 mm)
- Weight: 26 lb (11.79 kg)
- Colours: black, white
- Finish: matte
- Join button: Press once to add Sub 4 to your system during setup.
- WiFi: Connects to any 802.11a/b/g/n/ac/ax 2.4/5 GHz broadcast-capable router
- Ethernet: 10/100 port for hardwiring to your router
- Supply voltage: 100-240V 50/60Hz
- CPU: Quad Core, 4xA55 1.9GHz
- Memory: 512 MB DDR4, 4GB eMMC
- Operating temperature: 32°F to 104°F (0°C to 40°C)
In the box
- Sonos Sub 4
- Power cable: 6ft (2m)
- Documentation: Quickstart Guide and legal/warranty information
Requirements
- WiFi: internet connection
- Power source: nearby electrical outlet
- Sonos app: the latest generation of the Sonos app running on a compatible device
- Sonos product: an amplified non-portable product, such as Arc Ultra or Era 300
