The RA180 is a state-of-the-art integrated amplifier using the latest innovative technologies.  Power damping and dead times were reduced to 1/10 or less.  Linearity was dramatically improved to create a near-perfect sound that transcends the boundaries between digital and analog.

New Concept Class AD Amplifier

The amplifier has developed from Class A to AB to Class D.  Class AB was developed to improve the high heat generation and low efficiency of A.  Class D has higher efficiency and higher output than AB, and also significantly improved S/N and THD characteristics compared to A and AB.  However, the sound quality has been evaluated as inferior to A/AB due to the limitations of the digital circuit.  The GaN class AD amplifier developed by HiFi ROSE has dramatically improved the problems of the existing Class D by applying innovative new materials.

Class AD Amplifier

Class D amplifiers have a topology that theoretically provides a perfect linear output at 0% distortion and 100% power efficiency.  In order to achieve this, the switching action required high speed and accuracy.  However, previous products were weak compared to Class A/AB in the linearity aspect due to the limitations of silicon FET, which couldn't produce a smooth and natural sounds.  In the RA180, a new material, GaN FET, was used instead of Silicon FET to solve this problem.  The dead time was dramatically improved to 1/10 or less, and a nearly perfect linear output was realised with a switching speed close to zero.

This linearity goes beyond the Class D limits and produces a smooth and natural sound, like an analog amplifier.

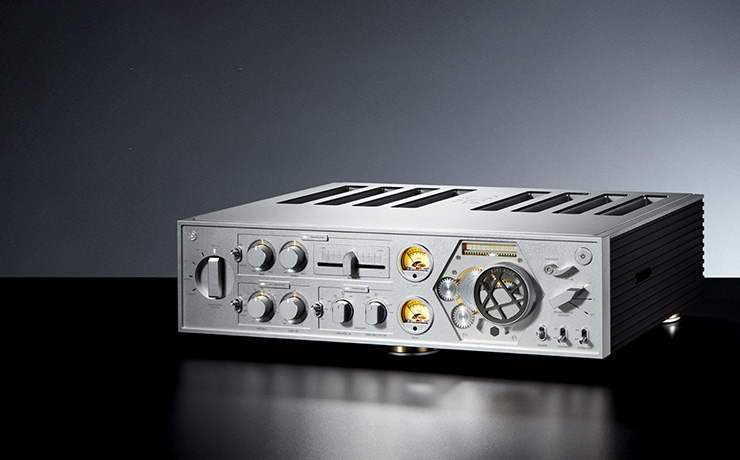

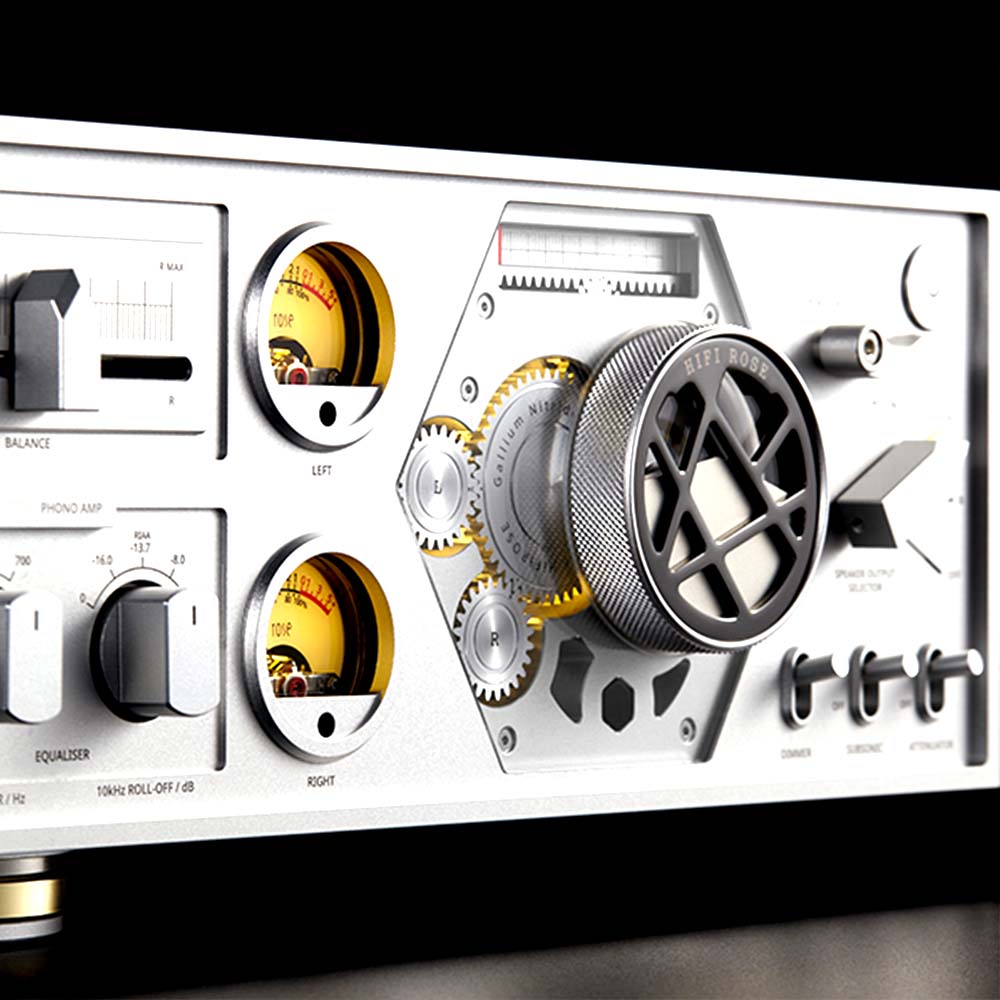

HiFi Rose RA180 integrated amplifier on a dark table

Multi Output Component

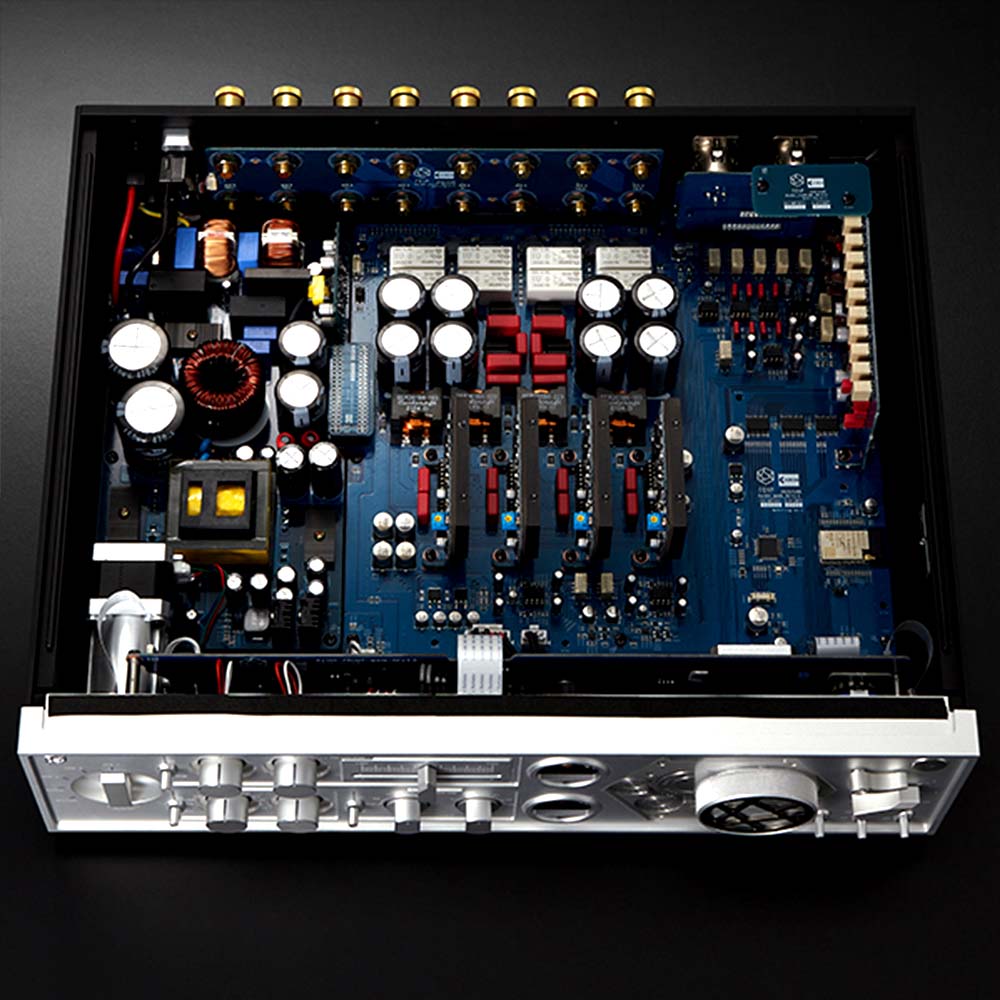

The RA180 consists of two modules: one AMP module specialised for stable mid-bass and balance, and another specialised for smooth high-pitched and super tweeter areas.  Each AMP module supports 200W (8Ω) and can output up to 400W per channel.  When two independent modules are connected to a speaker's high and low frequencies separately, the driving force can be greatly improved without being affected by a counter electro-motive force.  BTL mode combines two independent modules for rich, balanced sound.

Designed to Play Up to the Super Twitter Realm

The human hearing range has an upper limit of 15-20 kHz.  So, is there no need for higher frequencies?  Temporarily high trebles extend well beyond 20 kHz, even in harmonious sound.  For example, trumpets have a frequency response that extends to 100 kHz, and 88.2 kHz to 192 kHz sources have a 40 kHz to 96 kHz frequency response.

The RA180 is designed with a wide frequency response range so that even high-resolution sound sources with an output range of 20 Hz to 50 kHz, 100 kHz @ -3 dB, 200 kHz @ -6 dB.  Although this playability may be outside a person's hearing range, it faithfully reproduces a wide frequency range, which contributes to expressing a deep and wide sound field with the original sound.

Balanced Power Supply

The power supply has been exclusively developed for the RA180 applies 4th generation SiC FET technology to provide high output with less heat.  In addition, by using a self-developed PFC (power factor circuit), it is designed not to be affected by sudden load fluctuations.

The power supply device was developed to support a powerful damping factor of at least 200,l and the high output of 100 W is designed to produce powerful bass and soft treble.

PHONO Amplifier with Variable EQ

The purpose of the PHONO amplifier provided by the RA180 is for the recording producer to accurately reproduce the original intention.  It also reproduced the original sound as it is, which is the principle of HiFi ROSE.

It is designed to respond to a variety of vinyl records with low-mid bass TURNOVER and high-frequency ROLL OFF adjustment functions.

Amplifies the very weak signal picked up by the cartridge and keep it as close as possible to the orignal sound.  MOVING MAGNET and MOVING COIL STAGES are provided with a simple switch selection and EQ values corresponding to curves from various record manufacturers are provided using parts with a 0.1% tolerance.


Amplifier Output
  • 4Ω: 200W x 4ch (800W)
  • 8Ω: 200W x 4ch (800W)
  • BTL Mode On: 400W x 2ch (800W)
Imput Sensitivity
  • Balance Imput: 2,000mV (200W x 4ch)
  • Unbalance (Line 1, 2, 3) Input: 1,000mV (200W x 4ch)
  • Phono (MM/MC) Input: 5mV/0.5mV (200W x 4ch)
Impedance Input
  • Balance Input: 44kΩ
  • Unbalance (Line 1, 2, 3) Input: 47kΩ
  • Phono (MM/MC) Input: 47kΩ
Bandwidth (0dBr±3dB/8Ω)
  • Speaker Output: 10Hz ~ 100kHz (100W x 2ch)
  • H/F Speaking Output: 10Hz ~ 100kHz (100W x 2ch)
Frequency Respond (1W, 0±1dB/8Ω)
  • Speaker Output: 10Hz ~ 100kHz (1W x 2ch)
  • H/F Speaker Output: 10Hz ~ 100kHz (1W x 2ch)
THD Measure
  • Balance & Unbalance (Line 1, 2, 3) Input: 0.006% (50W) (200W x 4ch)
Damping Factor
  • Speaker & H/F Speaker Output: >150 (200W x 2ch)
Signal to Noise Ratio Measure (S/N)
  • Balanced, Unbalanced/Phono MM: 108dB/106dB/79dB (MM) (200W x 4ch)
Impedance Output
  • Speaker Output: 53mΩ (200W x 4ch)
Subsonic Filter with On/Off Switch
  • -3dB: 53mΩ (200W x 4ch)
Tone Control with On/Off Switch
  • Bass (100Hz)/Treble (10kHz): ±15dB (1W x 2ch (Speaker Output))
X-Over with On/Off Switch
  • HPF (-3dB): 600Hz ~ (1W x 2ch(H/F Speaker Output))
  • Turnover: Flat
    • 300Hz (+7.7dB@100Hz)
    • 400Hz (+11.7dB@100Hz)
    • 500Hz (+13dB@100Hz) (RIAA)
    • 700Hz (+14.5dB@100Hz)
  • Roll-Off: Flat
    • 1.6kHz (-16dB@10kHz)
    • 2.1kHz (-13.7dB@10kHz) (RIAA)
    • 3.18kHz (-11dB@10kHz)
    • 3.4kHz (-8dB@10kHz)
    • 6.36kHz (-5dB@10kHz)
  • Size: 430 (W) x 350 (D) x 110 (H) (Including feet: 430 (W) x 391 (D) x 130 (H) mm)
  • Weight: 16.7kg
  • Body: High Purity Aluminium
  • Power: SMPS (800W) (Maximum Output: 1,100W)
  • Voltage: AC100-240V, 50/60Hz (Standby Mode Power Consumption < 0.5W)
Audio In/Out Setting
  • Trigger: Trigger Voltage Can Be Turned On: 3.3V ~ 12V
  • IR Input: 38 kHz Infrared Ray (Operating Distance Within 10m)
