Lumin P1

Lumin

Lumin P1

Price
£8,495.00
Lumin P1
Product Colour
- Optional
- Optional

With analogue and digital inputs, LUMIN P1 becomes your new audio hub.

Lumin's most flexible player yet, LUMIN P1 is designed to sit right in the heart of your audio system.

Use as a streamer, a DAC, a pre-amplifier or all three!

Main features

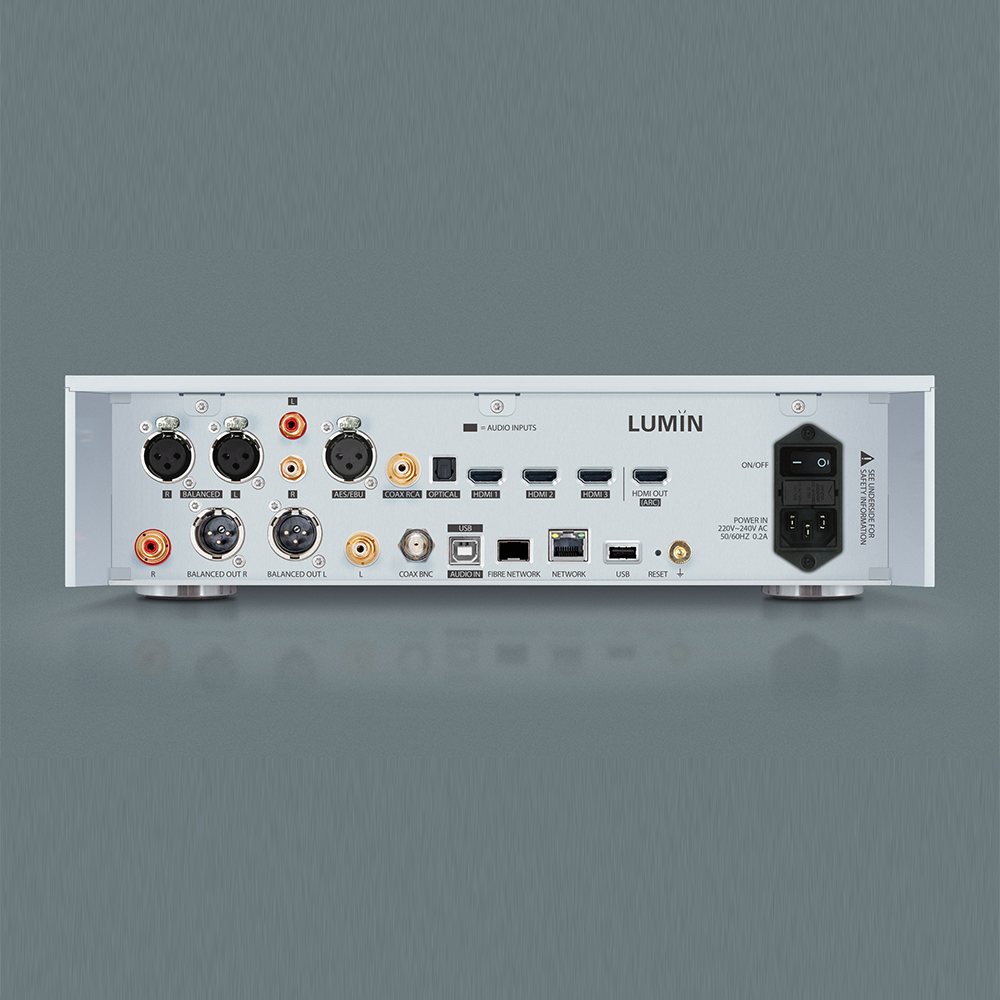

LUMIN P1 makes system integration easier than ever:

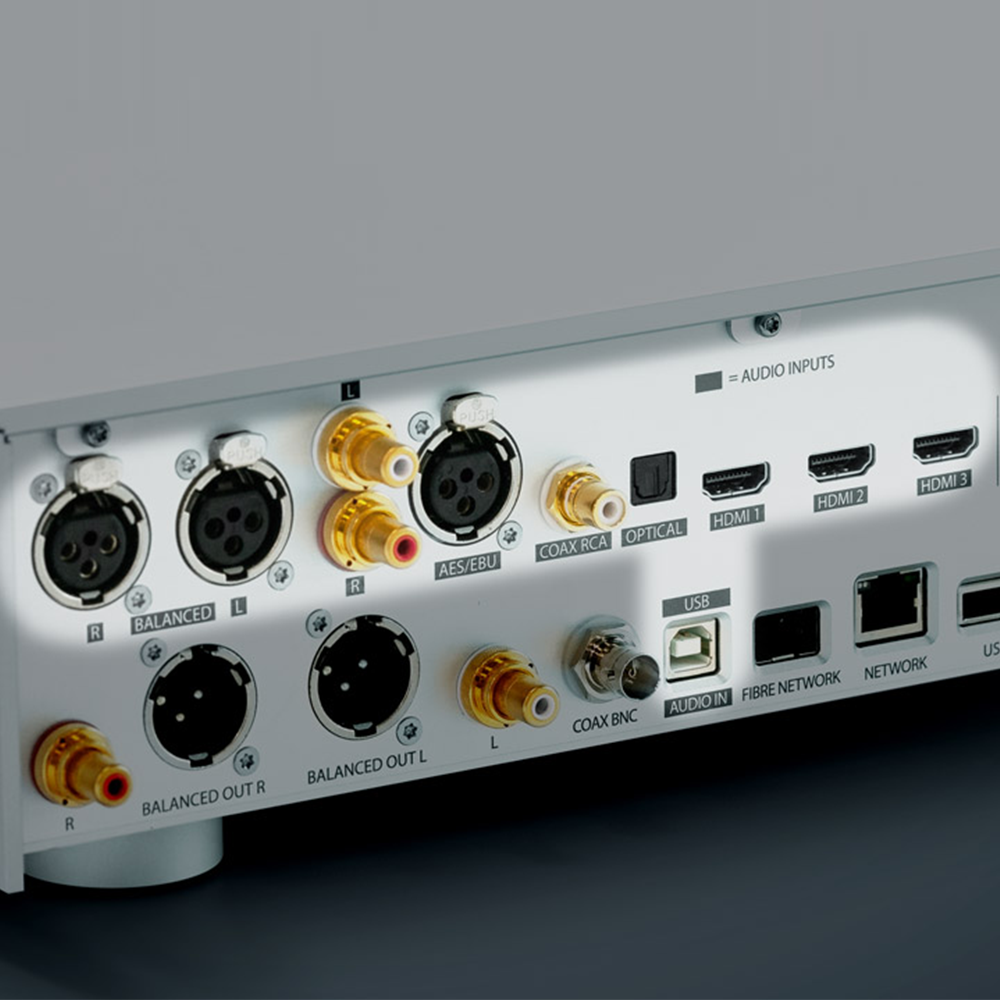

  • 9 digital & analogue inputs
  • USB Digital Audio input & output support up to Native DSD512
  • Balanced & unbalanced analogue inputs
  • SPDIF & AES input support up to 192/24 with DoP
  • HDMI 2.0 inputs & 4K passthrough with ARC support

Specified for exceptional musical performance:

  • New processor delivers native DSD512 & PCM384 playback

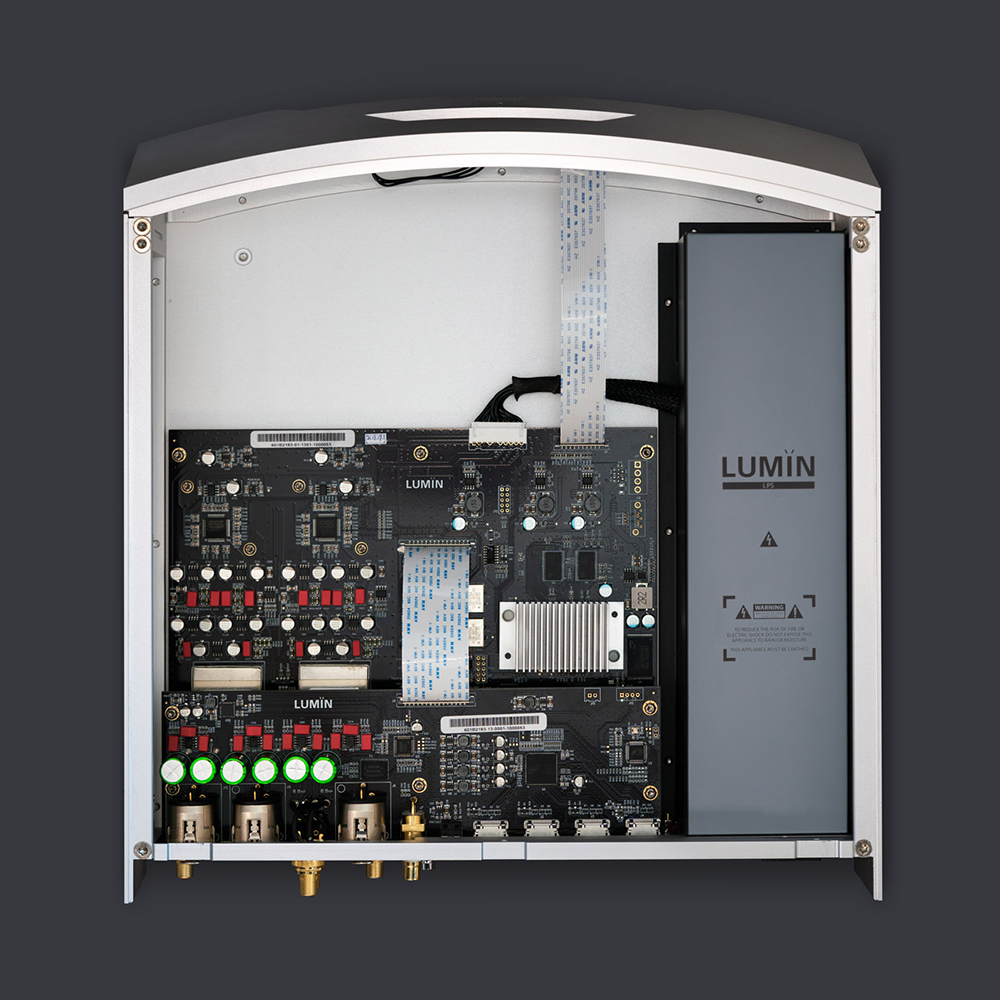

  • Dual Mono design throughout maximises channel separation
  • Dual ES9028PRO SABRE DACs in Mono mode
  • Femto Clock System with precision FPGA distribution
  • New integrated dual-toroidal linear power supply & all-in-one chassis
  • Fibre Network provides complete isolation from network digital noise
  • Leedh Processing lossless volume control

USB

  • Industry-leading XMOS USB audio controller
  • Native DSD512 and PCM384 compatible
  • Windows 10 & Mac OS compatibility

Analogue

  • Balanced and Unbalanced analogue input
  • Leedh volume processing
  • Passthrough function for home cinema integration

SPDIF/AES

  • DoP64 / 192 kHz 24-bit compatible
  • TOSLINK, SPDIF (RCA), AES inputs

HDMI

  • HDMI 2.0 Specification compatible
  • Supports 2.0 PCM audio decoding
  • HDR, Dolby Vision, Dolby Atmos, DTS passthrough
  • ARC compatible output

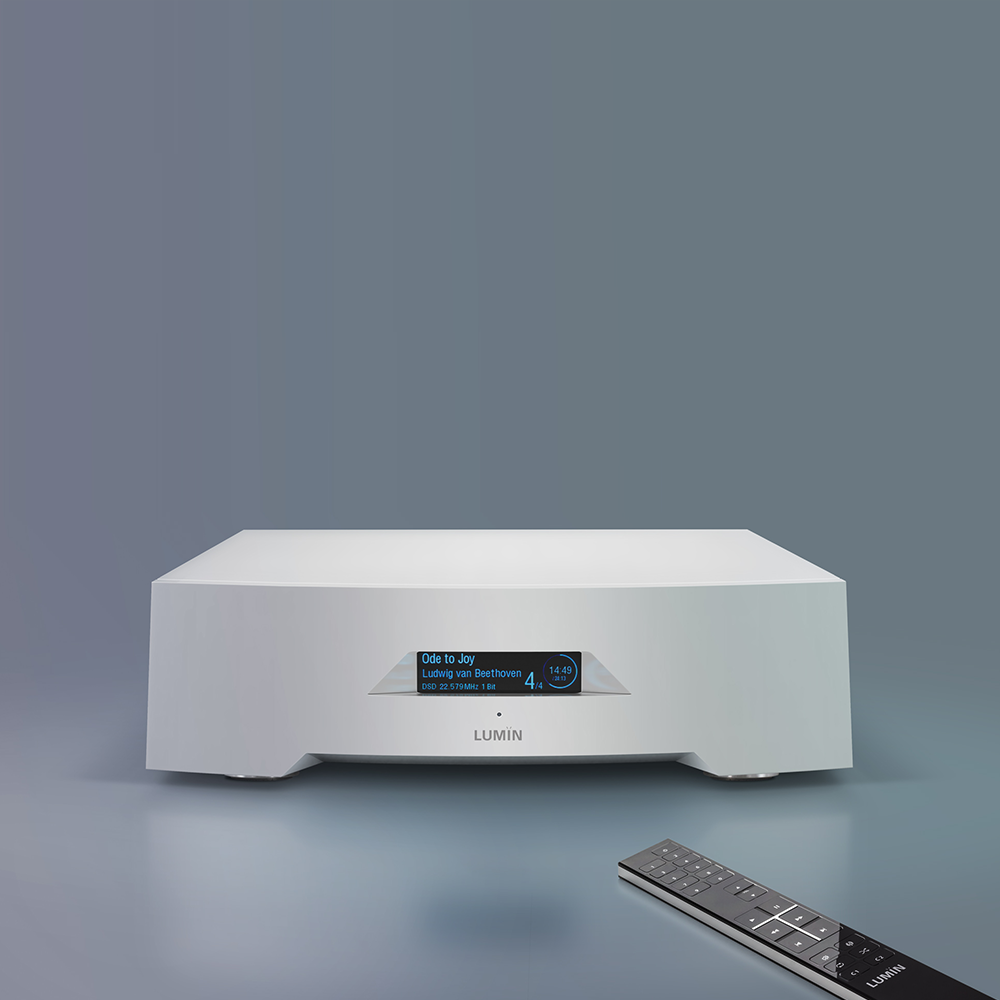

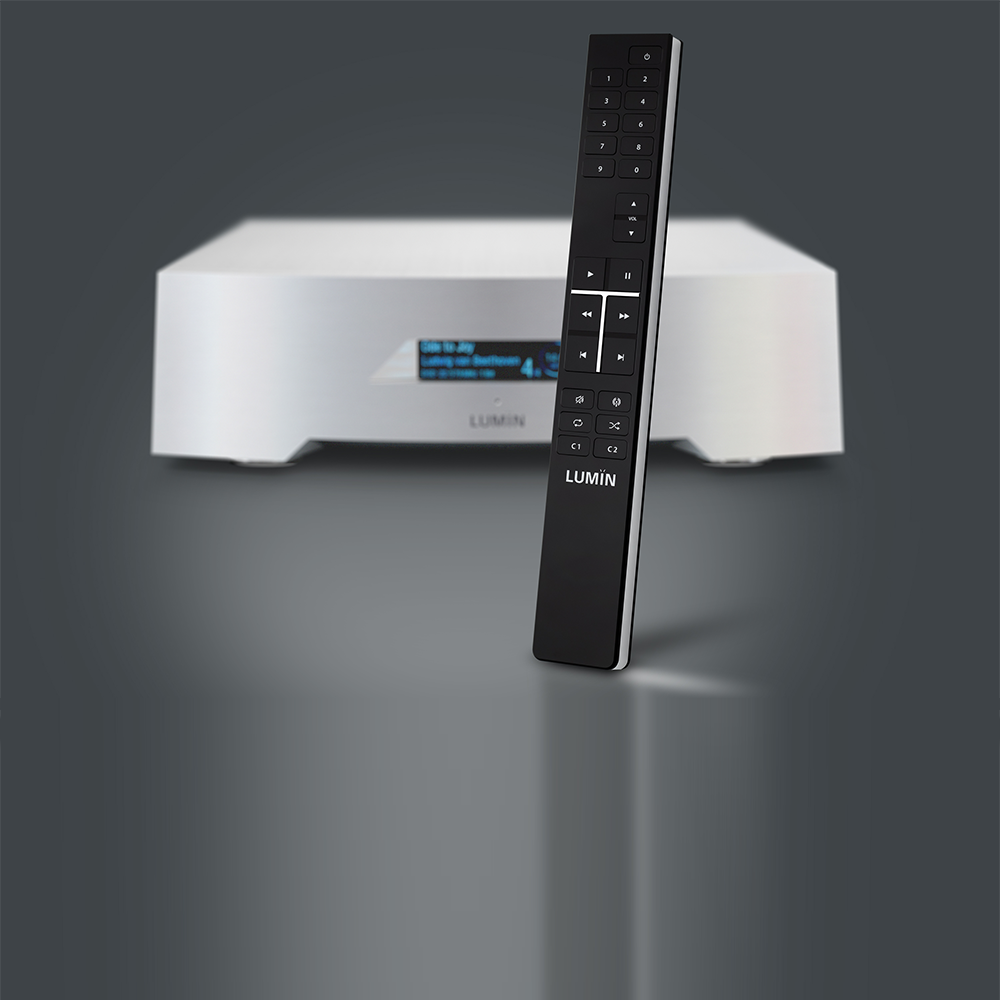

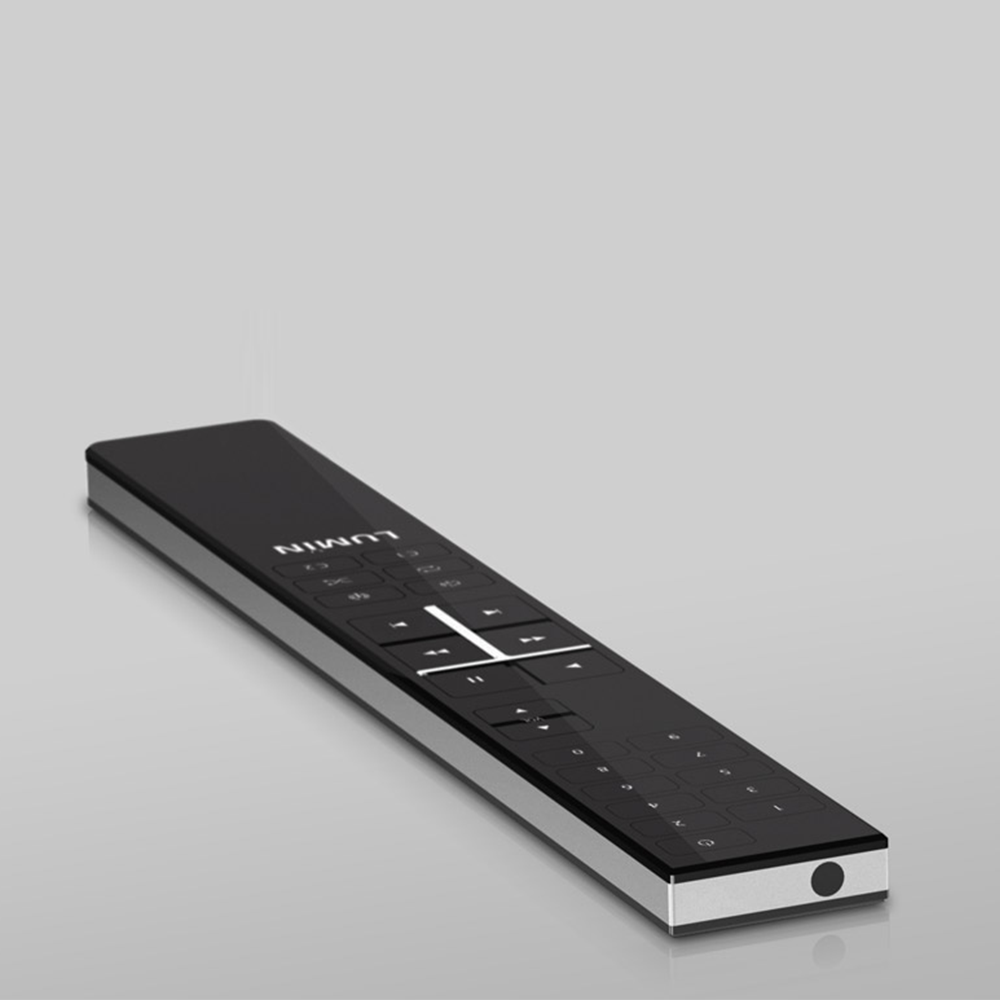

New Remote Control

A new tactile infrared remote control allows easy change of input, volume adjustment, playlist navigation and more.

The exceptionally well-constructed acrylic and zinc LUMIN remote is made in Austria and is enirely Roon Ready.

The new infrared receiver built in to LUMIN P1 is compatible with universal remote controls, phones and automation systems.

flexible setup options

Use as a streamer, a DAC, a pre-amplifier or all three!

IDEA 1 - STREAMING DAC

LUMIN P1 can be used like all other LUMIN players. With its DSD512/PCM384 support, Femto Clock System, Fibre Networking, toroidal power supply, and Leedh Processing, P1 is second only to LUMIN X1 in pure streaming ability.

IDEA 2 - HI-FI HUB

Connect all your stereo sources to LUMIN P1 and attach a power amplifier and you've got everything you need for an incredible music system.

IDEA 3 - 2-CHANNEL TV SYSTEM

No need for an AV Receiver. Simply attach your HDMI sources to LUMIN P1 and P1 to your TV. With HDMI ARC, all your audio comes through your main speakers.

Specifications
  • NETWORK PLAYBACK:

    • Up to DSD512
    • Up to 384 kHz, 16–32-bit, Stereo
    • MQA Full Decoding
  • UPSAMPLING RATES & BIT DEPTHS:

    • DSD128 upsampling option for all files
    • PCM 384kHz upsampling option for all files
  • DIGITAL INPUT:

    • USB:
      • USB Audio Class 2 Compatible
      • WINDOWS 10 (Release 1703 or above) / Mac OSX or above
      • DoP 128 support
      • PCM 44.1–384 kHz, 16–32-bit, Stereo
    • AES/OPTICAL/SPDIF:
      • PCM 44.1 kHz–192 kHz, 16–24-bit
      • DSD64 (DoP64, DSD over PCM)
    • HDMI X3:
      • PCM 2.0 Audio support
      • 4K Video Passthrough
  • DIGITAL OUTPUT:

    • USB:
      • Native DSD512 support
      • PCM 44.1–384 kHz, 16–32-bit, Stereo
    • BNC SPDIF:
      • PCM 44.1 kHz–192 kHz, 16–24-bit
      • DSD64 (DoP64, DSD over PCM)
    • HDMI X1:(HDMI PASSTHROUGH AND ARC SUPPORT)
      • PCM 2.0 Audio support
      • 4K Video Passthrough
      • ARC (Audio Return Channel) support
  • ANALOGUE INPUT:

    • RCA Unbalanced x1
    • XLR Balanced x1
  • ANALOG OUTPUT:

    • Dual ESS SABRE32 ES9028Pro DAC chips
    • Fully balanced layout with high-quality components
    • Output connectors coupled with dual LUNDAHL LL7401 output transformers
    • Femto Clock System with precision FPGA distribution

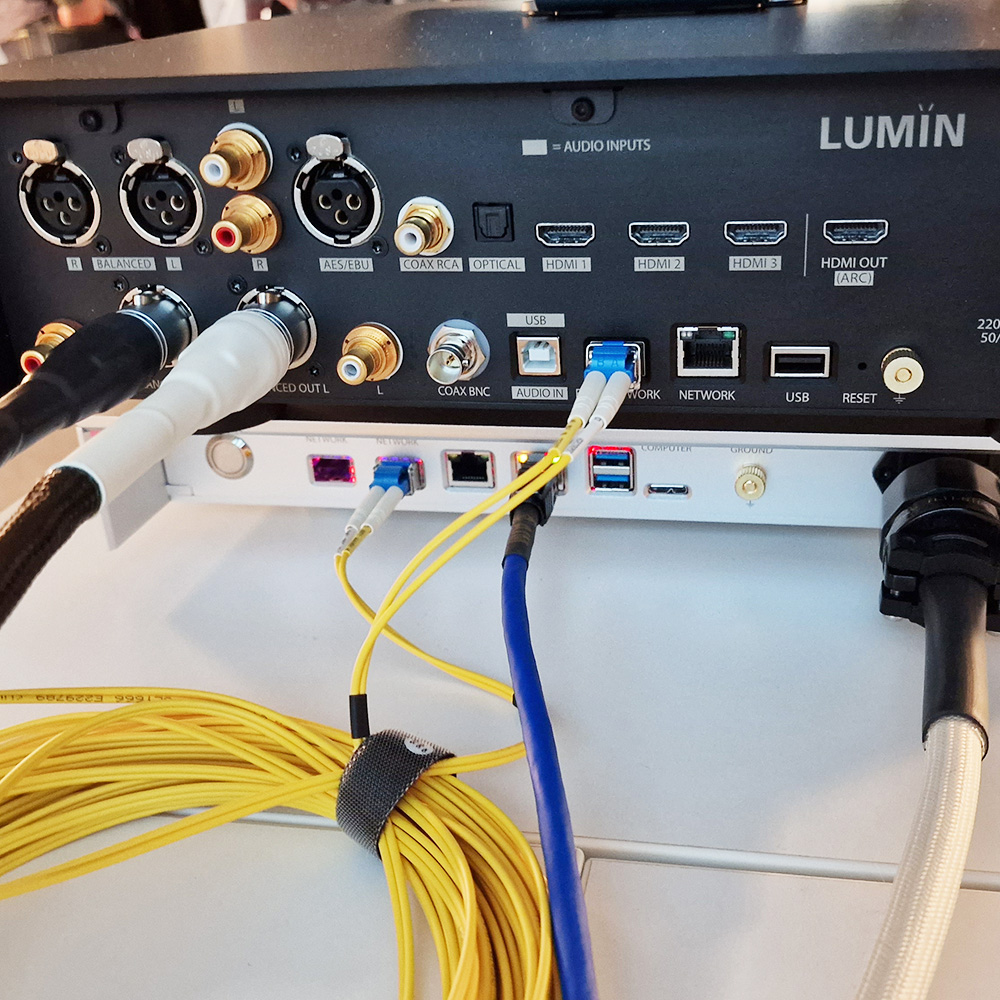

  • OPTICAL NETWORK:

    • Industry-standard SFP
    • 1000Base-T Gigabit Ethernet
    • Adapter may be needed for your particular switch/cables
    • Use simultaneously with RJ45 (e.g. connect one to router and one to LUMIN L1 or NAS)
  • POWER SUPPLY:

    • Internal dual-toroidal
    • Separate digital & analogue circuitry
    • Low-noise linear regulator
  • PHYSICAL:

    • FINISH:

      • Black anodised aluminium
      • Raw aluminium

      LUMIN (SOLID ALUMINIUM CHASSIS):

      • 350mm (W), 380mm (D), 107mm (H), 12kg
