Lumin AMP

Price
£10,995.00
Engineered to let your LUMIN sing.
Product Colour
- Optional
- Optional

why LUMIN amp?

Featuring everything you need and nothing you don't, LUMIN Amp focuses purely on performance. If your LUMIN streamer sounded like a breath of fresh air, prepare to take it to the next level.

true dual mono design throughout

Keeping the design Dual Mono all the way from the power supply delivers full power simultaneously from both channels and keeps crosstalk to an absolute minimum.

In LUMIN Amp, each channel is a mirror image of the other.

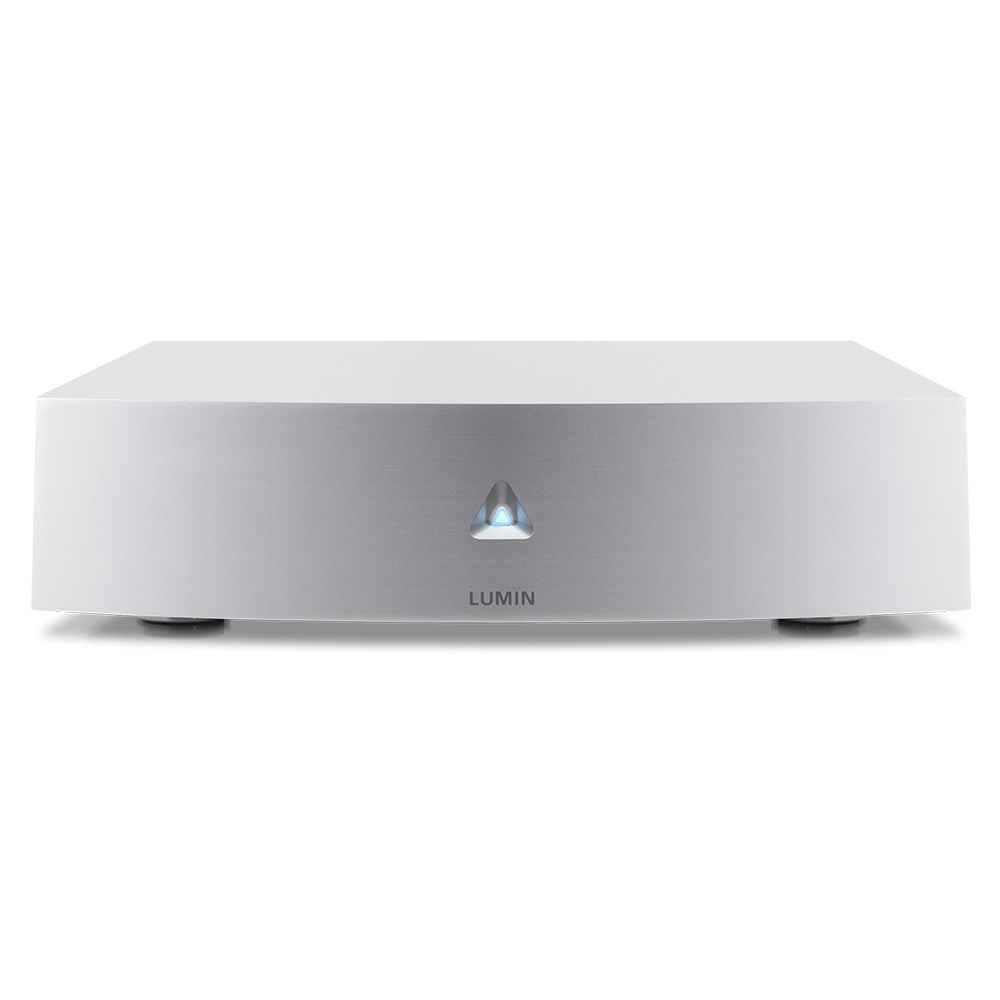

Lumin AMP in silver

discrete transistors

Fully discrete voltage and current gain operating in class AB to deliver the finest details with the lowest distortion from your music.

custom low-noise toroidal power supply

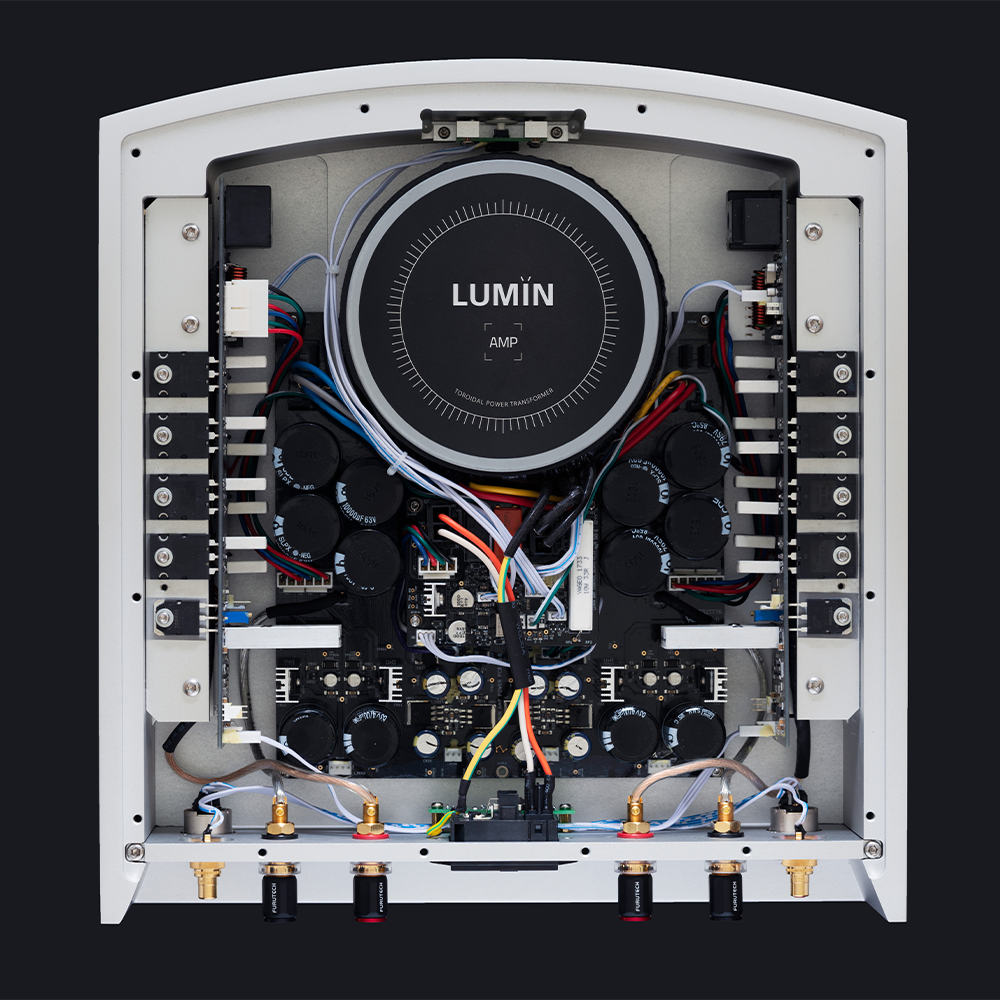

LUMIN Amp features a unique completely separate dual mono power supply design.  The ultra low noise design features advanced voltage regulation circuitry.

matched styling - unmatched performance

  • Multi-Stage transistors amplifier
  • Dual Mono power supply and amplifier design
  • Fully discrete voltage and current gain stages
  • DC-coupled signal path
  • Class AB operation
  • High input impedance and sensitivity for direct DAC drive
  • Intelligent bias and thermal management
  • Stereo / Dual Mono / Bridged operation
  • CNC single billet aluminium construction
  • 600VA custom toroidal transformer
  • Built-in overload, overheat and DC protection
Specifications

operating mode (selectable)

  • Stereo, Dual Mono or Bridged mode

input: (selectable)

  • 1 x XLR pair (pin 2 hot), 1 x RCA pair

power

  • 160W per channel into 8Ω
  • 320W per channel into 4Ω
  • 640W into 8Ω (Bridged)

power supply

  • Available in 220–240V AC and 110–120V AC versions ~ 50/60Hz

power consumption

  • Standby <0.5W
  • Idle 40W
  • Max 700W

frequency response

  • 20hz - 40000hz ± 0.1db

signal to noise ratio

  • 103db, unweighted

input impedance

  • 200kΩ Balanced (XLR)
  • 100kΩ Unbalanced (RCA)

output impedance

  • 0.1Ω

input sensitivity

  • 1.16Vrms

gain

  • +26dB (Stereo, Dual Mono)
  • +32dB (Bridged)

protection

  • DC, overload and overheating protection

finishes

  • Black anodised brushed aluminium or Raw brushed aluminium

construction

  • CNC-machined from a single billet for front, top and sides. Thick 8mm walls, rear panel and base plate

dimensions

  • weight 350mm, depth 374mm, height 104mm

weight:

  • 19kg
