Absolute reference product, ideal for all digital HiFi system applications, Pulse-HB Coaxial Digital V2 Cable provides you with the optimum signal integrity.
Pulse-HB Coaxial Digital Cable V2 follows in the footsteps of the USB cable, utilising a high purity solid centre core conductor with foil and shield plus a secondary shield braid for optimum digital signal integrity.

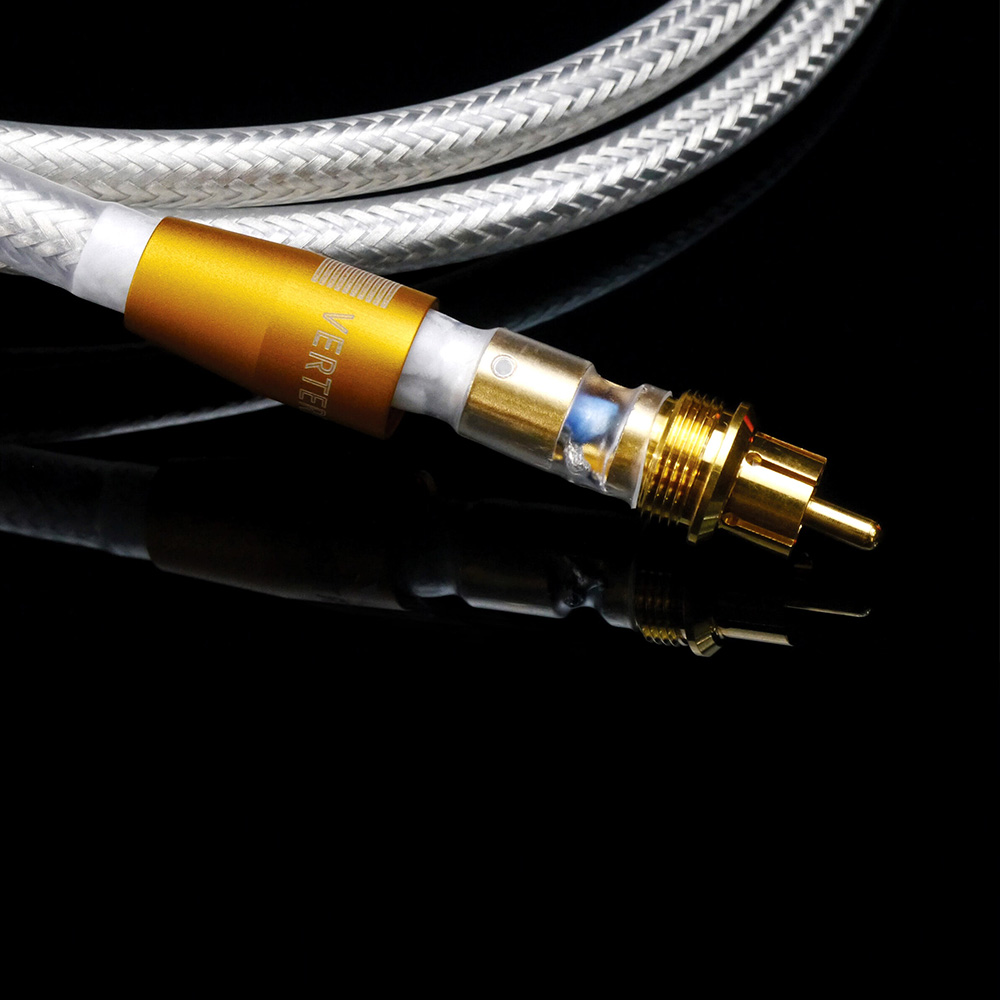

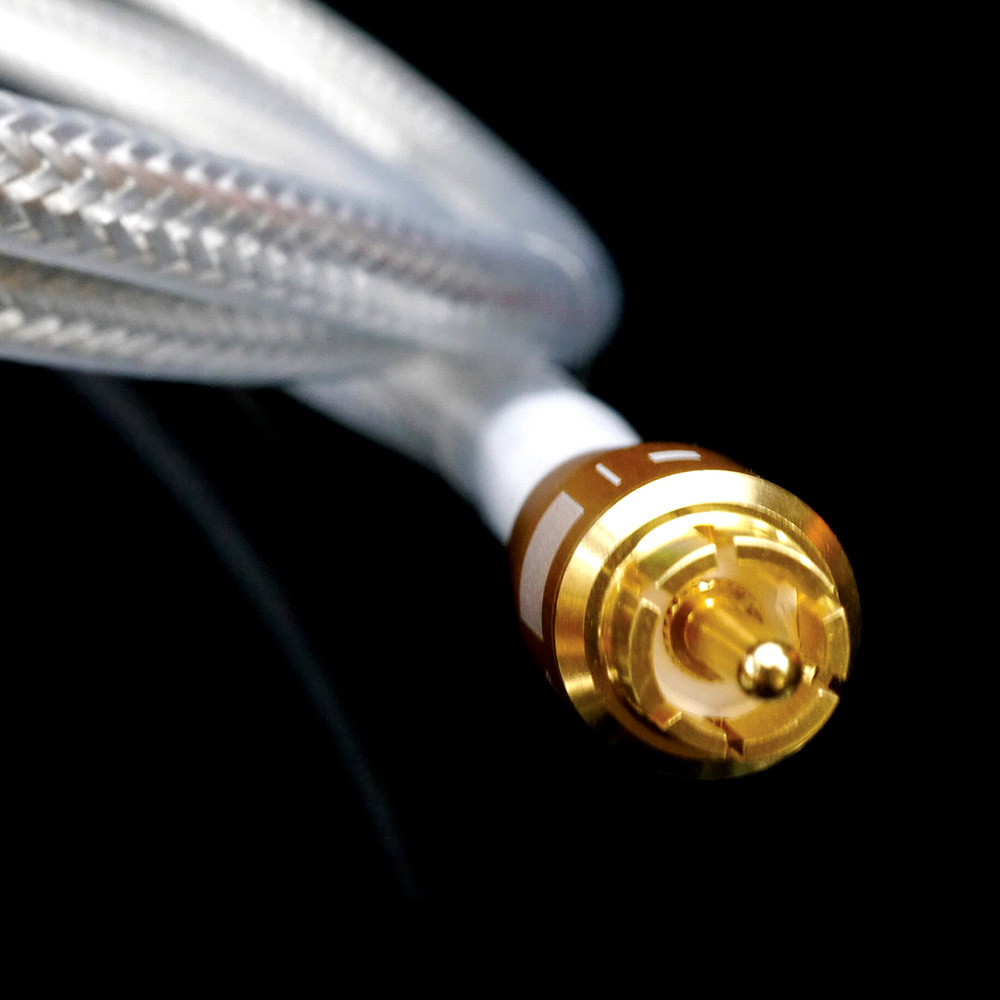

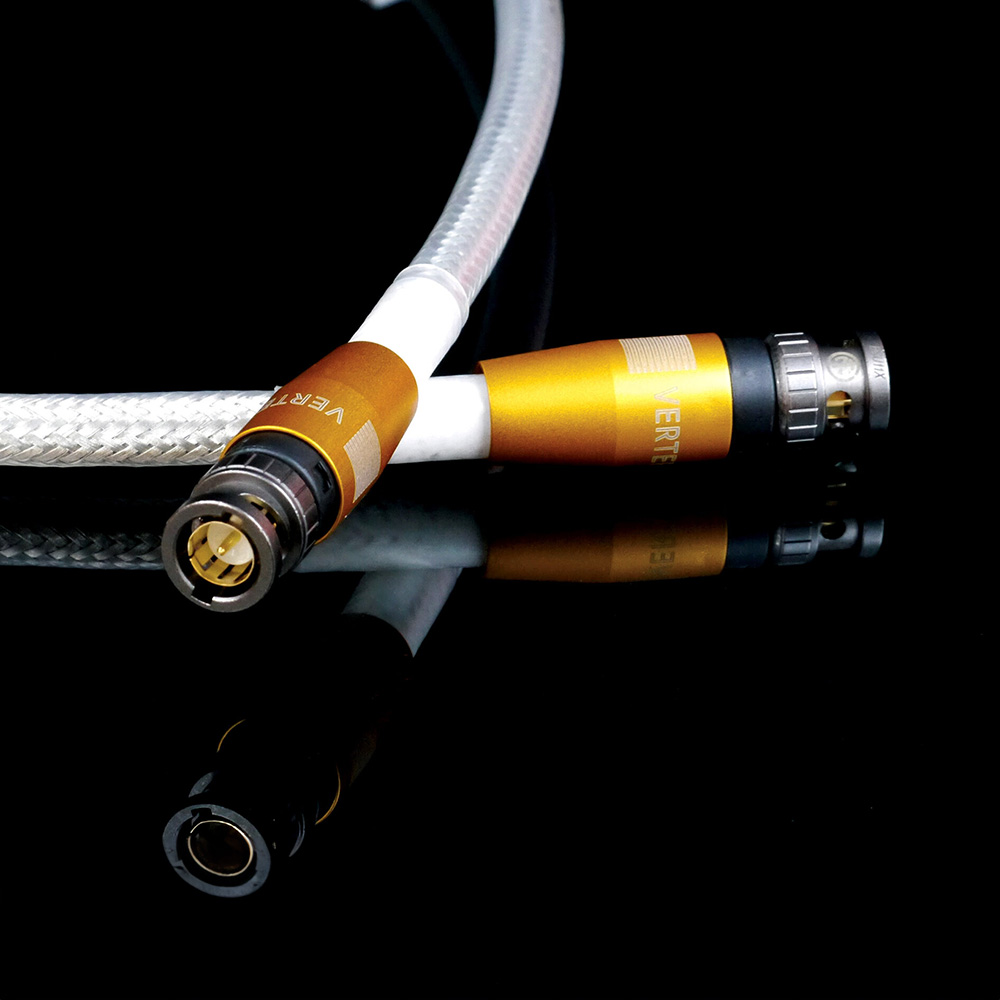

The HB Coax cable is terminated with either bespoke designed Vertere Reference Digital RCA (virtually a Coax) or high-speed 75Ω BNC connectors providing the fastest digital signal connection. Any combination of RCA & BNC termination is available on request.
Specifications
- Type: Coax – 75 Ω Data/Digital Cable
- Termination and Length: RCA & BNC 1.00m (+0.5m)
- Cable Type: Coaxial
- Conductor: High Purity Copper
- Plating: Silver, Tin
- Insulation: PTFE, PVC
- Connector: Vertere HB Reference 23.95ct/5 micron Or High Speed 75Ω Gold Plated BNC
- Shield: Inner Foil + 1st Braid Shield + 2nd Inner Foil + Secondary Braid Shield
- Size: 8.5mm Dia.
