Raidho X1.6 Loudspeaker

£7,999.00
Short Description

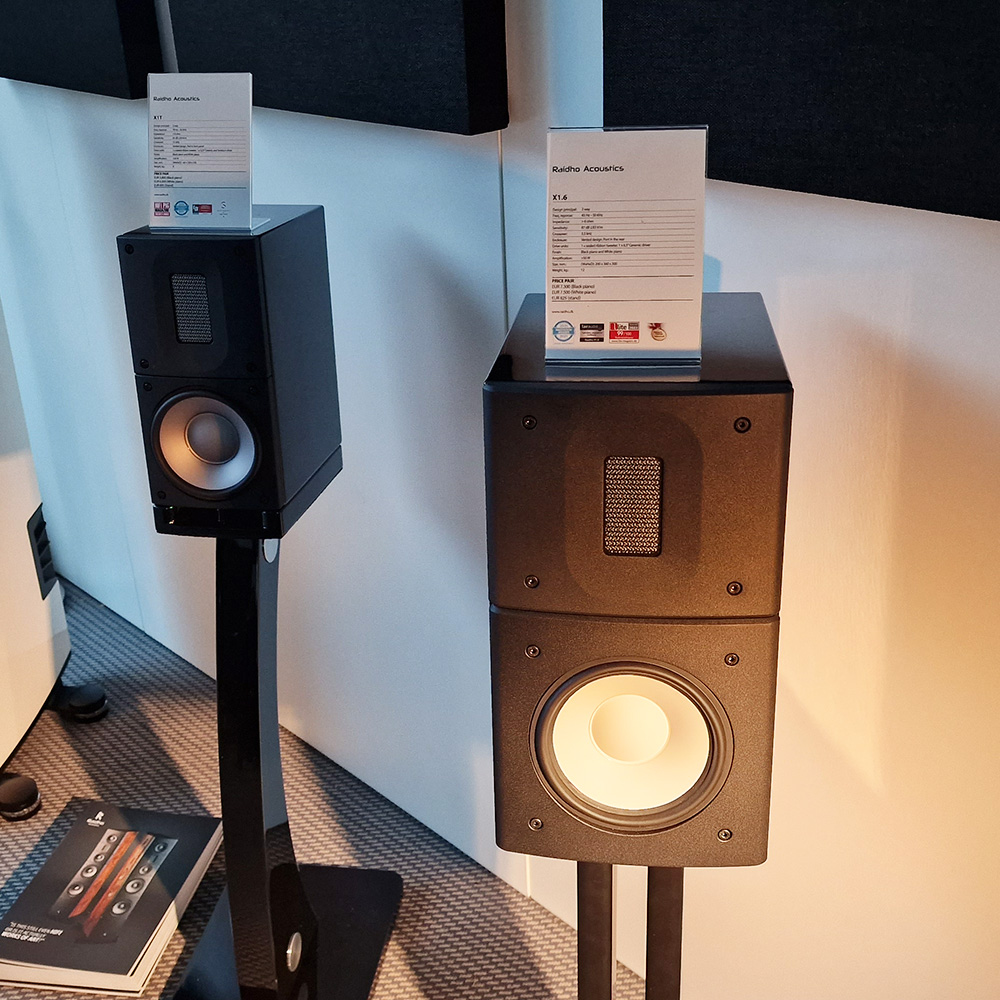

Raidho X1.6 Loudspeaker
Variations
Product Finish
- Optional
- Optional

This is Raidho’s take on making a high performing compact speaker in this highly competitive price range. The X1.6 will deliver a performance unseen in this price class. It is the first time Raidho offers a 6,5” in this form factor and price range.

  • extremely low level of noise/colouration of the sound
  • dramatic, energetic sound with a very wide soundstage
  • hear every detail, but no fatigue
  • very easy to listen to
  • a unique sonic holography
  • the sound appears right out of the blue
  • very authentic and close the original

Ribbon Tweeter

Planar Magnetic Tweeter due to the tracks in the foil.  The foil is 20 milligram and 11 mikron thick, so it has 50 times less mass in comparison to a convential dome tweeter, giving virtually no resonance or distortion.  The breakup point is at 82 KHz.

Ceramic Coated Bass Drivers

The base of the membrane is an aluminium cone, which in itself , is very rigid and stiff.  One of the challenges with aluminium is that it has its own distinct sound/ringing.  To eliminate this, the drivers are all coated with a thin layer of ceramic.  The coating is put on through a plasma process that binds the ceramic coating to the aluminium.  For the aluminium-oxide ceramic cones, the first breakup mode was raised to 12,5kHz, which sets a high standard for cone-driver resonances.

The motor system of the driver unit has a very aero dynamic construction a high-level ventilation which increases dynamics and lowers distortion.  High strength neodymium magnets allow for ultimate control in a unique construction.

Specifications

Size (WxHxD):                    200 x 360 x 300 mm
Weight:                               12 Kg
Freq. reponse                      45 Hz – 50 KHz
Impendance:                       >6 ohm
Sensitivity:                          87 dB 2.83 V/m
Crossover:                           3.5 kHz
Enclosure:                           Vented design. Port in the rear
Drive units:                          1 x sealed ribbon tweeter. 1 x 6,5” Ceramic driver
Finish:                                 Black piano and White piano
Amplification:                      >50 W (Though we have seen excellent results with small tube amplifiers)
