Raidho Acoustics TD6 Loudspeaker

Raidho Acoustics

Raidho Acoustics TD6 Loudspeaker

£200,000.00
Short Description
Raidho Acoustics TD6 Loudspeaker
Variations
Product Finish
- Optional
- Optional
- Optional

The TD6 is a truly unique musical performer and intended for those who wish to come as close to the “real thing” as possible. A real state of the art loudspeaker.

  • extremely low level of noise/colouration of the sound
  • dramatic, energetic sound with a very wide soundstage
  • hear every detail, but no fatigue
  • very easy to listen to
  • a unique sonic holography
  • the sound appears right out of the blue
  • very authentic and close the original

A close-up of a Raidho TD6 loudspeaker

Ribbon Tweeter

Has a Planar Magnetic Tweeter due to the tracks in the foil.  The foil is only 20 milligram and 11 mikron thick, so it has 50 times less mass in comparison to a conventional dome tweeter.  This means virtually no resonances or distortion.  The breakup point is at 82 KHz.  The result is a clear, natural sound.

TD mid- and bass drivers

The membrane is a 5 layer sandwich construction: aluminium cone, ceramic, tantalum, diamon and diamond on the back.  All these materials bring in their own strengths to the mix, making this a truly unique and revolutionary drive unit.  1.5 carat of diamond on each drive unit, yet only 10 microns thick.  The TD layers reduce resonance with 36dB over ceramic and is 50 times stiffer than ceramic only membrane.  The breakup mode has been elevated to 20KHz.

The motor comprises of a very strong magnet (N52 Neodymium) with an unseen even magnet field, coupled with an underhung titanium voice coil.  This gies perfect transient response with no measurable distortion.

the Raidho TD6 floorstanding loudspeaker beside a white Raidho X2.6 loudspeaker with a Moon  power amp on a low stand the other side.  there are lamps and a Raidho backdrop in the photo too along with a bookshelf speaker on a speaker stand.  The photo was taken at the Munich 2024 HiFi Show

The turbine shape with excellent aero dynamic capabilityies results in very clean and uncoloured sound.  All edges in the nearby hasket are rounded to eliminate reflections and direct the waves into the dampening material also the complete driver construction is open around the membrane to let it "breathe".

The Crossover

Hard, direct wiring is used with integrated Nordost cables in the crossover itself.  All internal wiring is done with Nordost Norse cables which builds on Valhalla technology with a possible updgrade to TSC from Odin.  The simplest crossover design was made to ensure a direct and pure signal path.

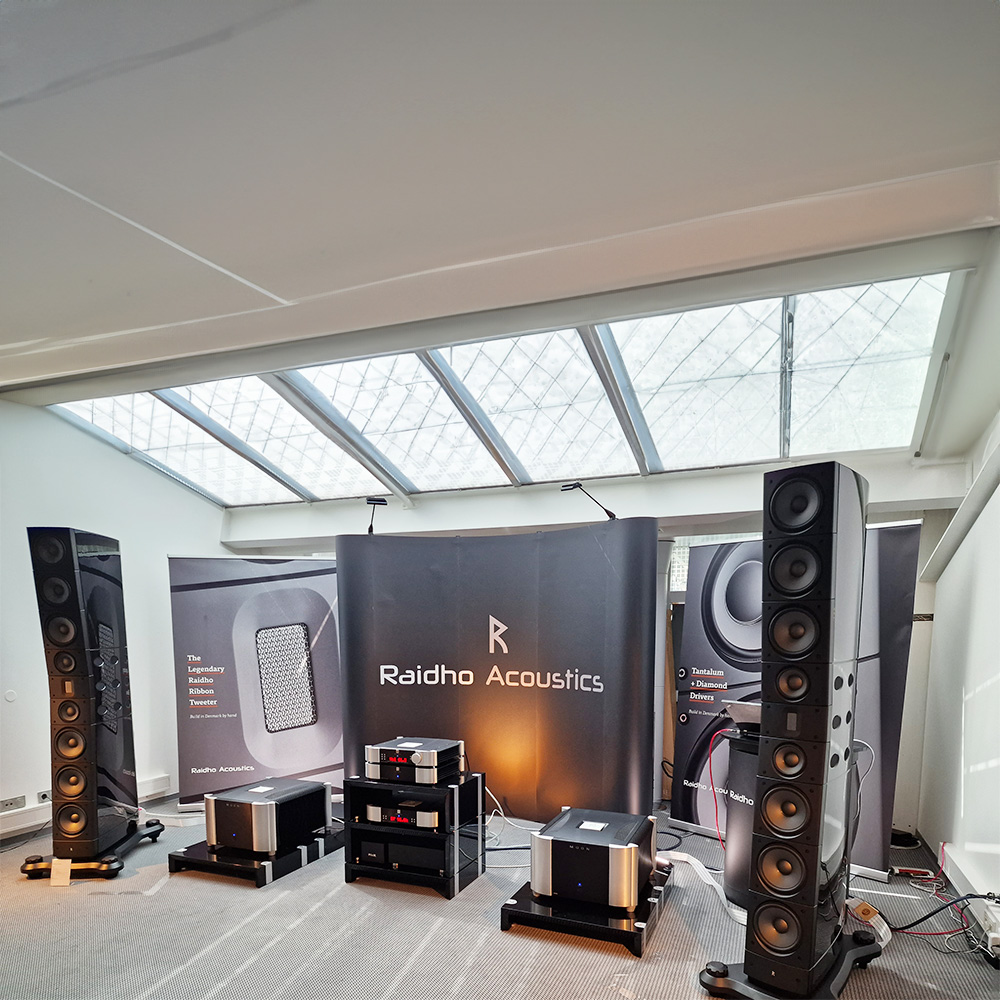

The Raidho TD6 speakers at the HiFi munich show with various pieces of MOON equipment between them.
Specifications

Size (WxHxD):                    250 x 1950 x 700 mm (250 x 2085 x 835 mm incl. feets)
Weight:                               175 Kg
Freq. reponse                      25 Hz – 50 KHz -6 dB
Impendance:                       8 ohm
Sensitivity:                          87 dB 2.83 V/m
Crossover:                           350 Hz and 3 kHz 2. order
Enclosure:                           Vented design. Six ports in the rear
Drive units:                          1 x sealed ribbon tweeter. 2 x 5,25” Tantalum Diamond mid-range drivers. 6 x 8” Tantalum Diamond bass drivers
Finish:                                 Black piano. All possible paint colors. Walnut burl veneer
Amplification:                      >100 W
