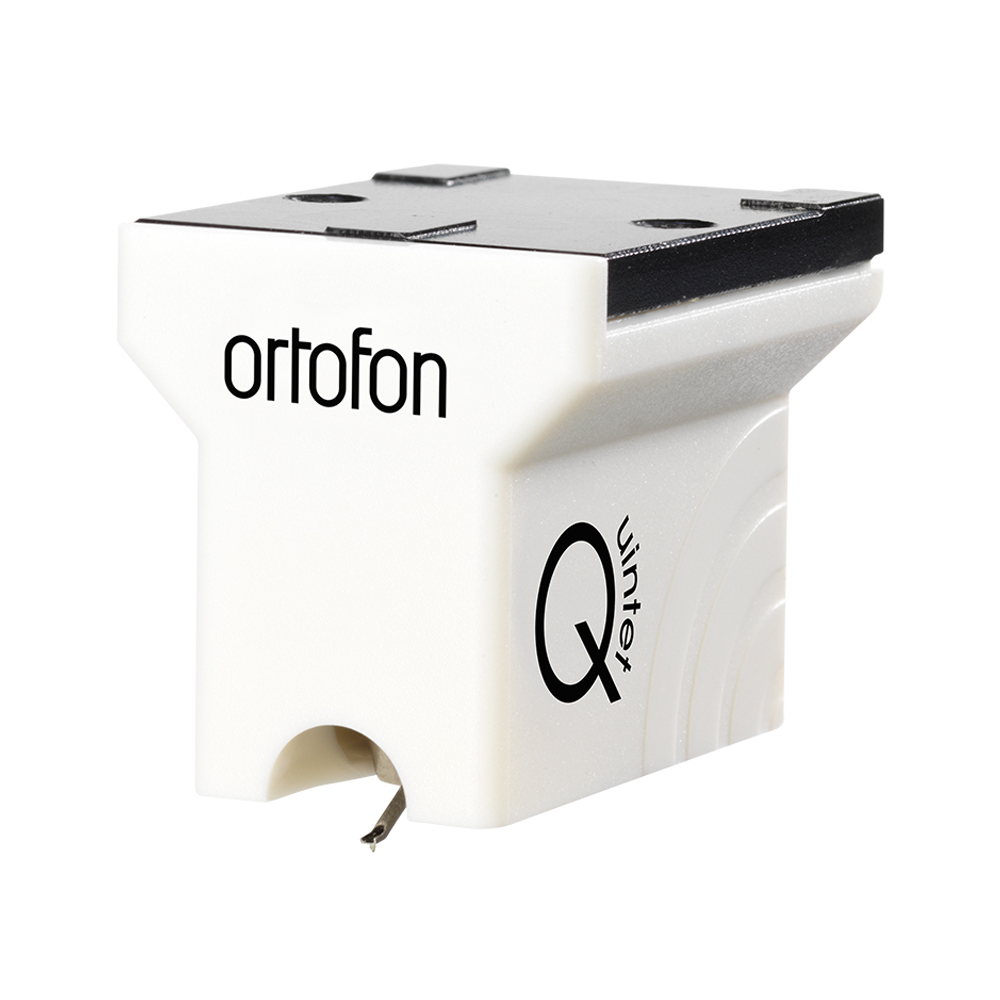

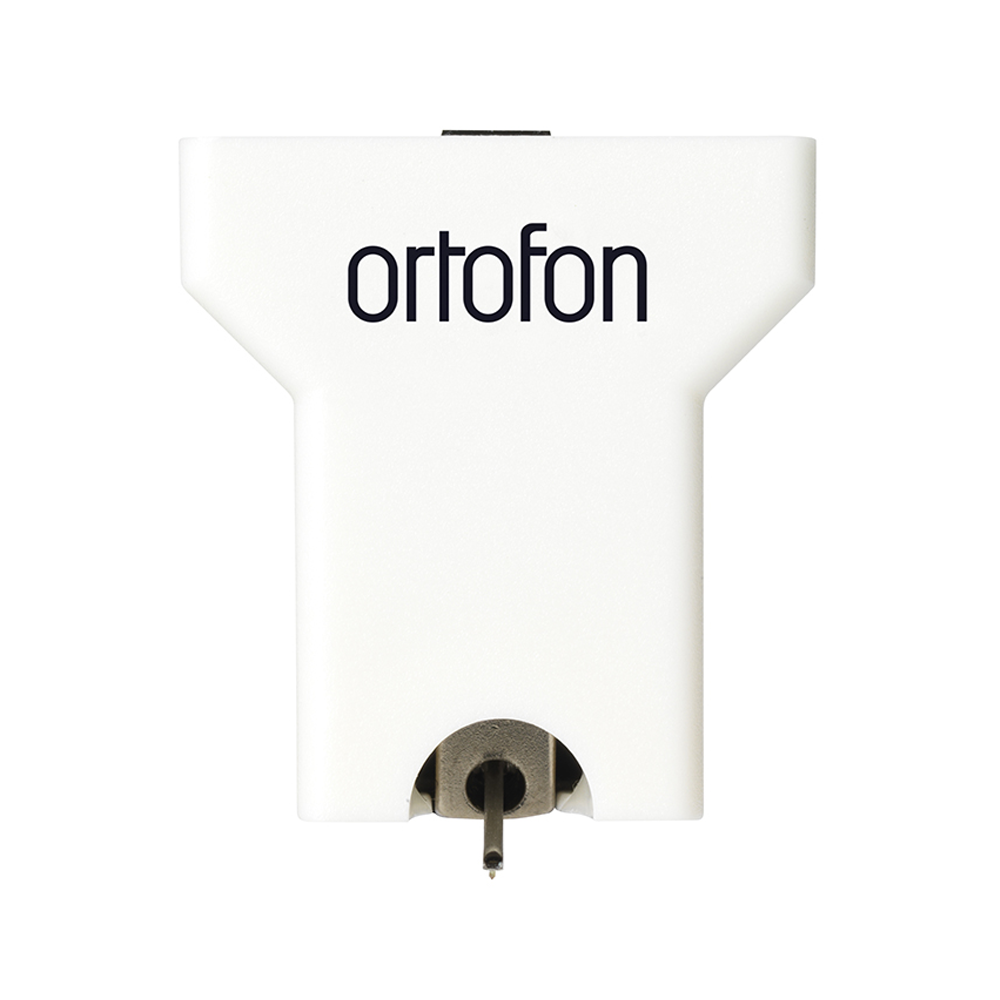

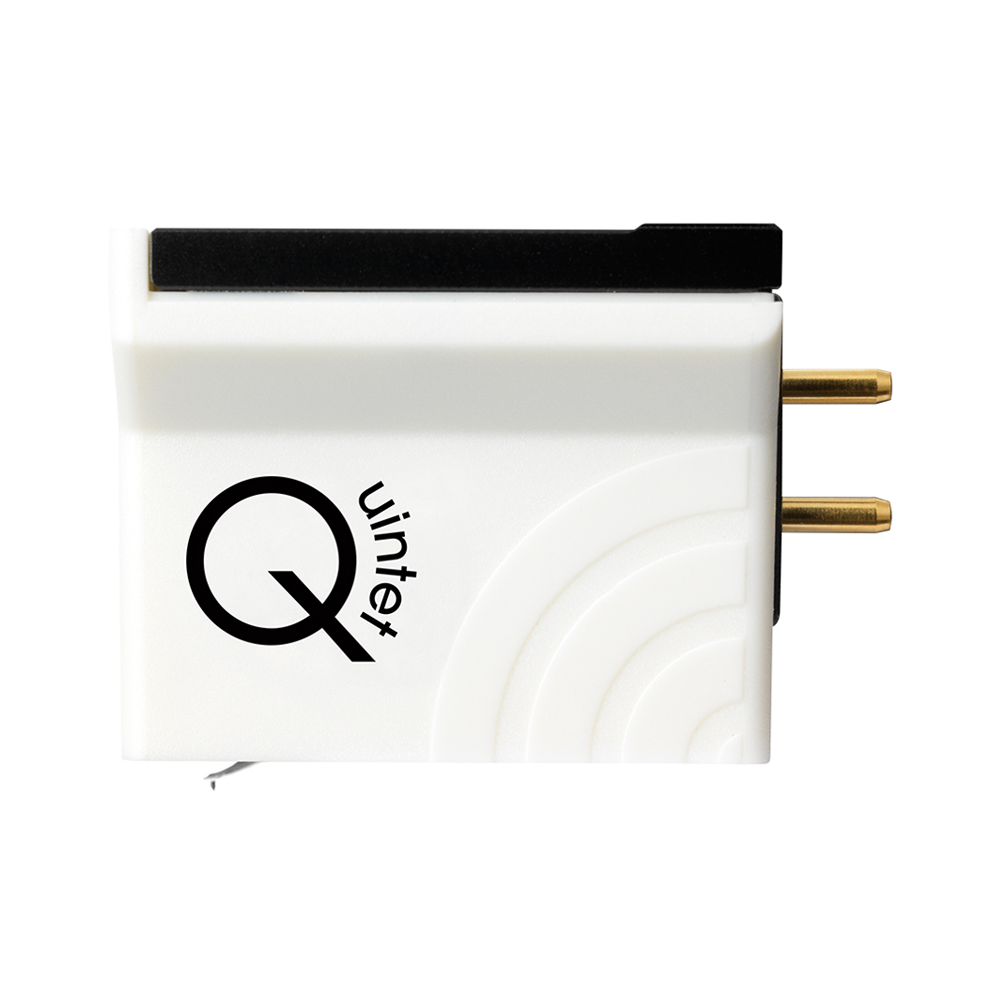

A True Mono from Ortofon
It features Nude Elliptical r/R 8/18µm stylus that is a good solution for playing mono microgroove vinyl records. The Quintet Mono will track perfectly through even worn and damaged records and ensure the surface noise control.
Quintet Mono uses a strapped output to deliver the same output signal from both sets of pole pins. This effectively eliminates the need for mono-specific equipment, making it possible to enjoy true mono reproduction on any stereo playback system.

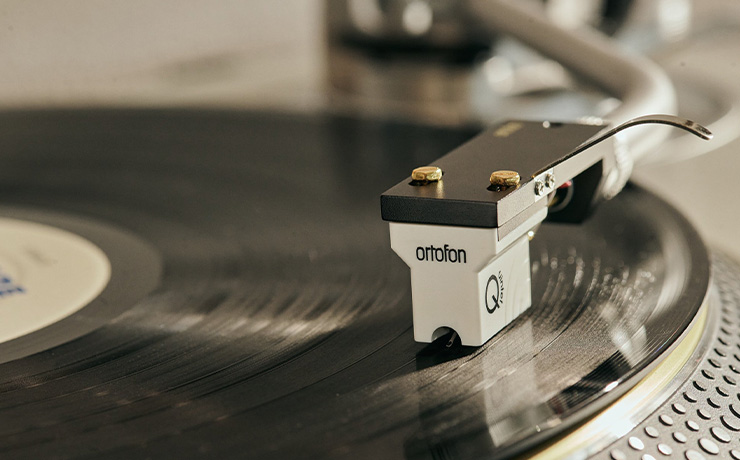

- MC Quintet Mono is for playing mono microgroove vinyl records.
- The ST-7 transformer will be a perfect match for the MC Quintet Mono cartridge.
- LH-4000 headshell is specially recommended for MC Quintet cartridges series.
Ease of use
Top-mounting of the Quintet cartridges is easy and secure using the screws supplied. The aluminuim frame has threaded mounting holes and is fitted easily with the 5mm or 7mm screws depending on the thickness of the headshell.
The Quintet series’ right angles, straight lines, stylus visibility and ample distance between the record surface and the cartridge’s bottom will make it easy to mount and align the cartridge and tonearm correctly. The Quintet Series gives excellent results with most common tonearms.
The Quintet Story
Nothing demonstrates Ortofon's long-standing resilience more than its commitment to the refinement of analogue sound quality and its continued development of new cartridge models. Since 1948 Ortofon has introduced about 100 different Moving Coil models. They believe the cartridges in this new series are more than worthy successors to the long line of models that has made them the global leader in the manufacture and supply of phono cartridges.
The MC Quintet Series is a direct result of our continued research and innovation
The MC Quintet Series is congruent with Ortofon’s unrelenting commitment to providing the most precise and accurate reproduction possible without coloration:
- A special ABS (Acrylonitrile/Butadiene/Styrene) thermoplastic material is used for manufacturing of the body. This light-weight, impact resistant material is very suitable for injection-moulding and provides a very durable scratch resistant surface.
- Neodymium magnets are implemented to achieve an optimal output.
- Low internal impedance makes the cartridge less sensitive to load and therefore ensures compatibility with the widest range of preamps and transformers.
in the box
- 1 x Stylus brush
- 1 x Screwdriver
- 2 x Screw M2,5 x 5
|Output Voltage (at 1kHz, 5cm/sec):||0.3mV|
|Channel Balance at 1kHz:||-|
|Channel Separation at 1kHz:||-|
|Channel Separation at 15kHz:||-|
|Frequency Range (at -3dB):||20Hz - 25kHz|
|Frequency Response 20Hz - 20kHz:||± 2.0dB|
|Tracking Ability at 315Hz:||70μm|
|Compliance, Dynamic, Lateral:||15μm / mN|
|Stylus Type:||Nude Elliptical|
|Stylus Tip Radius r / R:||8 / 18μm|
|Tracking Force Range:||2.1 - 2.5g (21 - 25mN)|
|Recommended Tracking Force:||2.3g (23mN)|
|Internal Impedance / DC Resistance:||5Ω|
|Recommended Load Impedance:||>20Ω|
|Cartridge Body Material:||ABS/Alu.|
