Ortofon Quintet Black S Cartridge

Ortofon

Ortofon Quintet Black S Cartridge

Price
£875.00
Detailed and pure reproduction throughout the spectrum.

The Quintet Black S is the best example of Quintet’s overall excellence

The Quintet Black S is graced with a Nude Shibata diamond, considered one of the best stylus profiles available, mounted on a high-performance Sapphire cantilever.

The Shibata’s slim, highly polished profile allows an exceedingly wide contact area to the walls of the groove and ensures detailed and pure reproduction throughout the spectrum, including even the most high frequency groove information.

  • The ST-7 transformer is a perfect match for the MC Quintet Black cartridge.
  • LH-4000 headshell is specially recommended for MC Quintet cartridges series.

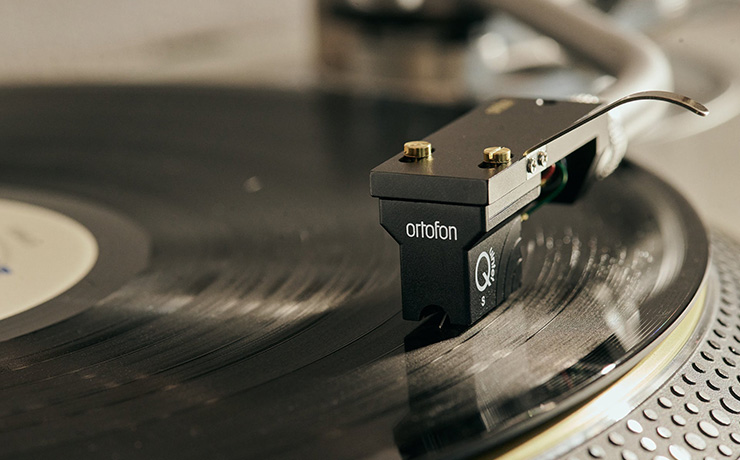

Ortofon Quintet Black S Cartridge playing a record

The new Sapphire cantilever solution

Multiple studies show that demand for strategic natural resources continues to increase. New technologies use ever-increasing amounts of rare and strategic resources. Understandable that this increasing demand may complicate future supply.

Over the decades, there has been an increase in the use of Boron. Elemental Boron is mostly used in high tech applications. One of Boron's benefits for our modern technology is its use in neodymium magnets, which are an alloy of neodymium, iron and boron. Boron has also been applied in manufacturing of phono cartridges: Boron cantilevers are strong, stiff, light and 100% inert. From all possible options Boron cantilever is the best, but unfortunately extremely difficult to obtain.

The new MC Quintet Black S model is graced with Shibata stylus on the Sapphire cantilever. Sapphire is one of the best cantilever options that provides an excellent mechanical pulse transfer from the stylus to the coil system.

The Quintet Black S, like its predecessor Quintet Black, produces detailed and pure reproduction thoughout the spectrum, volume and soundstage.

Ease of use

Top-mounting of the Quintet cartridges is easy and secure using the screws supplied. The aluminuim frame has threaded mounting holes and is fitted easily with the 5mm or 7mm screws depending on the thickness of the headshell.

The Quintet series’ right angles, straight lines, stylus visibility and ample distance between the record surface and the cartridge’s bottom will make it easy to mount and align the cartridge and tonearm correctly. The Quintet Series gives excellent results with most common tonearms.

in the box

  • 1 x Stylus brush, fibre
  • 1 x Screwdriver
  • 1 x Stylus pressure gauge/Scale
  • 2 x Screw M2,5 x 5
Specifications
Output Voltage (at 1kHz, 5cm/sec): 0.3mV
Channel Balance at 1kHz: <1.0dB
Channel Separation at 1kHz: >23dB
Channel Separation at 15kHz: >15dB
Frequency Range (at -3dB): 20 Hz - 25 kHz
Frequency Response 20Hz - 20kHz: ± 1.5dB
Tracking Ability at 315Hz: 80μm
Compliance, Dynamic, Lateral: 15μm / mN
Stylus Type: Nude Shibata
Stylus Tip Radius r / R: 6 / 50μm
Tracking Force Range: 2.1 - 2.5g (21 - 25mN)
Recommended Tracking Force: 2.3g (23mN)
Tracking Angle: 20º
Internal Impedance / DC Resistance:
Recommended Load Impedance: >20Ω
Cartridge Body Material: ABS/Alu.
Coil Wire Material:   Aucurum
Cartridge Colour: Black
Cartridge Weight: 9g
