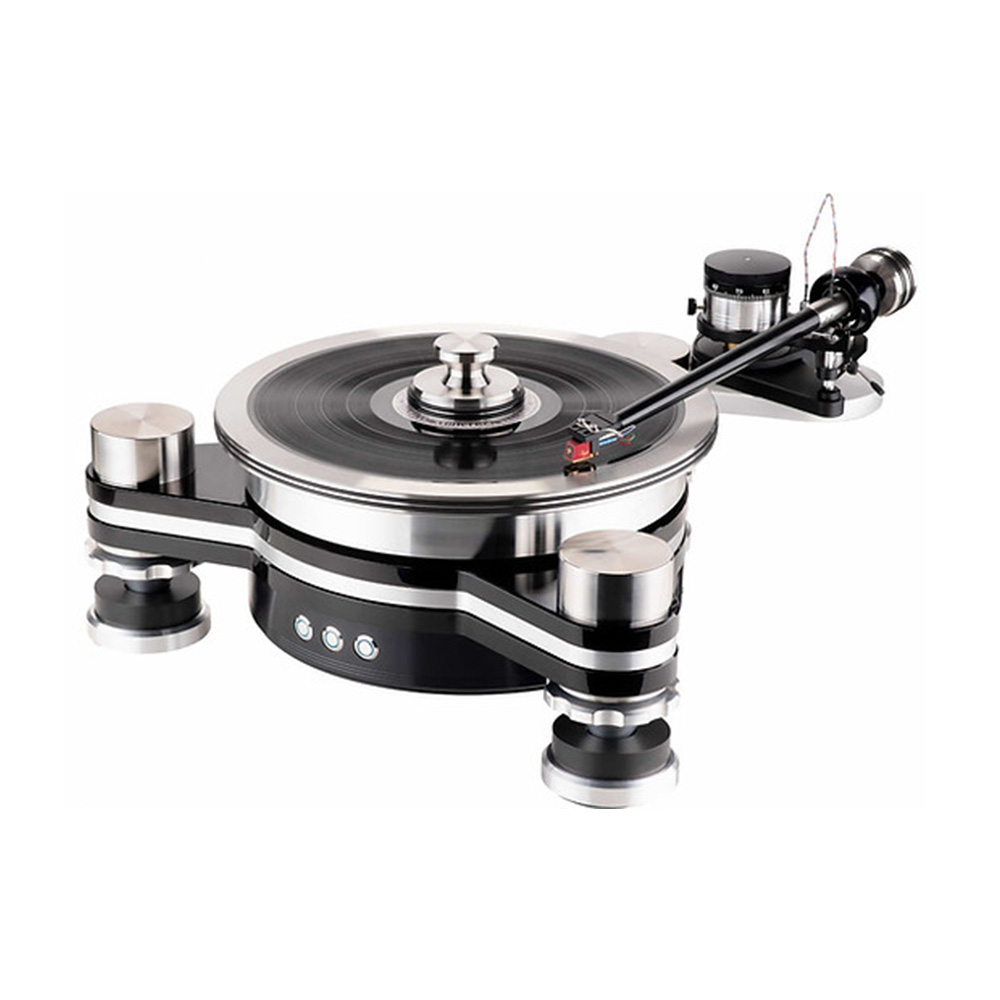

Based on VPI's known design of the Avenger Tripod Chassis, the Avenger Direct takes the Direct Drive technology and marries it with the Avenger Series. The Avenger design has always been known as a "sandbox" type of design giving the owner the ability to mount up to 3 arms at any length or manufacturer model.
The heart of the Avenger Direct comes from VPI's proven HW-40 Anniversary Direct Drive model. Housed in an engineered and machined vented casing, the direct drive is ready to spin at the start of a button with 33 and 45.
Available Upgrades
- additional tonearms
- additional arm boads for third-party arms
- pneumatic air suspension feet
Specifications
- Chassis Composition: Aluminum and machined acrylic
- Platter Type & Size: 12" Aluminum Platter, 25LBS
- Tonearm Included: JMW-12- Fatboy Gimbal
- Motor Type: Direct Drive
- Motor Torque: 2.68 Nm/sec
- Star/Stop Time: 1 Second
- Speed Monitoring: 2,500 pulses/revolution
- Footprint: 21¾" x 16 ¾"
- Overall Size: 22" x 17" x 10"
- Total Weight: 70lbs
VPI Fatboy Gimbal 12-3D
- Bearing Type: Full Gimbal Bearing
- Pivot to spindle: 300 mm
- Internal Wire: Nordost Reference Wire
- Effective length: 313.0 mm
- Effective mass: 12.5g.
- Overhang: 13mm
- Offset angle: 17.37 degrees
- Average RMS distortion: 0.267%
- Material: 3D Technology Consisting of but not limited to Epoxy resin and Delrin materials, copper, aluminum, and steel
