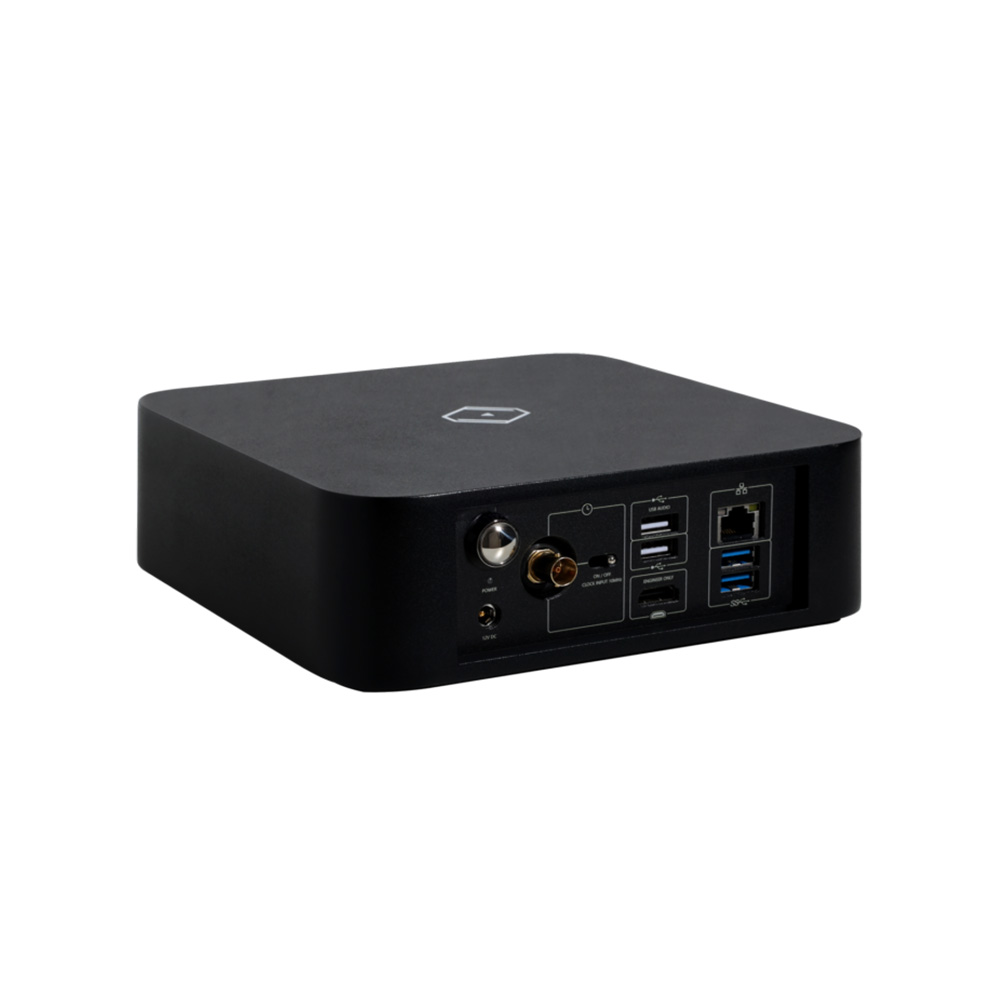

Silent Angel Rhein Z1C Music Server
The perfect entry-level HiFi music server, delivering an uncompromised streaming experience.
A Shiny New Product in the HiFi Music Server Market
Tailored for popular music streaming services, the Z1C boasts Silent Angel’s famed audio-grade OS (VitOS), network streaming capabilities, music library features, and electro-magnetic signal optimisation, delivering a unique digital audio experience.
Innovative Technology Redefining Entry-Level Music Server Standards
- Versatile High-Resolution Format Support - support a large number of high-resolution audio formats for digital audiophiles
- Hi-Res Streaming Platform Compatability - compatible with most of the major streaming platforms
- External Word Clock Input - enables seamless clock upgrades with the Silent Angel Word Clock
- TCXO - High Precision Clock Signal - minimises network latency and jitter problems
- Support Multi Player Streaming - simultaneous delivery of up to 10 audio endpoints
- Latest Storage Subsystem - supports high capacity and high speed NVMe SSD storage

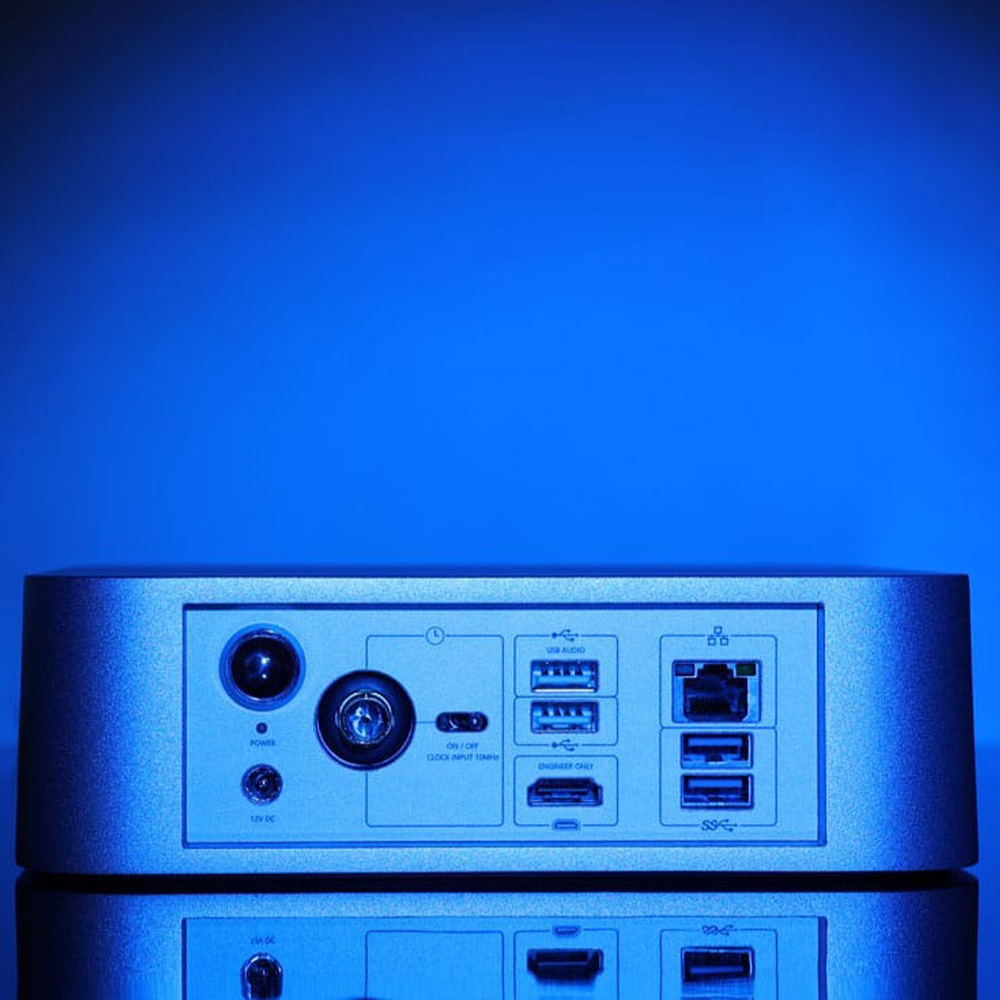

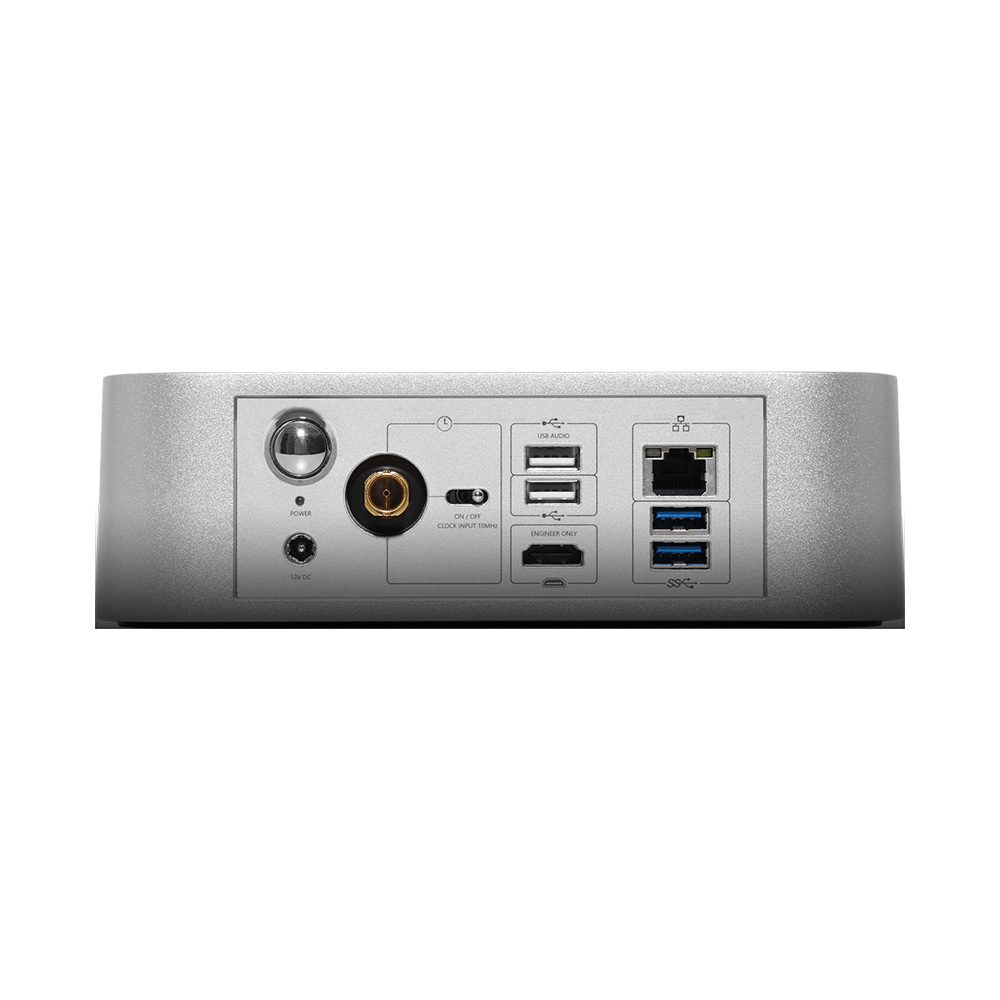

Enhanced Interface for High-Fidelity Digital Music
Elevate Audio Quality with Clock Selector. Utilize an external 25MHz clock source connected to the Z1C for precise timing and optimal performance. By selecting the appropriate clock source, you can further enhance the quality of your audio playback and immerse yourself in a truly captivating listening experience.

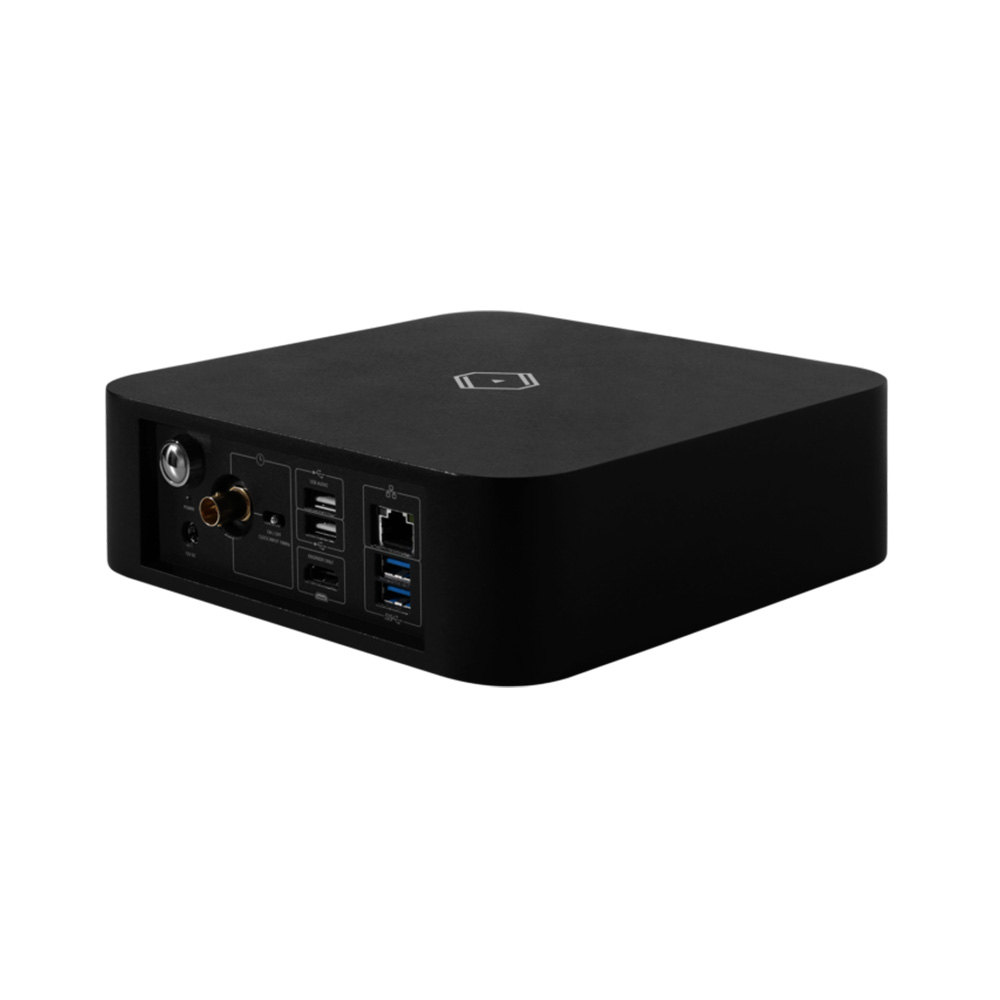

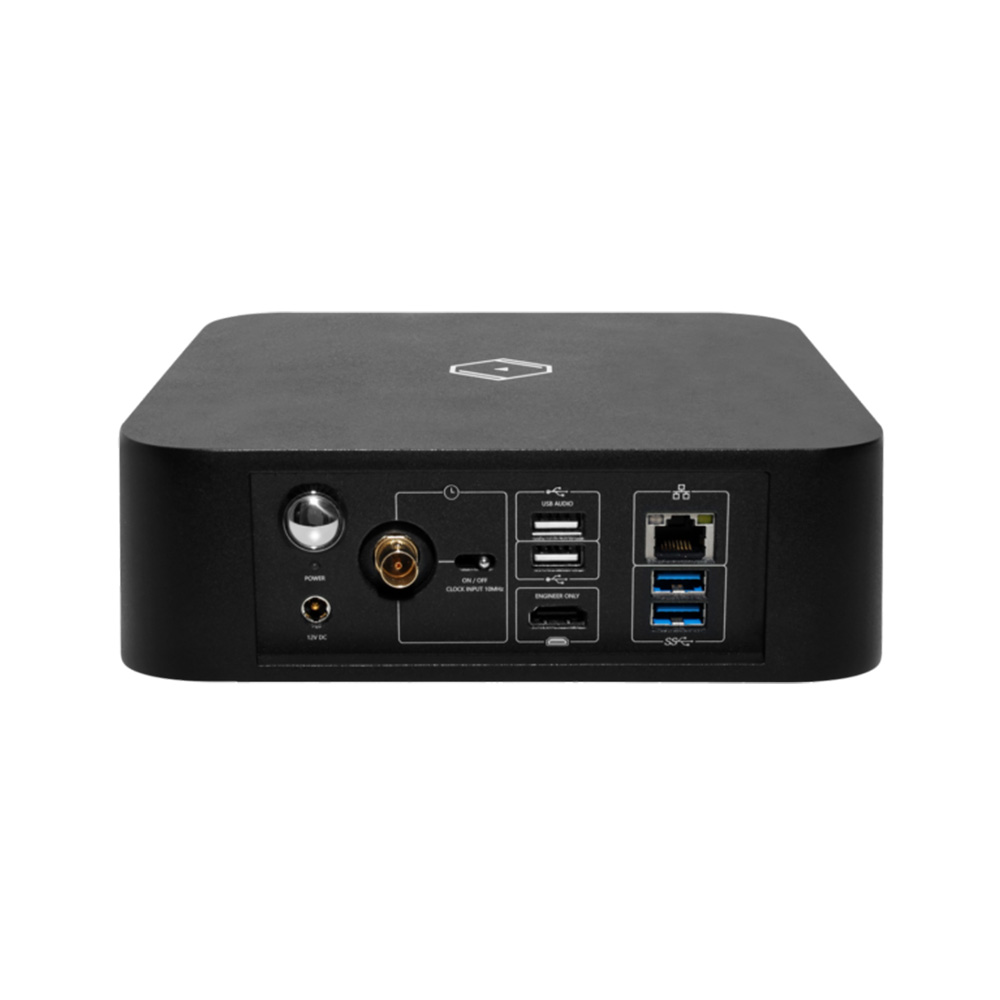

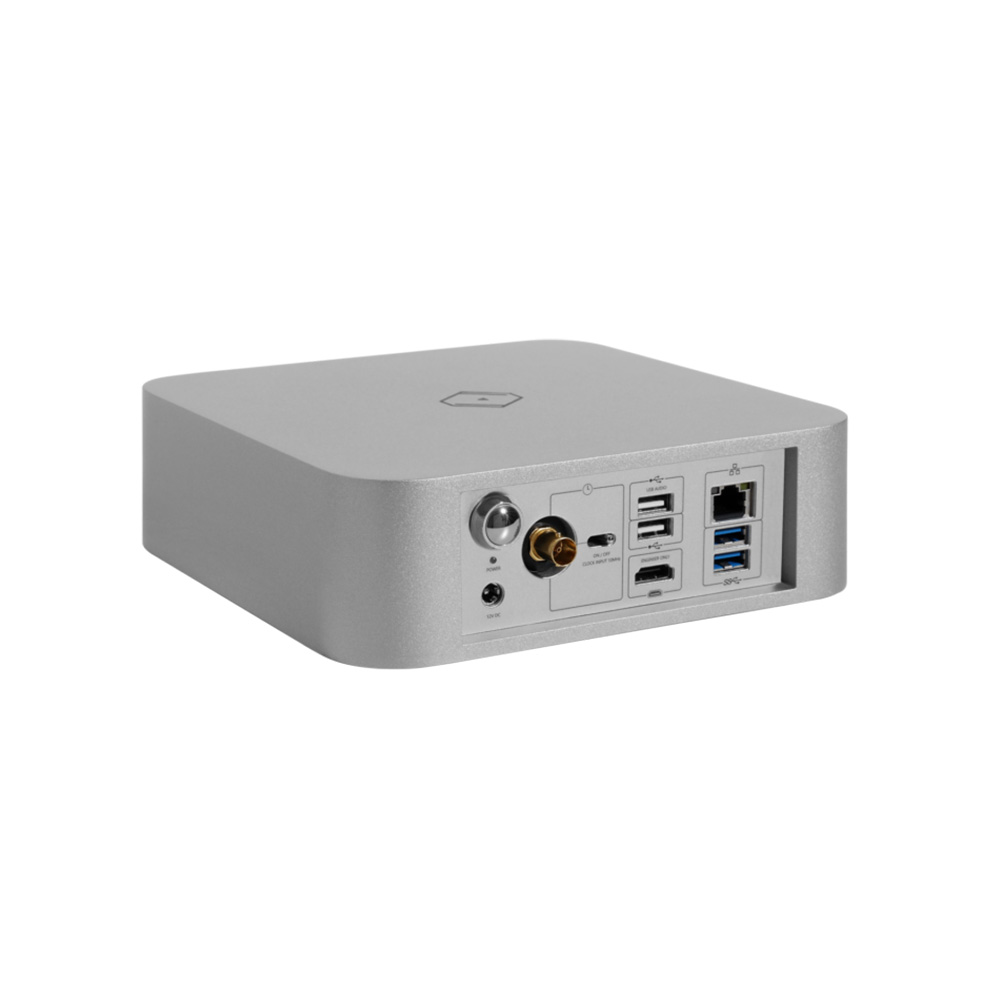

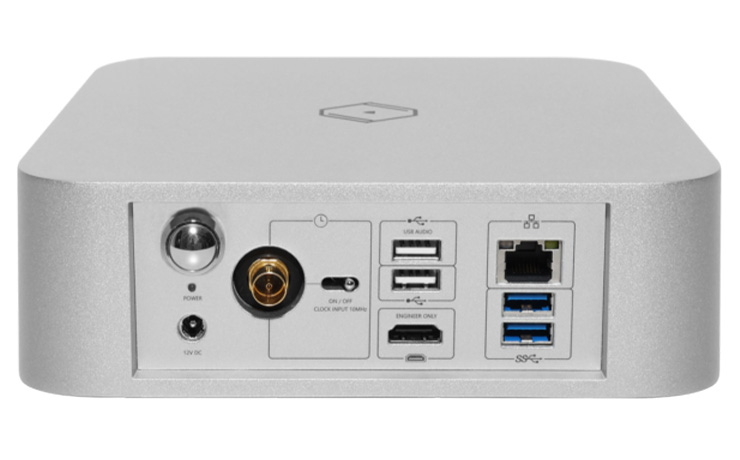

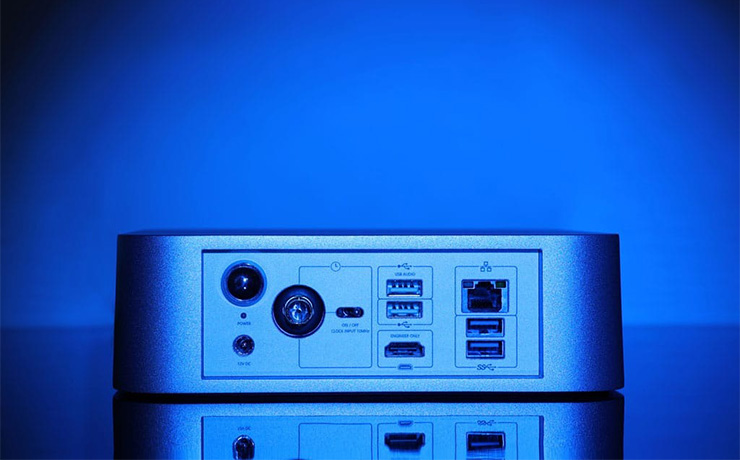

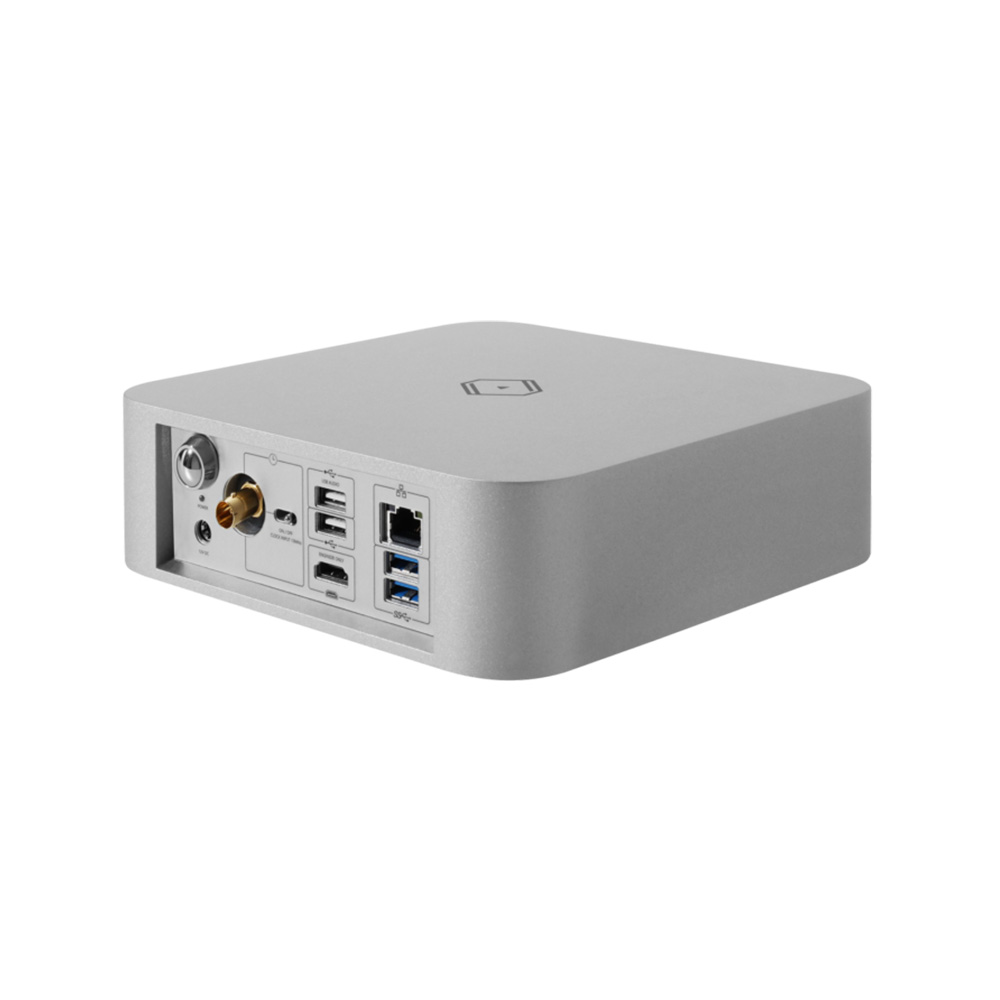

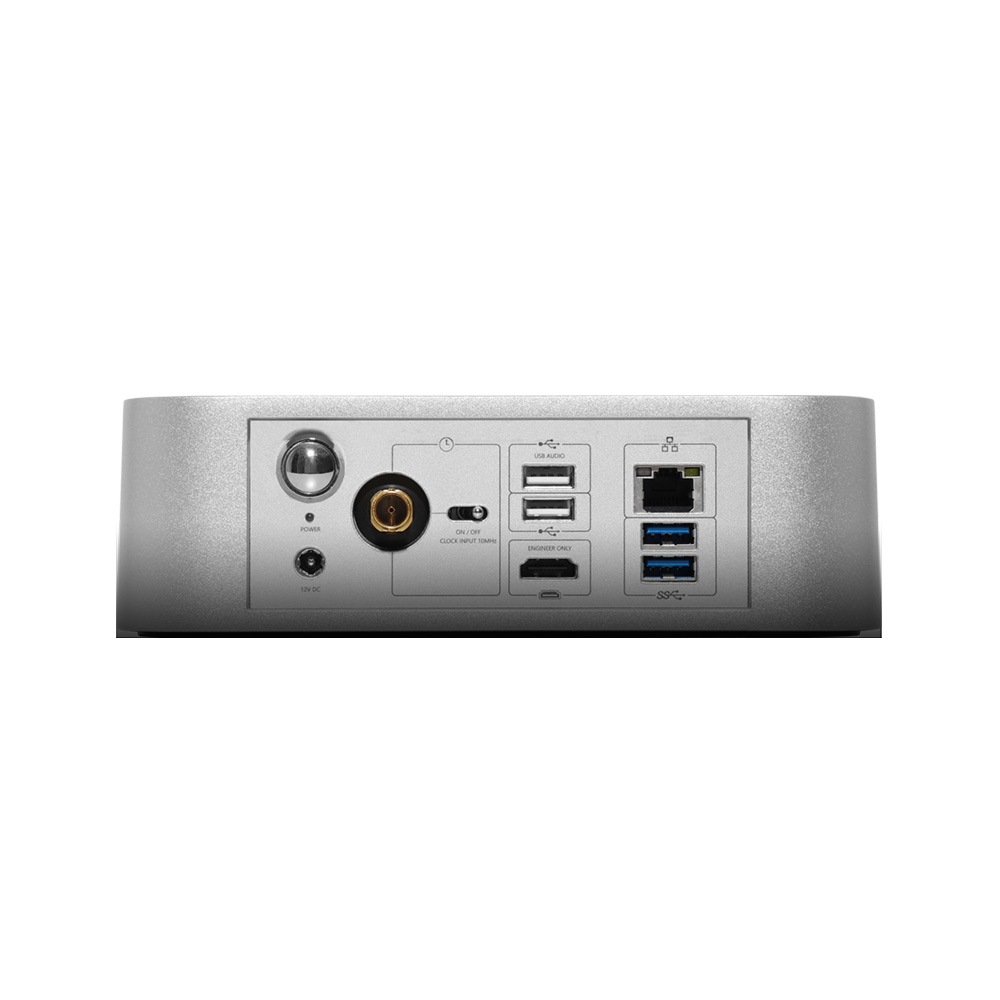

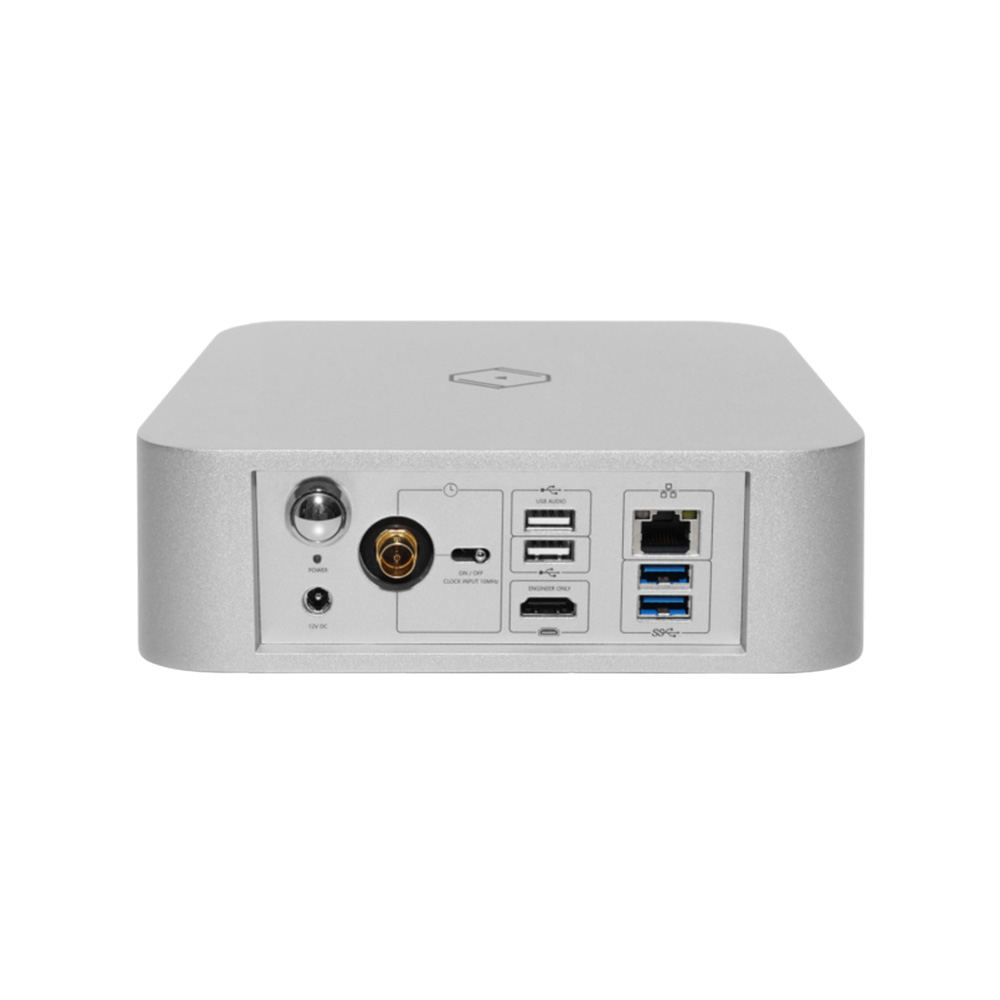

Versatile Audio Outputs with Expandable DAC connectivity. Optimised USB Audio port for rich high-definition digital signal delivery, meeting diverse connection needs.

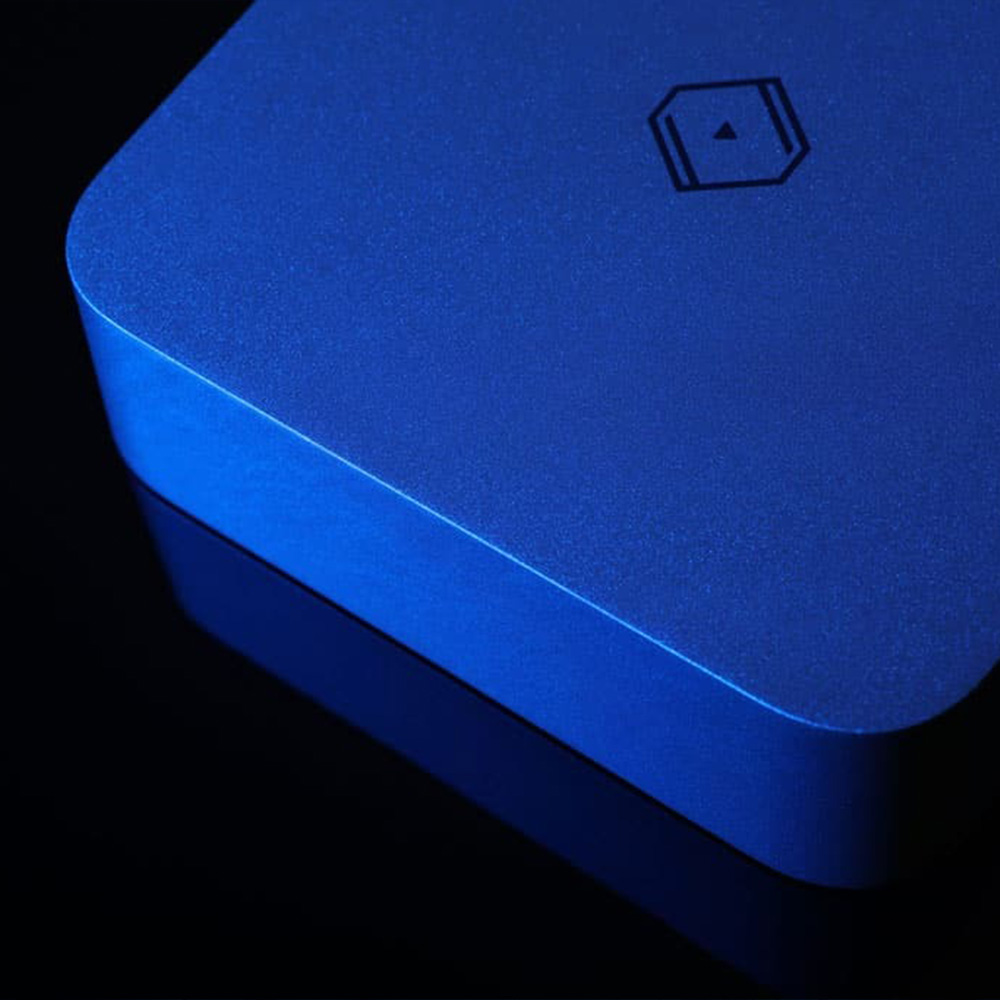

Exquisite Craftsmanship for Perfect Audio Creation

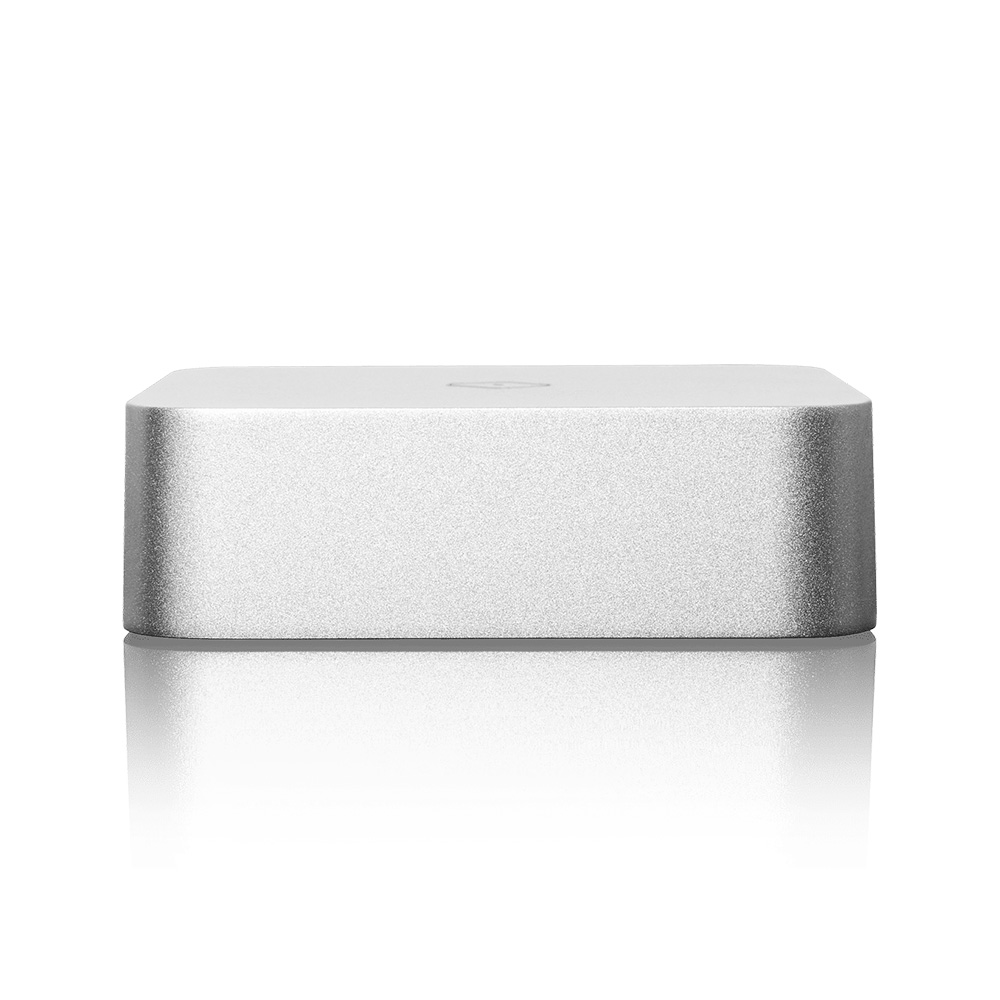

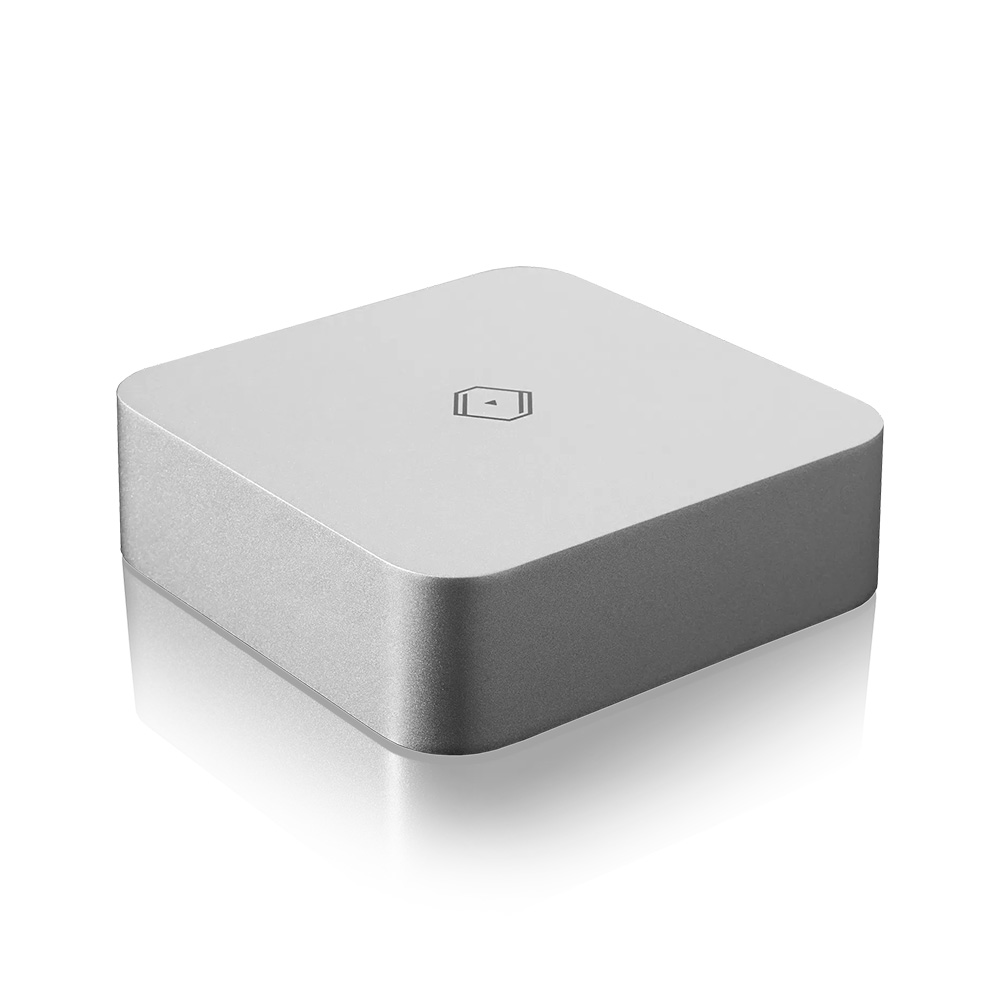

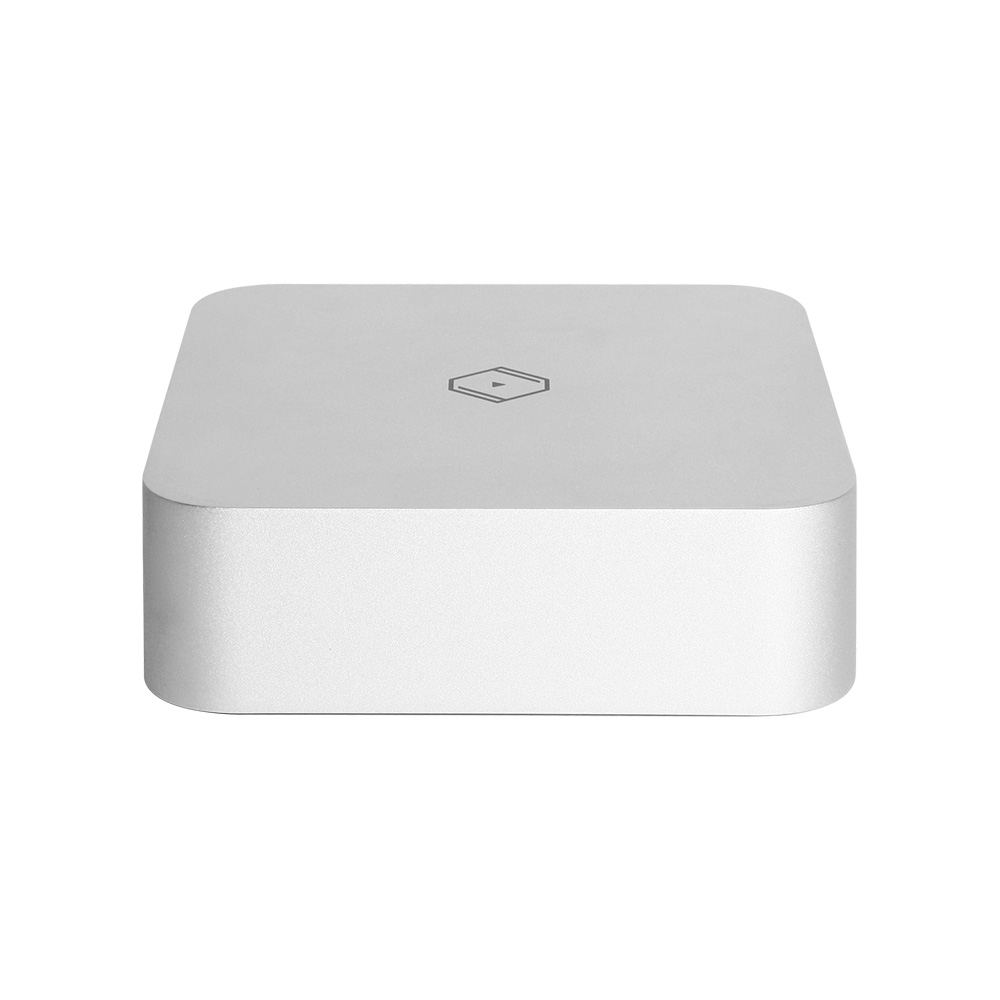

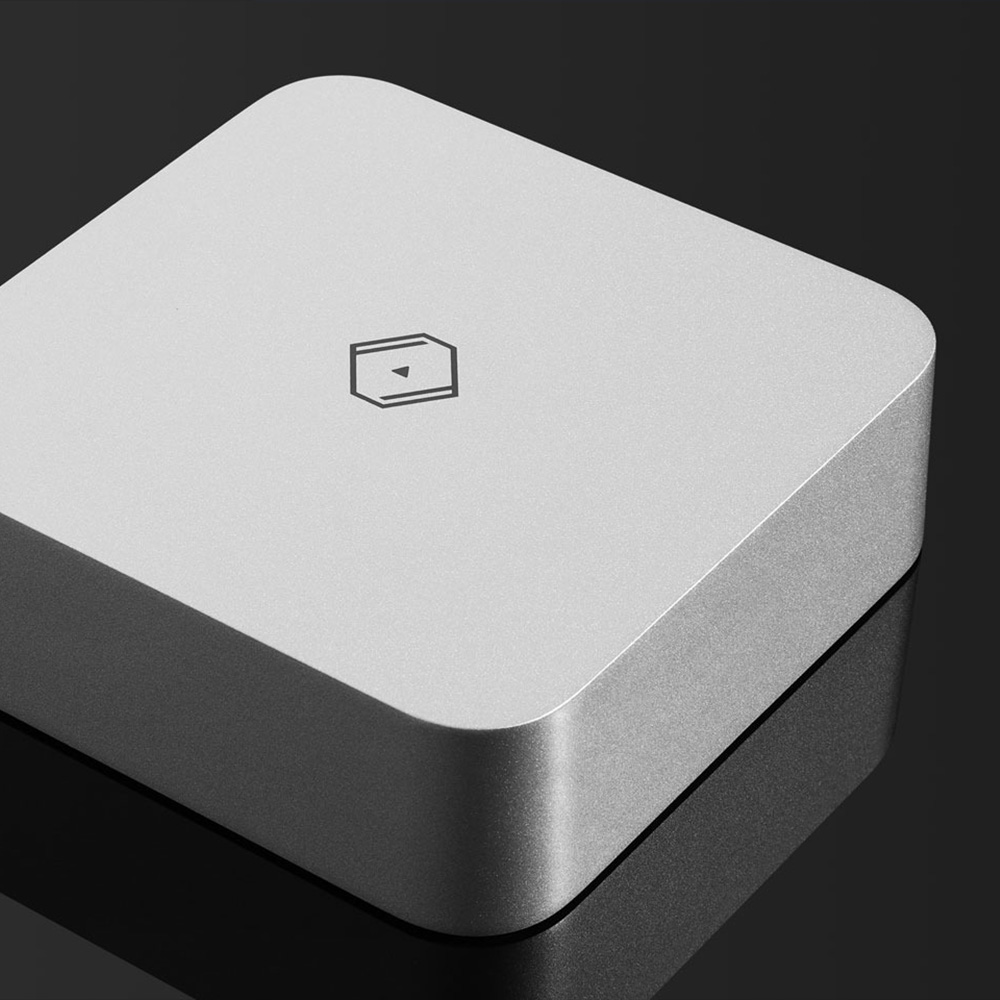

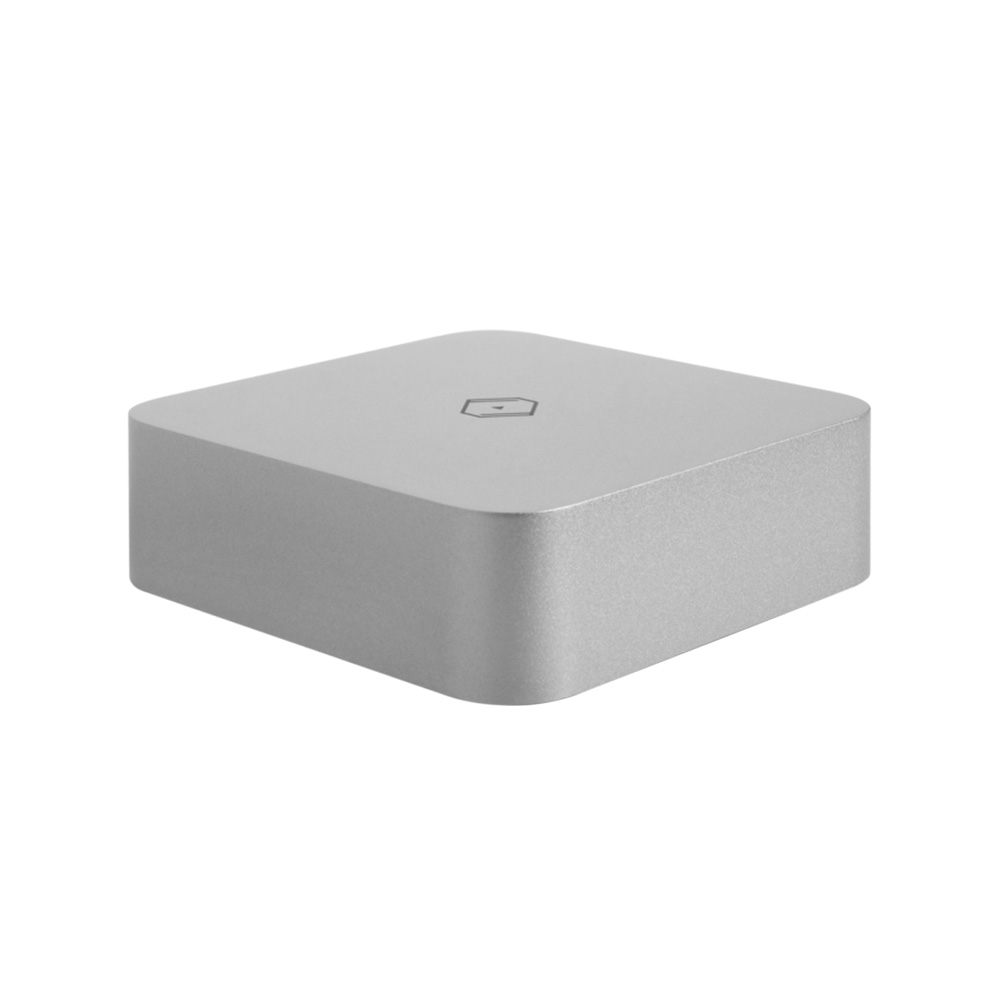

Rhein Z1C features a durable aluminium alloy housing that safeguards against vibration, dust, and noise, guaranteeing exceptional sound quality in any setting.

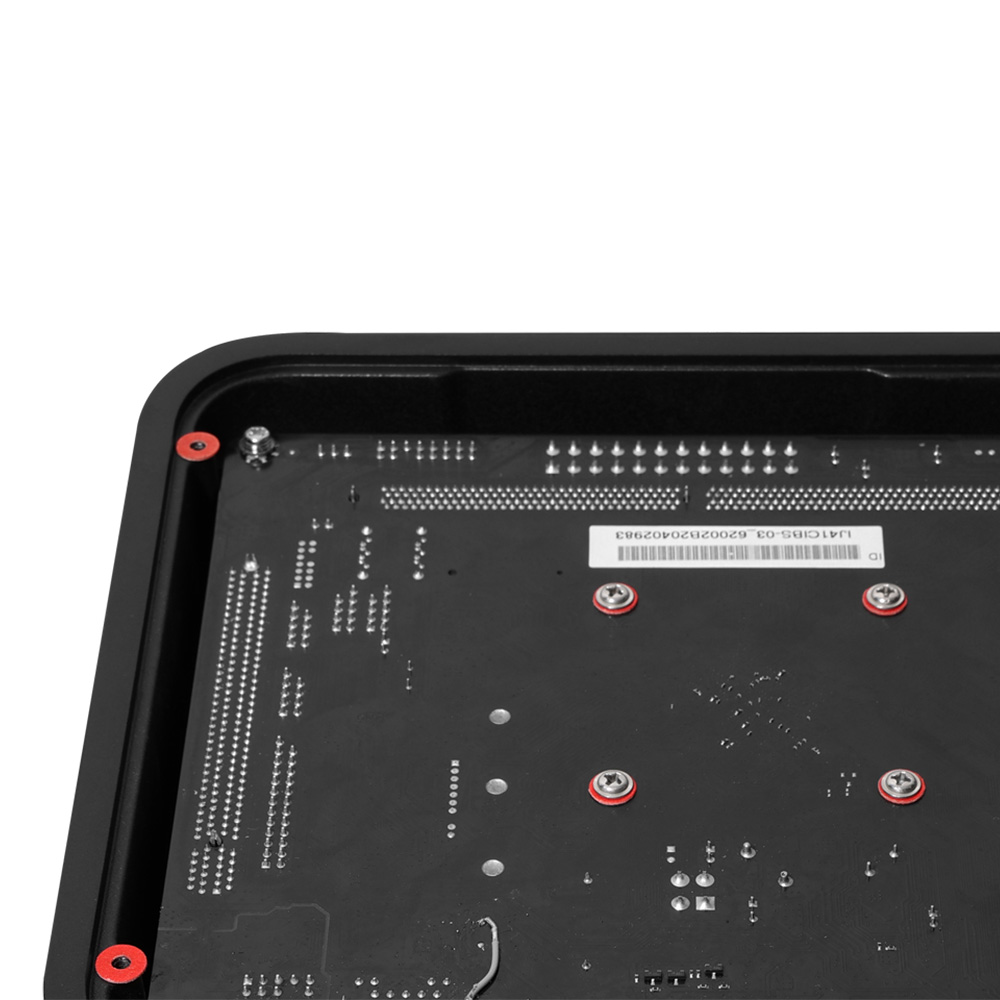

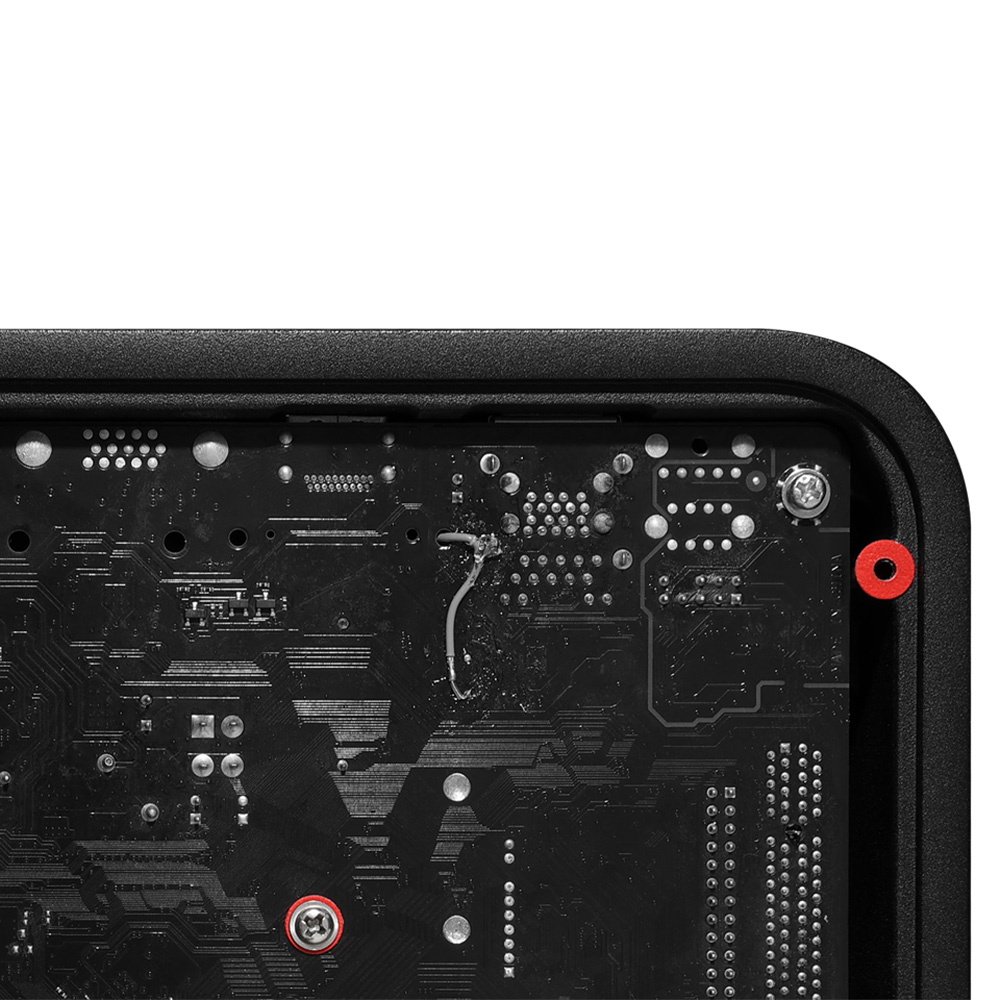

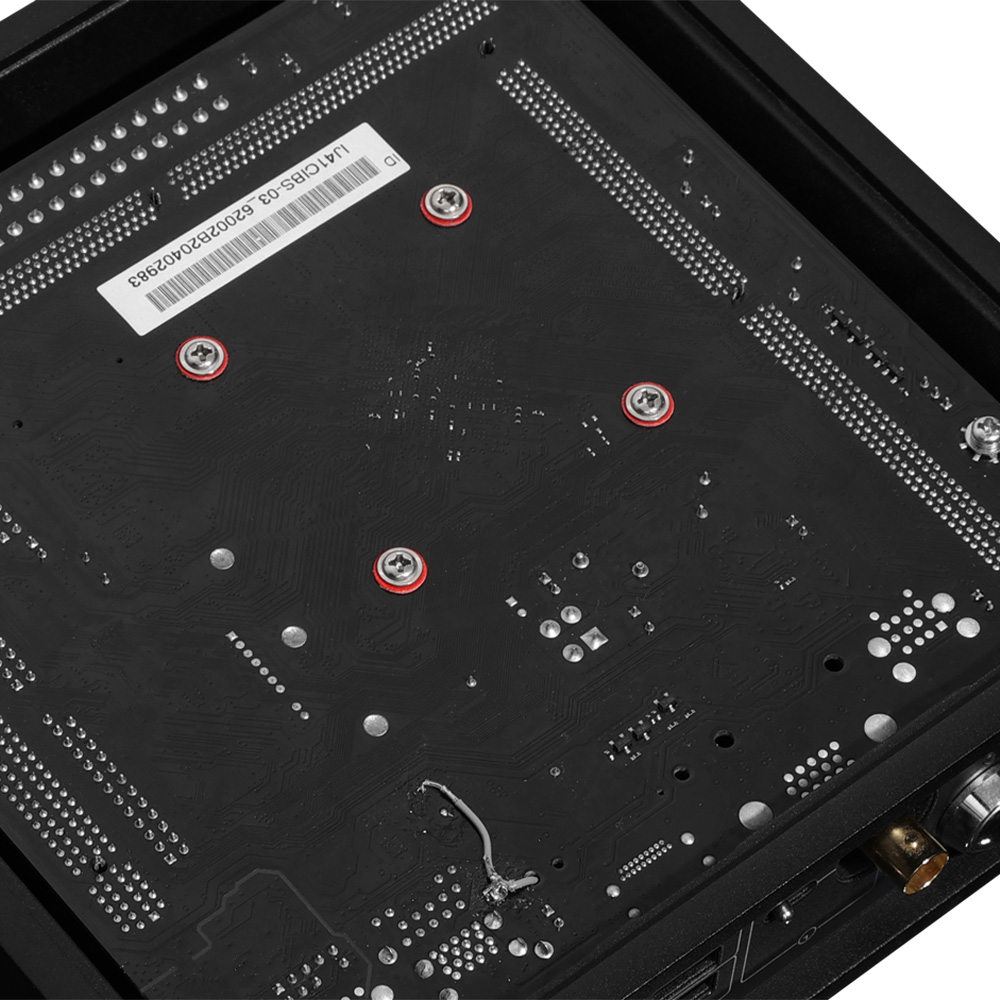

Optimised Circuit to Minimise Digital Signal Noise
Utilising Unique Shielding Technology to optimize interference in digital circuits.
Audiophine-Grade Electrical Components
Uncompromised Expertly Curated Audiophile-Grade Components Delivering Exceptional Sound Quality.
Innovatively Utilising EMI Absorbing Materials
Best Anti-Interference Achieved through Repeated Testing, Selecting the Optimal Position.
External 25MHz Clock Input
Utilising High-Precision TCXO Clocks and optimising the clock peripheral circuits, Z1C minimises network latency and jitter to vanishingly low levels. Equipped with an internal/external clock selector switch, Z1C enables seamless switching between internal and external clock sources.
Abundant Streaming Music Services
Leading Music Streaming Platforms Embedded, Offering MQA Audio Decoding and Seamless Access to High-Quality Online Music Content through Various Sources Including Qobuz, Spotify Connect, DLNA, Airplay2 and Internet Radio.

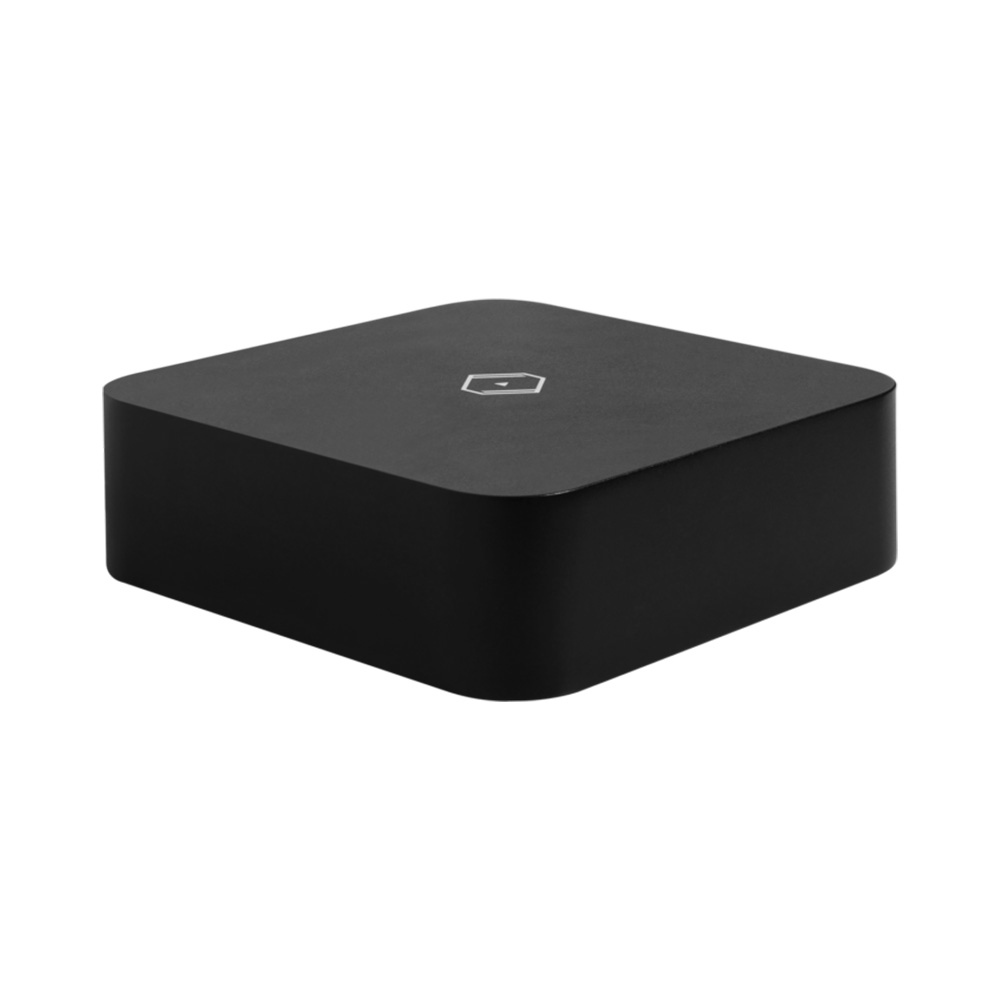

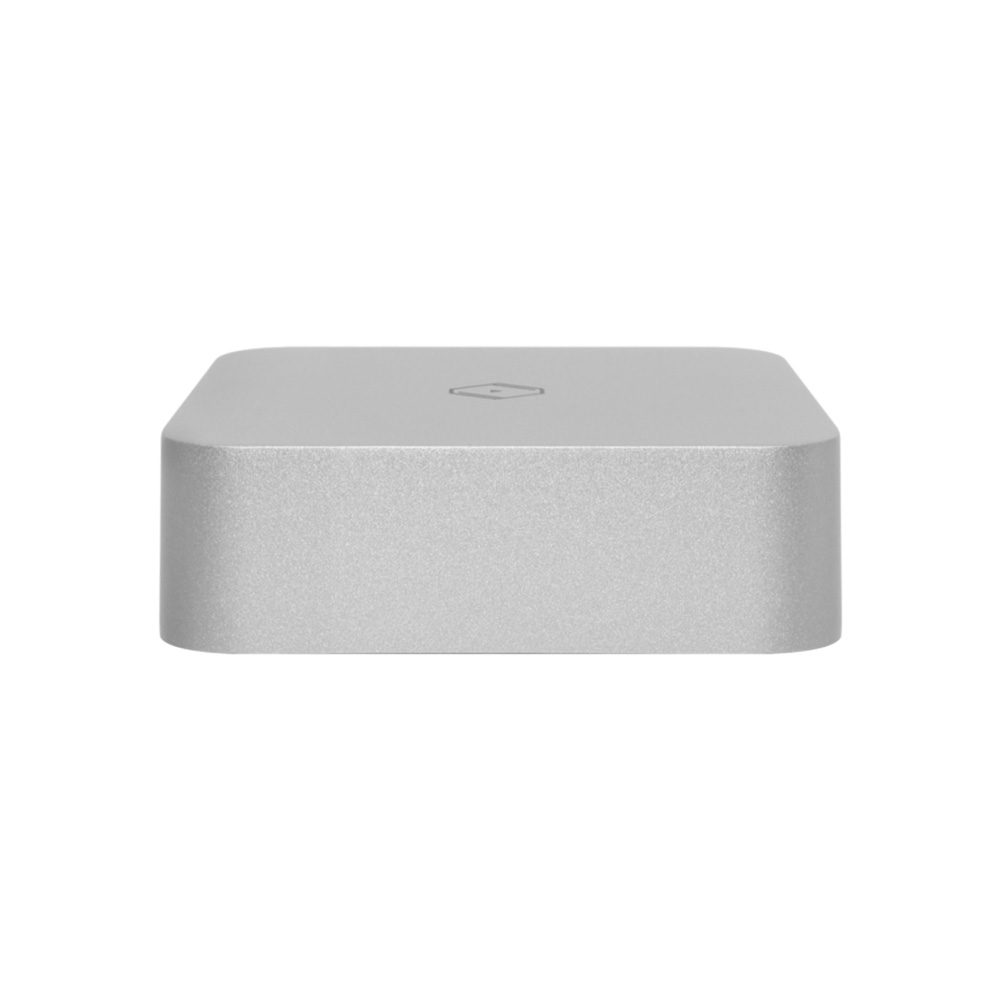

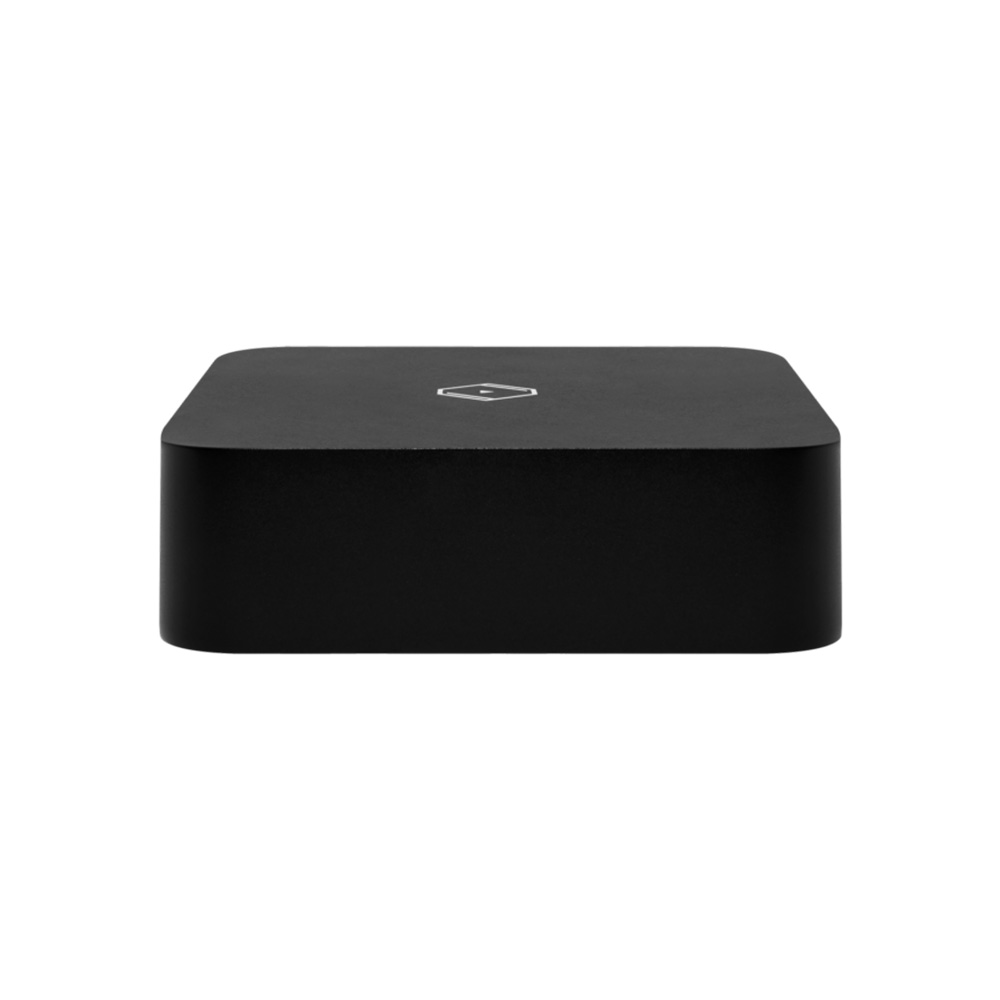

- Available Colour: Black / Silver
- CPU: Intel Quad-core CPU J4125
- RAM: 8GB
- Storage: NVMe SSD, 250GB / 1TB /2TB / 4TB
- Audio Format: AAC, M4A, MP3, OGG, FLAC, WAV, ALAC, DSD (DSF, DFF), WAV64, AIFF, CUE Files, WMA, APE *Max. Supported DSD Sample Rate: DSD256 (11.2MHz)
- Ethernet: 1GbE x 1
- USB Audio Port: USB Audio Port x 1
- Expansion USB Port:
- USB 3.1 x 2
- USB 2.0 x 1
- External Clock Input Port: 25MHz x 1
- Chassis Material: Aluminium alloy chassis
- Input Power: External power 12V / 3A (5.5mm x 2.5mm connector)
- Temperature:
- Operating: 32 ~ 86 °F (0 ~ 30 °C)
- Storage: -4 ~ 158 °F (-20 ~ 70 °C)
- Humidity:
- Operating: 10% ~ 90% RH (non-condensing)
- Storage: 5% ~ 95% RH (non-condensing)
- Dimension:
- 7.87(W) inch x 2.56(H) inch x 7.87(D) inch
- 200(W) mm x 65(H) mm x 200(D) mm
- Weight: 7.5lbs / 3.4kg
