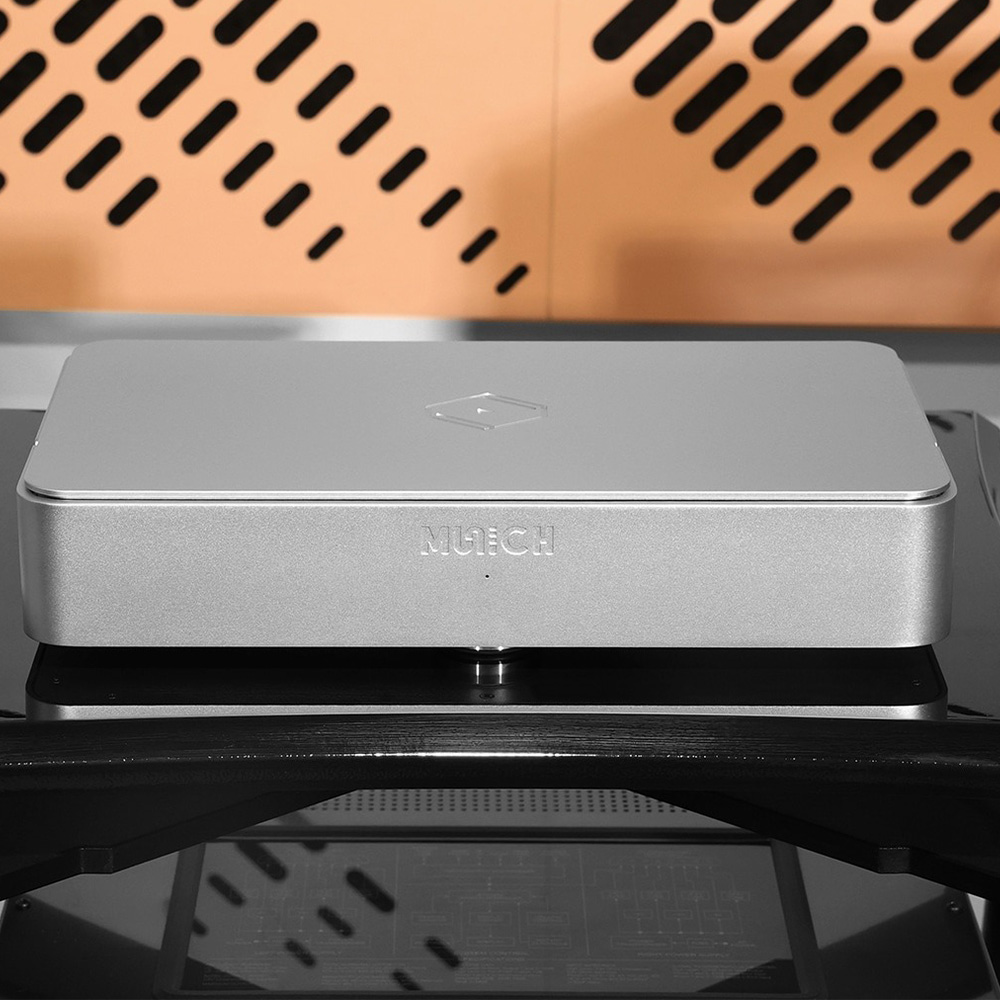

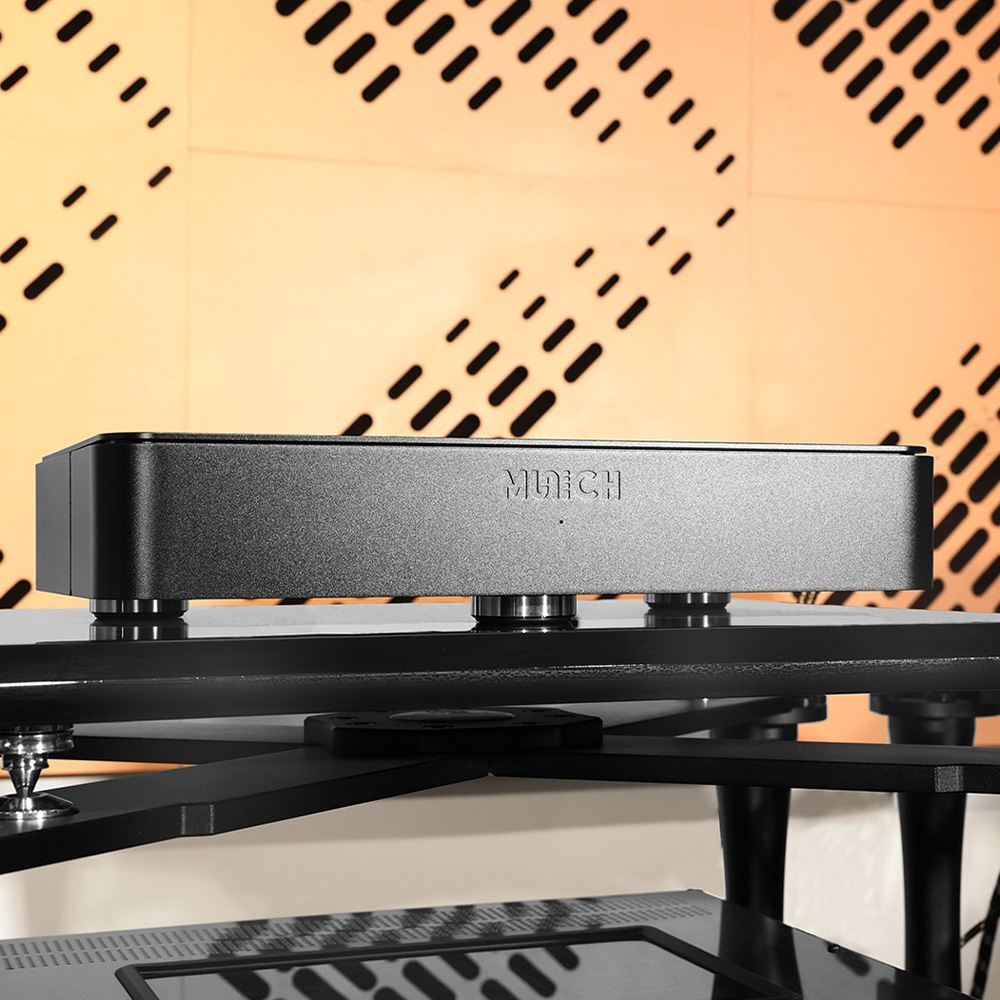

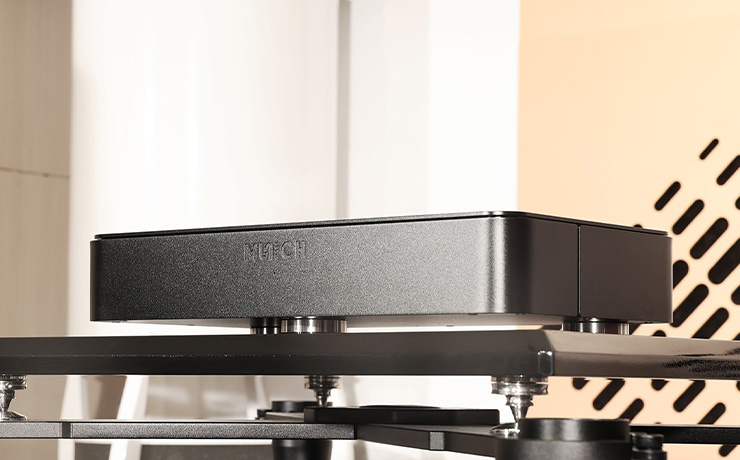

Silent Angel Munich MU Music Player
Designed for Ultimate Sound Quality
Munich MU is High-End’s premier network streamer, advancing the formidable capabilities of the iconic M1. The development of a sophisticated, double-layer chassis design inspired by our State-of-the-Art Bonn NX and Genesis GX combined with meticulous fine-tuning and relentless testing, complemented by specialised system software, every effort has been devoted to creating an unmatched digital audio experience.
- Seamless music source integration
- Cutting-edge DAC and analogue audio output
- Elegantly refined appearance upgrade
Technological Innovations for Next-Generation Streaming
- 6-core processor - Designed to Achieve Superior Transmission Speed and Enhanced Stability
- High performance - Advanced power and grounding solutions for unmatched sound quality
- TCXO clock signal - Ultra-precise clock minimises network latency and jitter issues
- Radar grade switching power supply - Class-leading internal Power Module design
- Highest fidelity analogue performance - Delivers Authentic and Natural Music Reproduction
- Next-generation efficient system - Supports High Capacity NVMe SSD Storage
Enhanced Interface For High-Fidelity Digital Music
Upgrading The Finest Systems: Featuring both XLR balanced and RCA (single-ended) outputs, coupled with an integrated ESS SABRE DAC, Munich MU delivers reference-grade analogue sonics. Simply connect MU to your amplifier or active speakers and instantly elevate your audio system to a true high-end HiFi audio experience.
Versatile Audio Source with Expandable DAC connectivity via USB Audio port for rich high-definition digital output, meeting diverse connection needs. Enhanced with advanced lossless audio transmission for unparalleled sound quality.
Double-Layer Chassis with Integrated Manufacturing Process
Munich MU offers superior structural integrity compared to welded sheet metal enclosures, providing enhanced resonance damping and better electromagnetic interference isolation, thereby ensuring pristine audio quality.
The Perfect Digital Circuit, Engineered to Minimise Noise in Digital Signals
Utilising Unique Shielding Technology to Isolate Interference Between Digital and Analogue Circuits.
Premium Audiophile-Grade Audio Components
Carefully Selected Audiophile-Grade Electrical Components Deliver Exceptional Sound Quality.
Precision EMI Interference Absorption Technology
Ultimate Suppression Achieved Through Relentless Testing and Optimal Device Positioning.
High-Precision Clock Adjustment with Independent Circuitry
High-Precision TCXO Clock Fine-Tuned Surrounding Power Circuitry to Femtosecond Levels.
External 25MHz Clock Input
Utilising High-Precision TCXO Clocks and optimising the clock peripheral circuits, MU minimises network latency and jitter to vanishingly low levels. Equipped with an internal/external clock selector switch, MU enables seamless switching between internal and external clock sources.
Abundant Streaming Music Services
Leading Music Streaming Platforms Embedded, Offering MQA Audio Decoding and Seamless Access to High-Quality Online Music Content through Various Sources Including Tidal, Qobuz, Spotify Connect, DLNA, Airplay2, and Internet Radio.

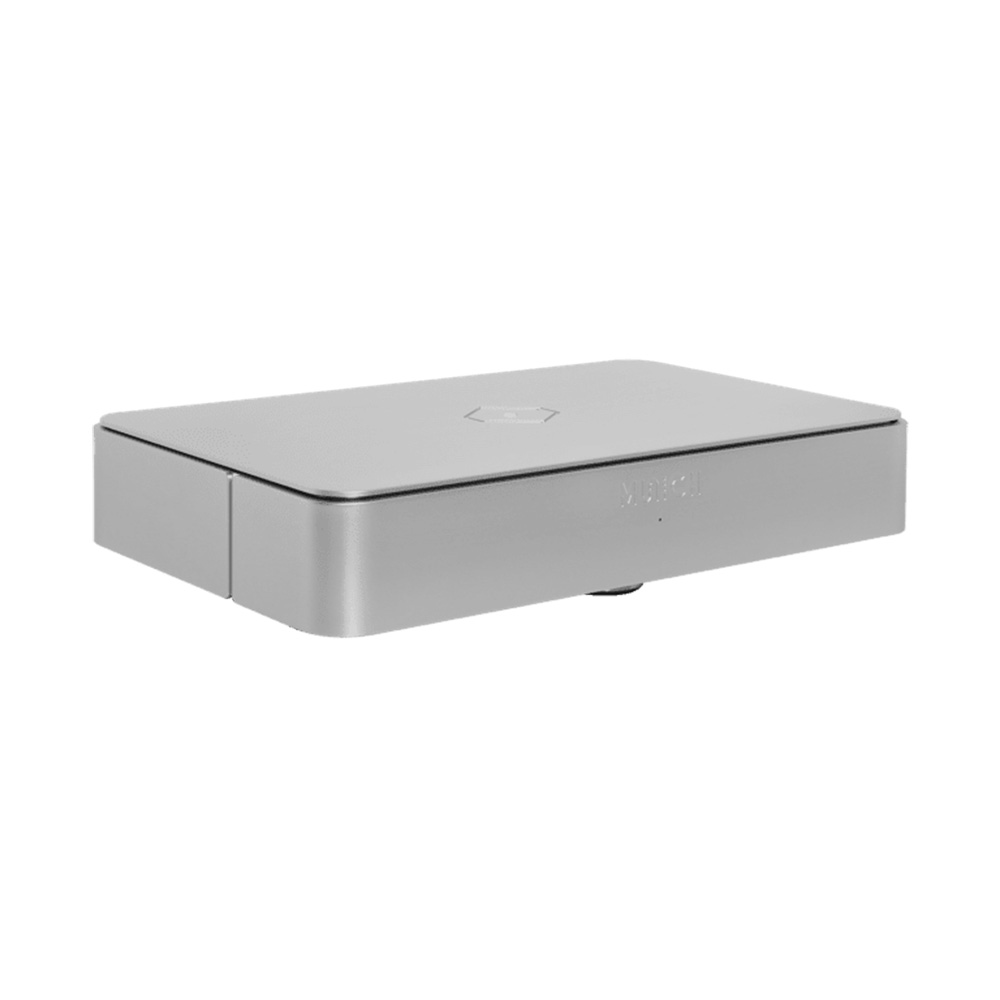

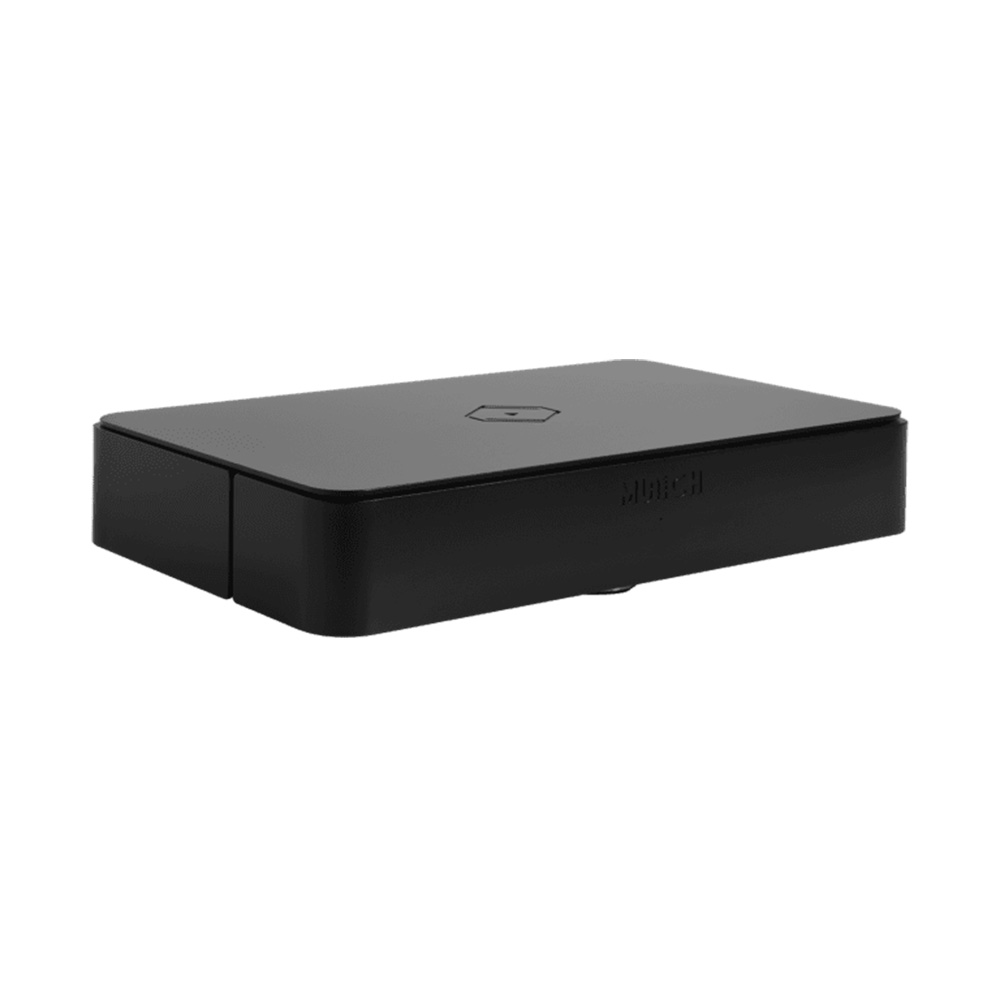

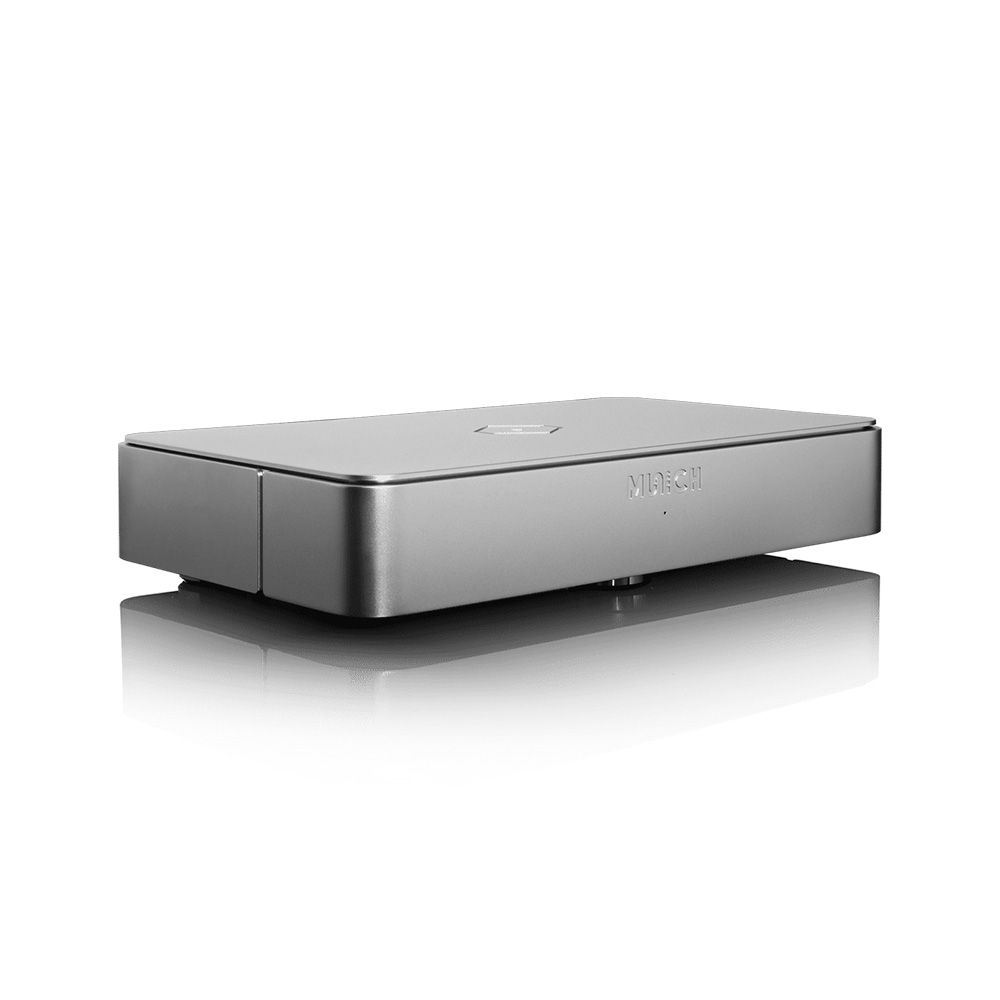

- Available Colour: Black, Silver
- Ethernet: 1 GbE RJ45 x 1
- Management System: VitOS Orbiter (for iOS, Android)
- LED Indicator:
- Red, green, and blue lights flash in sequence > System booting
- Blue light remains steady > Startup process completed
- Blue light stays steady > Standby mode
- Red light blinks > Mute mode
- Green light blinks > PCM output format
- Blue light blinks > DSD output format
- Audio Format: AAC, M4A, MP3, OGG, FLAC, WAV, ALAC, DSD (DSF, DFF), WAV64, AIFF, CUE Files, WMA, APE

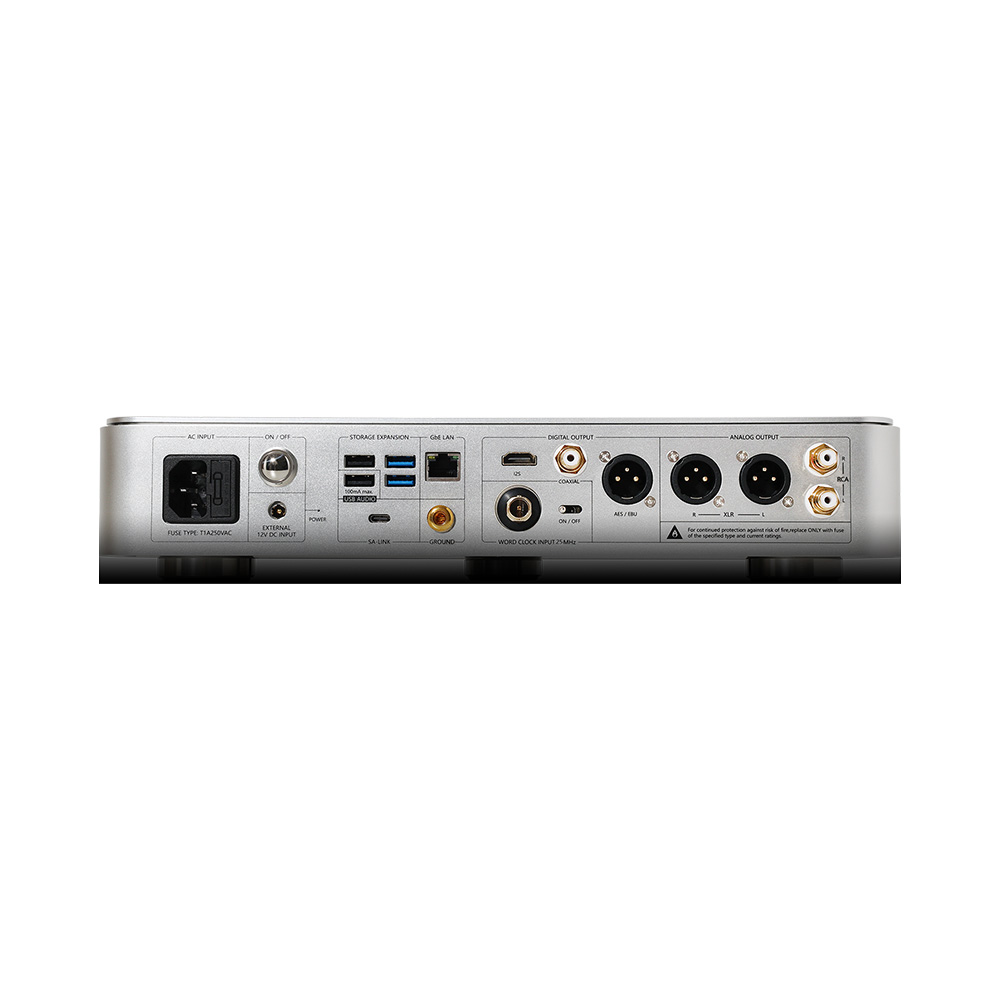

- Digital Outputs:
- AES/EBU port x 1
- I2S port x 1*
- Coxial port x 1
- Supports up to PCM 384KHz and DSD 5.6M (DSD128) - * I2S output signal is not compatible with Holo Audio's DAC
- USB Audio:
- USB Audio port x 1 - Supports up to PCM 768KHz and DSD 11.2M (DSD256)
- Analogue Output: Balanced XLR Outputs, Unbalanced RCA (L+R) Outputs
- USB external storage:
- USB 3.0 x 2
- USB 2.0 x 1
- External Clock Input Port: 25MHz x 1
- CPU:
- Dual-core Cortex-72, frequency 1.8GHz +
- Quad-core Cortex-A53, frequency 1.4GHz
- RAM: Low-Noise 4GB
- Firmware and System: High-Speed 32GB
- SSD Storage: M.2 NVMe SSD (2280) Reserved, Up to 4TB, This product does not include a hard drive.

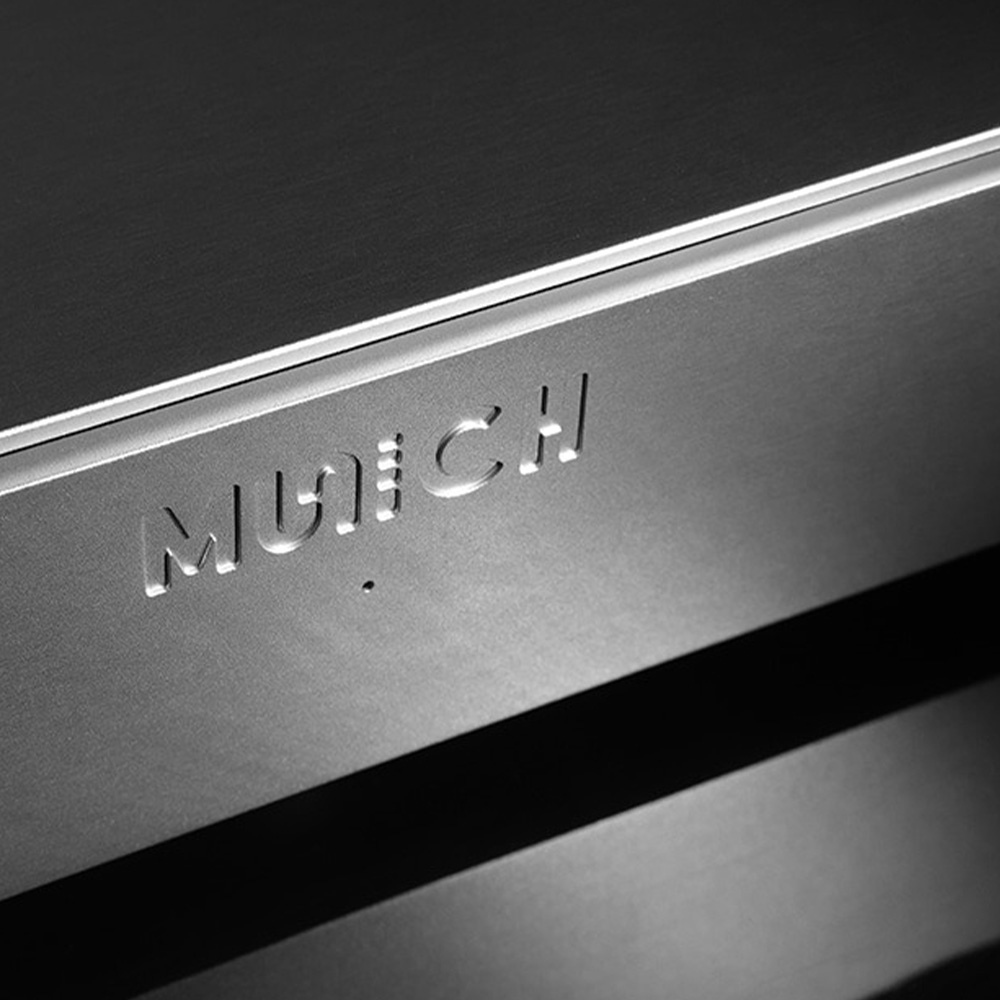

- Chassis Material: Aluminium alloy material sandblasted anodized appearance, Double-layer casing isolation design.
- Dimensions:
- 360(W)*73(H)*220(D)mm
- 14.18(W)*2.9(H)*8.67(D)inch
- Weight: 4.65KG (10.25 lb)
- Package: Player, Power cord, Network cable, Quick install guide, Warranty card
