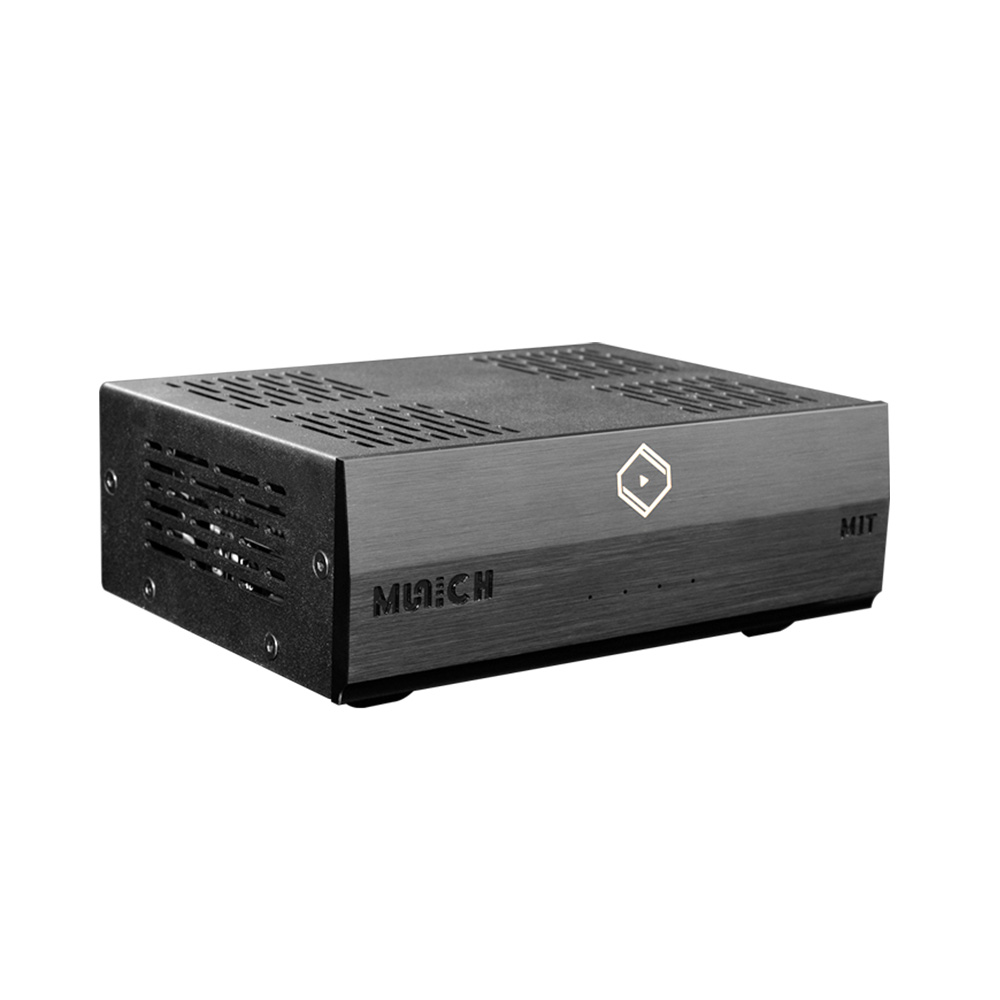

Silent Angel Munich M1T Music Streamer
A compact, feature-rich, high-quality network music transporter designed for music lovers who want to obtain more audio sources, but also want to enjoy the purest audio quality possible. The M1T’s hardware and software are optimised for better sound quality by improving many details without compromise. It is an ideal addition to your existing DAC and HiFi system, so that you can discover the potential of digital music and high-resolution streaming services.
Easy to Use
- Easy to set up & connect to an external DAC or speaker(s) through digital audio outputs
- Stay connected to digital music. Play and enjoy anytime without a PC involved.
- Master your music at your fingertips via mobile app, VitOS Orbiter.
- MQA supported and certified
Optimised OS, VitOS
An elegant, simple, and well-structured design. Capable of running multiple music applications concurrently while optimizing audio output priority, low latency, high stability, and high-speed network transmission.
Supported applications include Qobuz, Spotify Connect, Airplay, DLNA, Roon Ready player and more. It can also play files from a shared network storage or a local USB disk.
Continuous software upgrade is available. The VitOS system update process is protected by dual-firmware design, preventing system failure from unexpected power outages.
Mobile App, VitOS
Easily locate and set up a new device, browse and stream music. Listen to all your favorite songs with details displayed such as bitrate, sample rate, bit depth and format (e.g. DSD, WAV or FLAC).
Superior Hardware System
The M1T is born to pursue superior audio performance without any compromise.

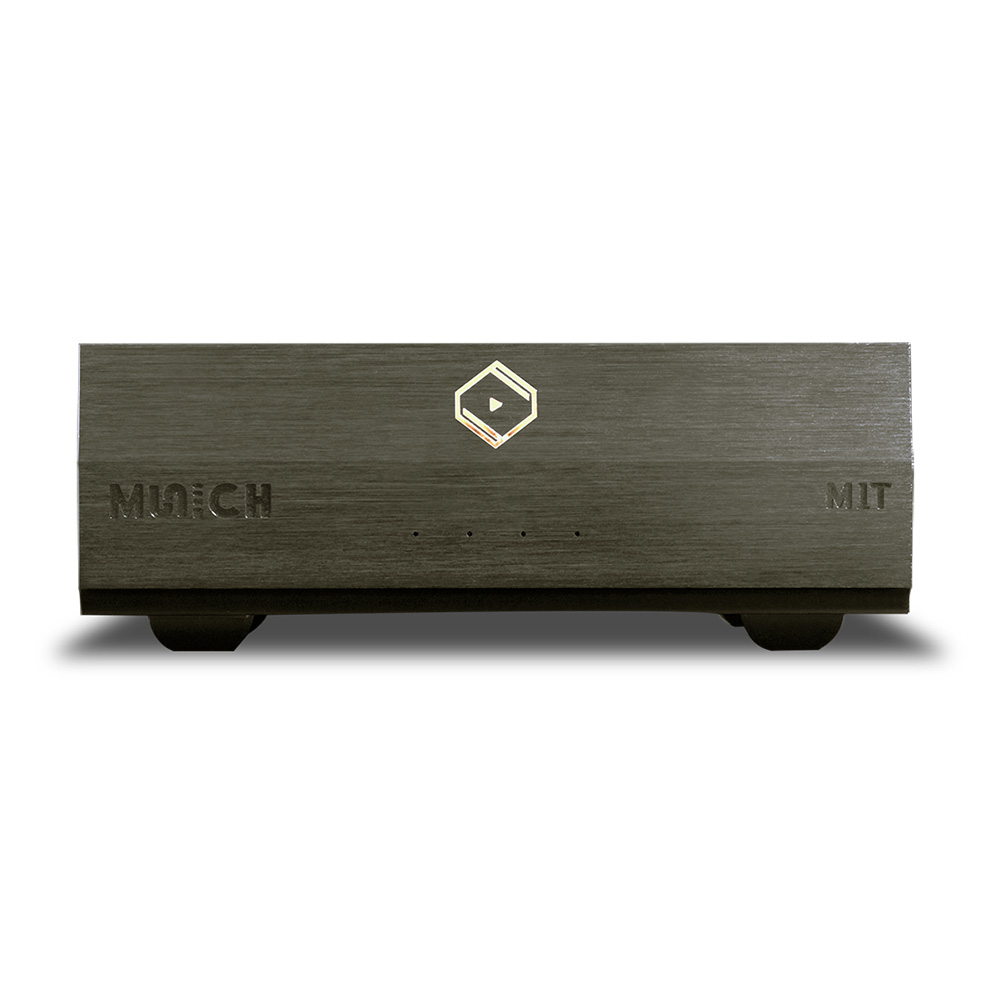

- Elegant metal enclosure with a solid aluminum alloy front panel
- High-performance yet low-power CPU, 4-core 1.5GHz ARM Cortex-A72
- Substantial system memory (up to 8GB) for large streaming buffers and caches to run multiple applications simultaneously
- Digital output: AES/EBU, I2S, Coaxial. Sampling rate up to PCM 384KHz & DSD 5.6MHz (DSD128)
- USB-Audio output: Up to PCM 768KHz & DSD 11.2MHz (DSD256)

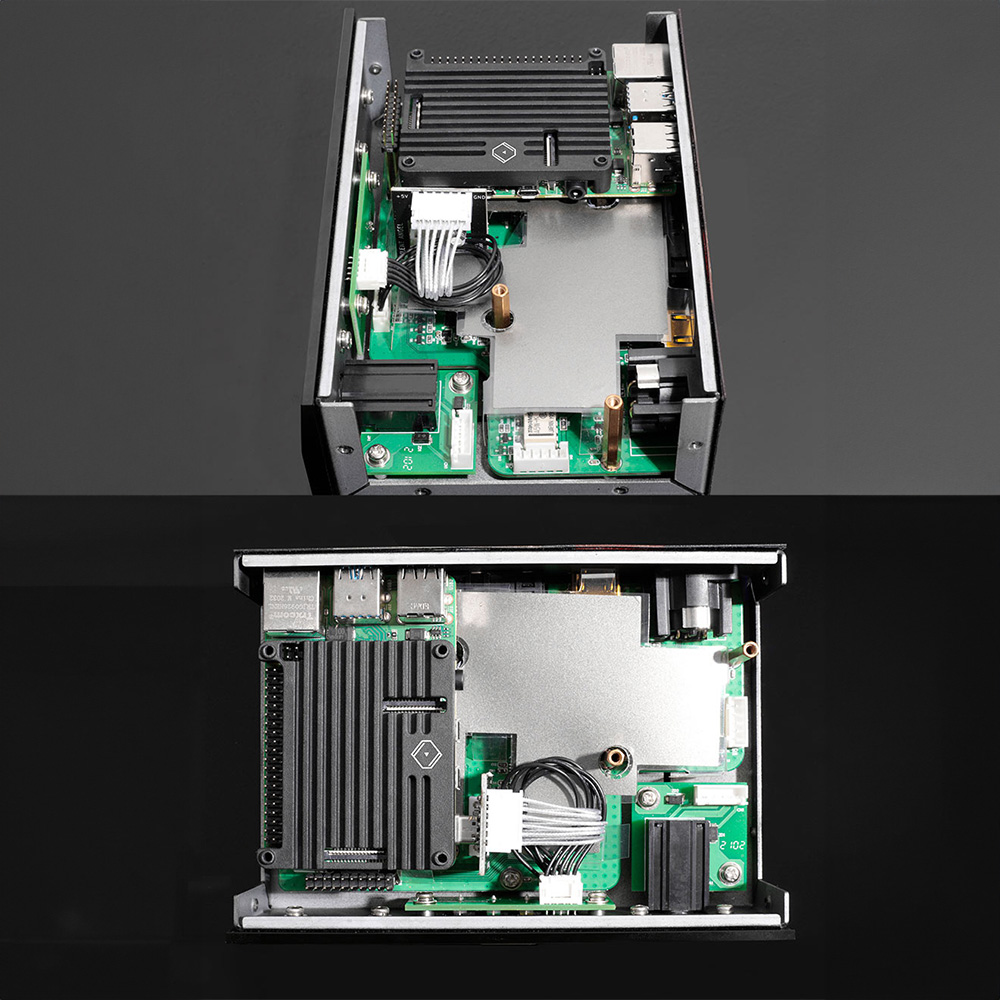

- Advanced circuitry with high quality components
- Fan-less heat dissipation with a highly efficient heat-sink (~20˚C lower after applied)
- A highly permeable EMI absorber (>120 @1MHz) to reduce electrical interference
- Gold plated ports (Coaxial & AES/EBU)
Stream and Play in an Audio Network
- Play high-resolution streaming services and Internet radio
- Roon Ready player
- Play music from network shared storage (over SMB/CIFS)
- DLNA renderer (player)
- Available Colour: Black
- Power Consumption: 10W at max
- Digital Outputs:
- AES/EBU port x 1
- I2S port x 1*
- Coxial port x 1
- Supports up to PCM 384KHz and DSD 5.6M (DSD128)
- * I2S output signal is not compatible with Holo Audio's DAC
- USB Audio:
- USB Audio port x 1
- Supports up to PCM 768KHz and DSD 11.2M (DSD256)
- USB:
- USB 3.0 x 2
- USB 2.0 x 1
- Above USB ports are for external storage
- M-IO: M-IO x 1*
*Reserved. To be enabled by future firmware upgrade - M-LINK: M-LINK x 1*
*Reserved. To be enabled by future firmware upgrade - Ethernet: 1 GbE RJ45 x 1
- Music Format: AAC, M4A, MP3, OGG, FLAC, WAV, ALAC, DSD(DSF, DFF), WAV64, AIFF, CUE files, WMA, APE
- Gapless Playback: Supported
- MQA Handling: The M1T will transmit the signal to the DAC which supports MQA decoding. MQA is supported only by connecting to the USB-audio port.
- LED Indicator:
- Mute LED x 1
- Power LED x 1
- Digital Output LED x 2*
- *Yellow light on when in DSD format / Green light on when in PCM format
- Temperature:
- Operating: 32 ~ 86 °F
- Storage: -4 ~ 158 °F
- Humidity:
- Operating: 10% ~ 90% RH (non-condensing)
- Storage: 5% ~ 95% RH (non-condensing)
- Dimensions: 6.11(W) inch x 1.99(H) inch x 4.34(D) inch
- Weight: 2.21 lbs
