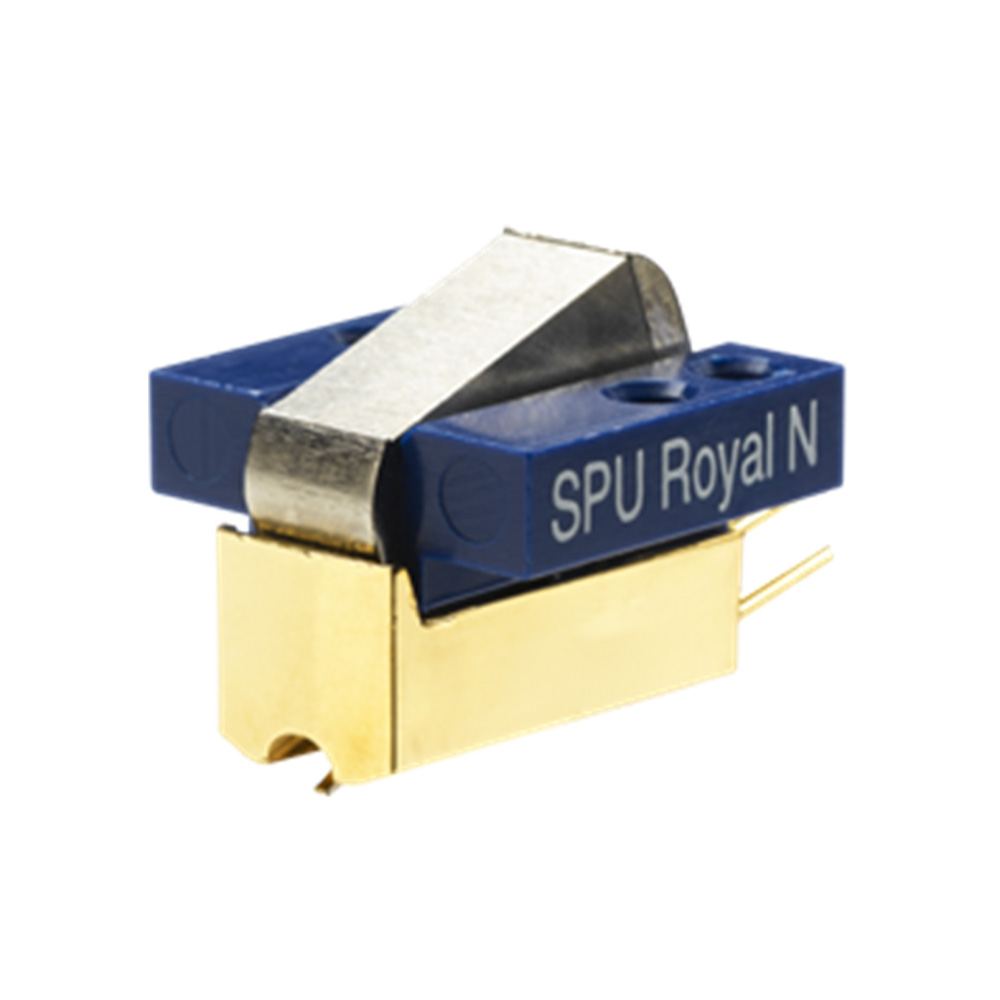

The SPU Royal N provides the same sound reproduction properties as the SPU Royal GM series.
The SPU Royal N cartridge, with its half-inch adaptor, provides the ability to mount the unit on standard headshells, as well as in a wider range of tonearms.
Features
The SPU Royal N features Electrum coils, consisting of a gold and silver alloy, providing uncoloured and precise transmission of armature movements, while the slightly modified damping system makes it possible to reduce VTF and achieves a higher level of linearity.
The addition of Ortofon’s unique Replicant 100 stylus and reduced tip mass ensures open and detailed sound reproduction for a purely exquisite listening experience.
The high purity 6-nines copper wiring ensures impeccable signal transmission and preservation of the finest of microdynamic detail.
- Channel balance at 1 kHz: 1 dB
- Output voltage at 1 kHz, 5cm/sec: 0.2 mV
- Channel seperation at 1 kHz: 25 dB
- Channel seperation at 15 kHz:20 dB
- Frequency response 20 Hz - 20 kHz: 1,5/- 0 dB
- Tracking ability at 315Hz at recommended tracking force: 60 µm
- Compliance, dynamic, lateral: 8 µm/mN
- Stylus type: Nude Ortofon Replicant 100
- Stylus tip radius: r/R 5/100 µm
- Tracking force range: 2.5-3.5 g (25-35 mN)
- Tracking force, recommended: 3.0 g (30 mN)
- Tracking angle: 20°
- Internal impedance, DC resistance: 7 ohm
- Recommended load impedance: 100 ohm
- Coil wire material: Goldplated silver
- Cartridge colour: Shiny black
- Cartridge weight: 13 g
