The SPU Classic series embodies the essence of the original Moving Coils and are a perfect solution for the playback of early and modern and contemporary stereo recordings.

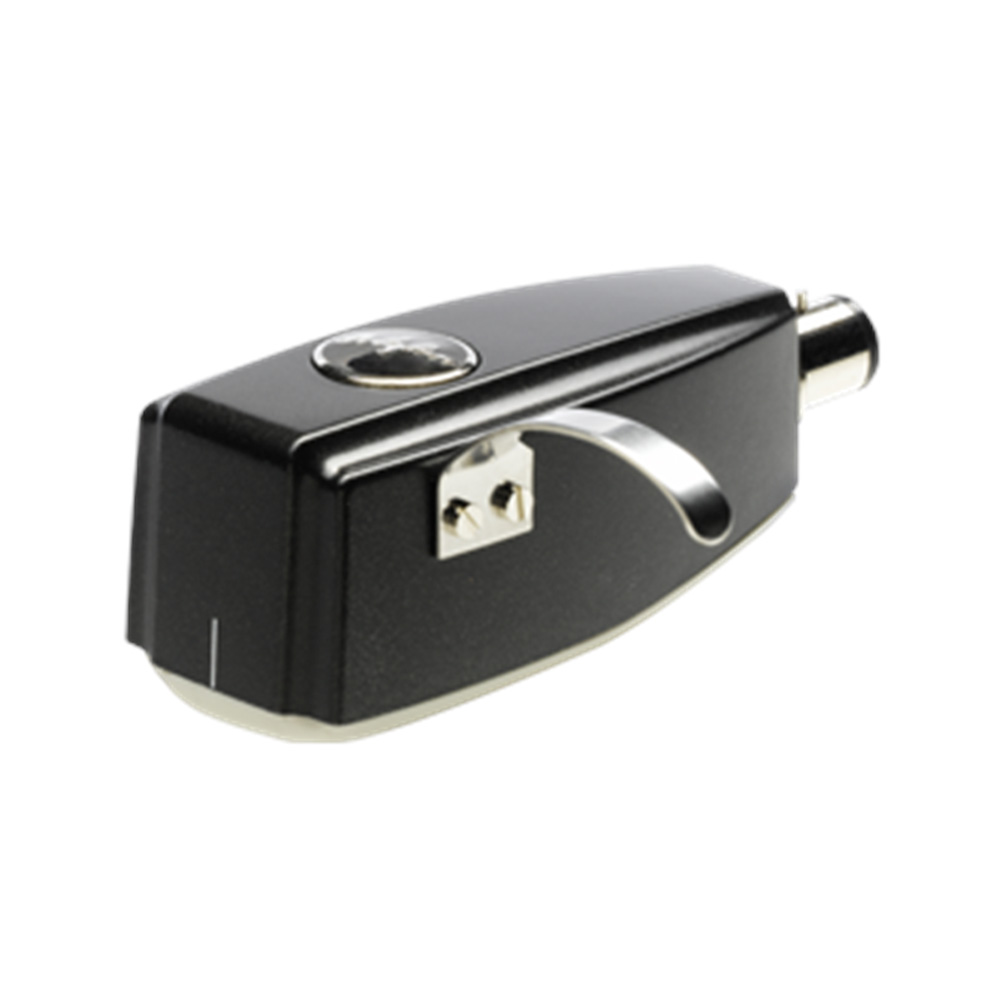

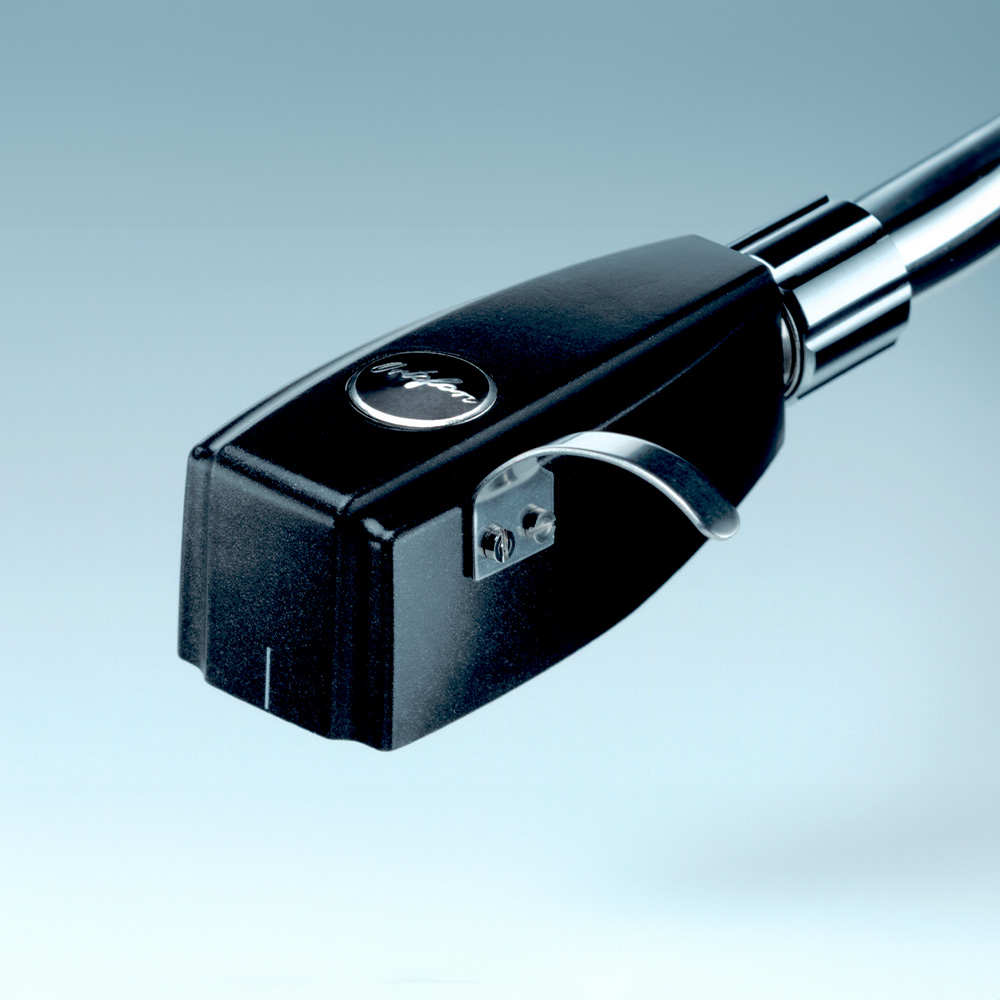

The SPU Classic G MkII is a Moving Coil cartridge with an 18 µm spherical stylus profile.
Stylus
The SPU Classic series is known for its dynamic and powerful sound reproduction, without any roughness, minimum of intermodulation distortion, and a splendid channel separation, the images being firm and positive.
The SPU Classic G MkII is a Moving Coil cartridge with an 18 µm spherical stylus profile.
Specifications
- Channel balance at 1 kHz: 1 dB
- Output voltage at 1 kHz, 5cm/sec: 0.2 mV
- Channel seperation at 1 kHz: 20 dB
- Channel seperation at 15 kHz: 10 dB
- Frequency response 20 Hz - 20 kHz: 3/- 3 dB
- Tracking ability at 315Hz at recommended tracking force: 60 µm
- Compliance, dynamic, lateral: 8 µm/mN
- Stylus type: Nude Spherical
- Stylus tip radius: R 18 µm
- Tracking force range: 3.0-5.0 g (30-50 mN)
- Tracking force, recommended: 4.0 g (40 mN)
- Tracking angle: 20°
- Internal impedance, DC resistance: 2 ohm
- Recommended load impedance: 10 ohm
- Coil wire material: High Purity Copper (OFC)
- Cartridge body material: Ground wood and resin composite
- Cartridge colour: Black matte
- Cartridge weight: 28 g
