Melco S10 Data Switch

Melco

Melco S10 Data Switch

Price
£4,999.00
Melco S10 Data Switch
Product Colour
- Optional
- Optional

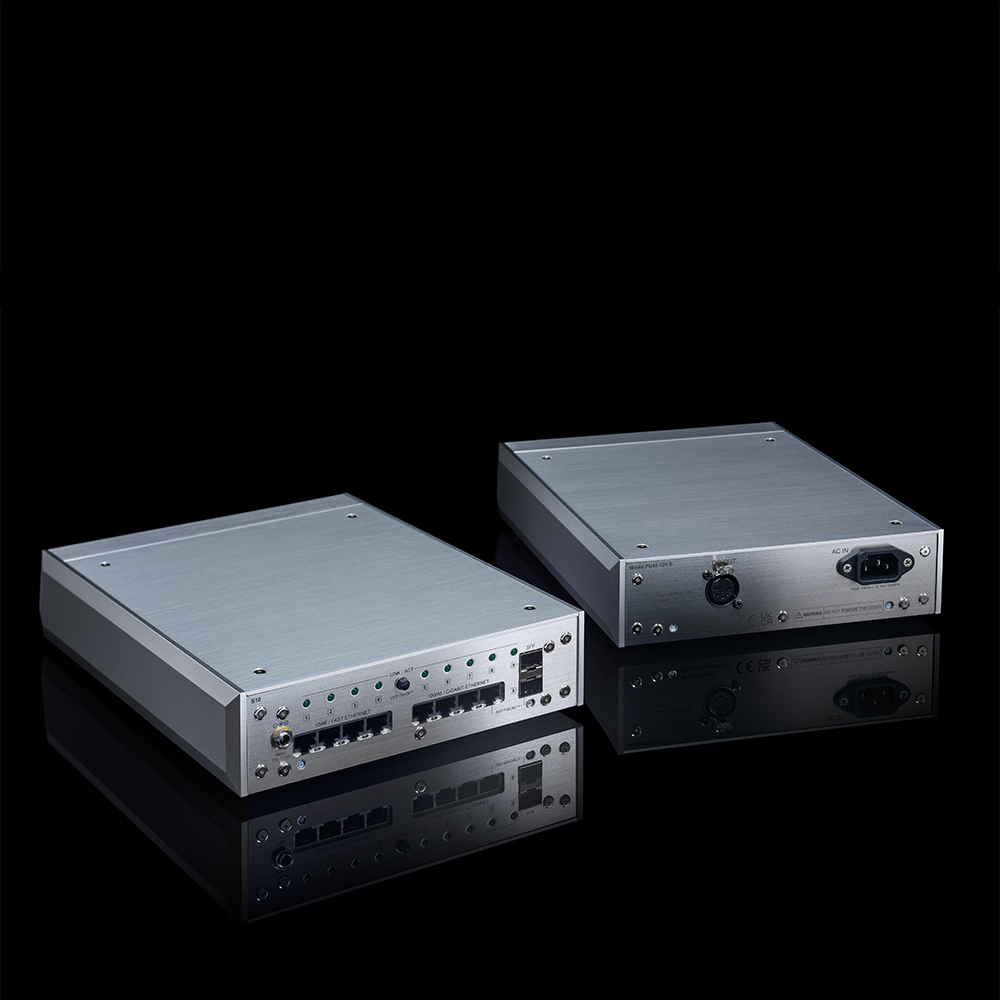

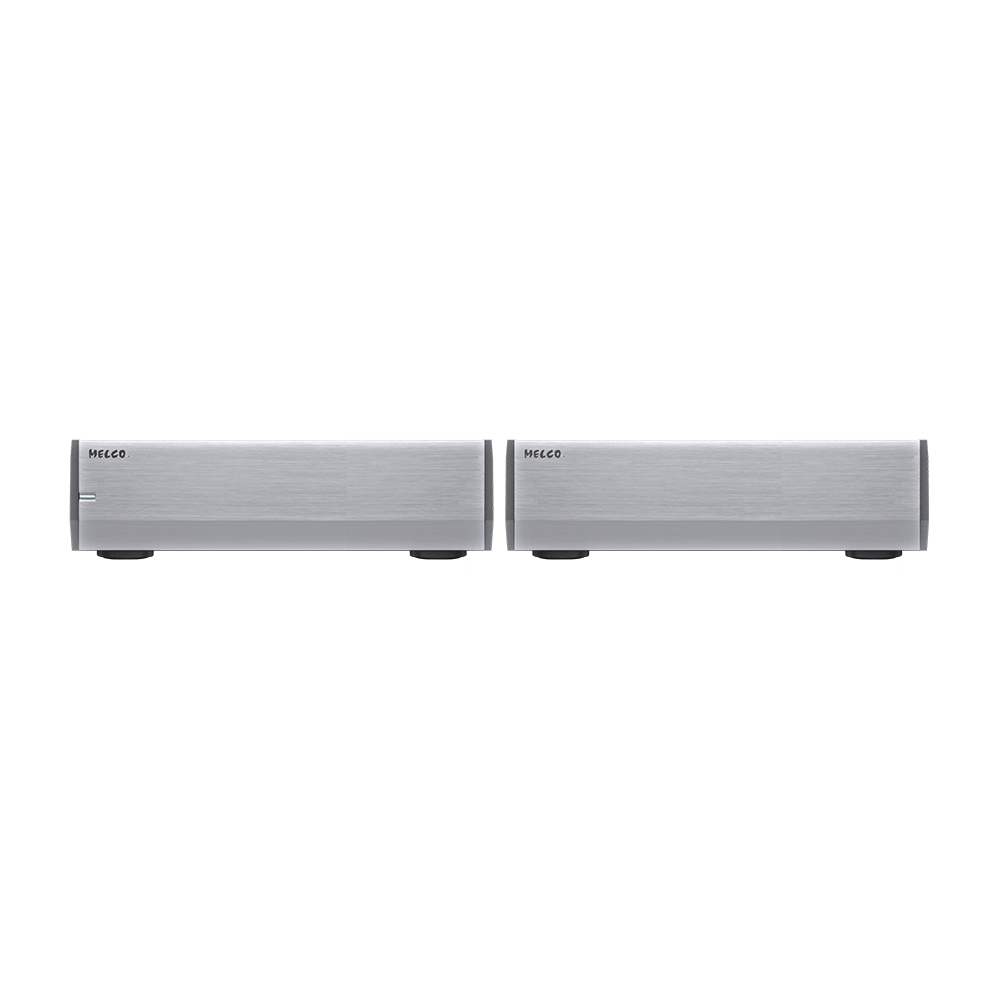

The new S10 is Melco’s flagship data switch and comprises a ‘head’ unit and a power unit, separating the sensitive data-carrying areas of the design from the power supply. The two-box approach echoes that of the recently announced flagship digital music library, the N10/2, and offers the least compromise when it comes to ultimate sound quality.

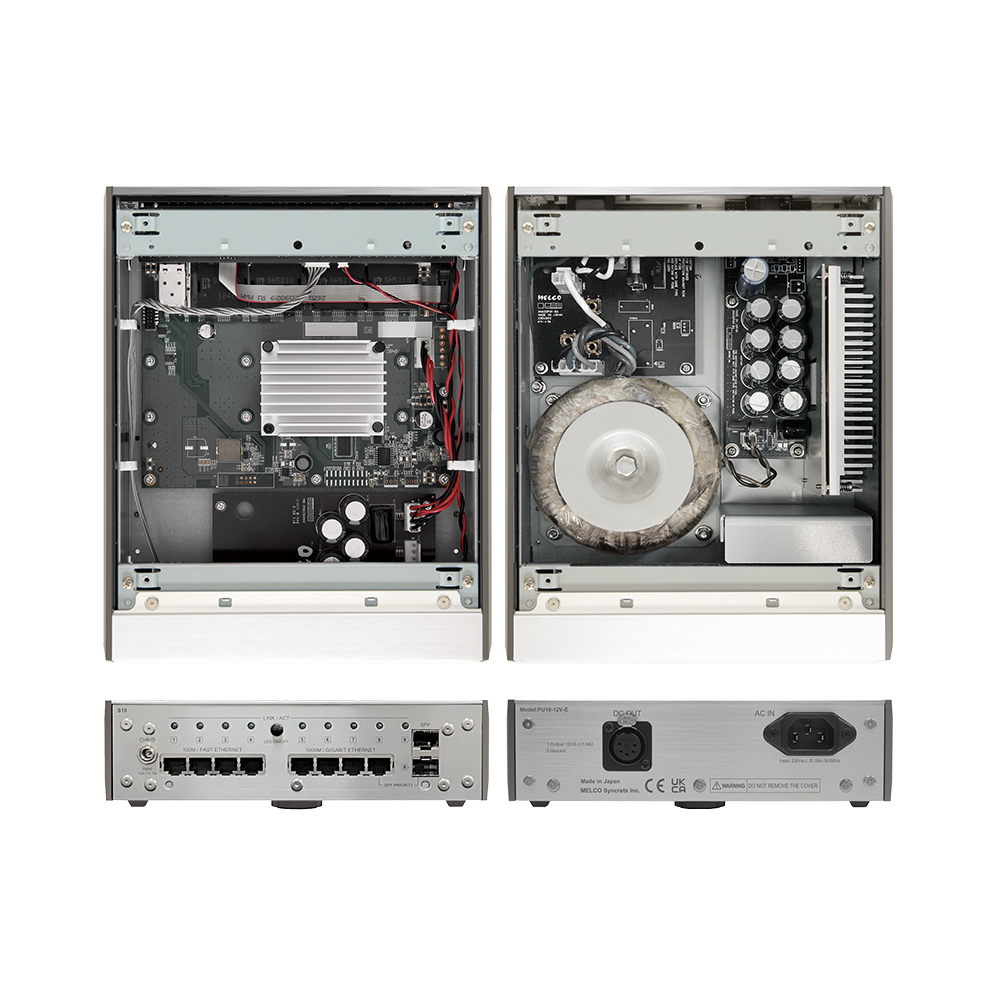

The S10’s head unit is based on a heavily upgraded S100 network switch, and benefits from a greatly improved power management section. The head unit’s casework has also been significantly improved with better aluminium used for the casework to improve rigidity and increase isolation for the signal-carrying electronics. A rigid-steel screened chassis offers further mechanical stability.

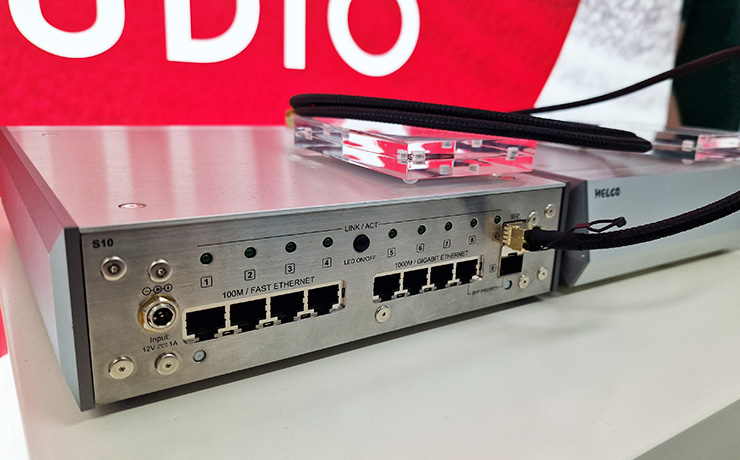

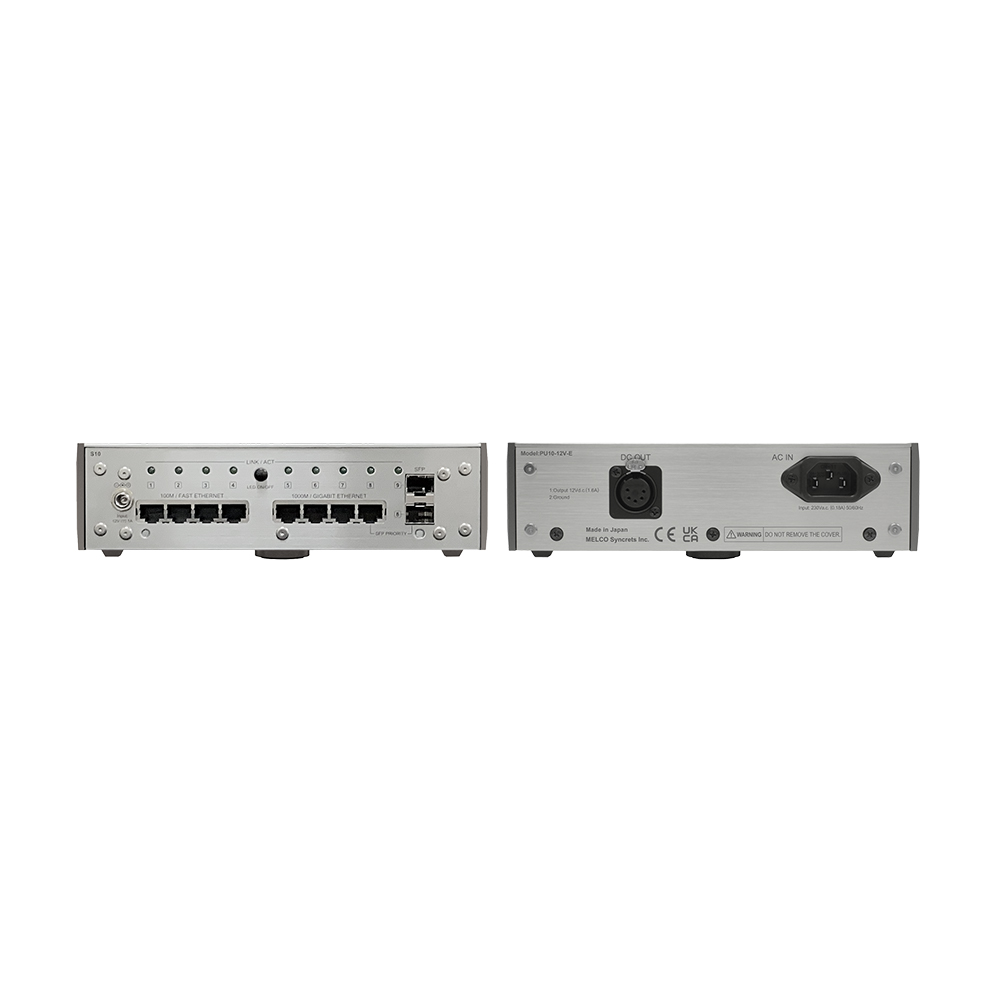

The rear panel connections include different speed RJ45 Ethernet ports: 4x 100 MB and 4x 1 GB, the latter of which are useful for the Roon Core processor which generates high traffic flow. In addition, 2x 1 GB SFP (Small Form Factor) ports are also included for direct fibre connections and compatibility with supported devices.

A large toroidal transformer forms the bulk of the S10’s power unit and is mounted on a solid base with specialist insulators from Japan’s TAOC. Further features include high-quality Neutrik connectors on the output, plus a high-precision ‘102 SSC’ conductor from Tokyo’s Oyaide for the connecting DC cable.

Specifications

Connectivity

Ports
4 x 100Mb/E RJ45
4 x 1000Mb/E RJ45
2 x Fibre SFP/LC

Power
Dedicated 12 V toroidal separate power supply

Size 215 x 61 x 269 mm (W H L) x 2
Weight 13 kg

Model name
Silver : S10P-E    (Head unit:S10-X      Power unit:PU10-12V-E DC cable:OP-S10)
Black : S10PB-E  (Head unit:S10-XB   Power unit:PU10-12VB-E DC cable:OP-S10)
