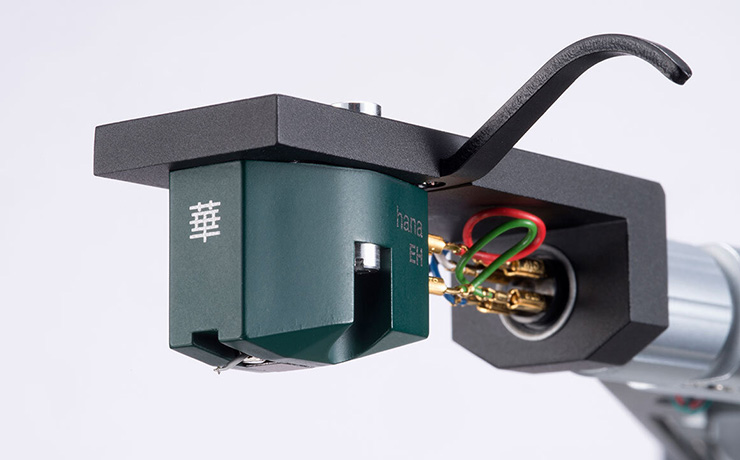

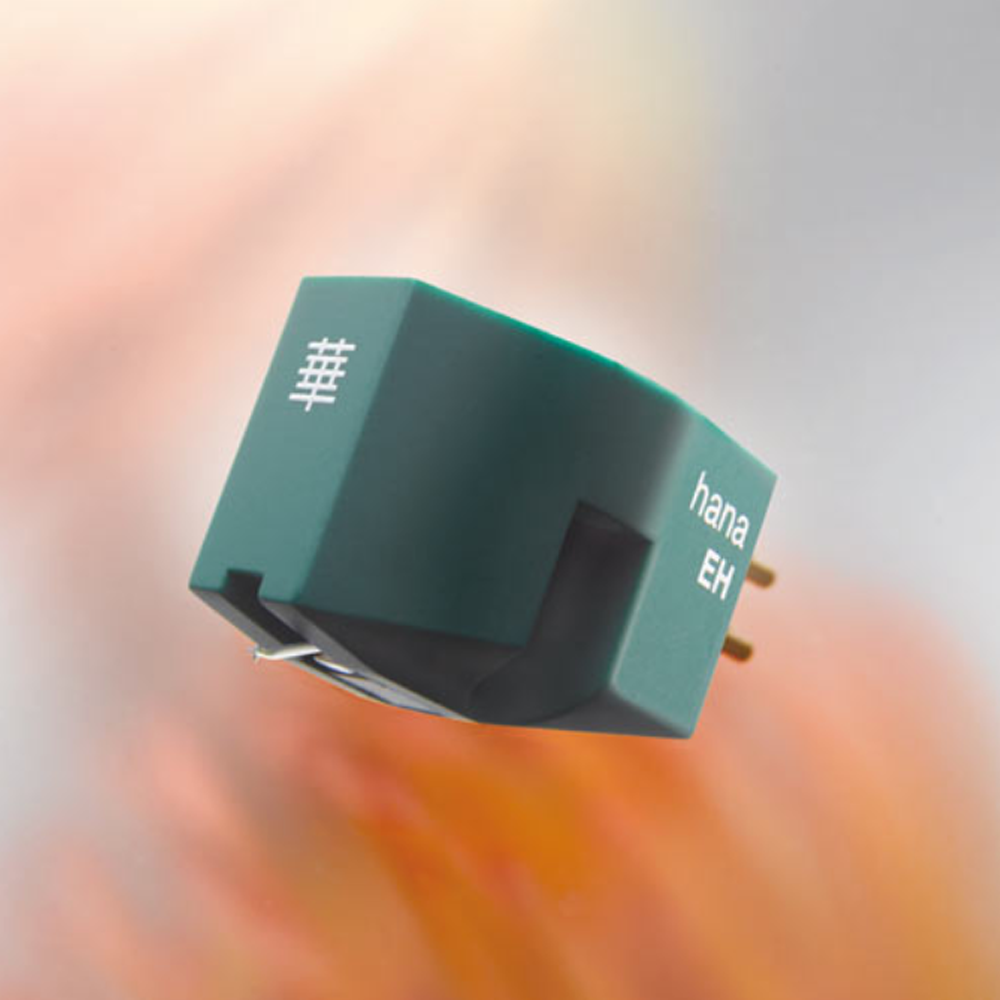

The Hana EH cartridge has a synthetic Elliptical diamond stylus fitted to a high rigidity aluminium cantilever with cross-shaped armature, offering super transparency and excellent trackability. The body is manufactured from a composite low resonance plastic material in dark green.
This competitively priced high output moving coil cartridge offers great quality sound referenced against similar priced cartridges. The EH (Elliptical High output) offers 2.0mv/1KHz output.
Hi-Fi Choice review
The EH balances a rich, detailed, and refined presentation with impressive tonal accuracy….is emotionally engaging and has a sense of air and space that is unusual at the price. Perhaps just as importantly, the Hana manages to sound fun as well...it rewards with an exceptional sonic performance.
- Stylus: Synthetic Elliptical
- Cantilever: Aluminium
- Output Level: 2mV/1kHz
- Output Balance: <2dB/1kHz
- Vertical Tracking Force: 2g
- Dynamic Compliance @ 10 Hz: 20*6 10-6cm/Dyne
- Channel Separation: 25dB/1kHz
- Frequency Response: 15~25,000Hz
- Impedance: 130Ω/1kHz
- Suggested Load Impedance: >47KΩ
- Cartridge Weight: 5g
- Body Colour: Moss Green
