Ultrafide SP500 Stereo Power Amplifier
Price
£3,990.00
Product Condition
New
Ultrafide SP500 Stereo Power Amplifier
Ultrafide SP500 Stereo Power Amplifier
Ultrafide Audio SP500: Premium audiophile power amplification with MC² DNA! (SquaredPOWER).
2 x 500W @ 4 ohms or 250W @ 8 ohms.
UK designed and manufactured.
Features
- Ultra Sigma Class D output topology: Our premium, in-house design first introduced in the U500DC, delivering superior audio performance.

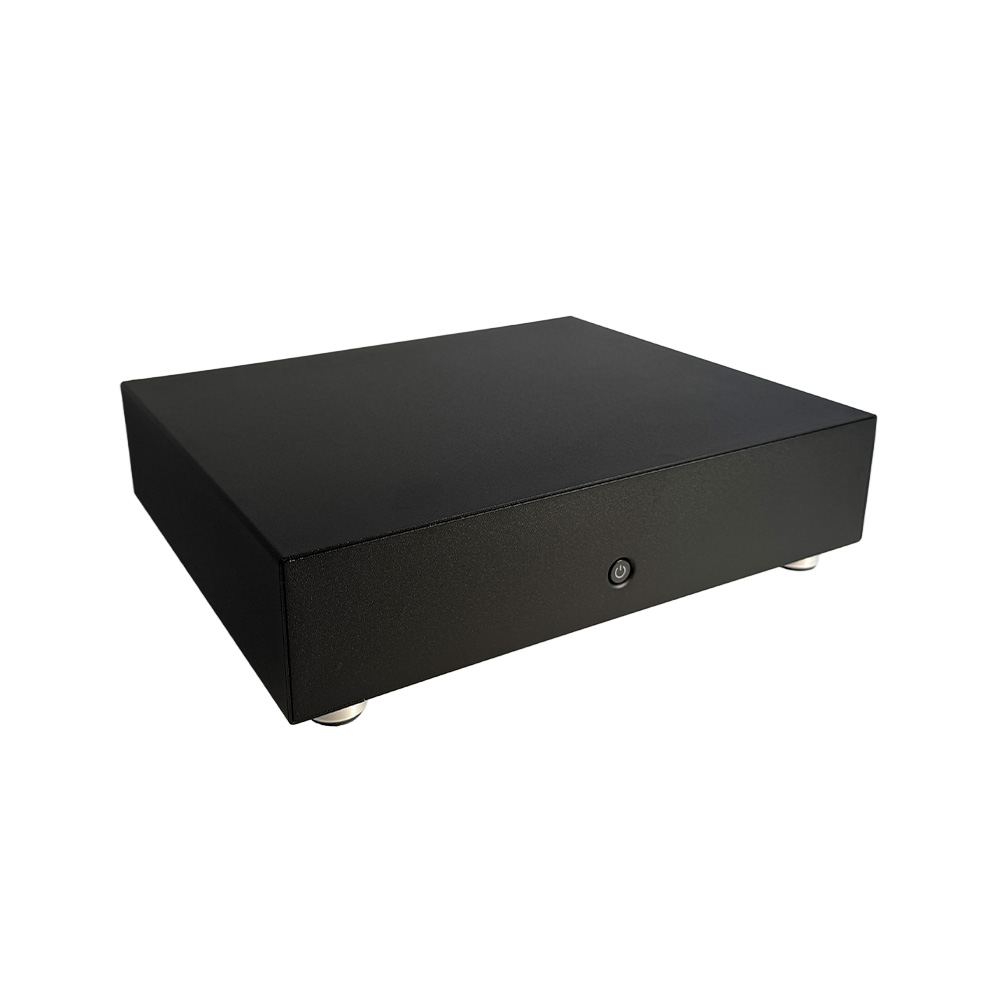

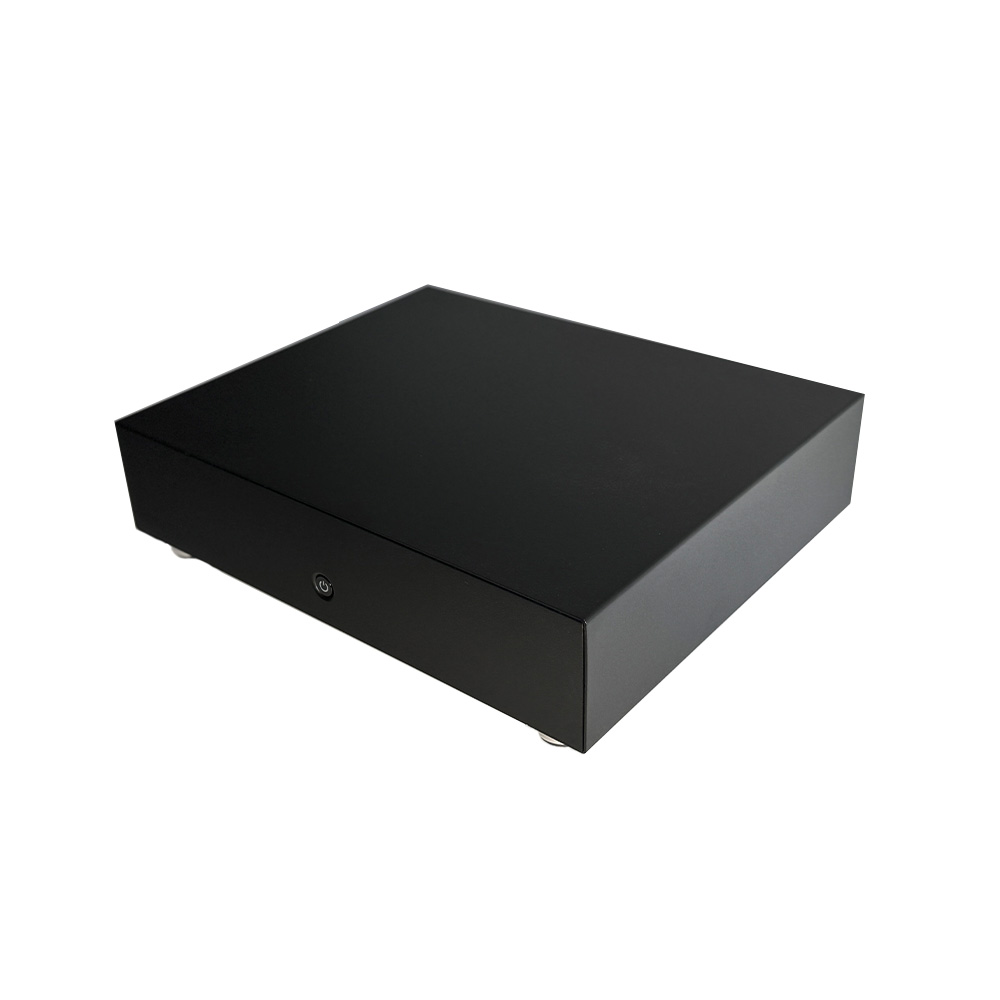

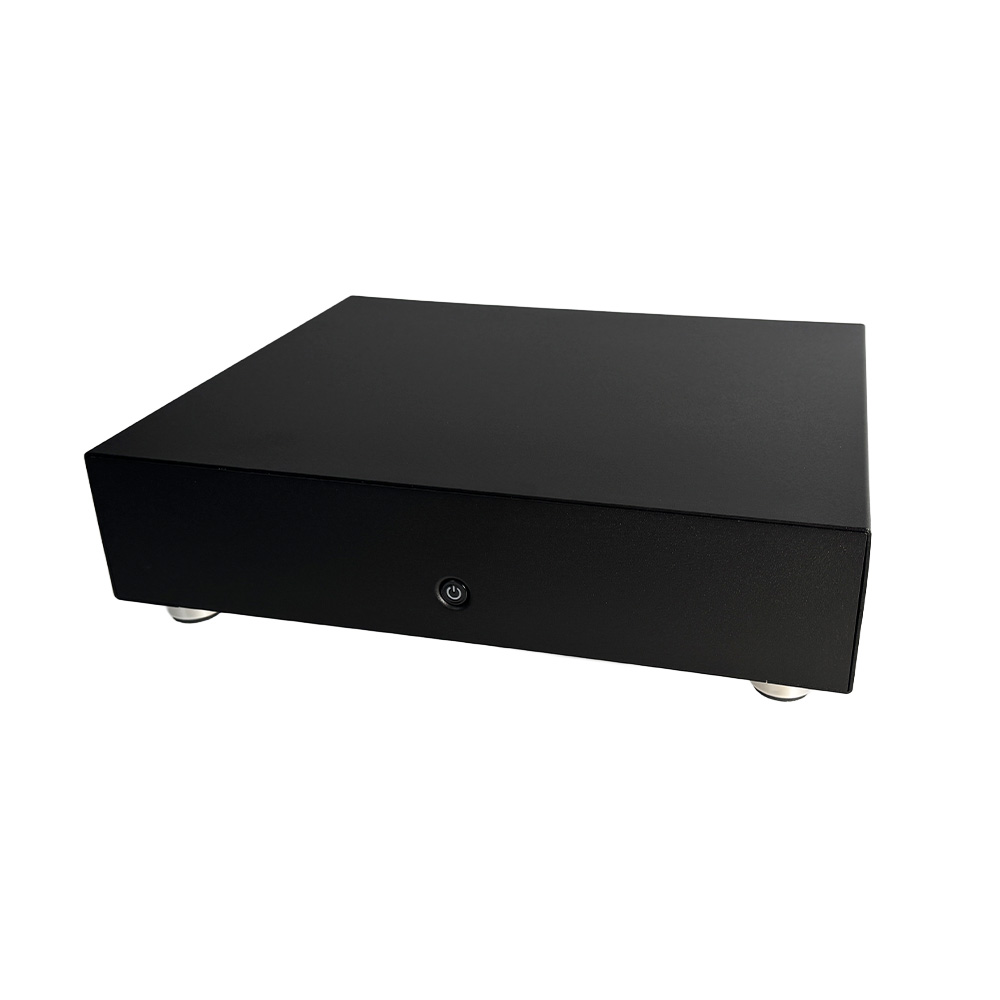

- Elegant, Minimalist Design: Compact 350mm-wide square casework seamlessly integrates with other Hi-Fi components.
- Pure Timbre Sonic Signature: Provides a pure, but musically engaging reference audio experience.
- Flexible Amplifier Configuration: Flexible amplifier platform with multiple input and output options.
- High-Performance Power Supply: Equipped with a robust 500VA linear power supply for consistent output.
- DC Coupled Input to Output: Ensures clean and accurate signal transmission.
- Pro/Studio/CI Compatibility: Rack mounting kit available for studio and custom installation applications.
- XLR Balanced Inputs: Ensures clean, professional-grade audio input.

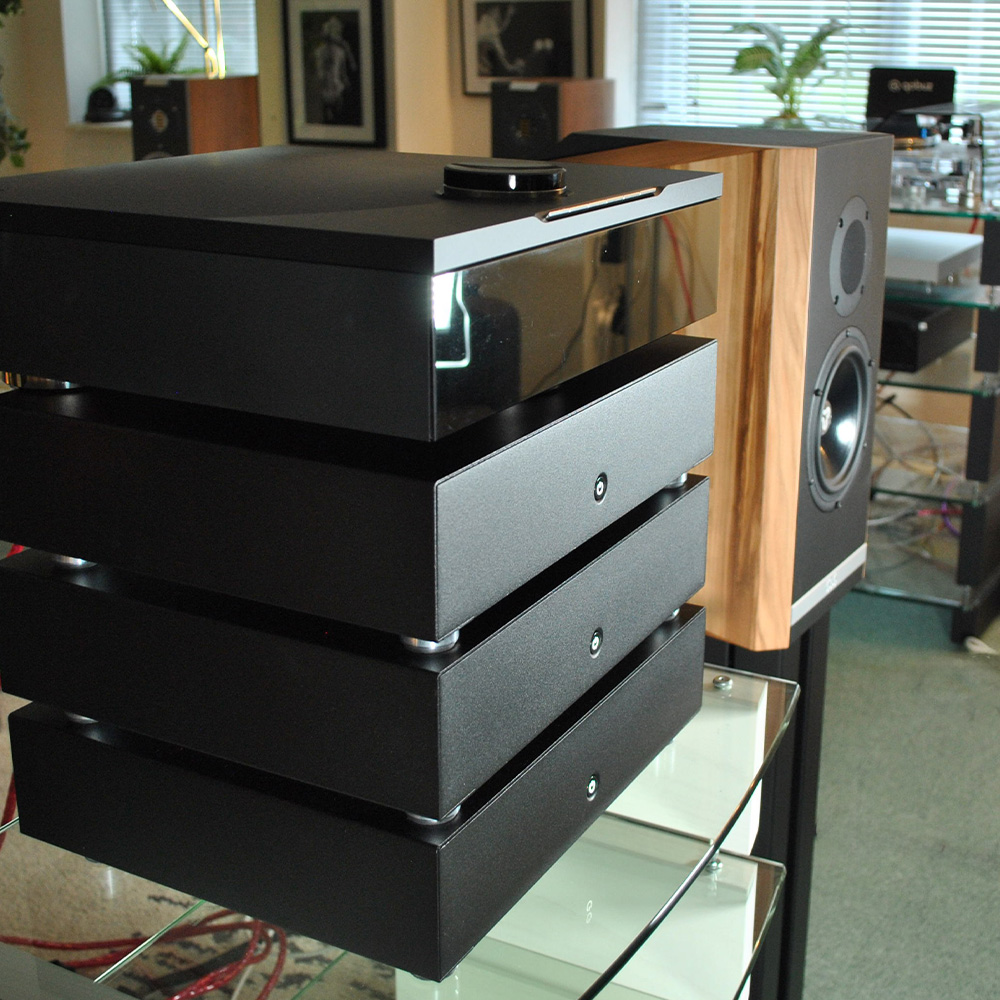

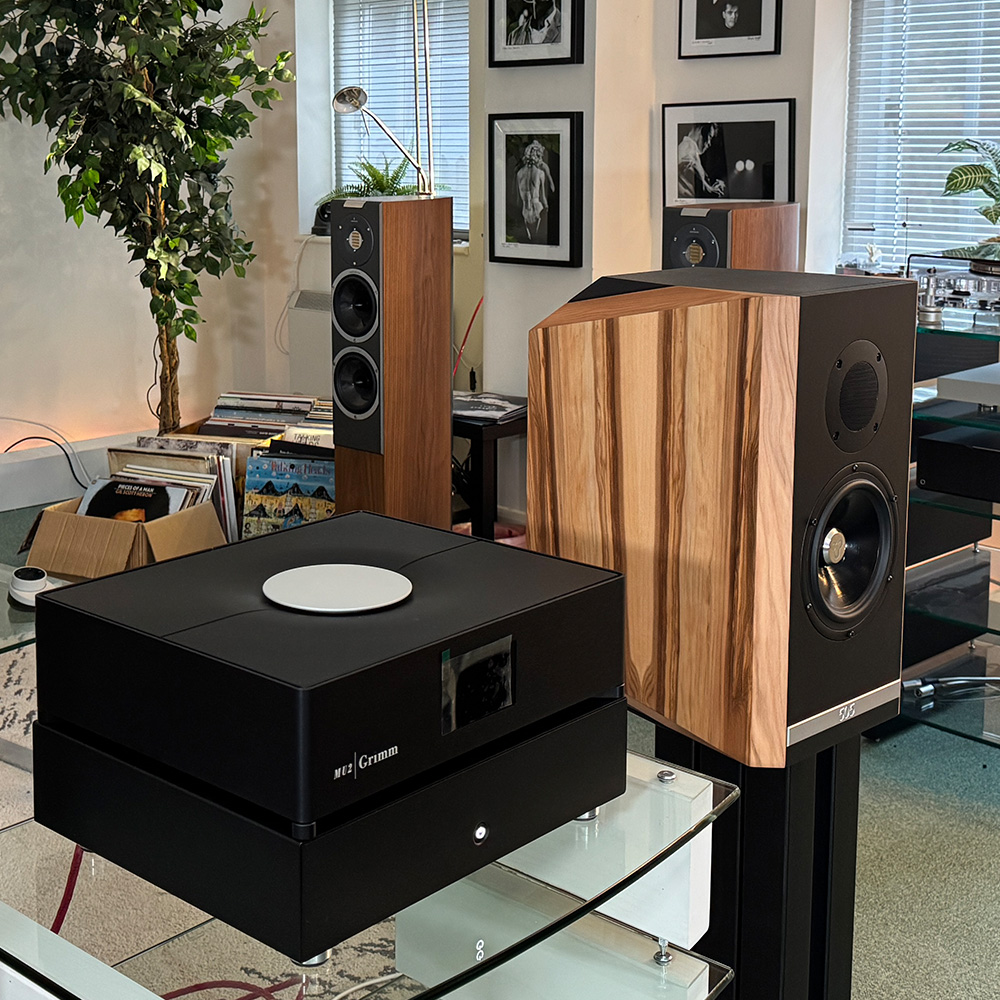

Good Match with other Brands
The SP500 is 350mm wide and is a very good sonic and aethetic match for the following products/brands:

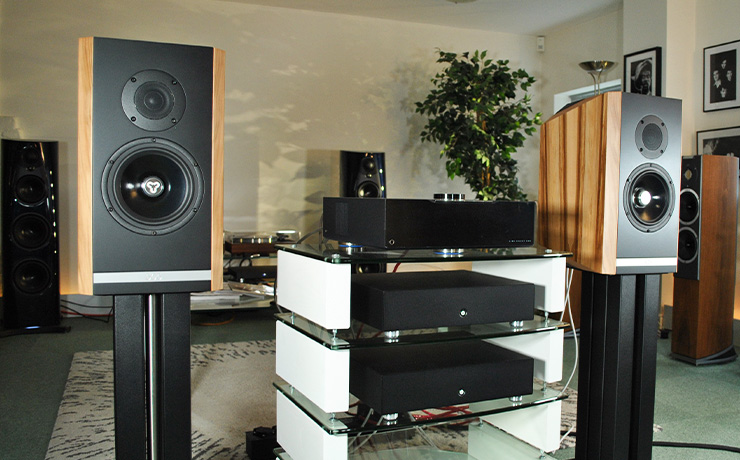

- Linn current DSMs
- Klimax
- Selekt Edition
- Selekt Classic
- Majik DSM
- Grimm
- MU1
- MU2
- Lumin
- P1
- L2
- U2
- etc
Specifications
- Channels: 2
- Input Stage: Class A DC Coupled
- Driver stage: UltraSigma

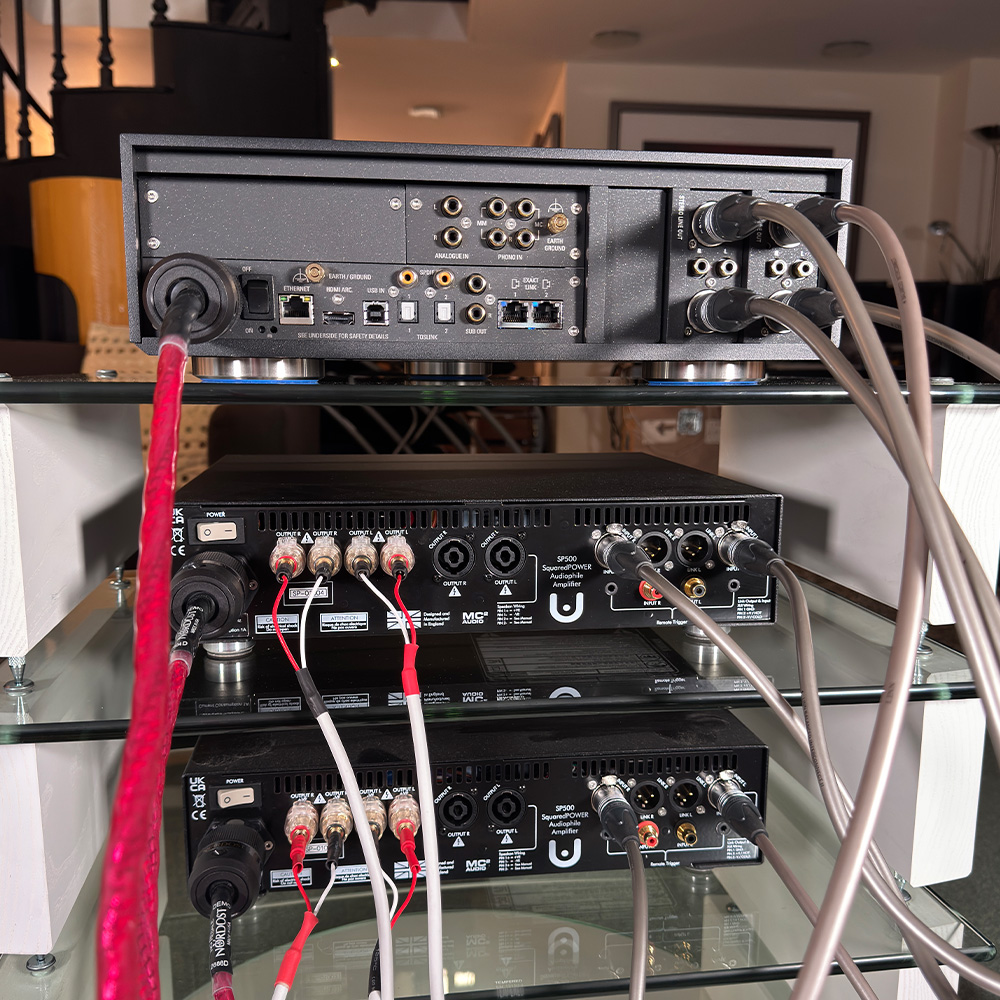

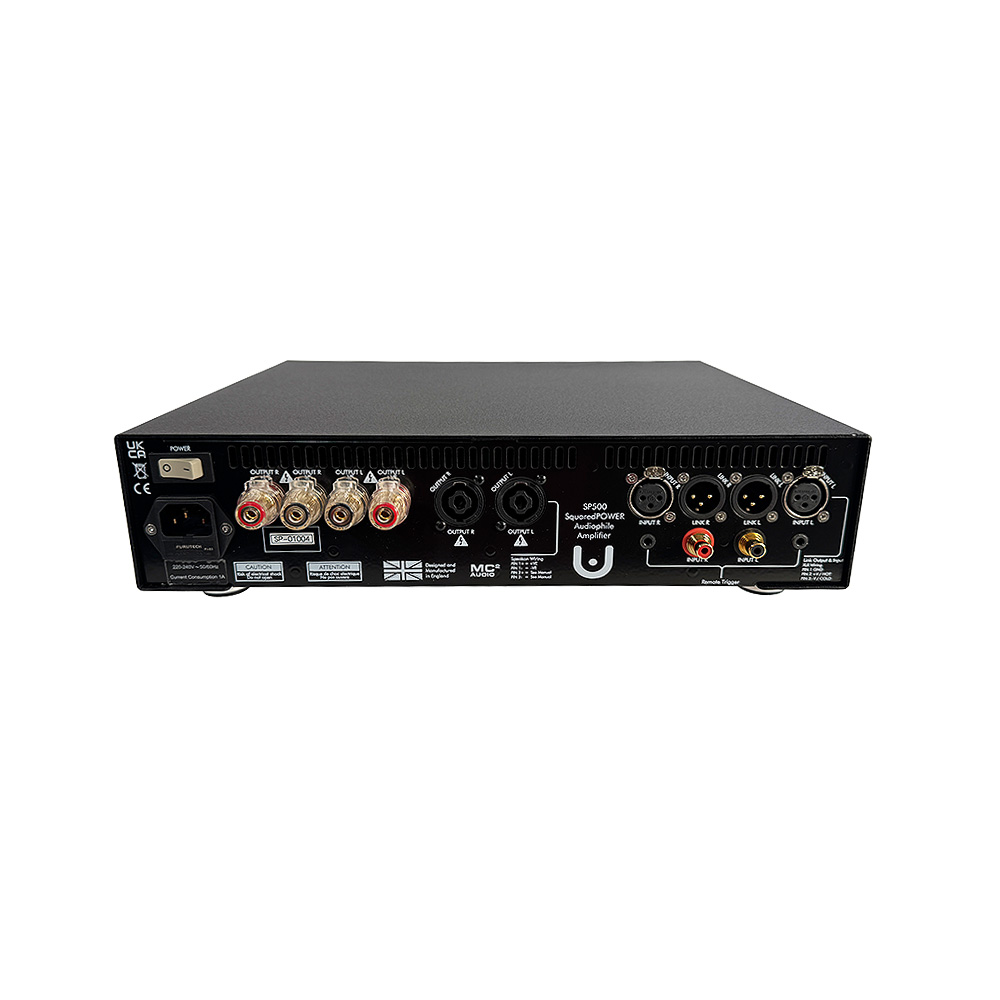

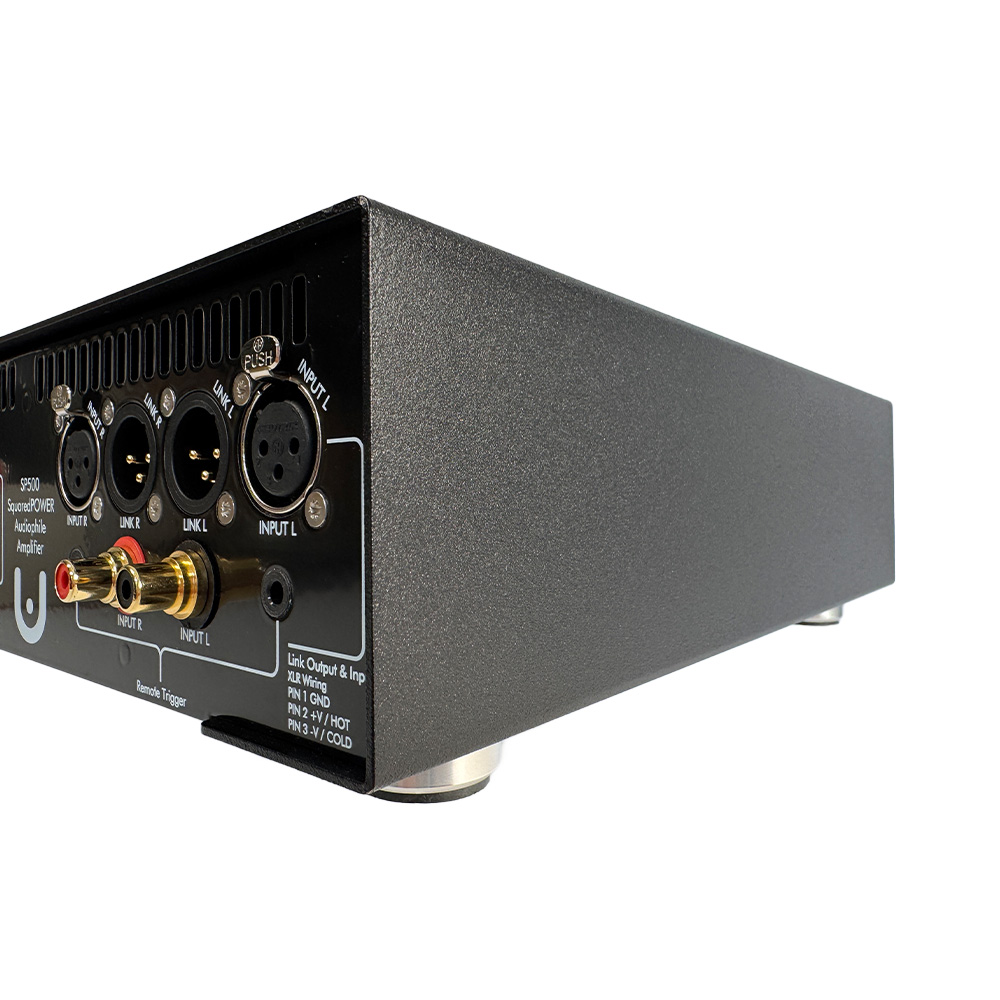

- Audio inputs: 4
- Singled Ended RCA x2
- Fully Balanced XLR x2

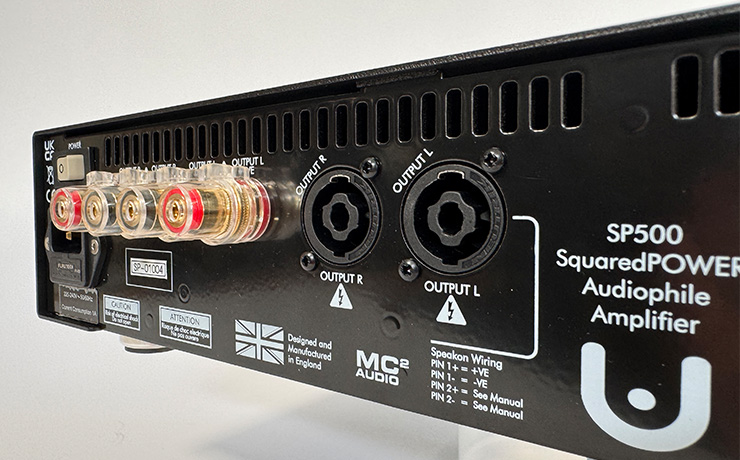

- Audio outputs:
- XLR Links Out (Sends) x 2
- Input impedance: 10k
- Output connection:
- Binding Post x2
- Neutrik x2
- Rack mount option
- Output impedance: 25mR
- Voltage gain: 26dB (x20), 29dB (x26)
- Sensitivity: 2.2v
- Frequency response: 5Hz-20KHz +/-3dB
- Power (per channel) @ 4R: 500W
- Power (per channel) @ 6R: 333w
- Power (per channel) @ 8R: 250W
- Power (per channel) @ 12R: 200W
- Power consumption (operational): 200W average, 1,000W max
- Power consumption (idle): 15W
- Power consumption (standby): 1W
