The Roma 14DC+ has USB “B” type, DSD 5,6MHz and optical input. 32Bit of resolution give you a fantastic sound stage and beautiful sound reproduction. Using a ECC88/6DJ8 on the output stage in as differential amplifier for a perfect matching with the DAC’s output (Asahi Kasei AK4495S ), obtaining a very low output impedance and extremely large bandwidth. To back this up the design has an over size shielded power transformer for reduce the interference. An array high grade metalised polipropilene capacitors controlling the audio signal circuits. The all important component of this unit are run by a multi stage fully regulated power supply. The TEAC mechanism used is specially developed for audio reproduction guaranteeing this CD Players high quality performance.
- Mechanism: TEAC CD 5020 CD Loader for Audio Reproduction
- Output tube (each ch): 1 X ECC88
- Frequency response: 20Hz to 20KHz - 1dB
- D/A converter: Asahi Kasei AK4495S 32bit 768KHz
- Signal/Noise ratio: > 95dB (A-weight)
- Distortion: < 0,3%
- Output level: 1,5V RMS @ 0 dBFS
- Output type: Adjustable
- Output impedance: < 200 ohm
- Digital output: Optical Toslink

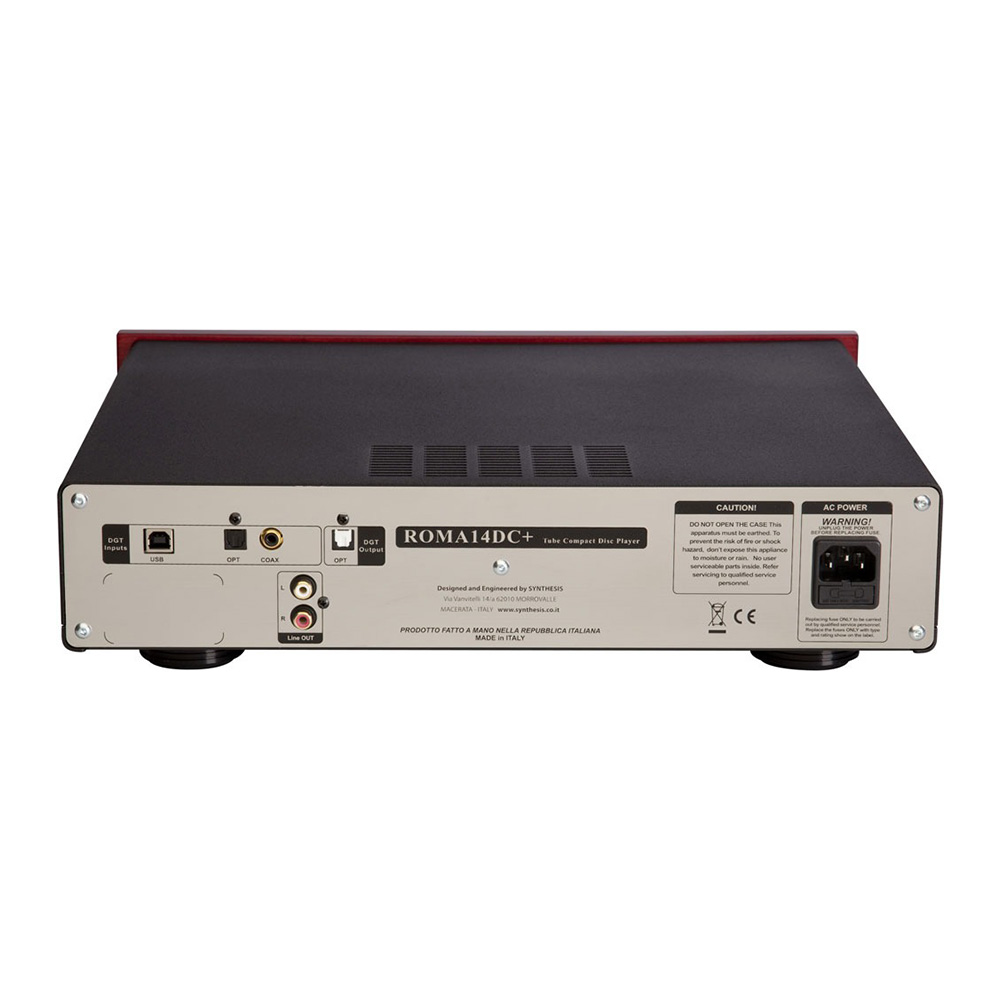

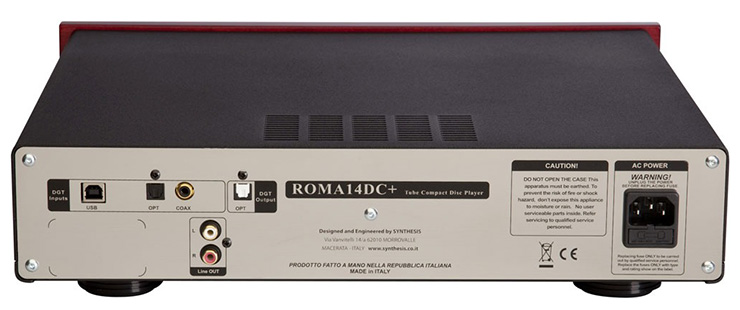

- Digital inputs (14DC+): 1 Optical, 1 Coaxial (S/PDIF) 1 USB “B” type Windows / Mac / iOs / Android compatible
- Max resolution: 24Bit 192KHz (Optical, Coaxial) 32Bit 384KHz (USB) DSD up to 5,6 Mhz (USB)
- Remote control: Included
- Power consumption: 30W
- Dimensions: (w,d,h) 410x390x95mm
- Weight: 8kg
