Project RPM 5 Carbon Turntable

Project

Project RPM 5 Carbon Turntable

Price
£1,399.00
Manual turntable with 9'' Evo tonearm

Outboard AC Motor & Acrylic Platter
Product Colour
- Optional
- Optional
- Optional

RPM 5 Carbon utilises a radical concept with a lot of innovations, that originate from its big brother RPM 9 Carbon: A low resonance chassis holds a newly designed inverted platter bearing with ceramic ball for further reduced rumble. The acoustically inert platter is made from acrylic. An outboard 15V AC motor is smoothly driven using an ultra-precision AC generator with DC power supply for further enhanced speed stability. The classy 9“ Evo tonearm, which is made from carbon fibre is suitable for any high-quality MM or MC cartridge. A TPE-damped counterweight eliminates unwanted resonances.

The RPM 5 Carbon is available with or without Ortofon 2M-Silver cartridge. A super shielded, semi-symmetrical, low-capacitance Pro-Ject Connect it E phono cable is included.

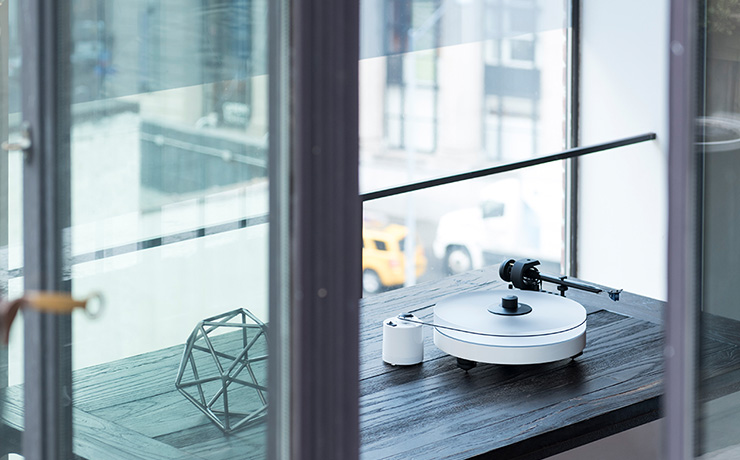

Project RPM 5 Carbon Turntable on a wooden table in front of a window

in the box:

  • RPM 5 Carbon (with or without Ortofon 2M-Silver)
  • Connect it E Phono Cable
  • Record clamp
  • Adapter for 7“ singles
  • Power supply

features:

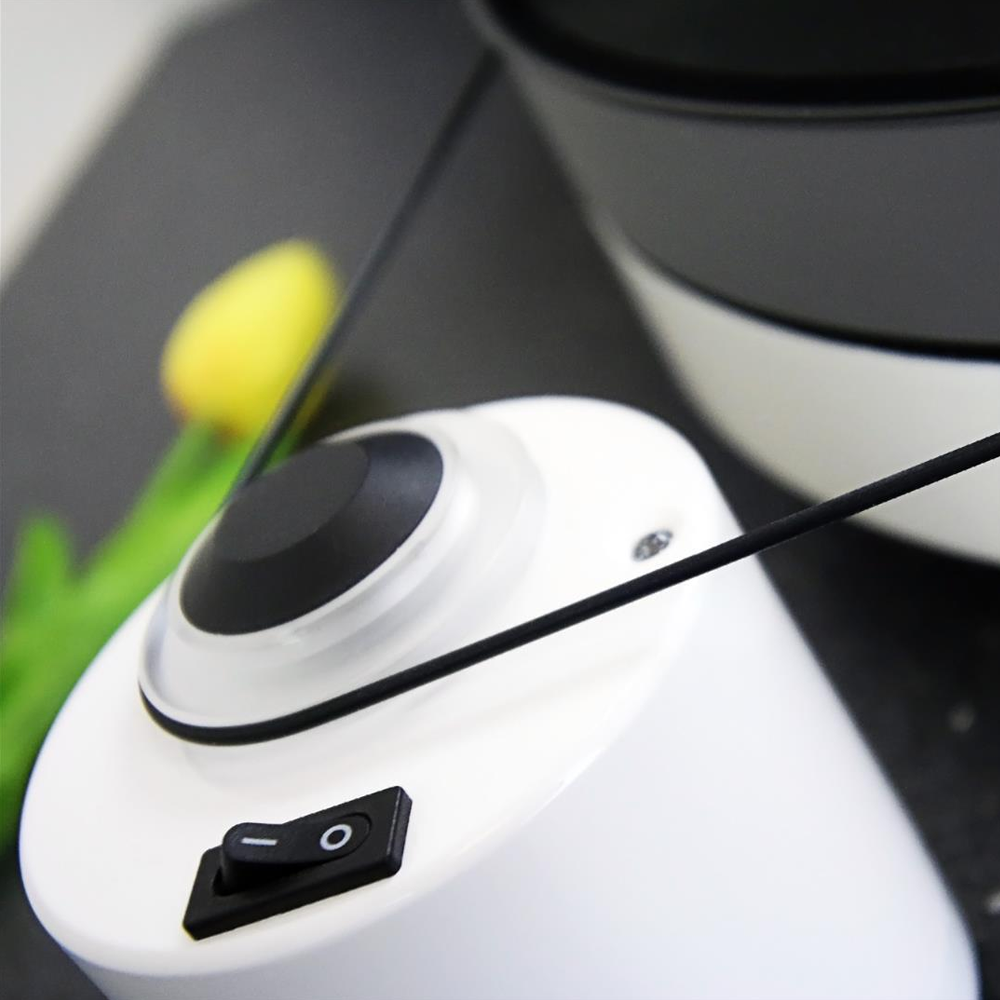

  • Precision belt drive using free-standing synchronous motor
  • Ultra-precision DC-driven AC generator motor power
  • Inverted platter bearing with ceramic ball
  • Acoustical inert acrylic platter
  • 9” cc EVO tonearm made from carbon
  • Counterweight with TPE damping
  • Adjustable aluminium tip-toe feet
  • Available with or without Ortofon 2M Silver cartridge

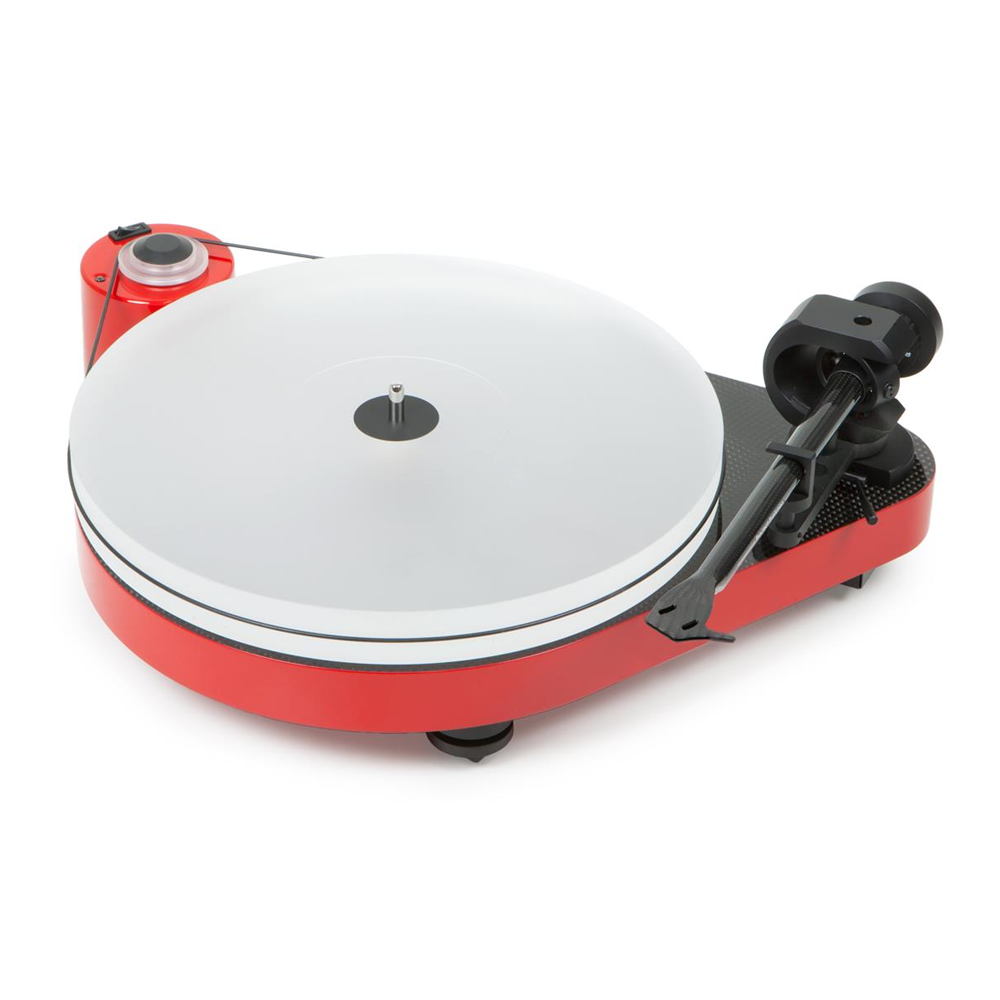

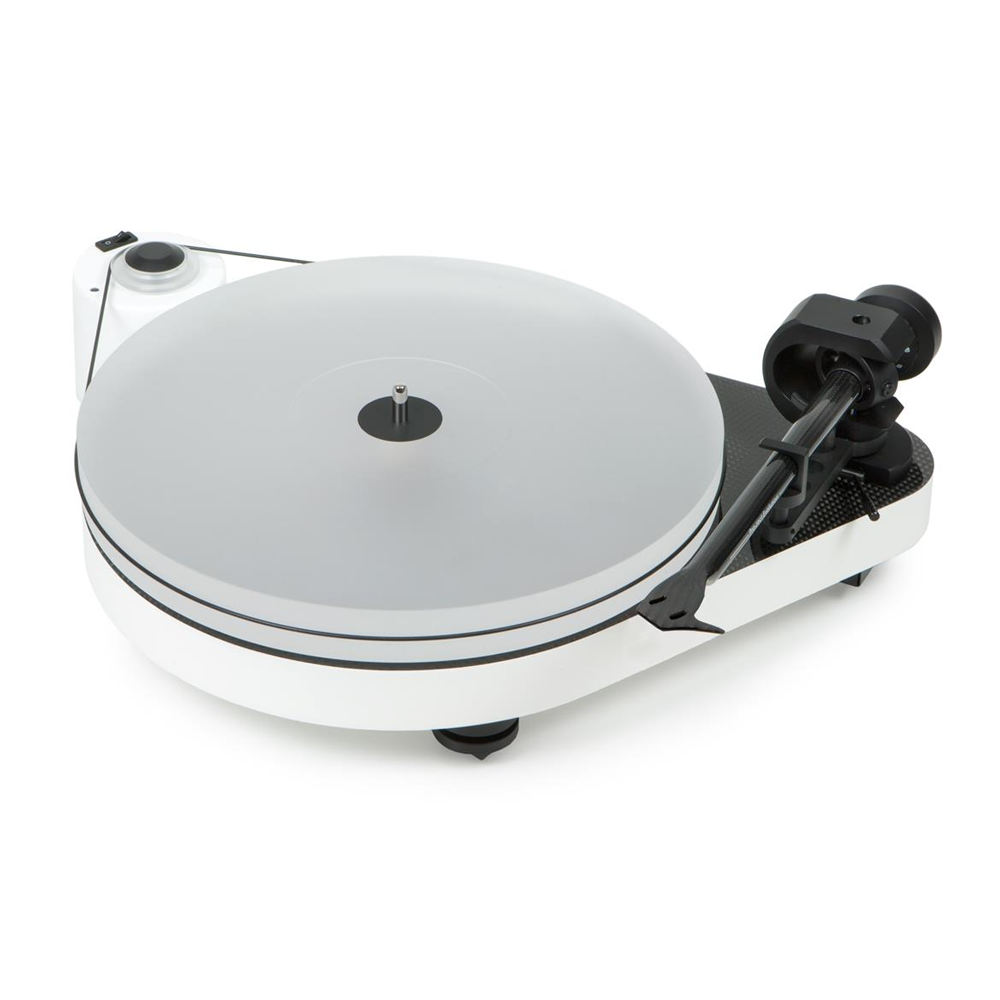

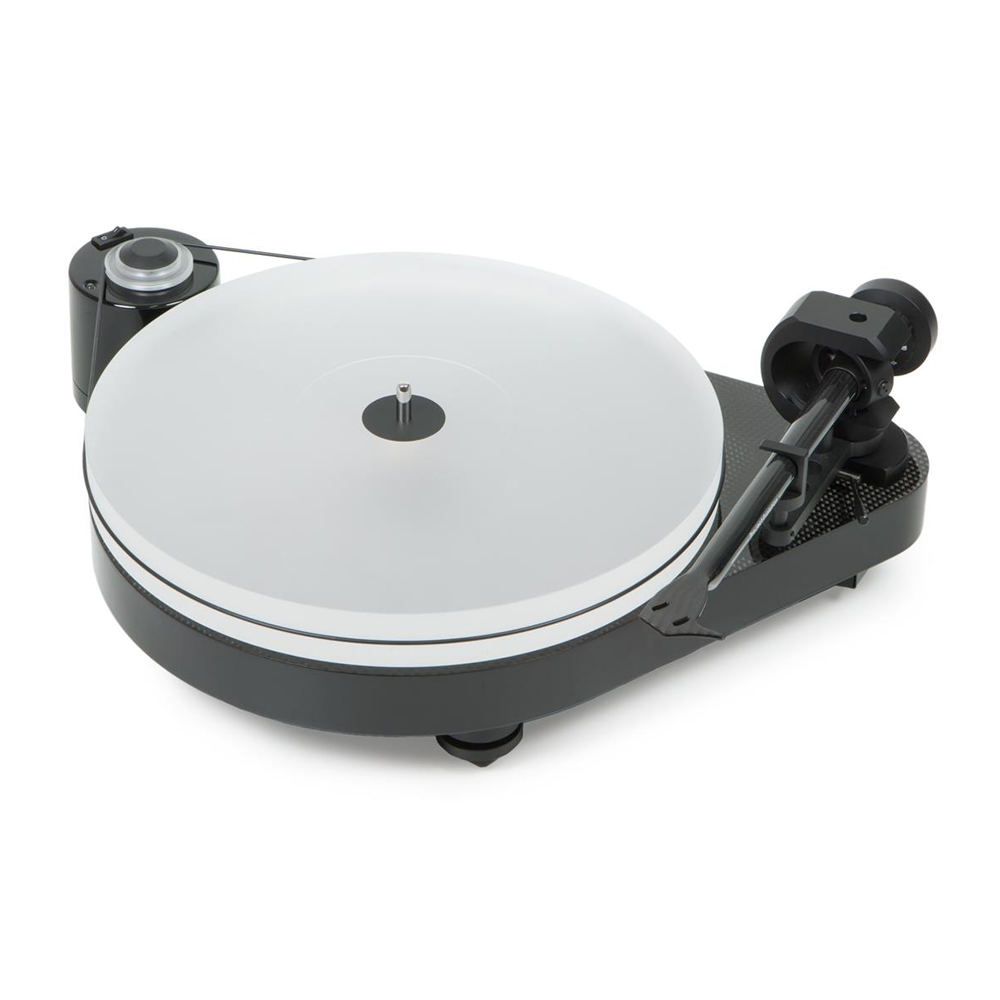

  • Three high-gloss colours (black, red, white)
  • Lid available as an option
Specifications
Nominal Speeds: 33 / 45 RPM (Manual)
Platter: 300mm Acrylic
Main Bearing: Stainless Steel Axle with Ceramic Ball
Wow & Flutter: 33: ±0.12%
45: ±0.10%
Speed Drift: 33: ±0.17%
45: ±0.08%
Signal to Noise -73dB
Tonearm: 9CC Evolution
Effective Arm Length: 230 mm
Effective Arm Mass: 8g
Overhang: 18mm
Tracking Force: 0 - 25mN
Included Accessories: Record Clamp, RCA Cables
Power Supply: 15V DC / 800mA Power Supply
Power Consumption: 5W max. / < 0.3W (Standby)
Dimensions: 430 x 150 x 323 mm
Weight: 8.0kg (net)
