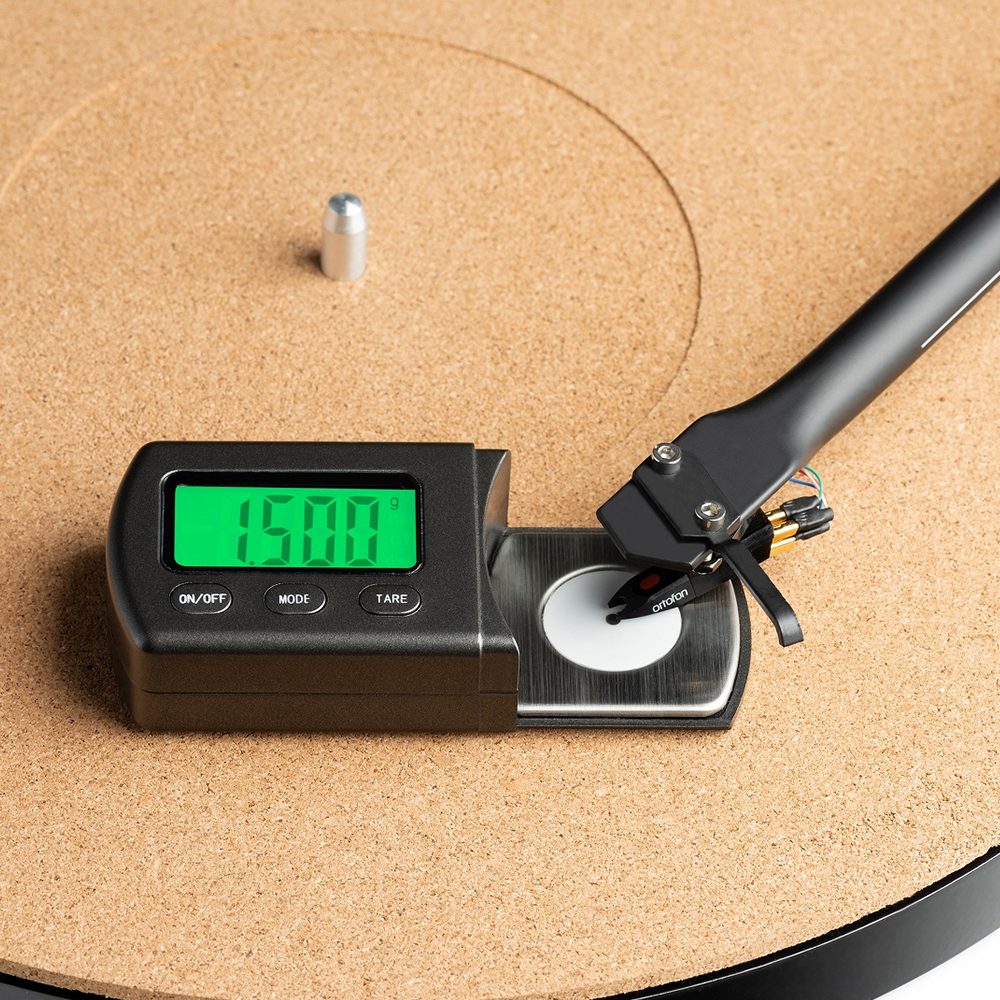

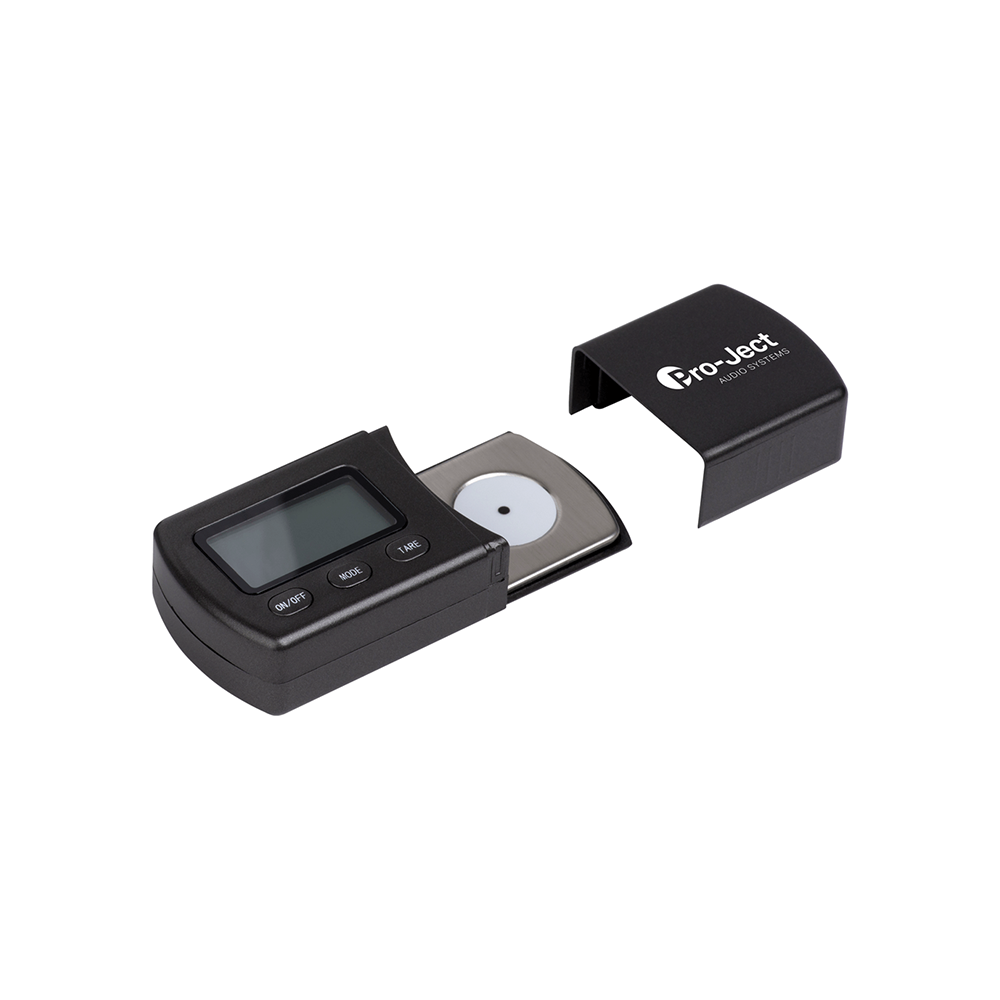

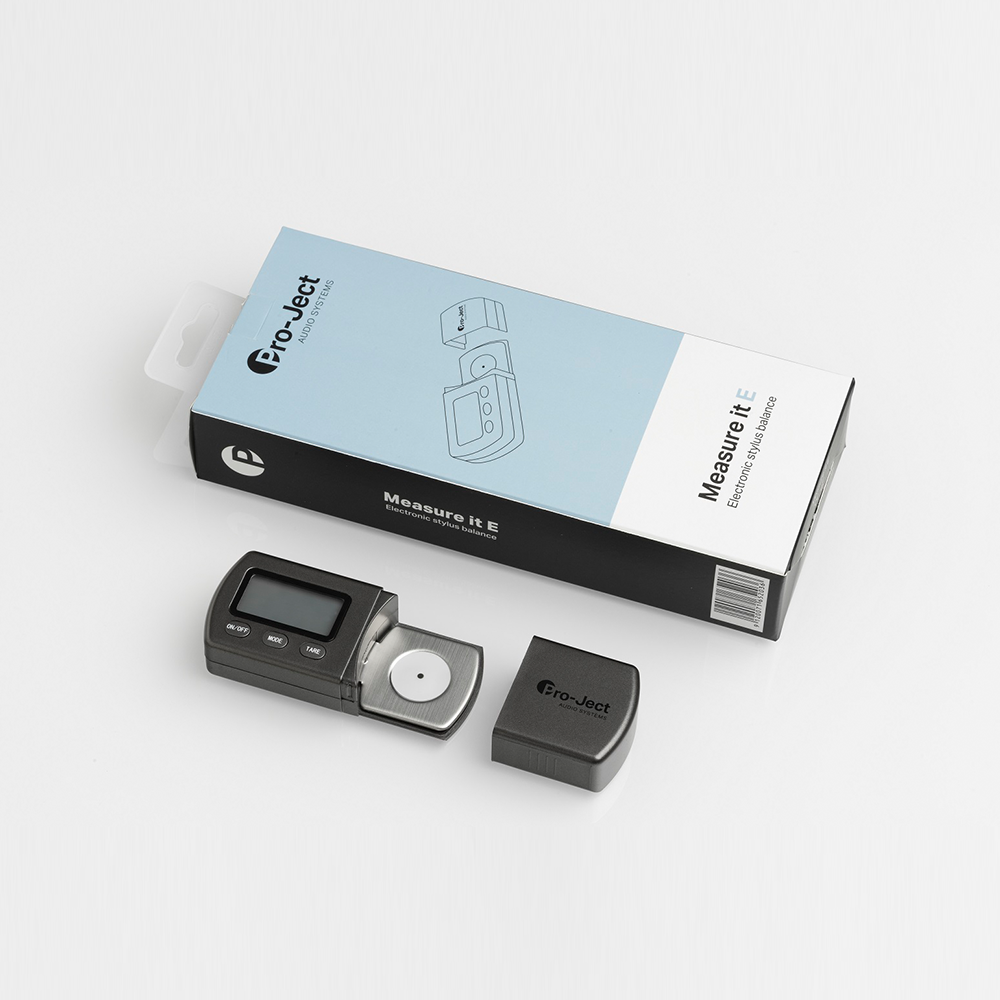

The Measure it E Stylus Tracking Force Gauge is a highly accurate electronic balance that is designed for measuring stylus tracking forces up to 5.0 grams in 0.002 gram increments. Each Measure it E can easily be calibrated using the supplied calibration weight and by pushing a button. Whenever in doubt about the actual amount of pressure on the diamond tip the 4 digit display of this smart tool will help. Armed with precise information about tracking force, your stylus tip wear can be significantly reduced.
features
- 4 digit LCD display with backlight
- 4 weighing modes
- Wide capacity 0 - 5g
- Calibration weight
- Precision data readouts with low variance
- Auto calibration function
- Auto power off after 30 seconds
- Low power consumption
- Button cell batteries included

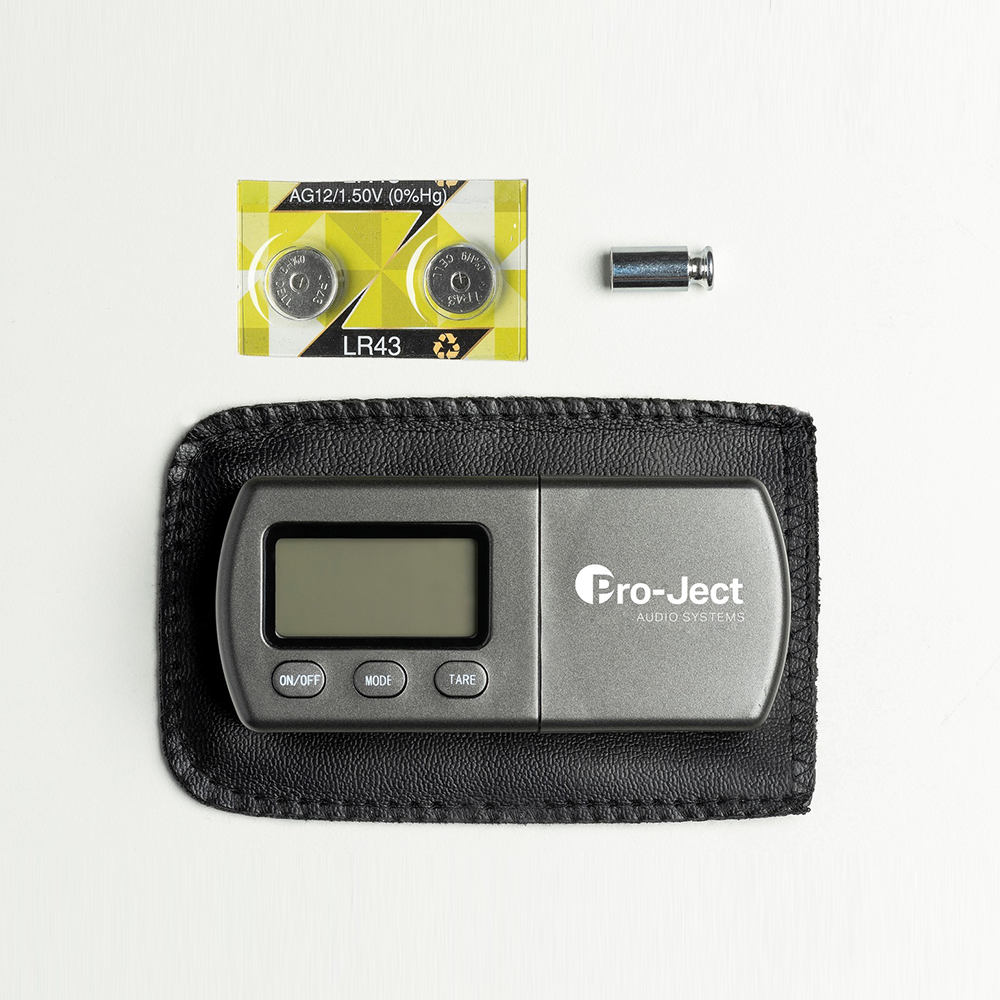

in the box
- stylus balance
- calibration weight (5 g)
- 2x LR43 (AG12) button cell batteries + 2 pieces as backup
- protection pouch for the meter
- user guide
Specifications
| Capacity | 0 - 5g |
| Variance | ±0,002g |
| Weighting modes | gram (1g = 10mN), ounce (oz), pennyweight (dwt) & carat (ct) |
| Display | 4 digit LCD with backlight |
| Calibration | auto calibration using a 5g weight |
| Auto off | 30 seconds off |
| Replacement battery | 2 x LR43 (AG12) button cells, 1,5V |
| Operating temperature | +10 - +30° C (50 - 86 degrees Fahrenheit) |
| Dimensions (W x H x D) | 96 x 21 x 43mm |
| Weight | 49g |
