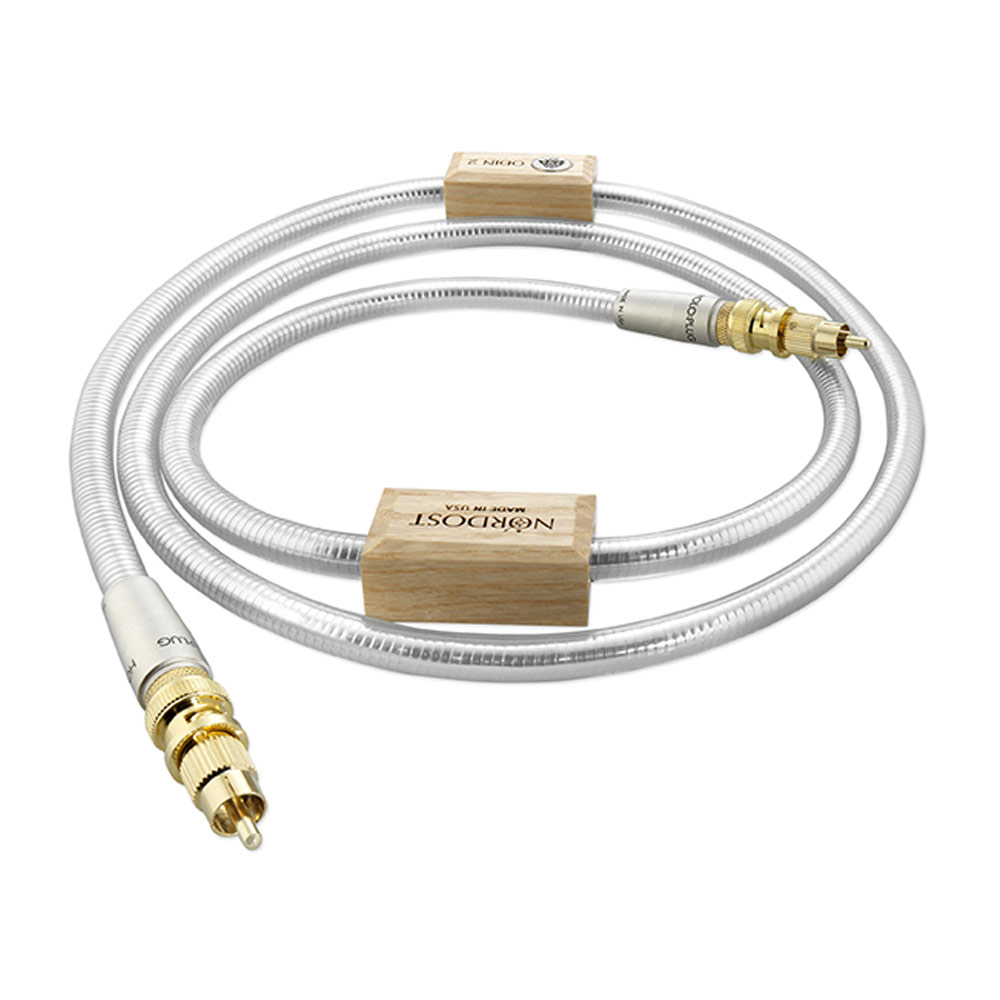

Nordost Odin 2 Digital Cable (75ohm)
Nordost Odin 2 Digital Cable (75ohm)
The precision and intricacy needed to produce a truly superb digital cable are out of reach for most cable manufacturers. In order to obtain optimum results from the finest high-resolution systems, exacting transmission standards should not only be met — they should be exceeded. Through implementing the most advanced, proprietary technology and revolutionary techniques, Nordost has achieved just that. Odin 2 Digital Cables ensure the impedance matching necessary for S/PDIF and AES/EBU leads.
The Odin 2 75 Ohm Cable consists of a single, co-axial, silver-plated, solid core conductor. The Odin 2 Digital Interconnects use Nordost’s patented Dual Mono-Filament technology, offering superior dielectric performance and mechanical damping. The delicate signals they carry are protected by TSC technology, providing a virtual solid shield against harmful EMI and RFI interference. All Odin 2 Digital Interconnects are terminated with Nordost’s purpose built HOLO:PLUG® connectors, elevating these cables to a level never before achieved by digital leads.
75 OHM SPECIFICATIONS
Insulation: | High purity class 1.003 extruded Fluorinated Ethylene Propylene (FEP) | |
Construction: |
Mechanically tuned spacing, length and Dual Mono-Filament, TSC and Co-axial design |
|
Conductors: | 1 x 14 AWG | |
Material: | Silver-plated 99.999999% solid core OFC | |
Capacitance: | 15.3pF/ft | |
Impedance: | 75 Ohm | |
Overall Shield Coverage: | 100% Total coverage | |
Velocity of Propagation: | 90% | |
Termination: | HOLO:PLUG® gold-plated BNC. Gold-plated BNC to RCA adaptor included |
