Project Uni Box S3 Integrated Amplifier

Project

Project Uni Box S3 Integrated Amplifier

Price
£699.00
Product Condition
New
Analogue and streaming done right
Product Colour
- Optional
- Optional

The Uni Box S3 dares to break away from the norm, redefining what a modern streaming amplifier can be. While many amplifiers are dominated by deeply integrated streaming tech – compromising their core design – the Uni Box S3 takes a different path.

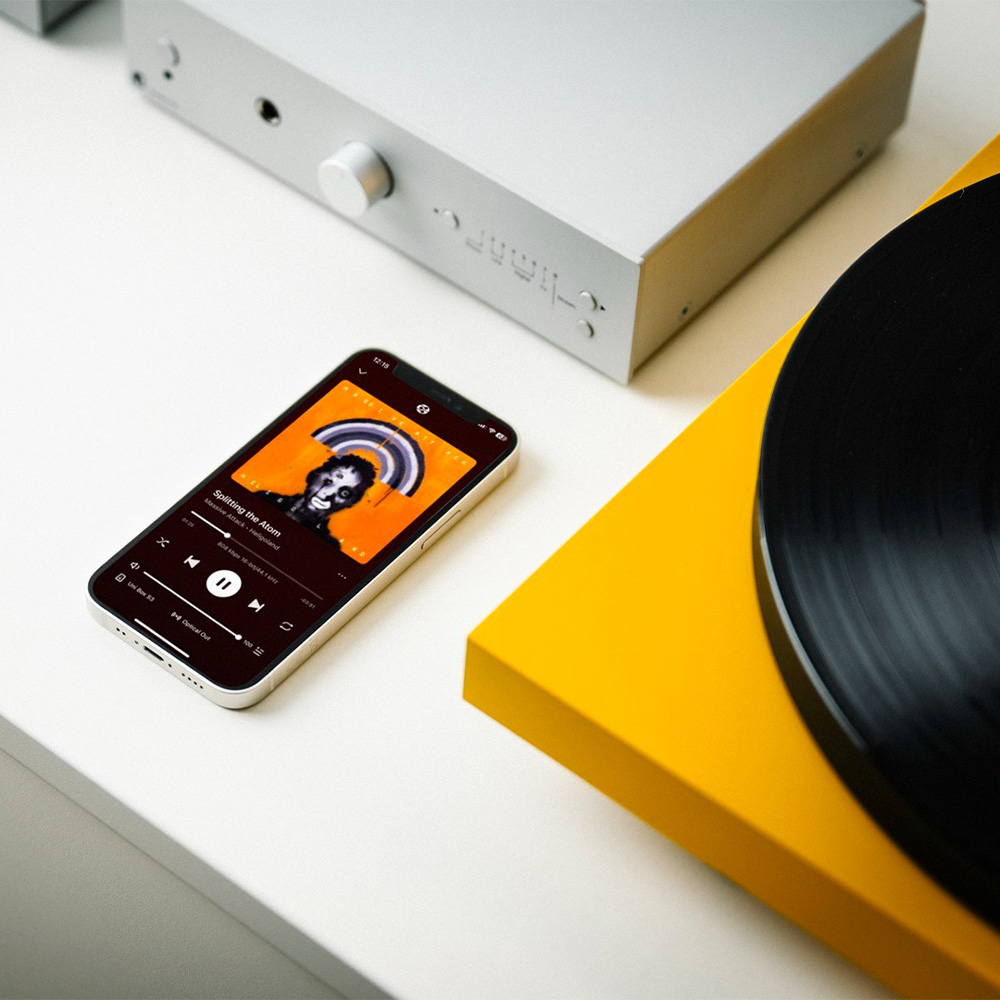

The Project Uni Box S3 amplifier in silver on a white surface with a phone in front of it and a yellow turntable beside it.

The Master of Analogue & Digital

The Uni Box S3 masterfully bridges the worlds of analogue and streaming. Your analogue sources - like turntables - are not digitised, preserving their rich and lifelike sonic character. With a fully analogue pre- & and power amp design, every nuance of your music is delivered with breathtaking punch and dynamic precision. At Pro-Ject Audio Systems, their mastery of analogue hardware design allows them to craft an astonishingly powerful amplifier within the sleek, compact aluminium case of the Uni Box S3. All this power remains usable entirely without a mobile app or the need to constantly update software.

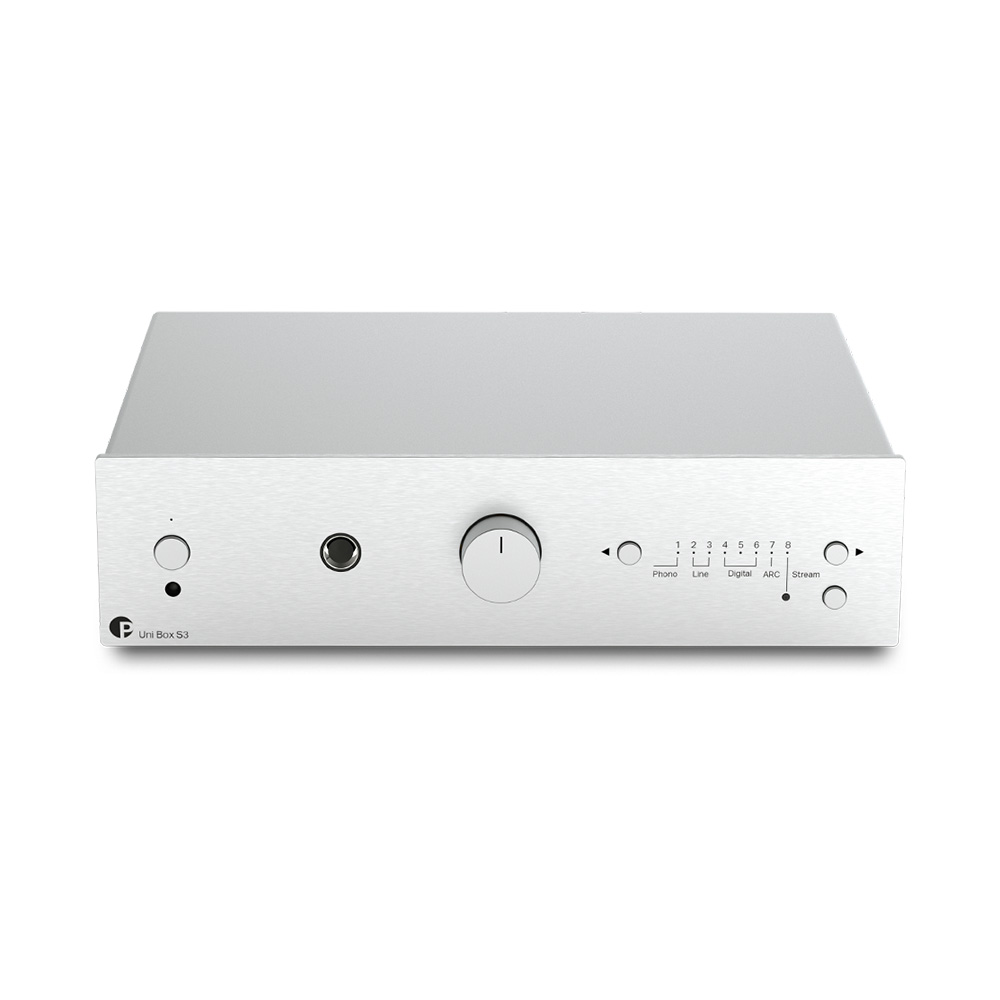

The Project Uni Box S3 amplifier in silver on a dark background

Market Leading Streaming

Partnering with WiiM, the Uni Box S3 streaming technology is powered by the industry leading WiiM OS™. The Cirrus Logic CS4344 DAC offers a high quality resolution of up to 24bit and 192kHz.

With the Pro-Ject Home app you control the streaming options on input 8 - the streaming input. Setting up the WiFi connection is a breeze. Just open the app and it automatically detects your new Uni Box S3 and walks you through the setup process. Comfortably reset the WiFi connection via long press of the Stream button on the front panel.

The Uni Box S3 even allows you to stream any of your connected devices - turntable, CD player or even TV - to other compatible streamers.

Specifications
  • Power output: 2x 23W / 40W at 8 / 4ohms (1% THD)
  • Frequency response (20Hz - 20kHz): < 0,4 - 0,9dB @4ohms
  • Channel separation: - 67dB at 10kHz
  • Signal to noise ratio: 94dB (9dB-‚A‘ weighted) @4ohm
  • THD: < 0,05% at 10W / 4 ohms
  • Headphone amplifier: 70mW at 32ohm (1%THD)
  • Analogue inputs: 2x pair RCA, 1x phono MM (RCA)
  • Digital inputs: RCA coax, 2 x Toslink, eARC, WiFi/BT
  • Power amplifier: Texas Instruments TPA3221DDV
  • DA-converter: Cirrus Logic CS4344 24bit/192kHz
  • Variable output: 1x pair RCA
  • Speaker connectors: 4mm Ø banana plugs, spades connectors or naked wire
  • Wireless connectivity: Wi-Fi 5, 802.11 b/g/n/ac 2.4 G and 5G dual bands, Bluetooth 5.1, SBC and AAC
  • Power supply: 20V/3A DC; 100 - 240V, 50/60Hz
  • Standby Power consumption: < 0,5 watts
  • Dimensions WxHxD: 206x55x153 (176mm with sockets)
  • Weight: 1100g without power supply
