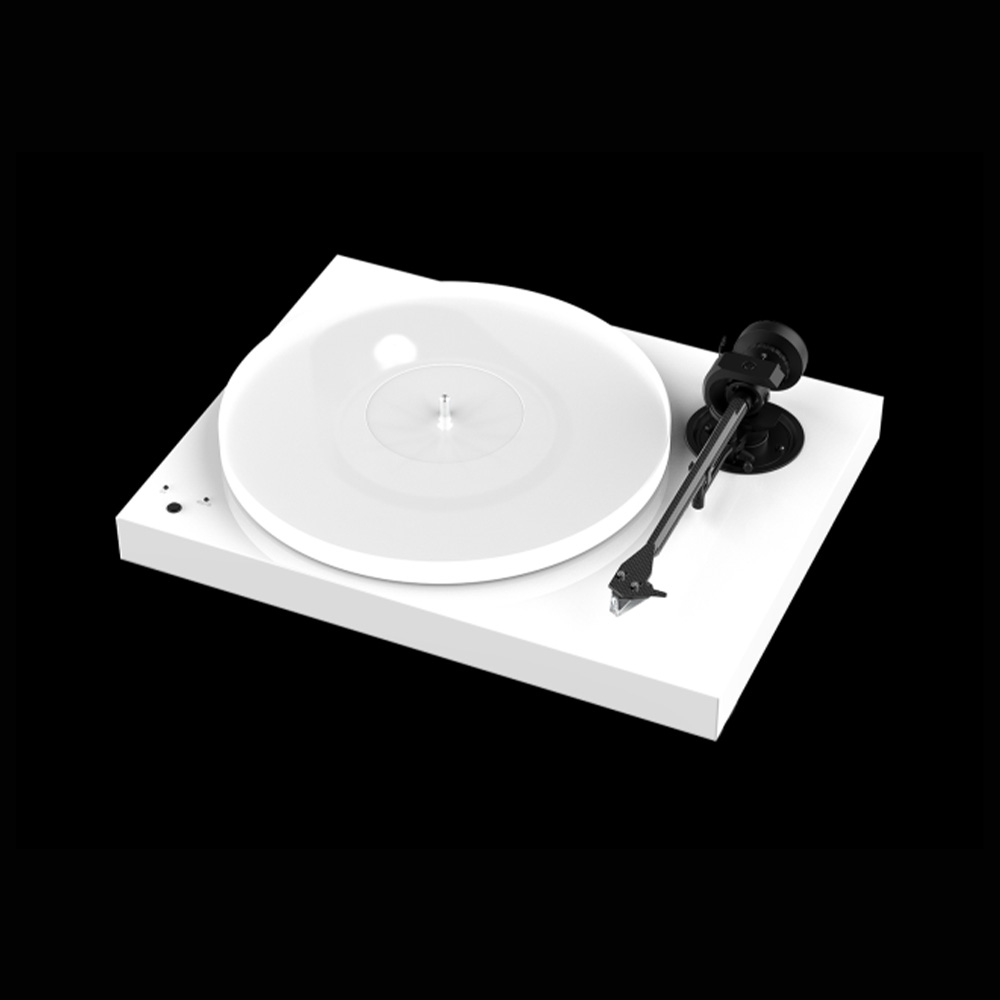

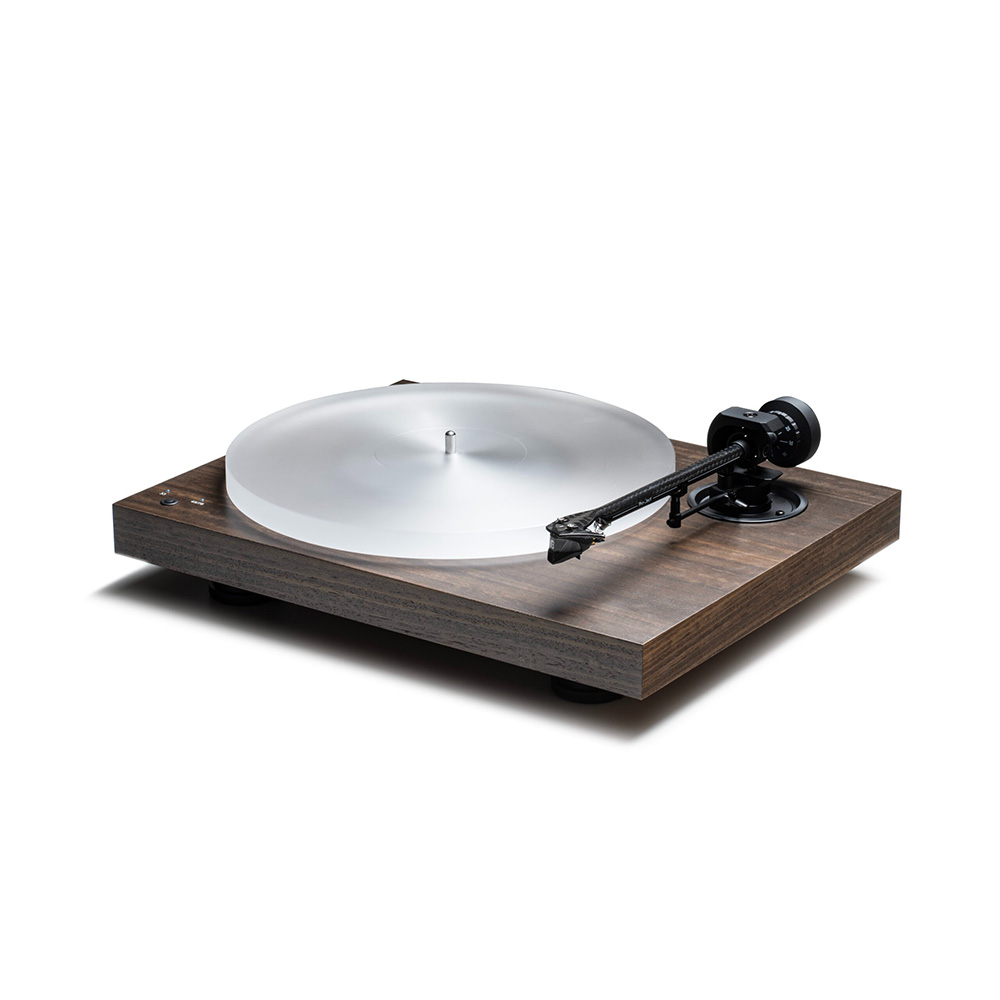

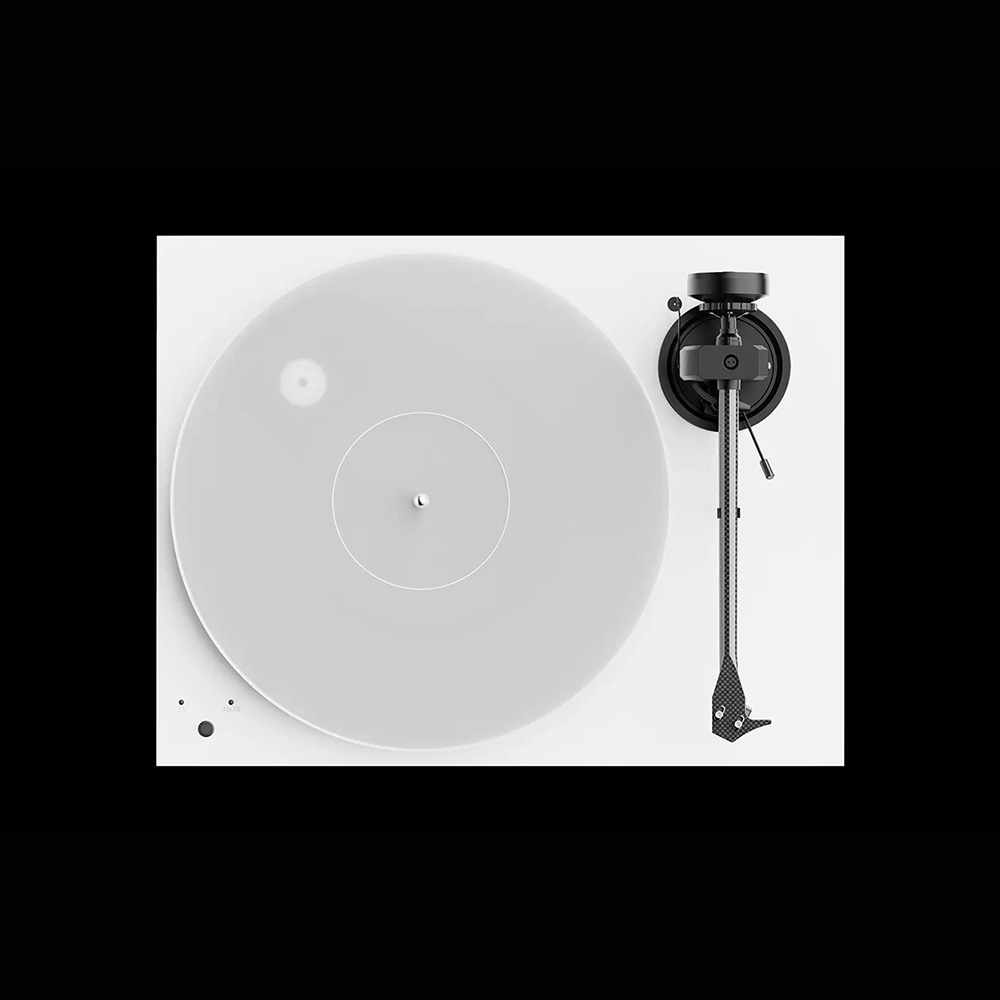

Project X1 B Turntable
Welcome to a new generation of X-Line turntables

True Balanced
Unleash the full power - simply upgrade your X1 B to a MC cartridge, connect it with one of our new True Balanced Phono Cables to your phono preamp and benefit from an interference-free signal with increased dynamics & lower noise level.
Mini XLR Output
One cable connects it all - we offer a wide range of balanced phono cables with different connectors to fit all our phono preamps. If you want to use your X1 B with a Phono Box S3 B you need a „Connect it Phono Mini XLR / Mini XLR“.
Balanced
A perfect match - Pair your X1 B with one of our new balanced Phono Boxes and benefit from a fully balanced signal transmission to your phonp preamplifier. Check out our new Phono Box S3 B & DS3 B for further information.
PRO Balanced

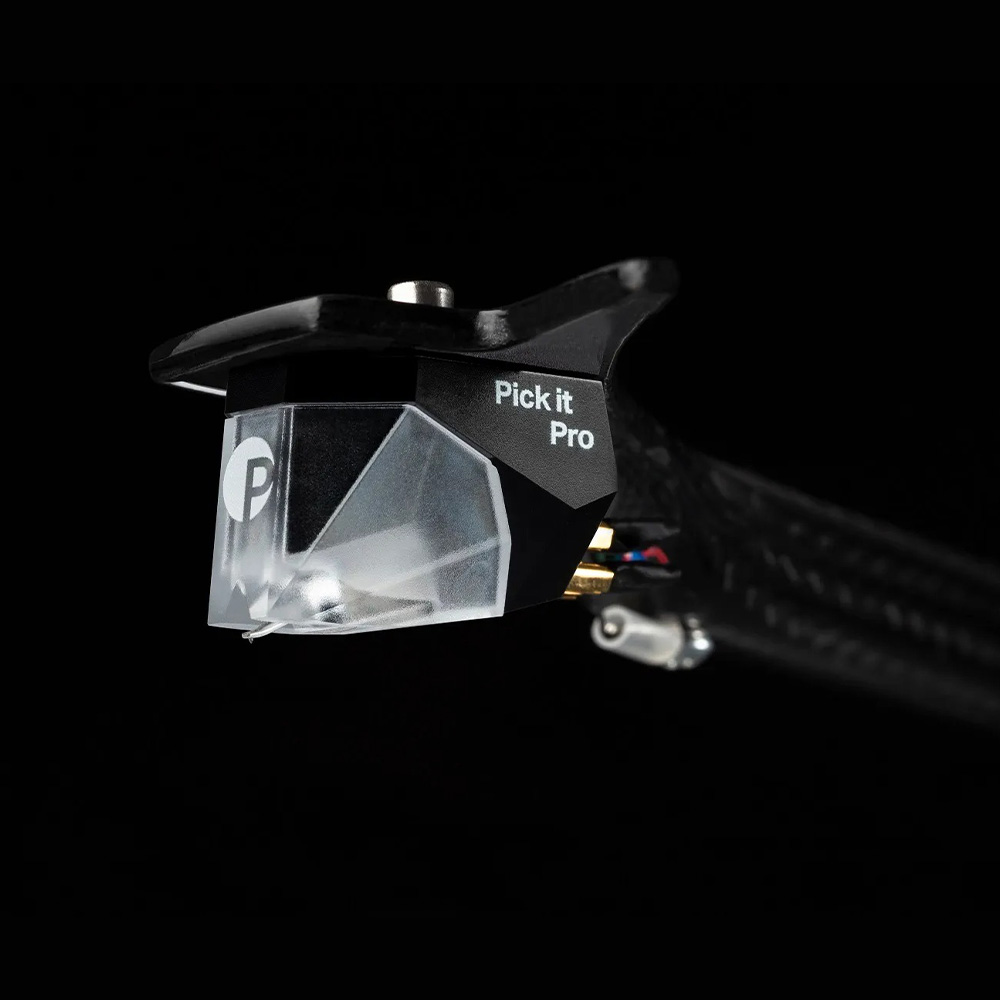

NEW balanced cartridge - now with pre-adjusted Pick it PRO Balanced cartridge. (Upgrade offer available to all customers who purchased the X1 B with Pick it S2 MM)
8,6'' Carbon-Aluminium Tonearm
Finished as a one-piece, with no resonance-inducing headshell, the X1 is available with premounted high quality Pick it S2 MM cartridge. Its superstiff and perfectly damped construction provides a perfect tracking of the record groove.
Motor suspension
Stainless steel platter-bearing with soft brass bushing and teflon mirrors together with a new motor suspension for better decoupling of the motor vibrations to tonearm and chassis ensure lowest rumble and noise.
Azimuth & VTA
Fully adjustable - the X1 comes with fully adjustable Azimuth & VTA. It offers you the possibility to modify your X1 as you want it.
Metal Feet
Damped & height adjustable - the three height adjustable damped aluminium feet guarantee the perfect stand & massively reduce risk of acoustical feedback.
1,5 kg Platter
Resonance free acrylic - the perfect platform to place your precious vinyl records, guaranteeing absolute reliability in its performance and sonic character.
33/45/78 RPM
High precision motor control - a sophisticated DC/AC generator board generates clean and stable power to drive the motor. Easily change speed with the push of only a single button.
- Speed: 33, 45, 78 (electronic speed change)
- Principle: belt drive
- Speed variance: 33: 0.30% 45: 0.25%
- Wow & flutter: 33: 0.15% 45: 0.13%
- Platter: 20mm thick, 1.5 kg heavy acrylic
- Main bearing: stainless steel/brass
- Tonearm: 8,6” carbon/aluminium sandwich
- Effective arm length: 218,5 mm
- Overhang: 18 mm
- Effective tonearm mass: 10,0g
- Tracking force range: 0 - 30mN
- Included accessories: 15volts DC /0,8A power supply, Dust cover, Connect it E Phono cable, feltmat
- Power consumption: 5,0 watts max /< 0.3 watt standby
- Dimensions: 415 x 125 x 335 mm (WxHxD)
- Weight: 7 kg net / 9.5 kg gross weight
